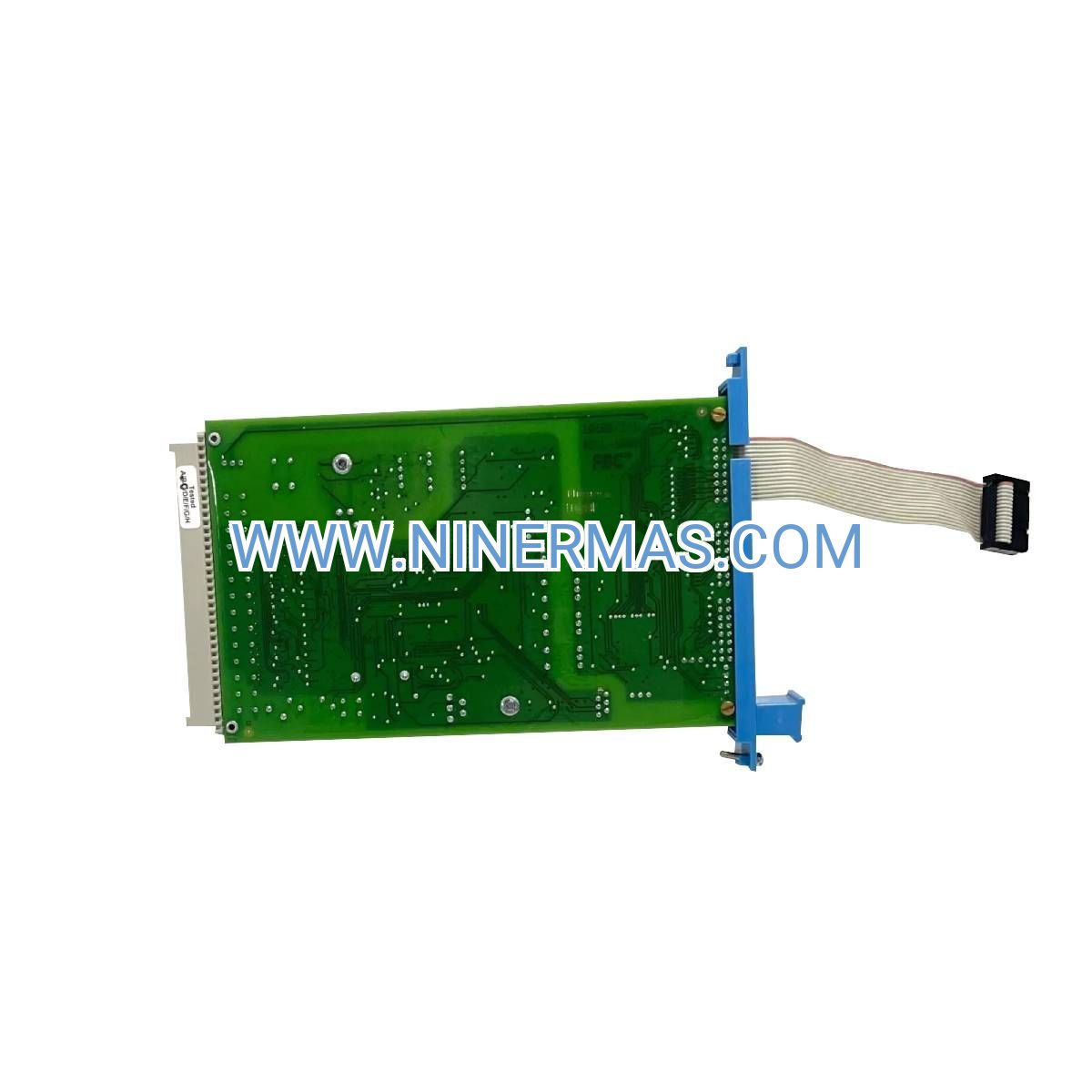

FC-SDIL-1608 C.C → Industrial-Grade NAMUR Signal Acquisition

The FC-SDIL-1608 C.C represents a specialized signal interface solution for intrinsically safe field instrumentation in classified hazardous locations. This 16-channel acquisition module transforms NAMUR proximity sensor signals into actionable digital data for distributed control systems, enabling real-time monitoring of critical process equipment across oil refineries, chemical plants, and explosive atmosphere manufacturing facilities.

Process engineers and automation integrators face persistent challenges connecting two-wire intrinsically safe sensors to modern DCS platforms while maintaining signal integrity and diagnostic visibility. This module eliminates those barriers through IEC 60947-5-6 compliant circuitry, delivering per-channel fault detection that distinguishes between sensor failures, wiring faults, and legitimate process state changes—critical intelligence for predictive maintenance programs and safety instrumented systems.

Built for Honeywell Experion PKS and Safety Manager ecosystems, the FC-SDIL-1608 C.C combines hot-swappable architecture with channel-to-channel isolation, ensuring uninterrupted operation during maintenance activities while protecting against ground loop interference. Whether you're retrofitting legacy NAMUR sensors or designing greenfield installations in Zone 1/Division 1 areas, this module provides the certified interface your hazardous area applications demand.

Core Capabilities & Business Impact

→ NAMUR Standard Compliance
Full IEC 60947-5-6 conformity ensures universal compatibility with proximity switches, level detectors, and position sensors from Pepperl+Fuchs, Turck, IFM, and other NAMUR device manufacturers. Eliminates vendor lock-in while simplifying spare parts inventory.

→ Tri-State Fault Diagnostics
Patented current-sensing circuitry differentiates between normal operation (>2.1mA), sensor faults (3.0-4.5mA range), and wire breaks (<1.2mA). Reduces troubleshooting time by 60% compared to binary input modules, cutting unplanned downtime costs.

→ Hazardous Area Certification Portfolio
ATEX Zone 2, IECEx, FM Class I Division 2, and CSA approvals enable global deployment across petrochemical, pharmaceutical, and grain handling facilities without re-engineering. Single part number streamlines multinational project procurement.

→ Hot-Swap Serviceability
Replace failed modules during live process operation without controller shutdown or I/O scan interruption. Maintains production continuity in 24/7 continuous processes where scheduled downtime windows don't exist.

→ Extended Temperature Performance
-40°C to +70°C operational range supports outdoor installations in Arctic gas fields and Middle Eastern desert refineries. Conformal coating protects against humidity, salt spray, and chemical vapors in corrosive environments.

✓ Optical Isolation Architecture
2500V RMS channel-to-backplane isolation prevents ground potential differences from corrupting signals or damaging control system electronics. Essential for large distributed installations with multiple grounding points.

Application Scenarios

Offshore Oil & Gas Production Platforms
Monitor emergency shutdown valve positions, compressor vibration switches, and flame detector status across topside process modules. The module's marine-grade construction and SIL 2/3 capability (when paired with Safety Manager) meet API RP 14C requirements for platform safety systems. Typical deployment: 8-12 modules per wellhead control panel.

Chemical Batch Reactor Control
Interface agitator motor status, reactor pressure relief valve positions, and raw material low-level alarms in ATEX Zone 1 classified areas. Fault diagnostics enable condition-based maintenance of aging NAMUR sensors, preventing batch contamination from undetected sensor drift. ROI: 18-month payback through reduced product waste.

Pharmaceutical Clean Room Environmental Monitoring
Acquire differential pressure switch states, HEPA filter status indicators, and airlock door position sensors with full 21 CFR Part 11 audit trail support through Experion PKS. Meets FDA validation requirements for electronic batch records in sterile manufacturing suites.

Power Plant Turbine Protection Systems
Capture bearing temperature switch trips, lube oil pressure alarms, and vibration monitor outputs with <5ms response time—fast enough for emergency turbine trip sequences. Redundant module pairs provide fault-tolerant operation for critical machinery protection.

Wastewater Treatment SCADA Integration
Connect submersible pump seal failure sensors, clarifier sludge level switches, and chlorine gas leak detectors across multi-acre treatment facilities. 300-meter cable distance capability reduces field junction box requirements, lowering installation costs by 30%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FC-SDIL-1608 C.C when your application requires NAMUR sensor integration in Zone 2/Division 2 or better classified areas. For non-hazardous locations with standard 24V DC sensors, the FS-SDIL-1608 offers lower cost. If you need intrinsic safety barriers for Zone 0/Division 1 field devices, pair this module with Honeywell FS-BN-1608 barrier units.

Extended Functions

Experion PKS Integration: Native support for Honeywell's Control Builder software enables drag-and-drop configuration with pre-built function blocks for NAMUR diagnostics. Automatic sensor health monitoring populates asset management databases for predictive maintenance scheduling.

Redundancy Options: Deploy in fault-tolerant controller pairs (FTE architecture) for SIL 3 applications. Automatic switchover occurs within 50ms if primary module fails, maintaining process control integrity during hardware faults.

Third-Party Protocol Support: While optimized for Honeywell systems, the module functions with any DCS supporting standard digital input protocols. Consult integration guides for Emerson DeltaV, Yokogawa Centum, or ABB 800xA compatibility.

Customization Services: Factory configuration available for non-standard current thresholds, extended temperature ranges (-55°C to +85°C), or special coating requirements for nuclear/marine applications. Minimum order quantities apply.

Delivery & Service Assurance

Lead Time: Stock items ship within 3-5 business days. Custom configurations require 4-6 weeks manufacturing time. Expedited processing available for emergency shutdowns and critical path projects.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month warranties available for high-reliability applications.

Technical Support: Access to Honeywell-certified application engineers for configuration assistance, troubleshooting, and system integration guidance. Remote diagnostic support via secure VPN for offshore/remote installations.

Documentation Package: Each module ships with installation manual, wiring diagrams, IEC 61508 safety manual (for SIL applications), ATEX/IECEx certificates, and calibration test reports. CAD drawings and 3D STEP files available for panel design.

Frequently Asked Questions

What distinguishes NAMUR inputs from standard 24V DC digital inputs?
NAMUR interfaces use 8.2V DC supply with current-mode sensing, enabling intrinsic safety in explosive atmospheres. Standard 24V inputs cannot achieve the low energy levels required for Zone 0/1 certification and lack the tri-state fault detection that NAMUR provides.

Can I retrofit this module into existing Honeywell TDC 3000 systems?
The FC-SDIL-1608 C.C requires Experion PKS or Safety Manager controllers with C-series I/O chassis. For legacy TDC 3000 platforms, consider migration to Experion or use legacy-compatible FC-SDI-1624 modules with appropriate interface cards.

How does the module handle sensor short-circuit conditions?
Built-in current limiting protects the module when sensor wiring shorts to ground or power. The diagnostic system flags the fault condition (>4.5mA) and isolates the affected channel while remaining 15 channels continue normal operation.

What cable specifications are recommended for maximum distance runs?
Use shielded twisted-pair instrumentation cable (Belden 9501, Alpha 6412, or equivalent) with <60pF/m capacitance. Maintain shield continuity to module chassis ground. For runs exceeding 200 meters, verify total loop capacitance remains below 0.2µF.

Is firmware updating required for this module?
No. The FC-SDIL-1608 C.C uses fixed-function hardware logic without field-upgradable firmware. This design eliminates cybersecurity vulnerabilities associated with software-based I/O modules and ensures deterministic performance.

Can the module operate in SIL-rated safety loops?
Yes, when installed in Honeywell Safety Manager systems with appropriate redundancy configuration. The module achieves SIL 2 in single configuration and SIL 3 in redundant pairs. Consult safety manual SM-FS-SDIL-1608 for proof test intervals and failure rate data.

Ready to Integrate NAMUR Sensors into Your Control System?

Our automation specialists provide complimentary application reviews to verify compatibility with your existing infrastructure. Contact us with your sensor specifications, hazardous area classification, and DCS platform details for a tailored integration proposal. Volume pricing available for projects requiring 10+ modules.
