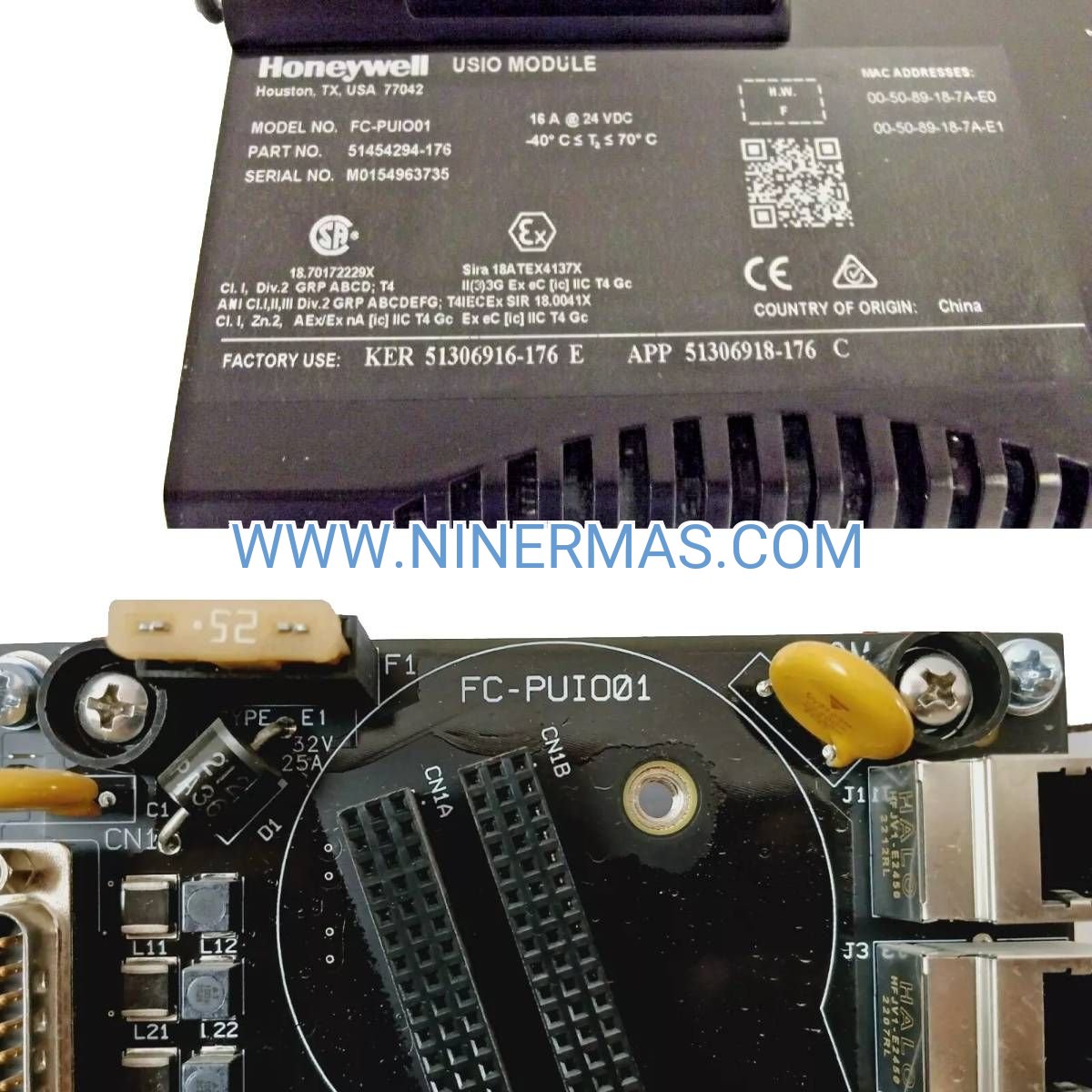

FC-PUIO01 Universal Signal Conditioner (Industrial-Grade I/O Interface)

The FC-PUIO01 (P/N: 51454294-176) represents Honeywell's advanced approach to analog signal conditioning within Fault-Tolerant Controller architectures. Engineered as a single-channel universal input module, this device transforms raw sensor signals—voltage or current—into high-fidelity digital data streams for mission-critical process automation. Industries relying on continuous uptime, from petrochemical refineries to pharmaceutical batch control, depend on the FC-PUIO01's proven reliability and 16-bit resolution to maintain operational integrity.

Designed for engineers managing complex DCS environments, this module eliminates signal degradation through galvanic isolation (1500V DC) and precision A/D conversion. Whether you're retrofitting legacy TDC 3000 infrastructure or deploying greenfield FSC installations, the FC-PUIO01 delivers consistent performance across -40°C to +70°C operating ranges. Its hot-swappable architecture minimizes maintenance windows, while built-in diagnostics provide real-time visibility into signal health and module status.

From temperature transmitters in distillation columns to pressure sensors in hydraulic systems, the FC-PUIO01 serves as the critical interface between field instrumentation and your control logic. Pair it with complementary I/O modules and power supplies to build scalable, redundant automation systems that meet SIL requirements and industry compliance standards.

Core Capabilities & Technical Advantages

✓ Dual-Mode Input Flexibility: Accepts both voltage (-10V to +10V DC) and current (4-20mA) signals without hardware reconfiguration, reducing spare parts inventory and simplifying field wiring. Ideal for mixed-sensor environments where transmitter types vary across process zones.

✓ 16-Bit A/D Precision: Delivers 65,536 discrete measurement points across the input range, enabling detection of subtle process variations that 12-bit systems miss. Critical for applications requiring ±0.1% full-scale accuracy, such as pharmaceutical batch weighing or custody transfer metering.

✓ Fault-Tolerant Architecture: Integrates seamlessly into redundant FSC configurations with automatic failover capabilities. Channel-to-bus isolation (1500V DC) prevents ground loop interference and protects downstream electronics from field-side voltage transients.

✓ Hot-Swap Serviceability: Replace modules during live operation without system shutdown or process interruption. Automatic configuration download from the controller ensures zero-touch commissioning after insertion.

✓ Diagnostic Intelligence: Continuous self-monitoring detects open circuits, short circuits, out-of-range signals, and power anomalies. Alarm conditions propagate to SCADA/HMI systems via standard Modbus or proprietary FSC protocols.

✓ Wide Environmental Range: Operates reliably from -40°C to +70°C with conformal coating options for corrosive atmospheres. Suitable for outdoor enclosures, high-humidity environments, and temperature-cycling applications.

Industrial Deployment Scenarios

→ Petrochemical Process Control: In catalytic cracking units, the FC-PUIO01 conditions signals from RTD temperature transmitters monitoring reactor bed temperatures (300-600°C). The module's noise rejection filters eliminate electrical interference from nearby VFDs and motor starters, ensuring stable PID loop control. Operators gain 0.1°C resolution for precise heat balance calculations and catalyst activity tracking.

→ Water Treatment SCADA: Municipal water facilities deploy the FC-PUIO01 to interface with 4-20mA turbidity sensors, pH transmitters, and flow meters across distributed lift stations. The module's 100ms update rate supports rapid chlorine dosing adjustments, while galvanic isolation protects control room equipment from lightning-induced surges on long cable runs.

→ Pharmaceutical Batch Manufacturing: Clean-in-place (CIP) systems utilize the FC-PUIO01 for conductivity sensor monitoring during rinse cycles. The module's SIL-capable design, when paired with certified safety barriers, meets FDA 21 CFR Part 11 requirements for electronic record integrity. Batch recipe validation relies on the module's timestamp-synchronized data logging.

→ Power Generation Auxiliary Systems: Boiler feedwater control loops depend on the FC-PUIO01 to condition differential pressure transmitter signals (0-10V) from economizer sections. The module's -40°C cold-start capability ensures reliable operation in unheated equipment shelters during winter outages.

→ Food & Beverage Pasteurization: High-temperature short-time (HTST) pasteurizers use the FC-PUIO01 to monitor product temperature at critical control points. The module's fast response time (100ms) enables tight temperature band control (±0.5°C), reducing energy consumption while maintaining pathogen kill rates.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the FC-PUIO01 when your application requires universal input capability (voltage or current) with high accuracy. For multi-channel density, consider deploying multiple modules on a shared FSC backplane. Ensure your power supply can deliver 3W per module with 20% overhead for inrush current. Verify cable shield grounding practices to maximize the 1500V isolation effectiveness.

Advanced Integration & Customization

IoT Connectivity: The FC-PUIO01 integrates with Honeywell's Experion PKS platform for cloud-based analytics and predictive maintenance. OPC UA server functionality enables data exchange with third-party MES and ERP systems, supporting Industry 4.0 initiatives.

Redundancy Configurations: Deploy dual FC-PUIO01 modules in parallel with automatic switchover logic for SIL 2/3 safety instrumented functions. The FSC controller manages input voting and fault detection without external programming.

Custom Calibration: Factory calibration certificates traceable to NIST standards are available for regulated industries. Field recalibration procedures use software-based zero/span adjustments without potentiometer access, maintaining enclosure integrity in hazardous areas.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh orders with custom calibration or conformal coating options.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship failures. Extended 36-month plans available for critical spares programs.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system integration guidance. Remote diagnostic services available via secure VPN connections.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample ladder logic for common PLC platforms (Modicon, Allen-Bradley, Siemens).

Frequently Asked Questions

Q: Can the FC-PUIO01 handle thermocouple inputs directly?
A: No, thermocouples require cold-junction compensation and millivolt-range inputs. Use a dedicated thermocouple transmitter (4-20mA output) to interface with the FC-PUIO01, or select Honeywell's TC input modules for direct thermocouple connection.

Q: What is the maximum cable length for 4-20mA signals?
A: Up to 1000 meters (3280 feet) with 18 AWG shielded twisted-pair cable. Voltage drop across the cable must not exceed the transmitter's compliance voltage specification (typically 10-12V for 24V loop-powered devices).

Q: Does the module support HART protocol communication?
A: The FC-PUIO01 passes HART signals transparently but does not decode digital data. For HART variable extraction, use a HART multiplexer or gateway device in conjunction with the analog input module.

Q: How do I configure the module for voltage versus current input?
A: Configuration is software-based through the FSC controller's engineering workstation. Select the input type (V or mA) and scaling parameters in the I/O database; no jumpers or DIP switches require adjustment.

Q: What certifications does the FC-PUIO01 hold for hazardous area installations?
A: The module itself is suitable for Zone 2 / Division 2 locations when installed in appropriate enclosures. For Zone 0/1 or Division 1 applications, pair with intrinsically safe barriers (e.g., MTL, Pepperl+Fuchs) to protect field devices.

Q: Can I mix FC-PUIO01 modules with other I/O types on the same FSC rack?
A: Yes, the FSC backplane supports heterogeneous I/O mixing. Combine analog inputs, digital outputs, and specialty modules (counters, RTD) in any slot configuration. Observe power budget limits (total rack consumption) per the FSC installation manual.

Ready to Optimize Your Signal Conditioning Architecture?

The FC-PUIO01 delivers the precision, reliability, and flexibility demanded by modern industrial control systems. Whether you're upgrading aging infrastructure or designing new automation platforms, this module provides a future-proof foundation for analog I/O requirements.

Contact our technical sales team today to discuss your application requirements, receive customized wiring diagrams, and obtain project-specific pricing for volume deployments. Our engineers are ready to support your system integration from concept through commissioning.
