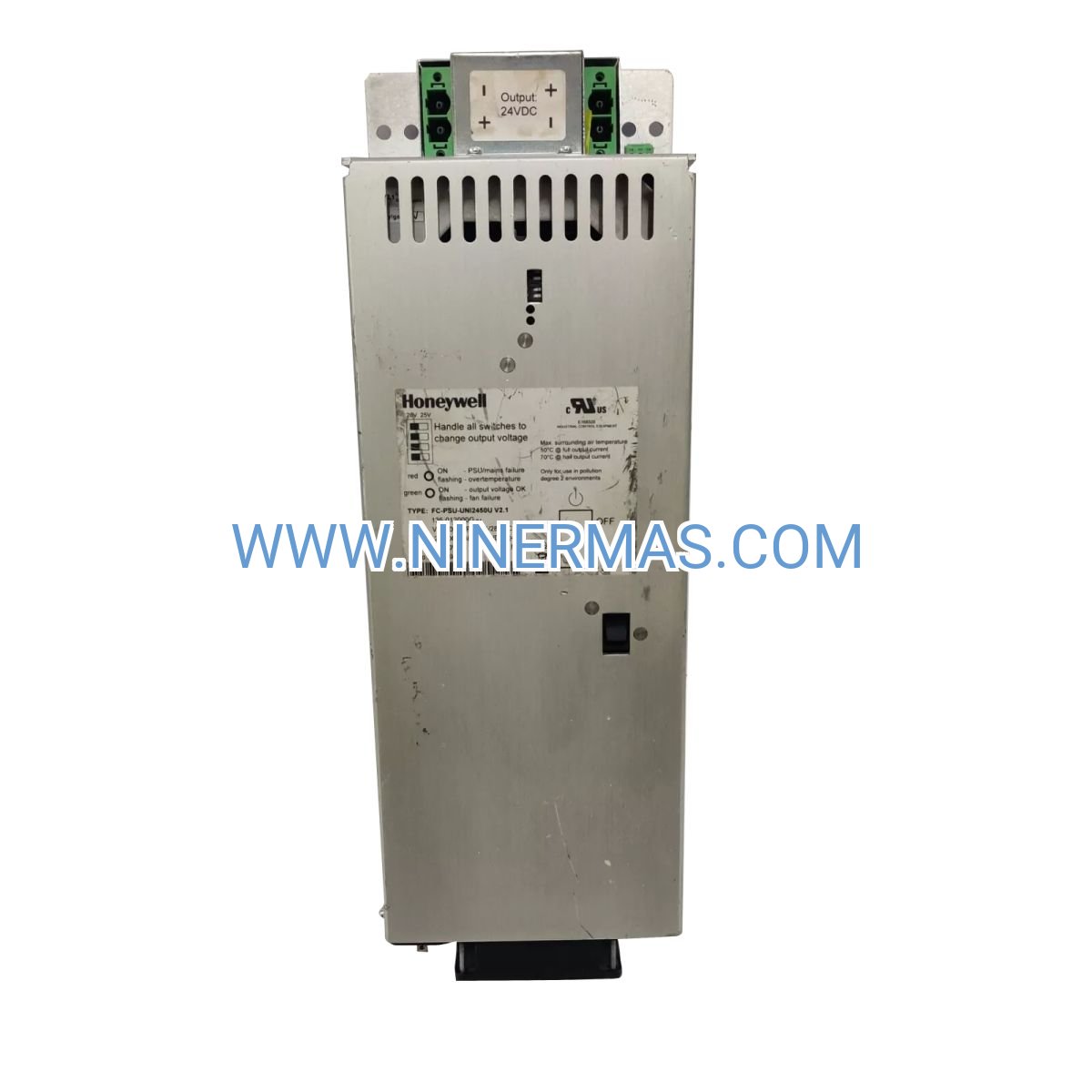

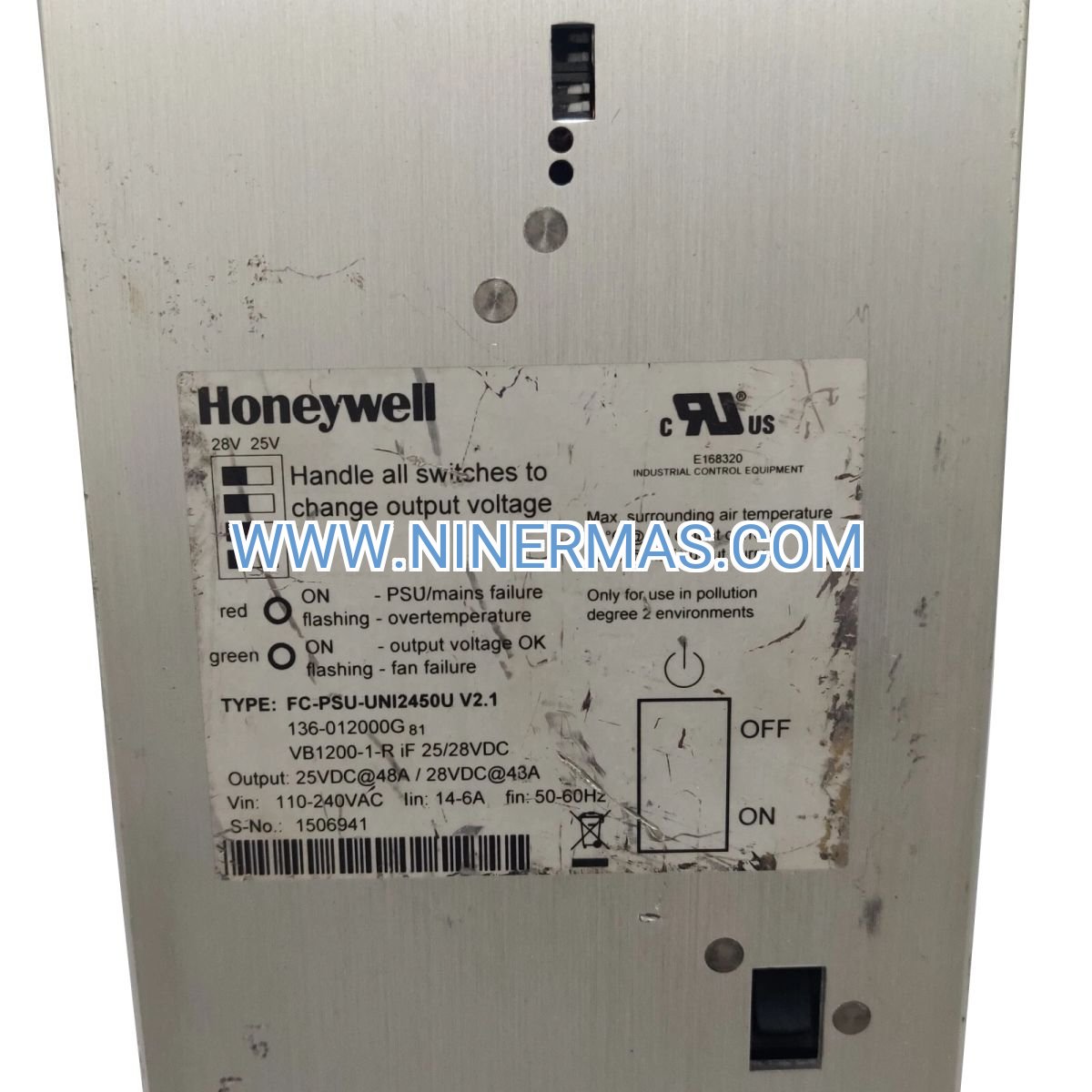

FC-PSU-UNI2450U Industrial-Grade Power Supply for Mission-Critical DCS Applications

The FC-PSU-UNI2450U represents Honeywell's commitment to uninterrupted process control operations. Engineered specifically for Experion Series C and Fail Safe Controller (FSC) architectures, this universal power supply unit delivers consistent 24-50VDC output at 50A nominal capacity, ensuring your distributed control systems maintain peak performance even under demanding industrial conditions.

Designed for facilities where downtime translates directly to revenue loss, this power module addresses the critical challenge of maintaining stable voltage supply across complex automation networks. Process engineers and plant operators in chemical processing, oil & gas refining, and pharmaceutical manufacturing rely on this PSU to eliminate voltage fluctuations that compromise control accuracy and system reliability.

With hot-swappable architecture and redundancy support, the FC-PSU-UNI2450U enables maintenance without production interruption while delivering >90% energy efficiency to reduce operational costs. Advanced diagnostics provide real-time visibility into power health, allowing predictive maintenance strategies that prevent unexpected failures.

Core Capabilities & Business Impact

✓ Zero-Downtime Serviceability
Hot-swap design allows technicians to replace units during operation without halting production processes. Facilities report average maintenance windows reduced from 4 hours to under 15 minutes, translating to $50,000+ savings per incident in high-value manufacturing environments.

✓ Redundant Configuration Support
Seamlessly integrates into N+1 redundancy schemes, automatically load-sharing across multiple units. When one PSU requires service, remaining units instantly compensate without voltage sag or system alerts—critical for SIL-rated safety systems.

✓ Wide Input Voltage Tolerance
85-264 VAC acceptance range with active power factor correction handles unstable grid conditions common in remote facilities and emerging markets. Eliminates need for costly voltage regulation equipment while maintaining clean DC output.

→ Multi-Layer Protection Architecture
Integrated overvoltage, overcurrent, and short-circuit safeguards protect downstream I/O modules and field devices valued at $100,000+ per cabinet. Self-diagnostic routines detect degradation before failure occurs.

→ Superior Energy Efficiency
Exceeds 90% conversion efficiency across full load range, reducing heat generation by 30% compared to legacy PSUs. Lower thermal output extends cabinet component lifespan and reduces HVAC requirements in control rooms.

→ Universal System Compatibility
Drop-in replacement for aging TDC 2000/3000 power modules while supporting latest Experion PKS platforms. Single SKU simplifies spare parts inventory and reduces procurement complexity across multi-generation installations.

Industry Applications & Problem Resolution

Chemical Processing & Batch Manufacturing
Maintains precise voltage regulation during high-current draw events when multiple valve actuators and variable frequency drives activate simultaneously. Prevents recipe deviations caused by momentary voltage drops that corrupt analog signal integrity. Facilities running 24/7 batch cycles report 99.97% power availability.

Oil & Gas Upstream Production
Operates reliably in extreme temperature environments (-40°C to +60°C) common in offshore platforms and desert wellhead installations. Withstands voltage transients from generator switching and lightning-induced surges. Reduces unplanned shutdowns that cost $500,000+ per day in lost production.

Pharmaceutical Clean Room Systems
Meets stringent electromagnetic compatibility requirements for environments with sensitive analytical instruments. Low-noise output prevents interference with chromatography systems and spectrophotometers. Supports FDA 21 CFR Part 11 compliance through comprehensive diagnostic logging.

Power Generation & Utilities
Provides stable power for turbine control systems, boiler management, and emissions monitoring networks. Redundant configurations ensure continuous operation during grid disturbances. Utilities leverage diagnostic data for condition-based maintenance programs that extend asset lifecycles.

Pulp & Paper Continuous Processing
Handles high-vibration environments and corrosive atmospheres typical of paper mills. Conformal coating protects against moisture and chemical exposure. Supports distributed I/O networks spanning 1000+ meters with minimal voltage drop.

Technical Specifications & Selection Criteria

Sizing Guidance: Calculate total I/O module current draw and add 25% safety margin. For redundant configurations, each PSU must handle 100% of load independently. Typical Experion C300 controller with 8 I/O cards draws 18-22A; size accordingly for expansion.

Advanced Integration Features

Predictive Diagnostics & Health Monitoring
Embedded microprocessor continuously monitors output voltage ripple, current draw patterns, and internal temperature. Diagnostic data streams to Experion Station via backplane communication, enabling trend analysis that predicts failures 30-90 days in advance. Maintenance teams receive automated alerts when performance deviates from baseline parameters.

Seamless Redundancy Coordination
Intelligent load-sharing algorithm distributes current evenly across parallel units, preventing single-PSU overload scenarios. Automatic switchover occurs within 20 milliseconds when primary unit fails—faster than I/O module brownout thresholds. No external redundancy controller required; units self-coordinate via backplane signals.

Flexible Output Configuration
Field-adjustable voltage setting accommodates mixed I/O requirements within single cabinet. Technicians can optimize voltage for specific field device types without replacing hardware. Supports both current-limited and voltage-regulated modes for specialized applications.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock units; 2-3 weeks for factory-sealed configurations with custom voltage settings or extended temperature ratings.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Direct access to Honeywell-certified engineers for integration assistance, troubleshooting, and performance optimization. Remote diagnostic support available 24/7 for emergency situations.

Documentation Package: Includes installation manual, wiring diagrams, dimensional drawings, and Experion system integration guide. CAD models (STEP/IGES) and 3D PDFs available for cabinet design workflows.

Frequently Asked Questions

How does the FC-PSU-UNI2450U integrate with existing Experion C200 controllers?
The unit provides backward compatibility with C200 systems through standard backplane connections. While optimized for Series C architectures, it functions as a drop-in replacement for legacy PSUs in C200 cabinets. Voltage output may require field adjustment to match original specifications—consult installation guide Section 4.2 for configuration procedures.

What current capacity should I specify for a cabinet with 12 analog input cards and 8 digital output modules?
Typical analog input cards draw 1.2-1.8A each (14.4-21.6A total), while digital output modules consume 2.5-3.2A depending on field device loading (20-25.6A total). Combined maximum draw: 41.6-47.2A. The 50A unit provides adequate headroom; however, for future expansion or redundancy, consider dual-PSU configuration with each sized for full load.

Can this power supply operate in high-humidity coastal environments?
Yes, the unit is rated for 10-90% relative humidity (non-condensing) during operation. Conformal coating on circuit boards provides additional protection against moisture and salt spray. For installations in corrosive atmospheres (offshore platforms, chemical plants), specify optional environmental sealing during procurement. Regular inspection of ventilation ports recommended in extreme conditions.

Does the hot-swap capability require special installation procedures?
No specialized tools or shutdown sequences required. The unit features keyed connectors that prevent incorrect insertion and built-in discharge circuits that safely dissipate stored energy. Standard procedure: (1) Verify redundant PSU is active, (2) Release retention clips, (3) Extract unit with steady pull, (4) Insert replacement until connectors fully seat, (5) Verify LED indicators. Total swap time: under 60 seconds.

What diagnostic parameters are accessible through Experion Station software?
Real-time monitoring includes: output voltage (±0.1V resolution), load current (±0.5A accuracy), input voltage status, internal temperature, fan speed (if equipped), cumulative operating hours, and fault history log (last 50 events). Trend data supports predictive maintenance algorithms. Diagnostic access requires Experion Station v5.1 or later with appropriate user permissions.

Is the FC-PSU-UNI2450U compatible with third-party DCS platforms?
While engineered for Honeywell systems, the unit can power generic 24VDC I/O racks and field devices from other manufacturers. However, advanced diagnostics and hot-swap coordination require Experion backplane communication. For non-Honeywell applications, the PSU functions as a high-reliability industrial power source without integrated monitoring features.

Request Technical Consultation

Our application engineers provide complimentary system assessments to determine optimal power architecture for your specific installation. Whether upgrading legacy infrastructure or designing new control cabinets, we'll specify the right combination of PSUs, redundancy schemes, and protection devices to meet your uptime objectives.

Contact our team today: Share your I/O configuration, environmental conditions, and reliability requirements to receive a detailed power budget analysis and product recommendation within 24 hours.
