FC-PDB-IO05 Power Distribution Board (Industrial-Grade FSC System Component)

The FC-PDB-IO05 represents Honeywell's commitment to delivering robust power distribution solutions for Fault-Tolerant System Controller (FSC) architectures. This industrial-grade board ensures stable voltage regulation and efficient power routing across multiple I/O modules within critical control environments.

Designed for process industries requiring uninterrupted operation—including oil & gas, chemical processing, and power generation—this distribution board addresses the challenge of maintaining consistent power delivery to field devices while minimizing installation complexity. Engineers and system integrators benefit from its compact footprint, standardized DIN-rail mounting, and multi-agency safety certifications.

Key advantages include CE/UL/TUV/CSA compliance for global deployment, optimized thermal management for extended service life, and compatibility with Honeywell's FSC ecosystem. Whether you're upgrading legacy systems or designing new installations, the FC-PDB-IO05 delivers the reliability your operations demand.

Core Features & Benefits

✓ Multi-Agency Safety Certification
CE, UL, TUV, and CSA approvals ensure compliance with international safety standards, reducing regulatory risk and accelerating project approvals across North America, Europe, and Asia-Pacific markets.

✓ Compact DIN-Rail Architecture
Measuring just 170 × 70 × 46 mm (6.69 × 2.76 × 1.81 in), the board occupies minimal panel space while supporting TS32/TS35 rail standards—ideal for space-constrained control cabinets and retrofit applications.

✓ Dual Connector Configuration

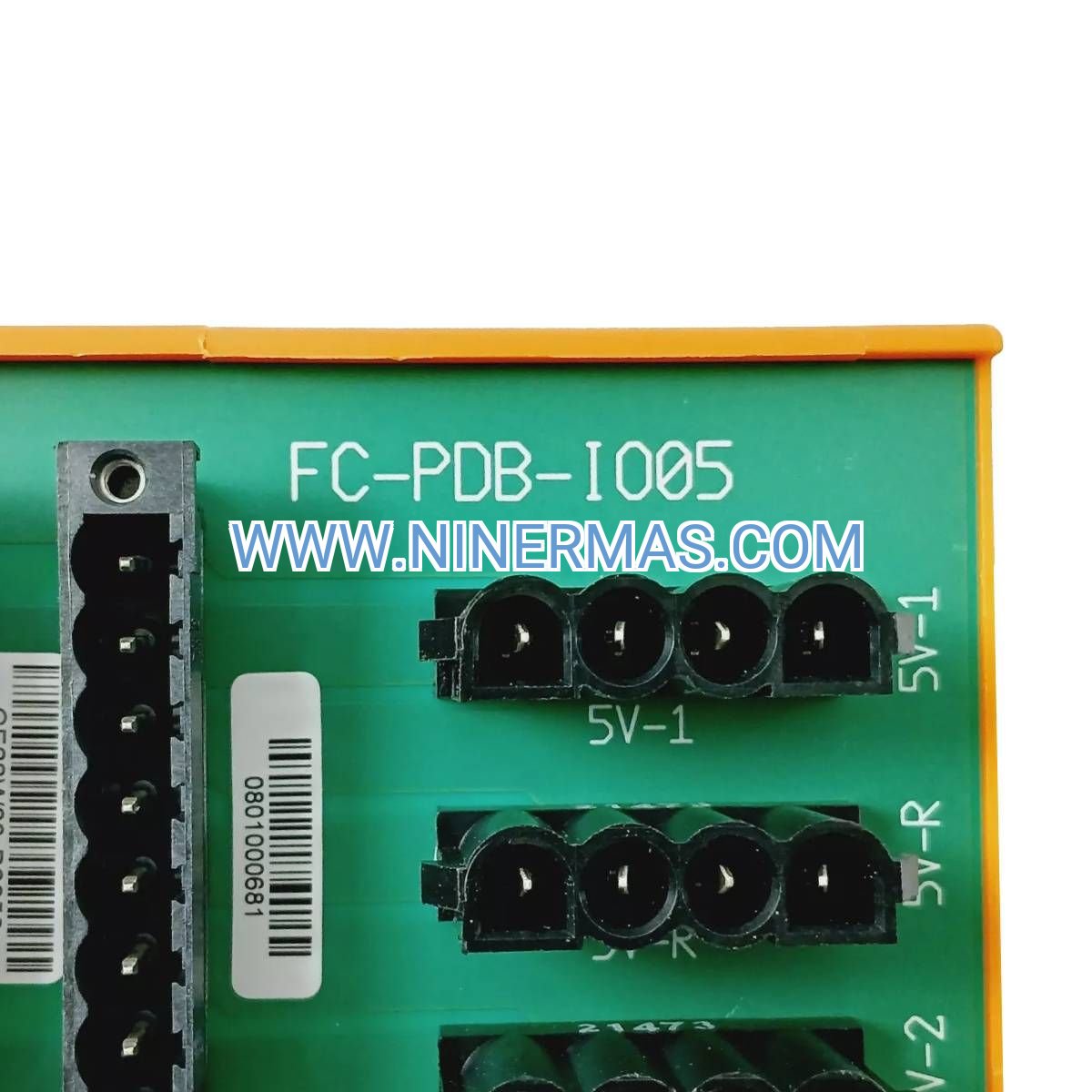

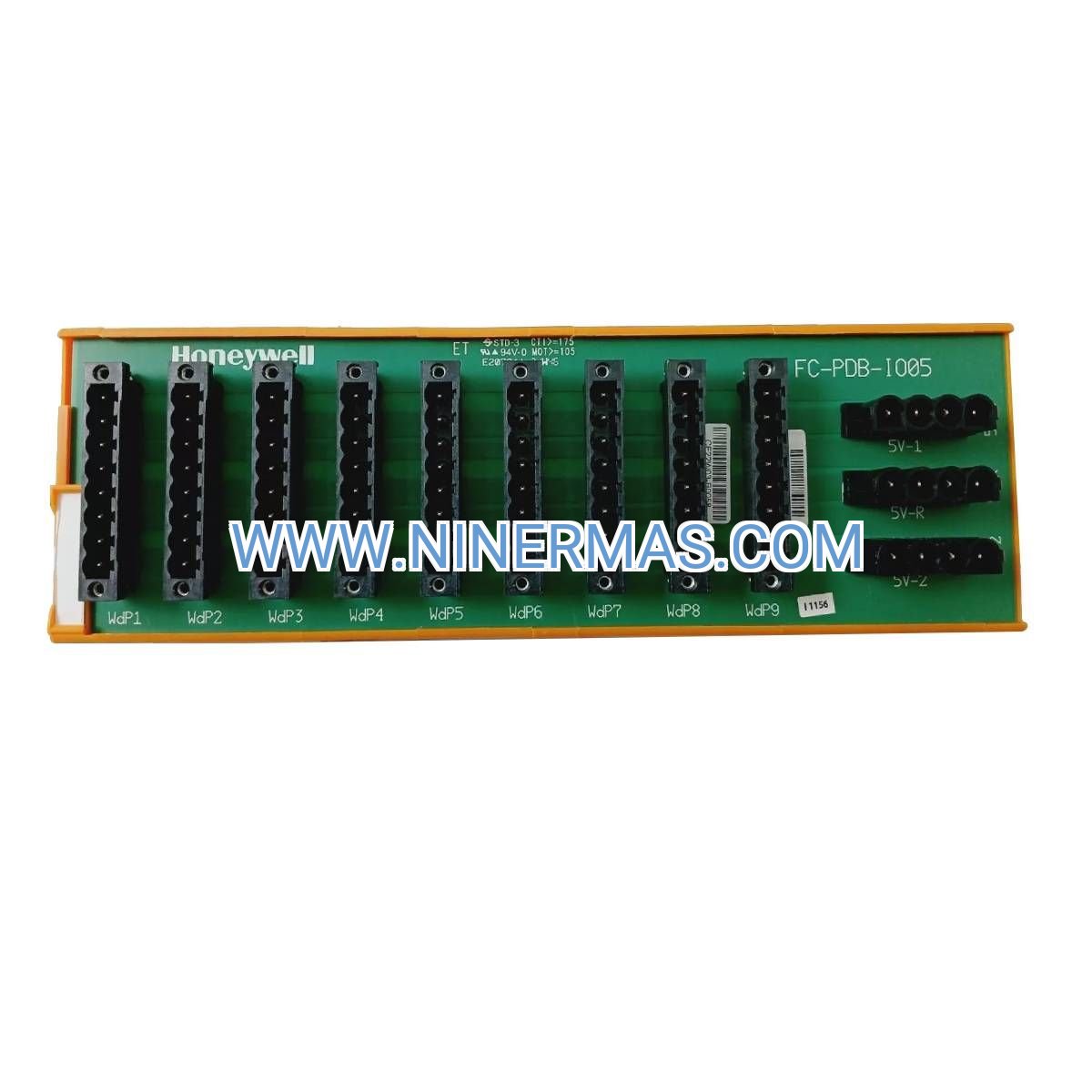

Integrated 5V-x (4-position action pin header) and WdPx (8-pole pin header) connectors enable flexible wiring topologies, simplifying field termination and reducing installation labor by up to 30%.

✓ Industrial Temperature Range
Engineered for harsh environments, the FC-PDB-IO05 maintains stable operation across wide temperature fluctuations, protecting against voltage sag and ensuring consistent I/O module performance.

✓ Honeywell FSC Ecosystem Integration
Seamless compatibility with Honeywell's Fault-Tolerant System Controllers guarantees plug-and-play deployment, eliminating compatibility concerns and accelerating commissioning timelines.

✓ Proven Reliability Track Record
Backed by Honeywell's decades of process automation expertise, this distribution board delivers MTBF (Mean Time Between Failures) rates exceeding industry benchmarks, minimizing unplanned downtime.

Typical Application Scenarios

Scenario 1: Refinery Emergency Shutdown Systems
In petrochemical facilities, the FC-PDB-IO05 powers safety-instrumented systems (SIS) that monitor critical parameters like pressure, temperature, and flow. By providing isolated power channels, it prevents single-point failures that could compromise emergency shutdown sequences, ensuring compliance with IEC 61511 functional safety standards.

Scenario 2: Power Plant Distributed Control Systems
Utility operators deploy this board within DCS cabinets to distribute regulated power to analog input modules, digital output cards, and communication interfaces. Its compact design allows installation in existing panels without costly cabinet modifications, reducing capital expenditure during plant modernization projects.

Scenario 3: Chemical Batch Processing Control
Batch manufacturers leverage the FC-PDB-IO05 to support recipe-driven automation, where precise timing and sequencing depend on stable I/O module operation. The board's noise immunity characteristics prevent false triggers caused by electromagnetic interference from variable frequency drives and high-current actuators.

Scenario 4: Offshore Platform Automation
In marine environments subject to vibration, humidity, and salt spray, the board's rugged construction and conformal coating options maintain power integrity for subsea valve control, wellhead monitoring, and platform safety systems—critical for maintaining production uptime in remote locations.

Scenario 5: Pharmaceutical Clean Room Controls
Life sciences facilities require validated automation systems with full traceability. The FC-PDB-IO05's documented compliance certifications simplify FDA 21 CFR Part 11 validation processes, while its stable power output ensures repeatable control of HVAC, sterilization, and material handling equipment.

Technical Parameters & Selection Guide

Selection Criteria:

→ System Voltage Requirements: Verify compatibility with your FSC controller's power supply specifications (typically 24 VDC nominal).
→ I/O Module Count: Calculate total current draw from connected modules to ensure the board's capacity meets or exceeds demand by 20% margin.
→ Environmental Conditions: Confirm operating temperature range aligns with your installation environment (consult factory for extreme conditions).
→ Certification Requirements: Match approvals to your geographic market and industry regulations (e.g., ATEX for hazardous locations).
→ Cabinet Space Constraints: Measure available DIN-rail length and verify clearance for connector access during maintenance.

Extended Functions

Redundant Power Input Options
For applications demanding fault-tolerant power architectures, the FC-PDB-IO05 can be configured with dual power supply inputs, automatically switching to backup sources during primary supply failures without interrupting I/O module operation.

Diagnostic LED Indicators
Integrated status LEDs provide real-time visual feedback on power rail health, enabling rapid troubleshooting during commissioning and reducing mean time to repair (MTTR) during service calls.

Modular Expansion Capability
Multiple boards can be daisy-chained within a single cabinet to support large-scale I/O configurations, with standardized connector pinouts ensuring consistent wiring practices across distributed control nodes.

Customization Services
NINERMAS offers application-specific modifications including conformal coating for corrosive atmospheres, extended temperature ratings, and custom connector configurations to meet unique project requirements.

Delivery & Service Assurance

Lead Time:
→ Standard units: 3-5 business days (in-stock items)
→ Custom configurations: 2-3 weeks (subject to engineering review)

Warranty Coverage:
→ 12-month manufacturer's warranty covering defects in materials and workmanship
→ Extended warranty plans available for critical infrastructure applications

Technical Support:
→ Pre-sales application engineering assistance
→ Post-sales commissioning guidance via phone/email
→ Access to Honeywell's global service network for on-site support

Documentation Package:
→ Installation quick-start guide
→ Wiring diagrams and connector pinouts
→ Compliance certificates (CE/UL/TUV/CSA)
→ CAD drawings for panel layout planning

Frequently Asked Questions

Q1: How does the FC-PDB-IO05 integrate with existing Honeywell FSC controllers?
The board features standardized connectors that mate directly with Honeywell FSC I/O modules and power supplies. Simply mount the board on DIN rail, connect power input cables, and attach I/O module harnesses—no special adapters or programming required. Consult the installation manual for detailed wiring schematics.

Q2: What is the maximum current capacity per power distribution channel?
While specific current ratings depend on system configuration, typical installations support 5-10 I/O modules per board. For precise load calculations, contact our engineering team with your module list—we'll verify compatibility and recommend optimal distribution architecture.

Q3: Can this power distribution board reduce energy consumption in my control system?
Yes. The FC-PDB-IO05's efficient voltage regulation minimizes heat dissipation compared to linear power supplies, reducing cooling requirements and lowering overall panel energy consumption by 10-15%. This translates to measurable operational cost savings in large installations with hundreds of I/O points.

Q4: What are the installation clearance requirements for proper ventilation?
Maintain minimum 50 mm (2 in) spacing above and below the board for adequate airflow. Side-to-side spacing can be reduced to 10 mm when mounting multiple boards, though 25 mm is recommended for easier cable routing and future maintenance access.

Q5: Does the FC-PDB-IO05 support remote monitoring and diagnostics?
While the board itself doesn't include network connectivity, it integrates with Honeywell FSC controllers that offer Ethernet/IP, Modbus TCP, and OPC UA interfaces. System health data—including power supply status—can be accessed through your plant's SCADA or DCS platform for centralized monitoring.

Q6: Is the FC-PDB-IO05 suitable for hazardous area installations?
The standard version is designed for general industrial environments (Zone 2/Division 2 with appropriate enclosures). For Zone 1/Division 1 applications, consult NINERMAS about intrinsically safe barrier options or explosion-proof enclosure solutions that maintain certification compliance.

Ready to Optimize Your Power Distribution?

Contact our industrial automation specialists today to discuss your FSC system requirements. We'll help you configure the right power distribution solution, provide detailed technical specifications, and arrange fast delivery to keep your project on schedule.

Request a quote now: sale@ninermas.com | +0086 187 5021 5667
