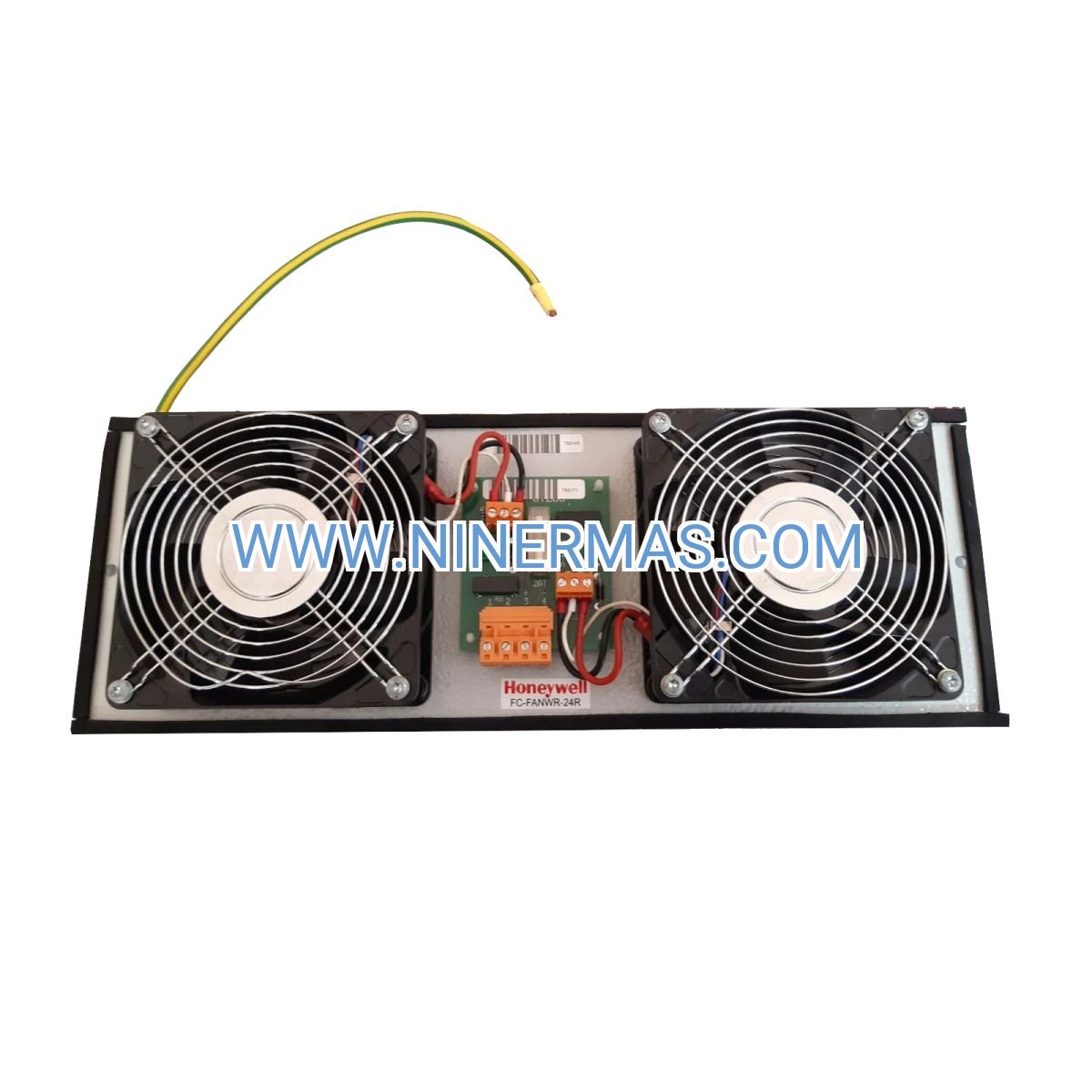

FC-FANWR-24R Industrial Cooling Unit (Dual-Fan Rack Ventilation System)

The FC-FANWR-24R represents a purpose-engineered thermal management solution for mission-critical control infrastructure. Designed specifically for Honeywell ControlEdge HC900 and Safety Manager platforms, this dual-fan assembly delivers continuous airflow with integrated health monitoring—ensuring your automation systems maintain optimal operating temperatures even in demanding industrial environments ranging from -40°C to 70°C.

Process control engineers and system integrators rely on this unit to prevent thermal-induced failures in PLC racks, DCS cabinets, and safety instrumented systems. With real-time readback functionality and visual status indicators, maintenance teams gain immediate visibility into cooling performance, enabling proactive intervention before temperature excursions impact production uptime.

Whether you're retrofitting existing HC900 installations or specifying components for new safety-critical applications, the FC-FANWR-24R combines robust construction, intelligent diagnostics, and proven compatibility to protect your control system investment.

Core Features & Benefits

✓ Dual-Fan Redundancy Architecture
Two independently monitored fans on a single mounting plate eliminate single points of failure. If one fan degrades, the second maintains partial cooling while status alerts trigger maintenance response—minimizing unplanned downtime.

✓ Real-Time Health Monitoring

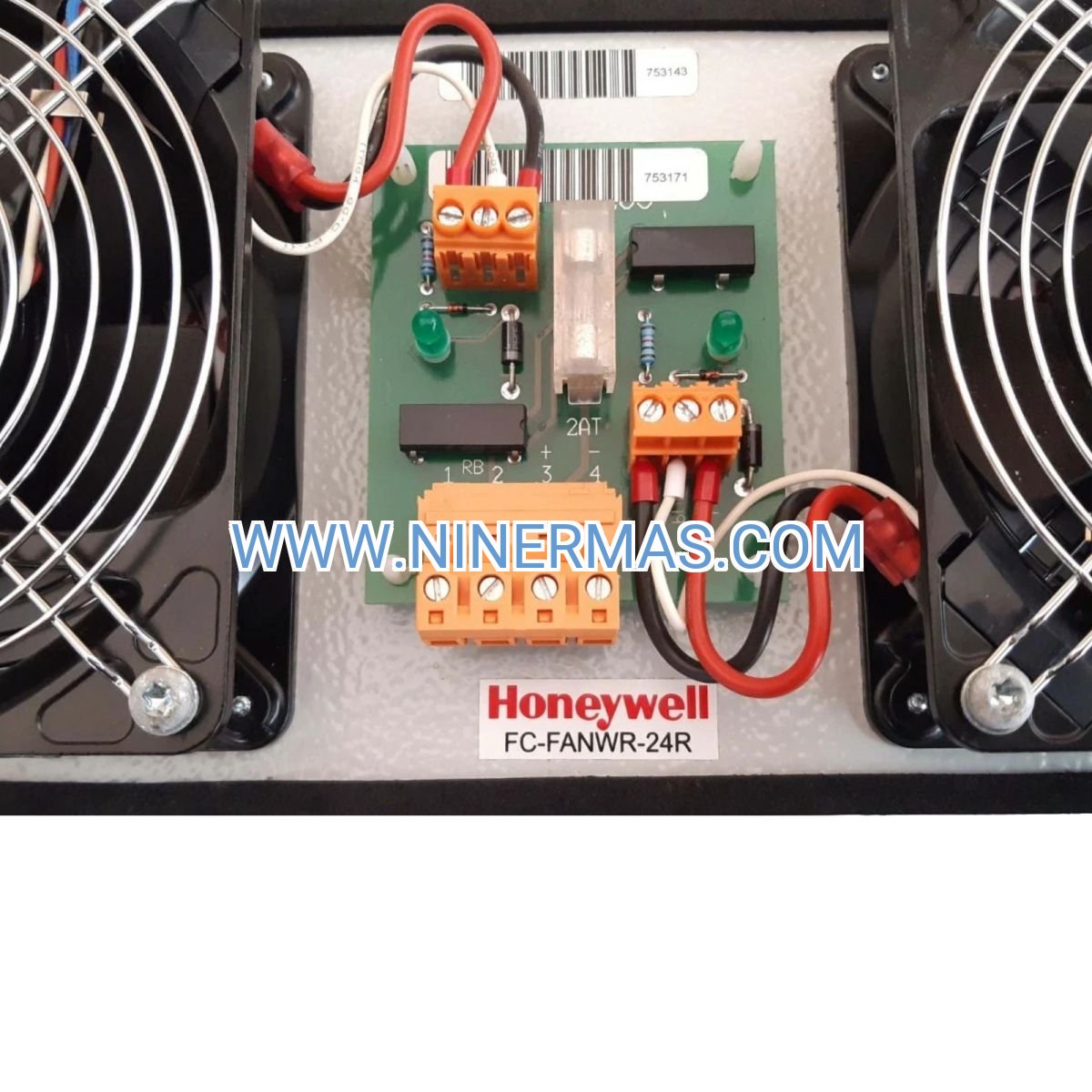

Green LED indicators per fan confirm speed above minimum thresholds, while the readback contact closure provides a discrete signal to your control system when both fans operate normally. Integrate this feedback into your SCADA or DCS for centralized alarm management.

✓ Extended Temperature Range (-40°C to 70°C)
Engineered for extreme climates—from Arctic installations to desert facilities—this unit maintains reliable operation across 110°C ambient span. Reduces need for climate-controlled enclosures in remote sites.

✓ Plug-and-Play HC900 Integration
Factory-configured for ControlEdge HC900 and Safety Manager racks with standardized 4-pole power connector. No custom wiring or adapters required—mount, connect 24 V DC supply, and commission.

✓ Safety-Compliant Design
Integral finger guards on intake and exhaust sides meet CE and UL requirements. HAZLOC-rated construction supports installation in classified areas per NEC/IEC standards.

✓ Bottom-to-Top Airflow Optimization
Directed ventilation path aligns with natural convection currents, maximizing heat extraction from densely populated I/O modules and power supplies in vertical rack configurations.

Typical Application Scenarios

→ Oil & Gas Wellhead Control Systems
In remote production facilities where ambient temperatures swing from freezing winters to scorching summers, the FC-FANWR-24R maintains stable cooling for HC900 controllers managing separator logic, pump sequencing, and emergency shutdown functions. Status monitoring integrates with RTU telemetry for predictive maintenance scheduling.

→ Chemical Process Safety Instrumented Systems (SIS)
Safety Manager platforms require uninterrupted operation to execute protective actions during abnormal conditions. Dual-fan redundancy and readback signaling ensure cooling integrity meets SIL-rated availability requirements, while HAZLOC certification permits installation in Division 2 control rooms.

→ Water Treatment SCADA Cabinets
Municipal and industrial water facilities deploy HC900 systems in outdoor kiosks subject to humidity, dust, and temperature extremes. The FC-FANWR-24R's sealed motor design and wide operating range prevent thermal shutdowns during peak demand periods, while visual LEDs simplify field technician troubleshooting.

→ Power Generation Auxiliary Control Panels
Combined-cycle plants and renewable energy sites use HC900 racks for balance-of-plant control (feedwater, emissions, cooling towers). Continuous airflow from the FC-FANWR-24R prevents heat accumulation in densely packed analog input modules processing thermocouple and RTD signals critical to turbine protection.

→ Mining Conveyor & Crusher Automation
Underground and surface mining operations expose control systems to dust, vibration, and temperature fluctuations. Finger-guarded fans resist particulate ingestion, while robust mounting withstands mechanical shock from nearby crushers and screens—extending mean time between failures (MTBF) in harsh environments.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the FC-FANWR-24R when your application requires (1) HC900/Safety Manager platform compatibility, (2) ambient temperatures beyond standard commercial ranges, (3) remote status monitoring for predictive maintenance, or (4) compliance with hazardous location codes. For non-Honeywell systems, verify mechanical and electrical interface compatibility before ordering.

Extended Functions

SCADA/DCS Integration: Wire the readback contact to a discrete input module on your control system to create alarm conditions when cooling fails. Configure trending to log fan status over time, enabling data-driven replacement intervals based on actual runtime rather than calendar schedules.

Redundant Power Supply Options: For critical applications, consider dual 24 V DC supplies with diode isolation to maintain fan operation during single power source failures. Consult Honeywell application notes for recommended wiring diagrams.

Customization for Extreme Environments: Contact NINERMAS engineering for conformal coating options (salt fog resistance), extended temperature testing reports, or vibration qualification data to support project-specific environmental specifications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders (10+ units) require 2-3 weeks. Expedited delivery available for emergency replacements.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans available for critical infrastructure applications.

Technical Support: Access to Honeywell-certified application engineers for installation guidance, troubleshooting, and system integration questions. Email and phone support during business hours (GMT+8).

Documentation Included: Installation manual, wiring diagrams, dimensional drawings (DWG/PDF), CE/UL certificates, and material traceability reports. Additional documentation (3D CAD models, thermal performance curves) available upon request.

Frequently Asked Questions

Q: How do I connect the FC-FANWR-24R readback signal to my HC900 controller?
A: The readback contact is a dry contact (normally open) that closes when both fans operate above minimum speed. Wire it to any available discrete input module (e.g., HC900 DI module) and configure as a normally-closed alarm—contact opening triggers a cooling failure alert in your HMI.

Q: What is the maximum rack configuration this fan unit can cool effectively?
A: The FC-FANWR-24R is rated for standard HC900 racks up to 12 slots with typical I/O loading (≤150W total dissipation). For high-density configurations with redundant power supplies or analog output modules, consult Honeywell thermal design guidelines or contact NINERMAS for heat load calculations.

Q: Can this unit reduce energy consumption compared to continuous HVAC cooling?
A: Yes—localized rack cooling via the FC-FANWR-24R (typical draw <20W) eliminates the need to air-condition entire control rooms to maintain equipment temperatures. Customers report 30-50% reduction in HVAC runtime in mild climates by using targeted ventilation instead of whole-room cooling.

Q: What are the installation clearance requirements for proper airflow?
A: Maintain minimum 50mm (2") clearance below the intake (bottom) and above the exhaust (top) to prevent recirculation. Avoid blocking airflow paths with cable bundles or adjacent equipment. Refer to installation manual section 3.2 for detailed spacing diagrams.

Q: Does the FC-FANWR-24R support remote monitoring via Ethernet or Modbus?
A: The unit provides a hardwired readback contact only—no native network connectivity. For remote monitoring, integrate the contact closure into your existing control system (PLC, DCS, RTU) which can then expose fan status via Modbus TCP, OPC, or other industrial protocols.

Q: How do I troubleshoot a fan failure indicated by the LED or readback contact?
A: (1) Verify 24 V DC supply voltage at the 4-pole connector, (2) inspect for obstructions in airflow path, (3) check LED status—one green = single fan failure, both off = power or PCB issue. Replace the entire assembly if fans do not restart after power cycle. Contact NINERMAS for RMA procedures and cross-ship options to minimize downtime.

Get Your Quote Today

Protect your control system investment with proven thermal management. Request a quotation for the FC-FANWR-24R or discuss your specific cooling requirements with our industrial automation specialists. Volume pricing available for multi-site deployments and OEM integrators.
