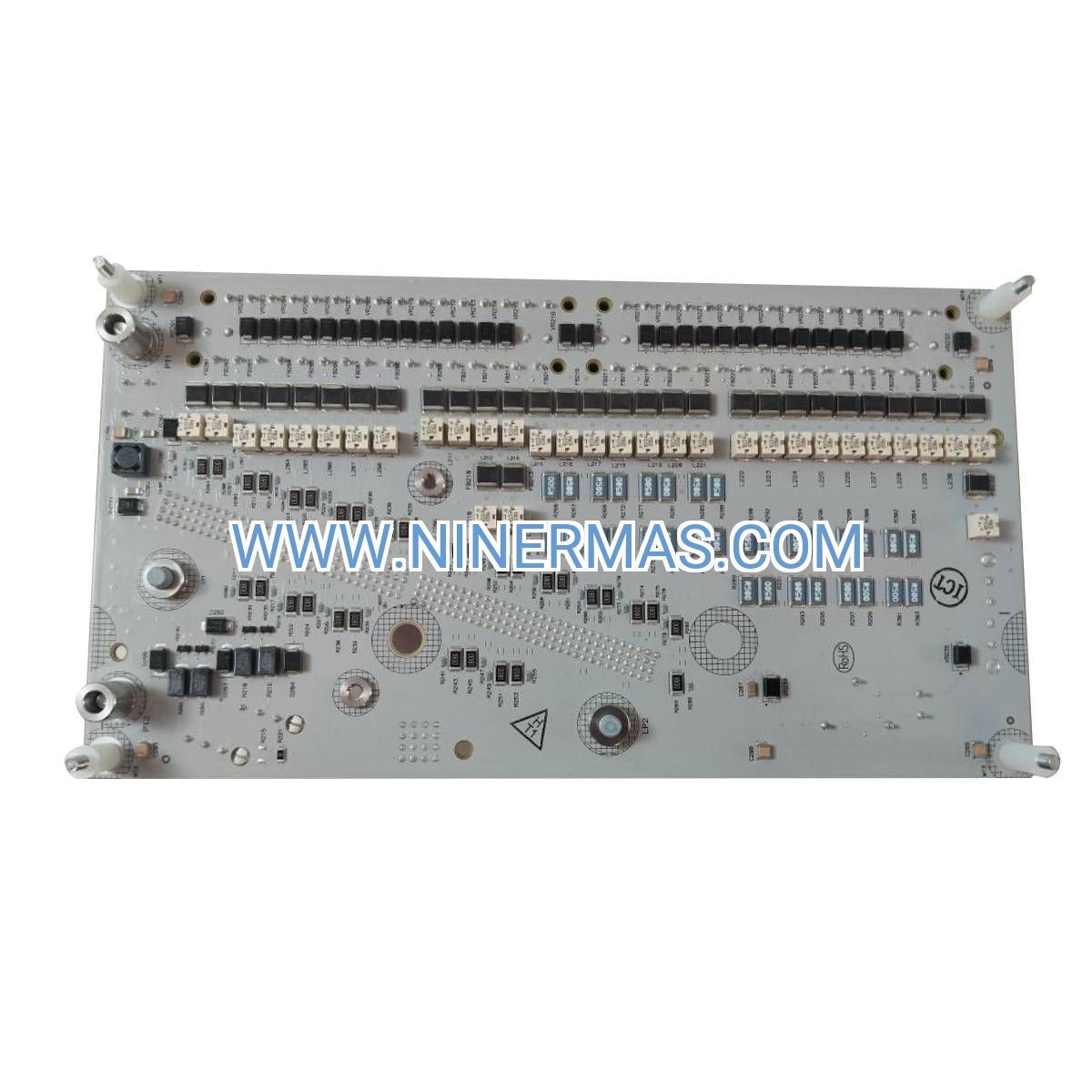

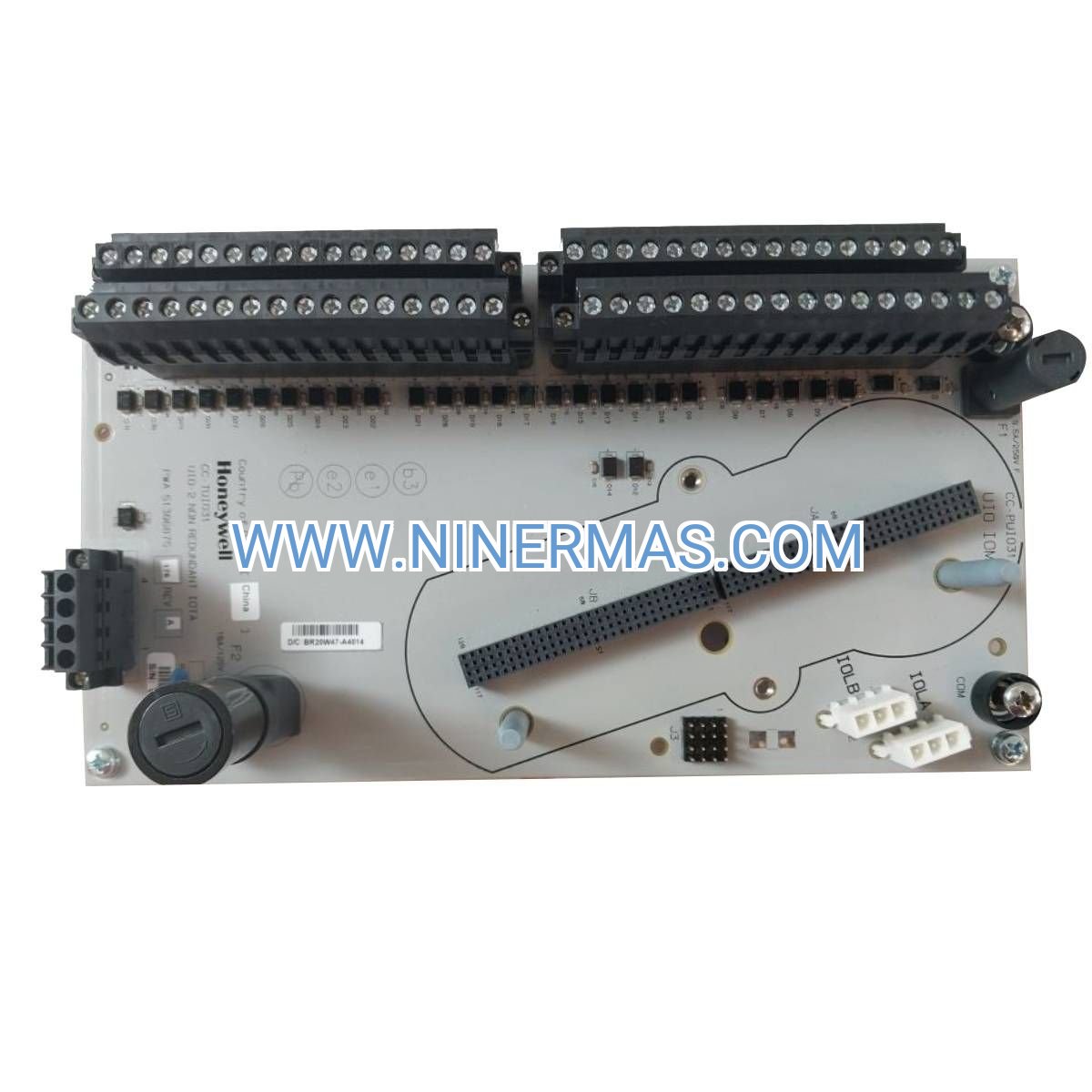

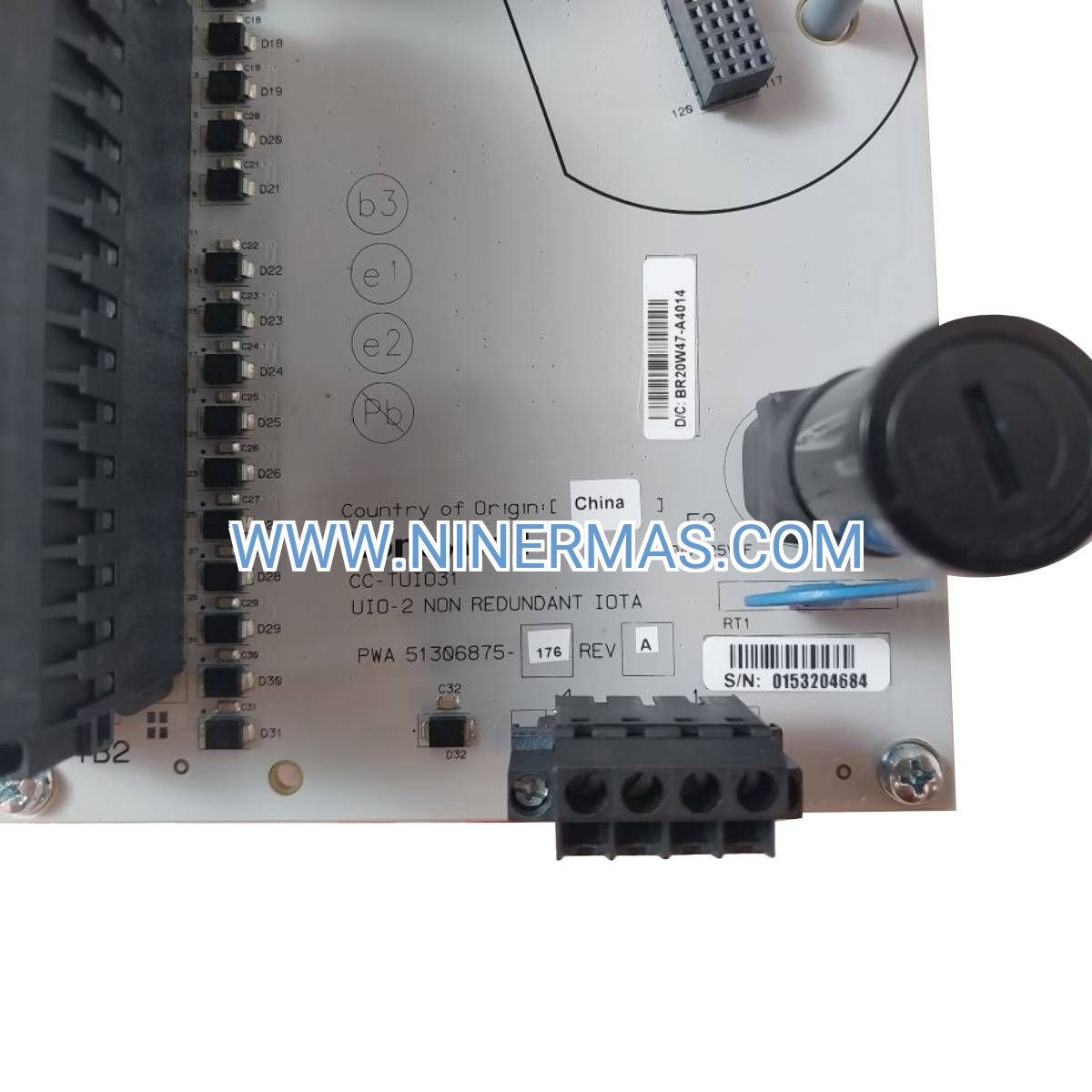

DC-TUIO31 Universal I/O Termination Assembly (Industrial-Grade IOTA Module)

The DC-TUIO31 represents a breakthrough in distributed control system flexibility—a single termination assembly that handles 32 universal I/O points across analog and digital domains. Designed specifically for Honeywell Experion PKS C300 controller ecosystems, this IOTA module eliminates the complexity of managing multiple signal-specific cards while delivering enterprise-grade reliability for process-critical operations.

Industrial facilities running continuous processes demand zero-compromise I/O infrastructure. Whether you're managing refinery operations, pharmaceutical batch control, or power generation systems, the DC-TUIO31 provides the adaptive signal processing backbone that modern DCS architectures require. Its software-defined channel configuration means your hardware investment adapts as process requirements evolve—no physical rewiring, no production downtime.

Built to Honeywell's rigorous quality standards, this universal IOTA combines hot-swappable serviceability with SIL 2/3 safety certification, making it the intelligent choice for both routine automation and safety-instrumented system applications. Every channel is field-configurable through Experion Control Builder, giving control engineers unprecedented deployment agility.

Core Features & Business Value

✓ 32 Universal I/O Channels
Software-configurable for analog input (AI), analog output (AO), digital input (DI), or digital output (DO) functions. Eliminates inventory complexity by replacing four specialized module types with one adaptive solution—reducing spare parts costs by up to 60%.

✓ Hot-Swap Architecture
Replace or upgrade modules during live operation without halting production processes. Maintenance windows shrink from hours to minutes, directly improving Overall Equipment Effectiveness (OEE) and reducing unplanned downtime costs.

✓ SIL 2/3 Safety Certification
Meets IEC 61508 functional safety standards for integration into Safety Instrumented Systems (SIS). Deploy with confidence in applications requiring certified risk reduction—from emergency shutdown systems to burner management.

→ Extended Temperature Range (-40°C to +70°C)
Operate reliably in extreme industrial environments from Arctic pipeline stations to desert petrochemical facilities. Ruggedized design withstands thermal cycling, vibration, and electromagnetic interference common in heavy industrial settings.

→ Native Experion PKS Integration
Plug-and-play compatibility with C300 controllers ensures seamless commissioning. Pre-validated communication protocols eliminate integration risks, accelerating project timelines by 20-30% compared to third-party I/O solutions.

→ DIN Rail Mounting
Standardized mechanical interface simplifies panel design and installation. Compact footprint maximizes cabinet space utilization—critical for retrofit projects with limited real estate.

Application Scenarios

Oil & Gas Upstream Production
Monitor wellhead pressures, temperatures, and flow rates while controlling separator valves and pump speeds. The DC-TUIO31's mixed-signal capability handles both 4-20mA transmitter inputs and discrete valve position feedback on a single card, reducing field wiring complexity in hazardous area installations.

Pharmaceutical Batch Manufacturing
Manage reactor temperature control loops, ingredient dosing pumps, and clean-in-place (CIP) sequencing. SIL certification supports 21 CFR Part 11 compliance requirements, while hot-swap capability enables validation-friendly maintenance procedures without batch interruption.

Power Generation Balance-of-Plant
Control feedwater systems, condensate polishing, and auxiliary cooling circuits. Universal I/O flexibility accommodates the diverse signal types found in steam cycle monitoring—from RTD temperature inputs to motor starter status contacts—without requiring heterogeneous module inventories.

Chemical Process Control
Regulate distillation column reflux ratios, reactor jacket cooling, and product transfer sequencing. The module's wide operating temperature range ensures reliable performance in non-climate-controlled analyzer shelters and remote pump houses.

Water & Wastewater Treatment
Automate clarifier chemical dosing, blower speed control, and UV disinfection monitoring. Software-reconfigurable channels adapt to seasonal process changes—switching from dissolved oxygen control in summer to freeze protection monitoring in winter without hardware modifications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DC-TUIO31 when your application requires maximum I/O flexibility within the Experion PKS ecosystem. Ideal for projects with evolving signal requirements, mixed analog/digital architectures, or stringent safety certification needs. For applications requiring more than 32 points per location, multiple DC-TUIO31 modules can be deployed on a single C300 controller with seamless configuration management.

Extended Functions

Advanced Diagnostics Integration
Built-in self-test capabilities continuously monitor channel health, power supply integrity, and communication status. Diagnostic data streams directly to Experion Station for predictive maintenance analytics, enabling condition-based servicing strategies that reduce emergency repair incidents by 40%.

Firmware Update Capability
Remote firmware upgrades through the Experion PKS network ensure your I/O infrastructure stays current with the latest performance enhancements and security patches—no physical module handling required.

Redundancy Support
When paired with redundant C300 controllers and dual IOTA power supplies, the DC-TUIO31 participates in fault-tolerant architectures that deliver 99.99%+ system availability for mission-critical processes.

Custom Configuration Services
Our engineering team offers pre-commissioning configuration services—modules arrive with your specific channel assignments, scaling parameters, and alarm limits pre-loaded, reducing on-site startup time by up to 50%.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Expedited delivery available for urgent project requirements—contact our team for same-day dispatch options on qualifying orders.

Warranty Coverage: Every DC-TUIO31 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to Honeywell-certified application engineers for configuration assistance, troubleshooting guidance, and integration planning. Support available via email, phone, and remote desktop sessions during your commissioning phase.

Documentation Package: Complete technical documentation included—installation manual, wiring diagrams, Control Builder configuration examples, and safety certification documents. All materials provided in digital format for easy distribution to project stakeholders.

Frequently Asked Questions

How do I configure individual channels for different signal types on the DC-TUIO31 universal I/O module?
Channel configuration is performed through Experion Control Builder software. Each of the 32 channels can be independently assigned as analog input, analog output, digital input, or digital output through the module's configuration database. Changes take effect after downloading the updated configuration to the C300 controller—no physical jumpers or DIP switches required.

What is the maximum cable distance between the DC-TUIO31 IOTA and field instruments?
For analog 4-20mA signals, maximum recommended cable length is 300 meters using shielded twisted-pair wiring. Digital signals support up to 100 meters depending on voltage levels and environmental noise. Always follow Honeywell's installation guidelines for proper grounding and shielding practices in electrically noisy industrial environments.

Can the DC-TUIO31 achieve energy savings compared to traditional fixed-function I/O cards?
Yes—universal I/O architecture reduces overall module count by 30-50% in typical installations, directly lowering cabinet power consumption and cooling requirements. Additionally, optimized channel utilization means fewer unused I/O points consuming standby power compared to oversized fixed-function card deployments.

What installation requirements must be met for hot-swap functionality to work properly?
Hot-swap capability requires redundant IOTA power supplies (FC-IOTA-R24 or equivalent) and proper configuration of the C300 controller's I/O redundancy settings. The module must be mechanically secured with the locking mechanism engaged, and field wiring must remain connected during replacement. Consult Experion PKS installation documentation for detailed hot-swap procedures.

Does this module support remote monitoring and diagnostics for predictive maintenance programs?
Absolutely. The DC-TUIO31 provides comprehensive diagnostic data including per-channel health status, power supply voltage monitoring, and communication error counters. This telemetry integrates with Experion's asset management tools and can be exported to third-party CMMS platforms for advanced analytics and predictive maintenance scheduling.

Is the DC-TUIO31 suitable for hazardous area installations requiring intrinsic safety barriers?
The module itself is designed for safe-area mounting in control rooms or marshalling cabinets. For hazardous area field devices, use approved intrinsic safety barriers (Zener barriers or galvanic isolators) between the DC-TUIO31 terminals and field instruments. Honeywell offers compatible barrier solutions—contact our team for application-specific recommendations.
