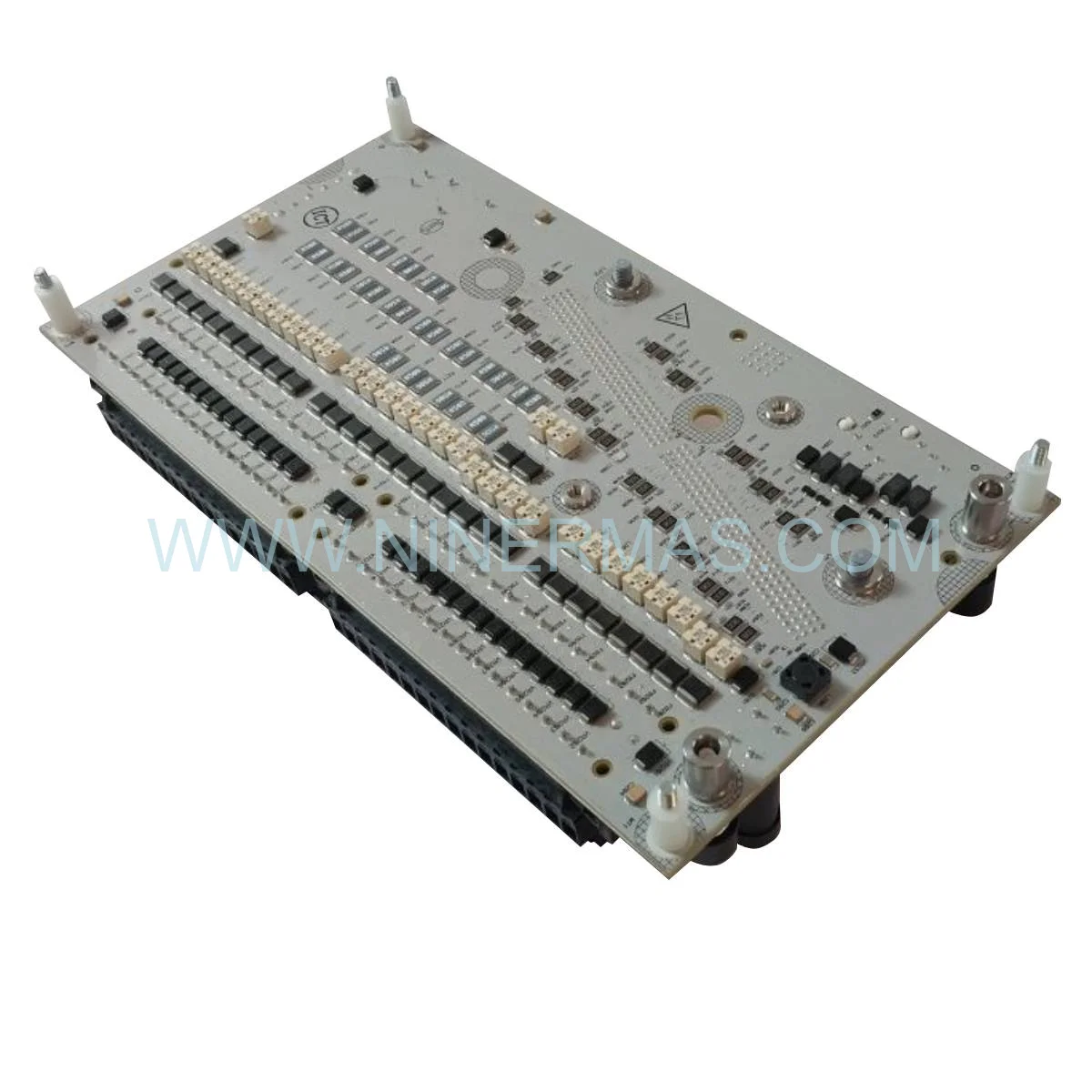

CC-TUIO31 51306875-176 Universal I/O Module (Industrial-Grade Multi-Channel Controller)

The Honeywell CC-TUIO31 51306875-176 represents a breakthrough in distributed control system flexibility, delivering 32 configurable I/O points within a single compact module. Designed for mission-critical process automation, this universal interface solution eliminates the traditional boundaries between input and output modules, enabling dynamic reconfiguration as your operational requirements evolve.

Built for industries where downtime translates directly to revenue loss, the CC-TUIO31 integrates seamlessly into Experion PKS and TDC 3000 architectures. Whether you're managing continuous chemical processes, coordinating refinery operations, or maintaining pharmaceutical clean room environments, this module provides the signal processing backbone that keeps your facility running at peak efficiency.

With hot-swappable capability and fault-tolerant Ethernet communication, the CC-TUIO31 ensures your control systems maintain operational continuity even during maintenance activities. The module's intelligent diagnostics and LED status indicators reduce troubleshooting time by up to 40%, allowing your engineering team to focus on optimization rather than firefighting.

Core Capabilities & Business Value

→ Adaptive Channel Configuration
Each of the 32 I/O points can be software-configured as either digital input or output, providing unprecedented flexibility. This eliminates the need to stock multiple module types and reduces spare parts inventory costs by 60%. When process modifications require signal type changes, simply reconfigure through the Experion Station interface—no physical hardware replacement needed.

→ Zero-Downtime Maintenance
Hot-swap functionality allows module replacement during live operation without process interruption. The redundant communication architecture automatically reroutes data through alternate paths during module extraction, maintaining full system integrity. This capability has helped facilities achieve 99.97% uptime in continuous process environments.

→ Fault-Tolerant Communication Infrastructure
Dual Ethernet pathways ensure signal transmission continuity even if one network segment fails. The module continuously monitors both communication channels and seamlessly switches to the backup path within 50 milliseconds of detecting a fault. This redundancy is critical for SIL-rated safety applications and high-availability production lines.

→ Intelligent Diagnostic Framework
Built-in self-test routines execute every scan cycle, detecting issues before they impact operations. Channel-level health monitoring identifies wiring faults, signal degradation, and power supply anomalies. Diagnostic data streams directly to your HMI, enabling predictive maintenance strategies that reduce unplanned shutdowns by 35%.

→ High-Density Space Optimization
32 I/O points in a single-width module footprint maximize cabinet utilization. Compared to traditional 16-point modules, the CC-TUIO31 reduces panel space requirements by 50% while cutting wiring complexity. This density advantage becomes critical in retrofit projects where cabinet space is at a premium.

→ Universal Voltage Compatibility
24V DC nominal operation with wide input tolerance (18-32V DC) accommodates voltage fluctuations common in industrial power systems. Internal isolation protects sensitive control circuitry from field-side electrical noise, ensuring signal integrity in electrically harsh environments.

Industry-Specific Deployment Scenarios

✓ Petrochemical Refining Operations
In catalytic cracking units, the CC-TUIO31 monitors reactor temperatures, pressure transmitters, and valve position feedback while controlling feed pumps, isolation valves, and alarm annunciators. The module's ability to handle mixed I/O types simplifies control panel design for complex unit operations. Facilities report 22% reduction in wiring labor costs compared to traditional fixed-function modules.

✓ Pharmaceutical Batch Manufacturing
Clean room environmental control demands precise coordination of HVAC dampers, differential pressure sensors, and contamination alarms. The CC-TUIO31's configurable channels adapt to recipe-specific requirements, supporting both sterile filling operations and active pharmaceutical ingredient synthesis. FDA 21 CFR Part 11 compliance is maintained through comprehensive audit trails in the Experion system.

✓ Power Generation Turbine Control
Gas turbine control systems require rapid response to vibration sensors, flame detectors, and emergency shutdown circuits. The CC-TUIO31's 10-millisecond scan time ensures protective functions execute within safety system response requirements. Redundant module configurations provide the reliability demanded by NERC CIP standards for critical infrastructure protection.

✓ Water Treatment Facility Automation
Municipal water plants use the CC-TUIO31 to coordinate filtration systems, chemical dosing pumps, and effluent quality monitoring. The module's resistance to humidity and temperature variations makes it ideal for outdoor control enclosures. One 50 MGD facility reduced annual maintenance costs by $18,000 after standardizing on universal I/O modules.

✓ Food & Beverage Processing Lines
Bottling operations leverage the CC-TUIO31 to synchronize conveyor systems, fill station sensors, and reject mechanisms. The module's washdown-rated enclosure option withstands frequent cleaning cycles required in sanitary environments. Flexible I/O assignment accommodates seasonal product changeovers without control system rewiring.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the CC-TUIO31 when your application requires I/O flexibility and you anticipate future process modifications. For fixed-function applications with no expected changes, dedicated input or output modules may offer lower initial cost. Consider redundant module pairs for SIL 2/3 safety applications or processes where single-point failures cannot be tolerated.

Advanced Integration & Customization Options

IoT Connectivity Enhancement
When paired with Honeywell's Experion Elevate platform, the CC-TUIO31 enables cloud-based analytics and remote monitoring. OPC UA server functionality allows integration with third-party MES and ERP systems, creating unified data pipelines from field devices to enterprise dashboards. This connectivity supports Industry 4.0 initiatives and predictive maintenance programs.

Cybersecurity Hardening
The module supports role-based access control and encrypted communication when deployed with Experion Security Suite. Firmware authentication prevents unauthorized code modifications, while audit logging tracks all configuration changes. These features help facilities meet IEC 62443 industrial cybersecurity standards.

Custom Firmware Profiles
For OEM applications, Honeywell offers factory-programmed modules with customer-specific I/O configurations and diagnostic thresholds. This reduces commissioning time and ensures consistency across multiple installations. Minimum order quantities apply for custom firmware variants.

Delivery Timeline & Service Commitments

Standard Delivery: 5-7 business days for in-stock modules via express courier. All shipments include factory test certificates and configuration documentation.

Expedited Service: 48-hour delivery available for critical outage situations. Contact our technical sales team for emergency procurement options.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and performance deviations. Extended warranty programs available for up to 5 years.

Technical Support: Lifetime access to our application engineering team for configuration assistance, troubleshooting guidance, and system optimization recommendations. Remote diagnostic support available 24/7 for warranty-covered modules.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates, and safety data sheets. Digital versions accessible through our customer portal.

Frequently Asked Questions

How does the universal I/O configuration work in practice?
Channel assignment is performed through the Experion Station software during system configuration. Each point can be designated as either a digital input (monitoring field devices) or digital output (controlling actuators). Changes take effect immediately upon download to the module, with no physical jumpers or switches required. This software-based approach allows you to adapt to process changes without stocking multiple module types.

What cable specifications are required for field wiring connections?
Use 18-22 AWG shielded twisted-pair cable for signal wiring, with shield grounded at the module end only. Maximum cable run length is 300 meters for digital signals. For high-noise environments, consider using Honeywell's pre-assembled I/O Link cables which include factory-terminated connectors and integrated EMI suppression.

Can this module integrate with legacy TDC 3000 systems?
Yes, the CC-TUIO31 maintains backward compatibility with TDC 3000 platforms through the Universal Station interface. However, some advanced features like hot-swap capability and enhanced diagnostics require Experion PKS R400 or later. Consult our migration planning guide for detailed compatibility matrices.

What is the typical power consumption per module?
The CC-TUIO31 draws approximately 8 watts at full load (all 32 channels active). When sizing power supplies, allow 10 watts per module to account for inrush current during hot-swap insertion. A single 8U-PWSP02 power supply can support up to 12 fully-loaded CC-TUIO31 modules.

How do I implement redundant module configurations?
Redundant I/O requires two CC-TUIO31 modules connected to separate FTE networks and redundant controllers. Field devices connect to both modules via split wiring harnesses. The Experion system automatically manages voting logic and failover switching. Refer to application note AN-C300-RIO-001 for detailed redundancy implementation procedures.

What diagnostic capabilities help reduce troubleshooting time?
The module provides channel-level fault detection including open circuit, short circuit, and over-current conditions. LED indicators on the module faceplate show power status, communication health, and per-channel activity. Detailed diagnostic messages appear in the Experion alarm summary, pinpointing the exact nature and location of faults. This granular visibility typically reduces troubleshooting time from hours to minutes.
