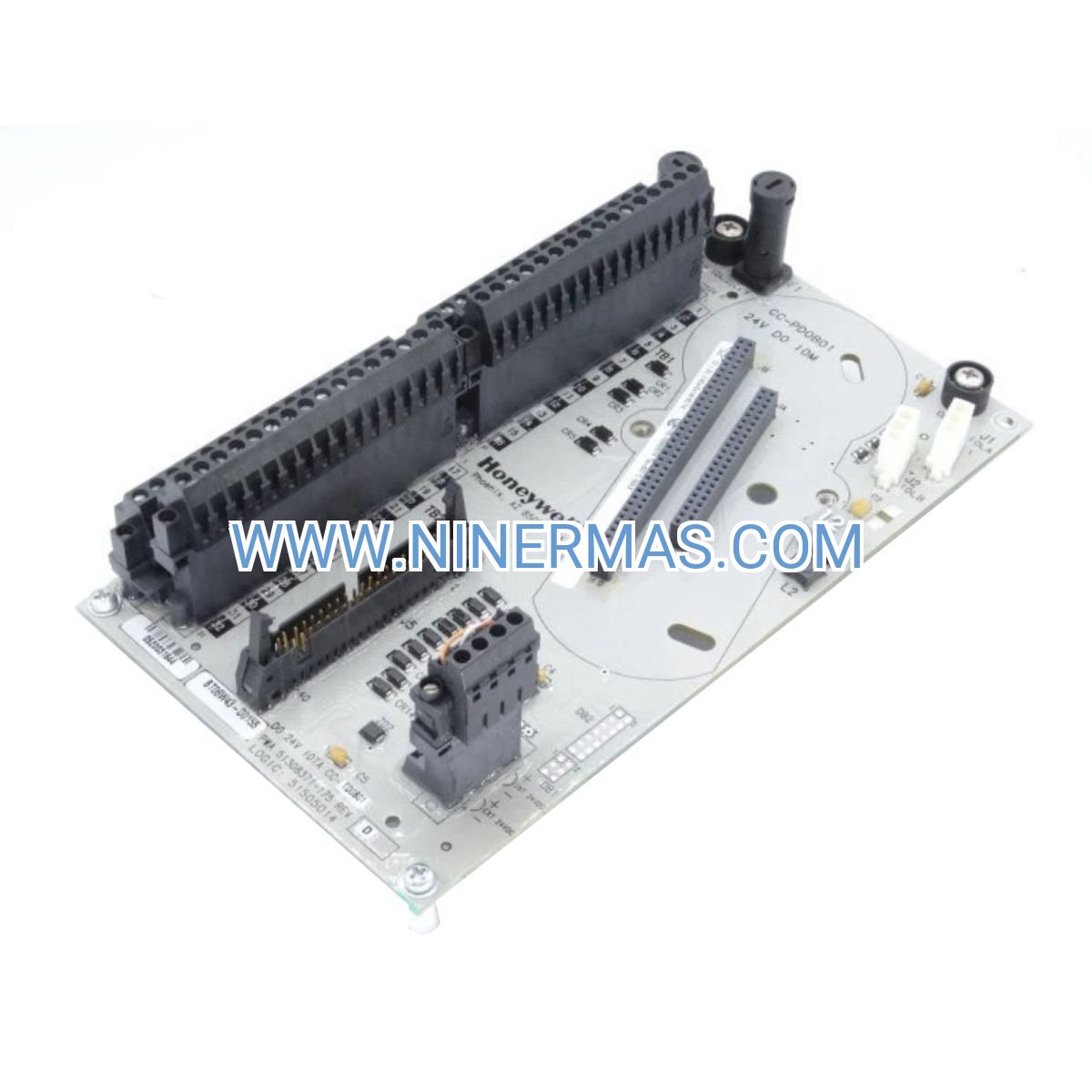

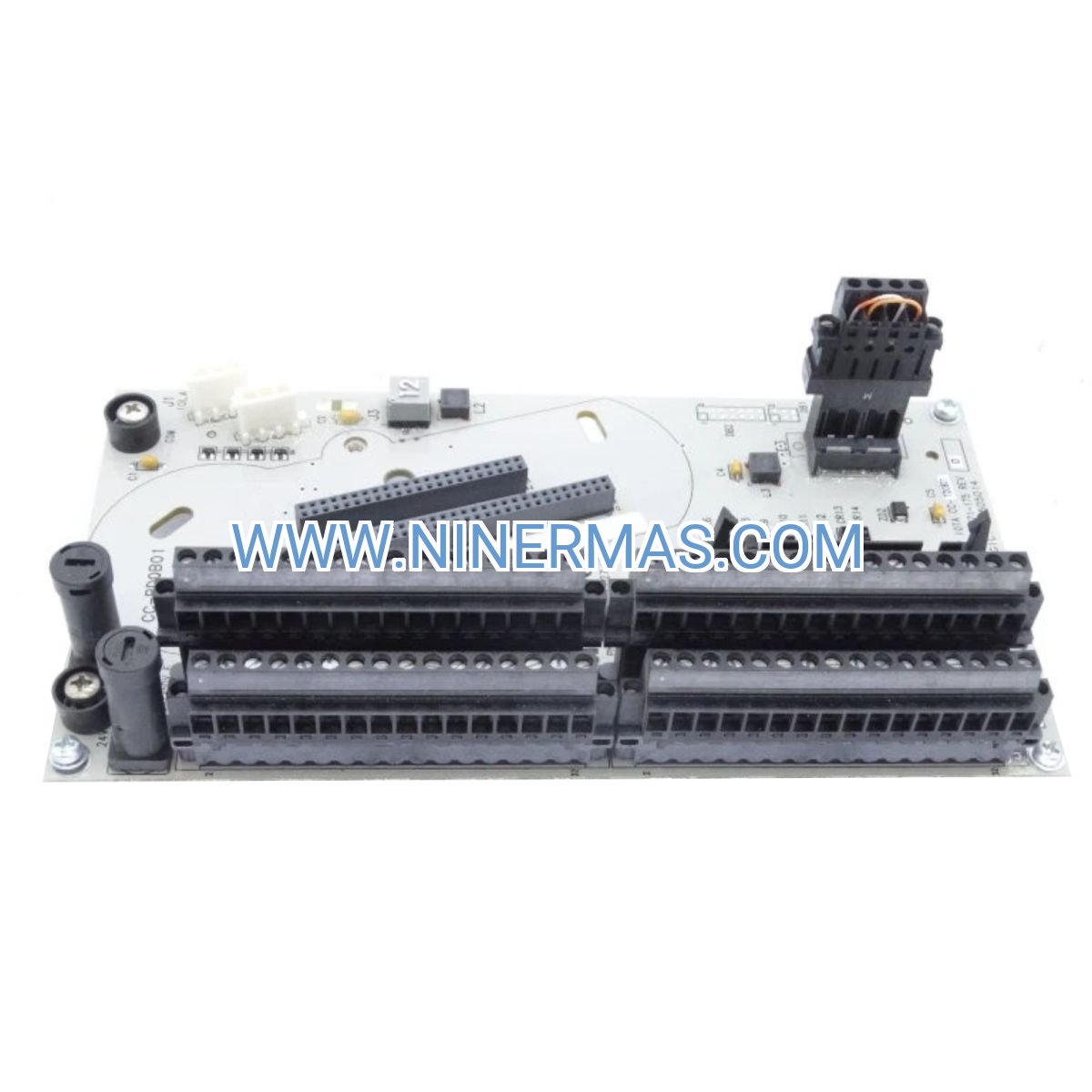

CC-TDOB01 High-Density Digital Output Module (Industrial-Grade 32-Point Control)

The CC-TDOB01 represents a professional-grade digital output solution engineered for demanding process automation environments. This 32-point solid-state module integrates seamlessly with Honeywell's HC900 ControlEdge platform, delivering sourcing DC voltage control with enterprise-level diagnostics and field-proven reliability across chemical, oil & gas, and manufacturing operations.

Designed for system integrators and plant engineers who demand maximum uptime, this module addresses critical challenges in distributed control architectures: high-density I/O consolidation, real-time fault detection, and hot-swappable serviceability. Whether you're retrofitting legacy systems or deploying greenfield installations, the CC-TDOB01 provides the foundation for scalable, maintainable control infrastructure.

With 32 independently controlled outputs in a compact DIN-rail package, this module reduces panel footprint by up to 40% compared to relay-based alternatives while eliminating mechanical wear points. Advanced channel-level diagnostics enable predictive maintenance strategies, cutting unplanned downtime and accelerating troubleshooting workflows.

Engineering Advantages & Performance Characteristics

→ Compact High-Density Architecture
32 solid-state outputs consolidated in a single module slot reduce wiring complexity, panel space requirements, and installation labor by 30-50% versus traditional relay banks. Ideal for space-constrained retrofit projects and new builds requiring maximum I/O density.

→ Intelligent Fault Detection System
Per-channel diagnostics continuously monitor for short circuits, open loads, and over-temperature conditions. Real-time status feedback to the HC900 controller enables automated alarm generation and reduces mean time to repair (MTTR) by 60% through precise fault localization.

→ Sourcing DC Output Technology
24V DC sourcing configuration provides compatibility with industry-standard solenoid valves, contactors, and indicator lights. Each channel delivers up to 0.5A continuous current with built-in overcurrent protection, eliminating external fusing requirements for most applications.

→ Hot-Swap Serviceability
Field-replaceable design allows module exchange during live operation without system shutdown. Automatic configuration download from the HC900 controller restores operational parameters within seconds, supporting 24/7 production schedules and minimizing maintenance windows.

→ Industrial Environmental Hardening
Operates reliably across -40°C to +70°C temperature range with conformal coating protection against moisture, dust, and chemical exposure. Exceeds IEC 61131-2 specifications for EMI/RFI immunity, ensuring stable performance in electrically noisy industrial environments.

→ Seamless HC900 Platform Integration
Plug-and-play compatibility with HC900 controllers and Experion PKS systems. Supports distributed I/O architectures via ControlEdge UOC (Universal Output Controller) for flexible system topologies and simplified engineering workflows.

Industrial Application Scenarios

Chemical Processing & Batch Manufacturing
Control pneumatic valve actuators, agitator motors, and dosing pump starters in batch reactors and continuous processes. The module's fast response time (≤10ms) and diagnostic capabilities ensure precise recipe execution and rapid fault isolation during critical production phases. Typical deployment: 8-12 modules per reactor skid controlling 256+ discrete devices.

Oil & Gas Pipeline Operations
Manage remote terminal unit (RTU) outputs for pipeline isolation valves, compressor station controls, and safety shutdown systems. Wide temperature rating and robust isolation protect against harsh outdoor environments and electrical transients from motor loads. Reduces field wiring costs by 35% through high-density I/O consolidation at wellhead and metering stations.

Water & Wastewater Treatment
Operate clarifier mechanisms, chemical feed pumps, blower controls, and UV disinfection systems in municipal and industrial facilities. Open-load detection identifies failed actuators or broken wiring before process upsets occur, supporting regulatory compliance and operational efficiency targets.

Power Generation Auxiliary Systems
Interface with balance-of-plant equipment including cooling tower fans, fuel handling conveyors, ash removal systems, and auxiliary boiler controls. Channel-to-bus isolation prevents ground loops in large distributed systems, while diagnostic logging supports root cause analysis during plant commissioning and troubleshooting.

Food & Beverage Production Lines
Drive CIP (clean-in-place) valve manifolds, conveyor motors, packaging equipment, and sanitation systems. Stainless steel mounting options and IP20-rated enclosures meet hygienic design requirements. Hot-swap capability minimizes production interruptions during scheduled maintenance and changeovers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-TDOB01 when your application requires high-density discrete control (20+ outputs per rack slot), advanced diagnostics for predictive maintenance, or hot-swap serviceability for critical processes. For lower channel counts (8-16 outputs), consider modular I/O alternatives. For sinking output requirements, specify complementary sinking modules. Verify load current requirements do not exceed 0.5A per channel; for higher currents, use module outputs to drive intermediate relays or contactors.

Extended Capabilities & System Integration

IoT & SCADA Connectivity: The CC-TDOB01 integrates with Honeywell's Experion PKS and third-party SCADA platforms via OPC UA, Modbus TCP, and Ethernet/IP protocols. Real-time output status and diagnostic data stream to cloud-based analytics platforms for remote monitoring, performance trending, and asset health management. Supports Industry 4.0 initiatives including digital twin modeling and predictive maintenance algorithms.

Redundancy & Fault Tolerance: Deploy in redundant HC900 controller configurations for high-availability applications. Automatic failover ensures continuous output control during controller switchovers. Bumpless transfer capability maintains output states during redundancy transitions, critical for safety systems and continuous processes.

Custom Configuration Services: Factory pre-configuration available for large projects (50+ modules). Honeywell engineering services provide application-specific I/O mapping, diagnostic threshold tuning, and integration testing. Reduces commissioning time by 40% and ensures consistent deployment across multi-site installations.

Delivery, Warranty & Technical Support

Lead Times:
✓ Standard Stock Items: 3-5 business days (in-stock modules)
✓ Factory Orders: 4-6 weeks (custom configurations or large quantities)
✓ Expedited Service: 24-48 hour shipping available for critical outages

Warranty Coverage:
All CC-TDOB01 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (24/36 months) available for capital projects and multi-year service agreements. Warranty includes advance replacement service with 48-hour turnaround for qualified failures.

Technical Support:
Access to Honeywell-certified application engineers for configuration assistance, troubleshooting guidance, and system integration support. Includes comprehensive documentation package: installation manual, wiring diagrams, CAD drawings (DWG/DXF), and configuration software. Online knowledge base provides firmware updates, technical bulletins, and application notes.

Included Documentation:
→ Quick Start Guide with wiring examples
→ Detailed Installation & Maintenance Manual
→ Calibration Certificate (traceable to NIST standards)
→ Spare Parts Recommendations & BOM

Frequently Asked Questions

What is the maximum cable length between the CC-TDOB01 module and field devices?
Recommended maximum cable run is 300 meters (1000 feet) using shielded twisted-pair cable (18-22 AWG). For longer distances, use intermediate relay panels or consider fiber-optic I/O extenders. Voltage drop calculations should account for cable resistance and load current to maintain minimum 18V at device terminals.

Can this module control AC solenoid valves or motor starters?
No, the CC-TDOB01 provides DC sourcing outputs only (24V DC nominal). For AC load control, use module outputs to drive intermediate electromechanical relays or solid-state relays rated for AC switching. Honeywell offers companion AC output modules for direct 120/240V AC control applications.

How do I configure diagnostic alarm thresholds for open-load detection?
Diagnostic parameters are configured through the HC900 controller's configuration software (Hybrid Control Designer). Set minimum load current thresholds (typically 10-50mA) to distinguish between intentional OFF states and wiring faults. Alarm delays (100-500ms) prevent nuisance trips during transient conditions.

Is the CC-TDOB01 suitable for SIL-rated safety instrumented systems?
The standard CC-TDOB01 is designed for basic process control applications and is not SIL-certified. For safety-critical shutdown systems requiring SIL 2/3 certification, specify Honeywell's Safety Manager or FSC (Fail-Safe Controller) product lines with certified I/O modules. Consult IEC 61508/61511 compliance documentation for safety system design.

What is the typical power consumption of the module?
Internal logic power consumption is approximately 3.5W from the HC900 backplane. Field power consumption depends on connected loads (up to 16A × 24V = 384W maximum with all outputs energized at full current). Size field power supplies accordingly, adding 20% margin for inrush currents and future expansion.

Can I mix CC-TDOB01 modules with other I/O types in the same HC900 rack?
Yes, the HC900 platform supports heterogeneous I/O mixing within a single rack. Combine digital outputs with analog input modules, thermocouple modules, and communication interfaces as needed. Maximum rack capacity is 8 I/O modules plus controller; observe backplane power budget (typically 30W total) when configuring high-density racks.

Ready to Optimize Your Control System?

The CC-TDOB01 delivers the reliability, diagnostics, and density modern industrial automation demands. Whether you're upgrading aging relay logic or designing next-generation distributed control architectures, this module provides proven performance backed by Honeywell's global support network.
