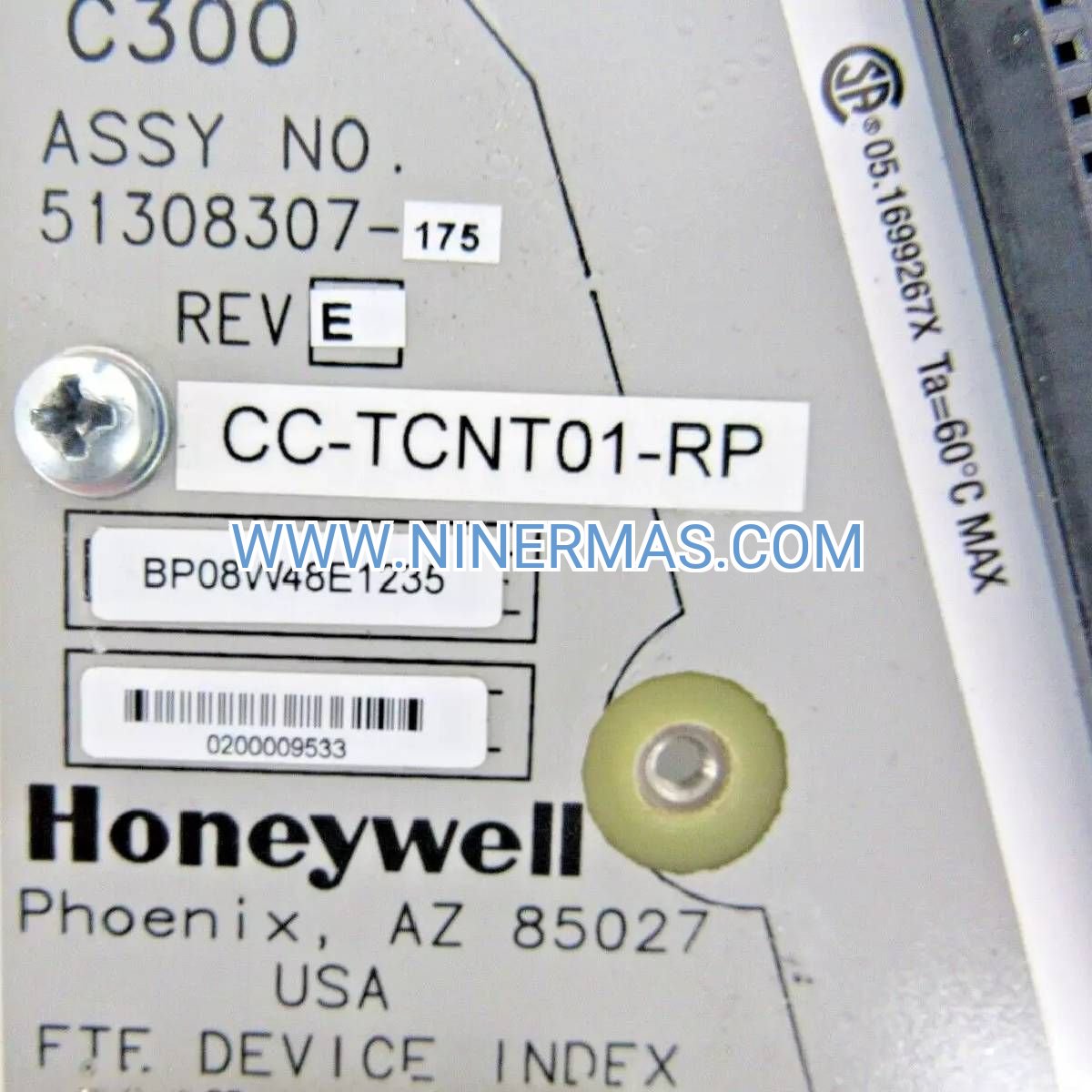

CC-TCNT01 Industrial Controller Module (Experion PKS-Compatible)

The CC-TCNT01 represents Honeywell's advanced solution for mission-critical process automation in Experion PKS distributed control environments. Engineered for C300 model 6 and model 7 platforms, this controller module delivers deterministic control performance through dual I/O link architecture and Fault Tolerant Ethernet connectivity, ensuring uninterrupted operation in demanding industrial settings.

Designed for process industries requiring 24/7 uptime, the CC-TCNT01 addresses the challenge of maintaining continuous control during maintenance events and network disturbances. Target users include automation engineers, plant managers, and system integrators responsible for oil & gas facilities, chemical plants, power generation stations, and pharmaceutical manufacturing operations.

Key differentiators include hot-swappable capability for zero-downtime maintenance, dual-speed I/O links (1.25/2.5 Mbps) for flexible network design, and industrial-grade construction rated for harsh environments (0-60°C operating range, 5-95% humidity tolerance). The module supports up to 10,000 I/O points with fast scan cycles, making it ideal for complex control strategies and time-critical applications.

Core Features & Business Value

→ Redundant Communication Architecture
Dual I/O links eliminate single points of failure, reducing unplanned downtime by up to 40% compared to single-link designs. Each link operates independently at 1.25 Mbps (Link 1) and 2.5 Mbps (Link 2), automatically switching during network faults.

→ Hot-Swap Maintenance Capability
Replace modules during operation without process interruption when configured in redundant pairs. This feature cuts maintenance windows from hours to minutes, preserving production schedules and revenue streams.

→ Multi-Model Platform Support
Compatible with both C300 model 6 and model 7 controllers, protecting your infrastructure investment during phased upgrades. Seamlessly integrates with existing Experion PKS installations without costly system-wide replacements.

✓ High-Capacity I/O Handling
Manages up to 10,000 I/O points per controller with deterministic scan times, consolidating control logic and reducing hardware footprint. Ideal for large-scale processes requiring centralized automation.

✓ Industrial-Hardened Design
CE, UL, CSA, and ATEX certifications validate suitability for hazardous locations and global installations. Operates reliably in temperatures from 0°C to 60°C with 95% humidity tolerance, withstanding corrosive atmospheres and vibration.

✓ Fault Tolerant Ethernet Integration
Native FTE network support ensures seamless communication with Experion Station, operator interfaces, and third-party systems via OPC DA/UA protocols. Reduces integration complexity and commissioning time.

Industry Applications & Problem-Solving

Upstream Oil & Gas Production
Challenge: Remote wellhead automation requires reliable control despite harsh environmental conditions and limited maintenance access.
Solution: CC-TCNT01's wide operating temperature range (-40°C to 85°C storage) and hot-swap capability enable field deployment with minimal service visits, reducing operational expenses by 25-35%.

Chemical Batch Processing
Challenge: Recipe-driven production demands precise sequencing and safety interlocks to prevent batch contamination or hazardous reactions.
Solution: Fast scan times (sub-100ms) and 10,000 I/O capacity support complex SFC logic with multiple interlocks, ensuring product quality and regulatory compliance (21 CFR Part 11 compatible via Experion).

Combined Cycle Power Plants
Challenge: Turbine control and emissions monitoring require millisecond-level response times to optimize efficiency and meet environmental standards.
Solution: Dual I/O links guarantee control continuity during network maintenance, while high-speed processing maintains NOx/SOx emissions within regulatory limits, avoiding penalties.

Pharmaceutical Manufacturing (GMP Environments)
Challenge: FDA-regulated facilities need audit-trail documentation and validated control systems for batch genealogy tracking.
Solution: Experion PKS's built-in electronic batch records integrate with CC-TCNT01 for complete traceability, supporting 21 CFR Part 11 validation and reducing audit preparation time by 50%.

Municipal Water Treatment
Challenge: Aging infrastructure requires modernization without disrupting essential services to communities.
Solution: Hot-swappable design allows phased controller upgrades during off-peak hours, maintaining water quality monitoring and distribution control throughout the migration process.

Technical Specifications & Selection Guide

Selection Criteria:

Choose the CC-TCNT01 when your application requires: (1) Redundant controller architectures for high-availability processes, (2) Integration with existing Experion PKS C300 systems, (3) I/O counts between 2,000-10,000 points per controller, (4) Hot-swap maintenance capability to avoid production losses, (5) Compliance with international safety standards (ATEX Zone 2, Class I Div 2).

For smaller I/O counts (<2,000 points), consider the CC-PCNT02 variant. For Series 8 platforms, specify the 8C-TCNTA1 model. Always consult Experion PKS system architecture guidelines (document 51-52-25-118) for proper controller sizing and redundancy configuration.

Advanced Integration & IoT Connectivity

OPC UA Industrial IoT Gateway
Experion PKS's native OPC UA server enables secure cloud connectivity for predictive maintenance analytics and remote monitoring. The CC-TCNT01 exposes real-time process data to Azure IoT Hub, AWS IoT Core, or on-premises historians without compromising control network security.

Cybersecurity Hardening
Integrated with Honeywell's Secure Media Exchange (SMX) technology, the controller supports encrypted firmware updates and role-based access control (RBAC) aligned with IEC 62443 standards. Ideal for critical infrastructure requiring defense-in-depth strategies.

Custom Control Libraries
Develop proprietary function blocks using Experion Control Builder's structured text (ST) and function block diagram (FBD) editors. Pre-validated libraries for PID control, motor sequencing, and alarm management accelerate commissioning by 30-40%.

Delivery, Warranty & Technical Support

Lead Times:

• Standard Stock Items: 3-5 business days (express shipping available)
• Factory-Direct Orders: 6-8 weeks (for bulk quantities or custom configurations)
• Emergency Replacement: 24-hour expedited service for critical downtime situations

Warranty Coverage:
Every CC-TCNT01 includes a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) available for mission-critical applications. Warranty includes firmware support and technical consultation during the coverage period.

Technical Support Services:

• Pre-Sales Engineering: Application sizing, network architecture review, and compatibility verification
• Installation Assistance: Remote commissioning support via secure VPN connections
• Troubleshooting Hotline: 24/7 access to certified Honeywell specialists (response time <2 hours for critical issues)
• Documentation Package: Installation manuals, wiring diagrams, configuration templates, and safety data sheets

Frequently Asked Questions

What is the typical lifespan of the CC-TCNT01 controller module in continuous operation?
The module is rated for >100,000 hours MTBF (approximately 11 years of continuous operation). In practice, many installations exceed 15 years with proper environmental controls and periodic firmware updates. Capacitor aging is the primary wear mechanism; plan for replacement at 12-15 year intervals.

Can I integrate the CC-TCNT01 with non-Honeywell I/O systems via third-party protocols?
Direct integration requires Honeywell-certified I/O modules (CC-series or 8C-series). For third-party devices, use Experion PKS's Modbus TCP/IP or HART gateways to interface with remote I/O racks, PLCs, or smart field devices. OPC UA provides vendor-neutral connectivity for SCADA and MES systems.

How does the dual I/O link configuration improve system reliability compared to single-link designs?
Dual links provide automatic failover if one communication path fails due to cable damage, switch malfunction, or electromagnetic interference. Switchover occurs within 100-200 milliseconds without control interruption. This architecture reduces communication-related downtime by 85-95% based on field reliability studies.

What programming tools are required to configure control strategies on the CC-TCNT01?
Experion Control Builder (part of Experion Station software suite) is the primary configuration tool. It supports IEC 61131-3 languages including Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC). A valid Experion PKS license is required; contact us for software licensing assistance.

Is the controller compatible with legacy TDC 3000 or PlantScape systems for migration projects?
The CC-TCNT01 is designed exclusively for Experion PKS platforms. TDC 3000 migrations require a phased approach using Experion's TDC 3000 integration gateways to maintain existing I/O while transitioning control logic. Our engineering team provides migration planning services to minimize cutover risks.

What cybersecurity measures protect the controller from unauthorized access or malware?
The module operates on Honeywell's hardened Linux kernel with application whitelisting, encrypted firmware signatures, and secure boot processes. Network isolation via FTE (separate from IT networks), role-based access control (RBAC), and audit logging align with IEC 62443-4-2 security level 2 requirements.

Order Your CC-TCNT01 Controller Today

Upgrade your Experion PKS infrastructure with proven reliability and performance. The CC-TCNT01 controller module delivers the uptime, scalability, and cybersecurity your critical processes demand. Contact our automation specialists for application-specific sizing, competitive pricing, and fast global delivery.

Ready to enhance your process control system? Request a technical consultation or place your order now to receive expert support and genuine Honeywell quality.
