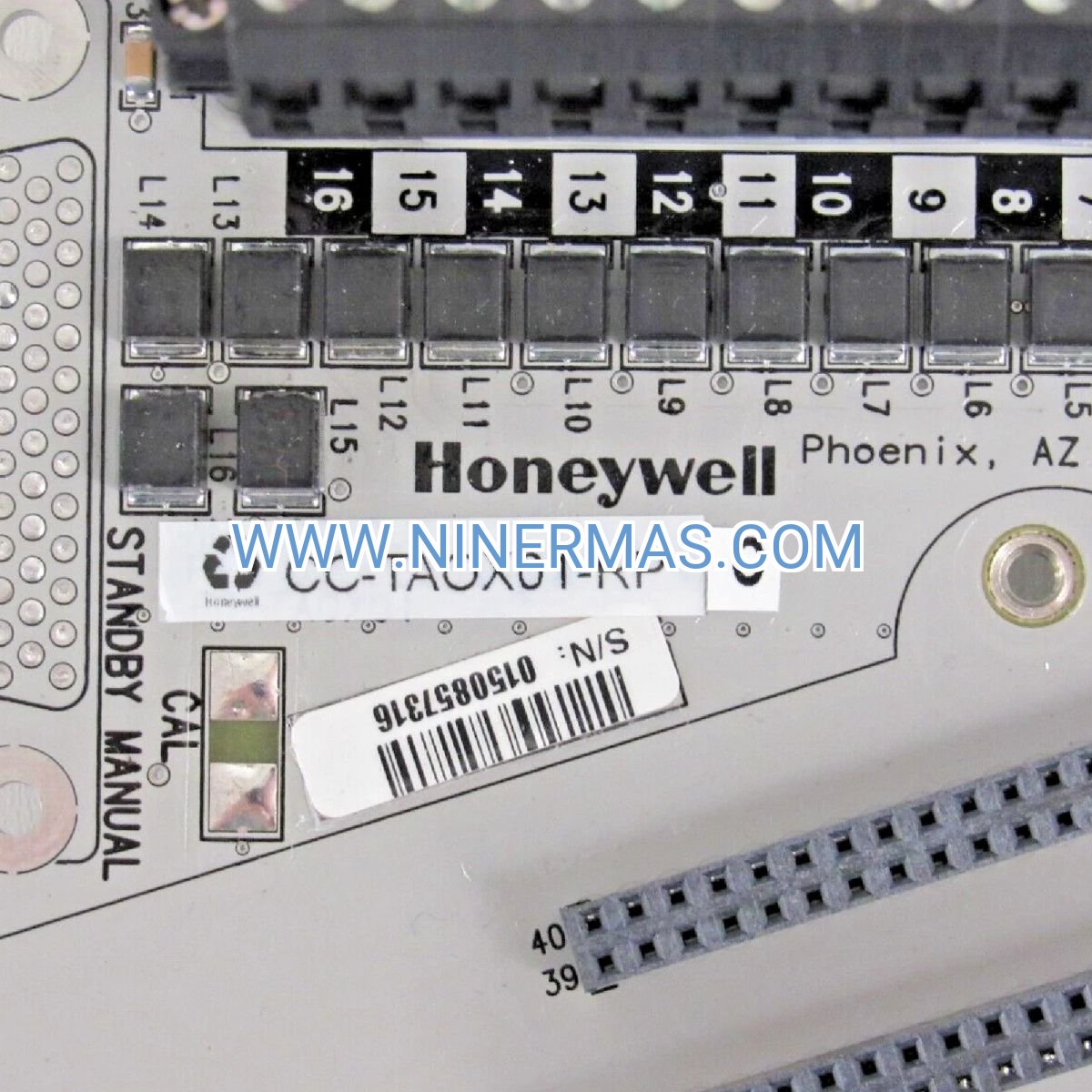

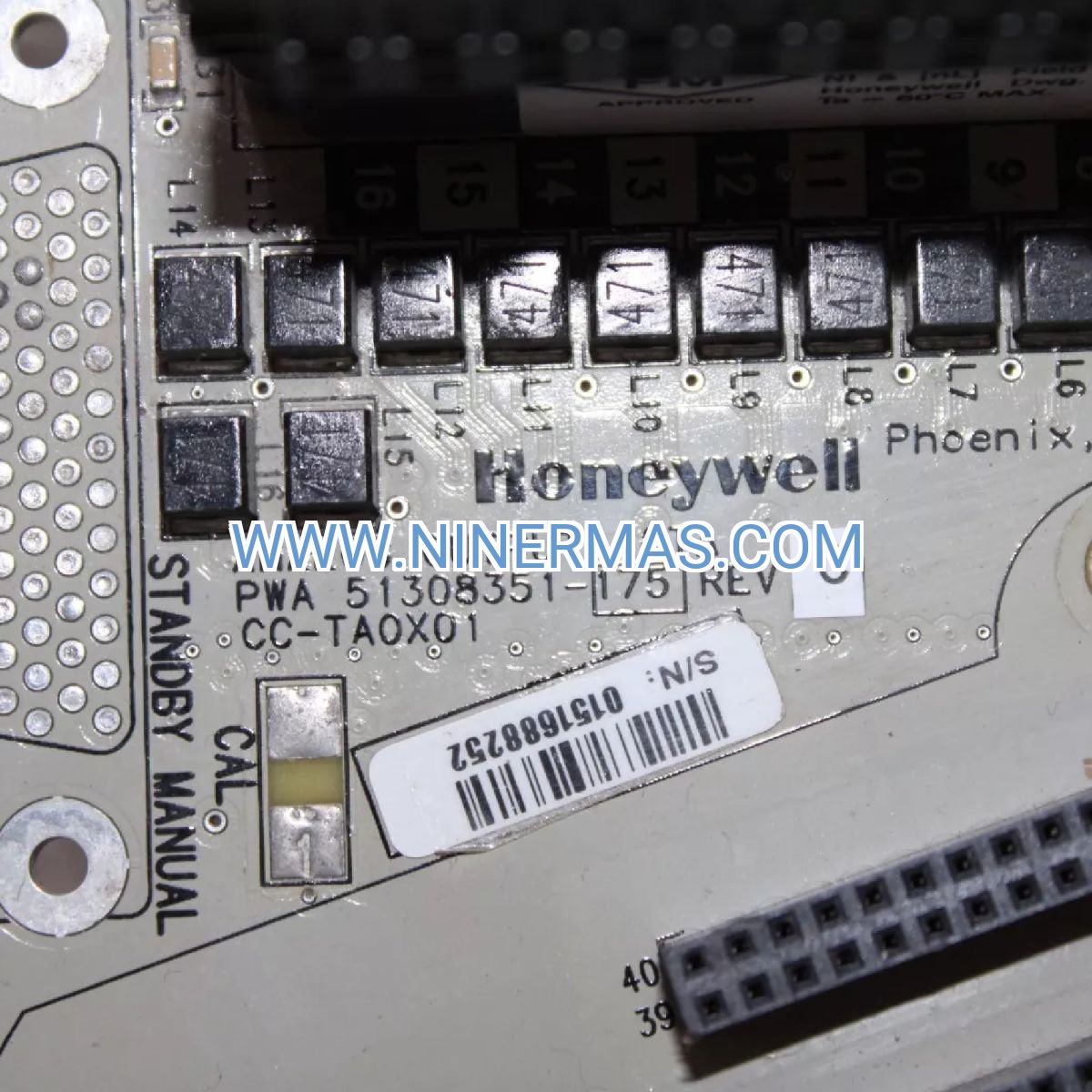

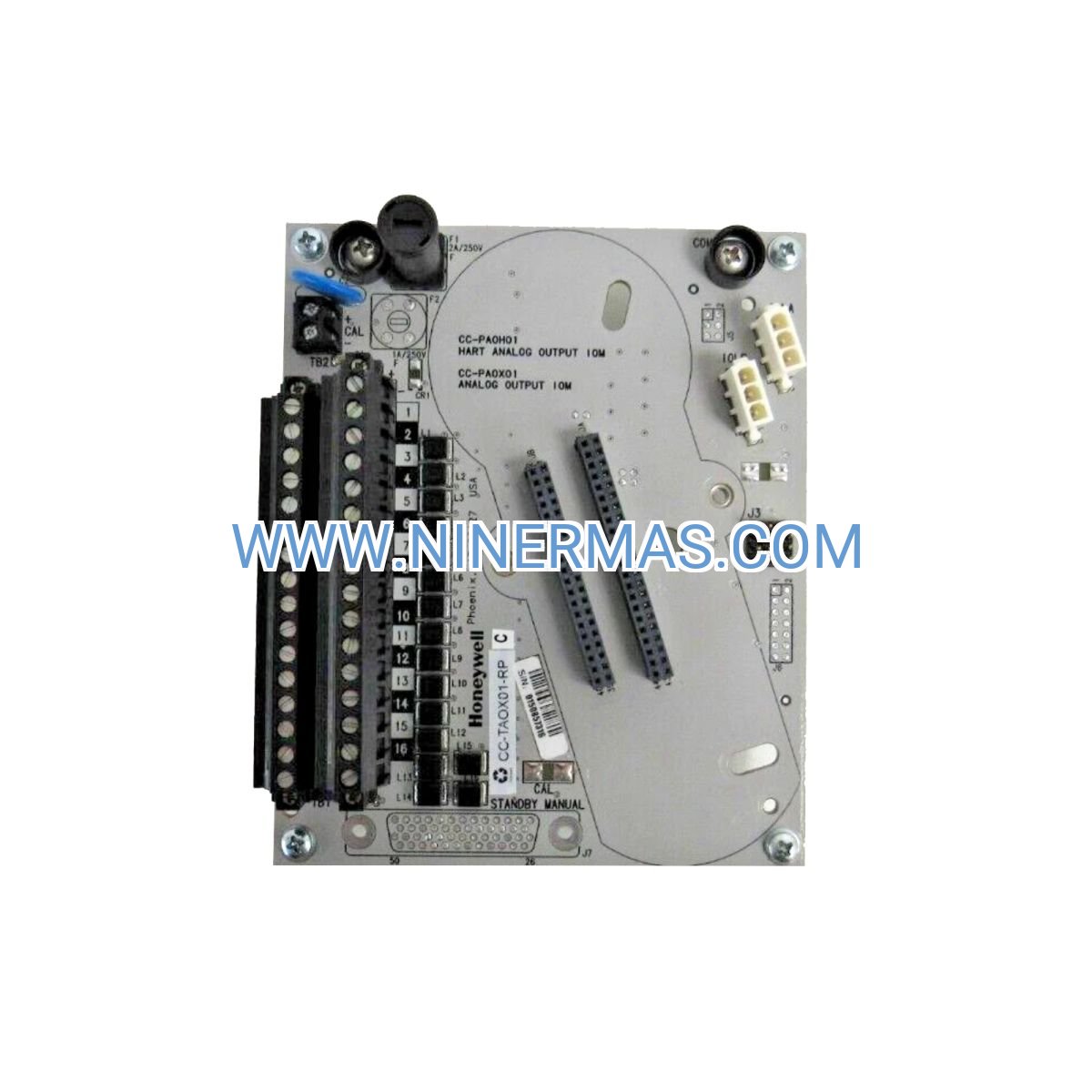

CC-TAOX01 Analog Output Module (Industrial-Grade 16-Channel IOTA)

The CC-TAOX01 represents Honeywell's proven solution for high-density analog control in distributed process environments. This 16-channel current output module transforms digital control signals into precise 4-20 mA field commands, enabling direct manipulation of control valves, actuators, and variable speed drives across oil & gas, chemical, pharmaceutical, and power generation facilities.

Designed for seamless integration with Experion Series C controllers, the CC-TAOX01 addresses the critical challenge of maintaining signal integrity across extended cable runs while providing the channel density required for modern process control architectures. Target users include instrumentation engineers, DCS integrators, and plant automation teams seeking reliable, field-proven I/O solutions with comprehensive diagnostic capabilities.

Key advantages include channel-to-channel isolation preventing ground loop interference, transparent HART pass-through for smart device configuration, hot-swap capability minimizing process disruption during maintenance, and 12-bit resolution ensuring smooth control action across the full operating range.

Core Features & Benefits

→ 16 Independent Current Outputs
Deliver simultaneous 4-20 mA signals to multiple field devices from a single module footprint, reducing cabinet space requirements by 40% compared to legacy 8-channel designs while lowering per-point installation costs.

→ ±0.1% Accuracy at Calibration Temperature
Maintain tight process control with 12-bit resolution (0.025% of span), translating to smoother valve positioning, reduced process variability, and improved product quality in temperature-sensitive applications.

→ Comprehensive Electrical Isolation
Channel-to-channel and channel-to-system isolation eliminates ground loop issues in electrically noisy industrial environments, ensuring signal integrity even when controlling devices across different power zones.

→ HART Protocol Transparency
Access advanced diagnostics, remote calibration, and configuration parameters of HART-enabled field devices without additional interface hardware, reducing commissioning time by up to 30%.

→ Hot-Swap Capability
Replace modules during live operation in redundant configurations, achieving 99.9%+ system availability for continuous process industries where unplanned shutdowns cost $50,000+ per hour.

→ Extended Temperature Range (-40°C to +70°C)
Operate reliably in harsh field enclosures without climate control, suitable for offshore platforms, desert installations, and arctic processing facilities.

Typical Application Scenarios

✓ Refinery Distillation Column Control
Scenario: A crude oil refinery requires precise temperature profile control across a 40-tray distillation column using steam injection valves.
Pain Point Solved: Legacy pneumatic controls caused 15-minute response delays and ±3°C temperature swings, impacting product separation efficiency.
Value Delivered: CC-TAOX01's 100ms update rate and ±0.1% accuracy reduced temperature variance to ±0.5°C, improving light ends recovery by 2.3% and reducing energy consumption by 180,000 BTU/hour.

✓ Chemical Batch Reactor Dosing
Scenario: Pharmaceutical manufacturer needs synchronized control of 12 reagent metering pumps for multi-step synthesis reactions.
Pain Point Solved: Individual 4-20mA cards created wiring complexity and calibration drift between channels caused batch-to-batch inconsistency.
Value Delivered: Single CC-TAOX01 module simplified wiring by 60%, while factory-matched channel calibration reduced batch variation from 4.2% to 1.1%, meeting FDA process validation requirements.

✓ Power Plant Boiler Combustion Optimization
Scenario: Coal-fired power station optimizing air-fuel ratio across 16 burner zones to minimize NOx emissions while maintaining steam output.
Pain Point Solved: Slow analog response and signal noise prevented real-time trim adjustments, causing emissions excursions during load changes.
Value Delivered: CC-TAOX01's isolated outputs and HART diagnostics enabled predictive damper actuator maintenance, reducing NOx violations by 85% and avoiding $2.1M in annual compliance penalties.

✓ Water Treatment VFD Speed Control
Scenario: Municipal wastewater facility controlling 8 aeration blowers and 8 recirculation pumps based on dissolved oxygen and flow measurements.
Pain Point Solved: Separate I/O cards for each VFD increased spare parts inventory and complicated troubleshooting during equipment failures.
Value Delivered: Consolidated control through CC-TAOX01 reduced energy costs by 22% through optimized speed modulation and cut MTTR from 4 hours to 45 minutes via built-in diagnostics.

Technical Parameters & Selection Guide

Selection Criteria:

• Use CC-TAOX01 when controlling 9-16 analog devices per cabinet location
• Pair with DC-TAOX11 redundant variant for SIL-rated safety applications
• Combine with CC-TAIX01 analog input module for closed-loop PID control
• Ensure Experion C300 controller has available I/O Link capacity (max 30 IOTAs per link)
• Verify 24V DC power budget accommodates 12W per module plus field device load

Extended Functions

HART Multidrop Configuration: While primarily used in point-to-point mode, the CC-TAOX01 supports HART multidrop addressing for applications requiring multiple sensors on a single 4-20mA loop, reducing wiring costs in tank farm level measurement systems.

Experion Station Integration: Full integration with Experion Station HMI provides real-time trending, alarm management, and operator faceplate control. Historical data logging enables advanced analytics for predictive maintenance and process optimization.

Cybersecurity Features: When deployed with Experion PKS R520 or later, benefits from role-based access control, encrypted communications, and audit logging compliant with IEC 62443 industrial cybersecurity standards.

Custom Scaling & Linearization: Configure non-linear output curves for specialized actuators, square-root extraction for flow compensation, or custom characterization tables directly in the C300 controller without external signal conditioners.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx Express. Custom-configured modules with factory calibration certificates require 4-6 weeks. Expedited processing available for emergency shutdowns.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift beyond published specifications. Extended 36-month coverage available for critical spares inventory.

Technical Support: Unlimited access to Honeywell-certified application engineers for configuration assistance, troubleshooting, and system integration guidance. Remote diagnostic support via secure VPN connection for rapid issue resolution.

Documentation Package: Each module includes installation manual, wiring diagrams, calibration certificate, configuration database file, and HART device description (DD) files for integration with asset management systems.

Frequently Asked Questions

Q: What is the recommended calibration interval for the CC-TAOX01 analog output module?
A: Honeywell recommends annual verification for general process control applications. Critical control loops in regulated industries (pharma, nuclear) may require quarterly calibration per site quality procedures. Built-in diagnostics provide continuous accuracy monitoring.

Q: Can the CC-TAOX01 drive multiple field devices from a single output channel?
A: Yes, when devices are wired in series and total loop resistance remains below 600Ω. Common applications include driving a control valve positioner plus a chart recorder, or multiple indicator lights in alarm annunciator panels.

Q: How does the module perform in high-vibration environments like compressor skids?
A: The CC-TAOX01 meets IEC 60068-2-6 vibration testing (10-150 Hz, 1g acceleration) and is suitable for skid-mounted installations. For severe vibration (offshore drilling, mobile equipment), consider shock-mounted enclosures and strain relief on field wiring.

Q: What diagnostic information is available for troubleshooting output channel failures?
A: Real-time diagnostics include open circuit detection, short circuit protection, over-current alarms, and channel-specific fault codes. HART-enabled devices provide additional loop resistance measurements and device health status accessible through Experion Station.

Q: Is the CC-TAOX01 compatible with legacy TDC 3000 LCN networks?
A: No, the CC-TAOX01 is designed exclusively for Experion C300 controllers using the I/O Link protocol. TDC 3000 systems require legacy analog output cards (e.g., 51304453-100). Migration to Experion provides a path to modern I/O technology.

Q: What is the maximum cable distance between the module and field devices?
A: With 18 AWG shielded cable (13Ω/1000ft) and 24V DC supply, maximum distance is approximately 3000 feet at 20mA output. Longer runs require larger wire gauge (16 AWG supports 4500 feet) or higher supply voltage (not recommended due to device limitations).
