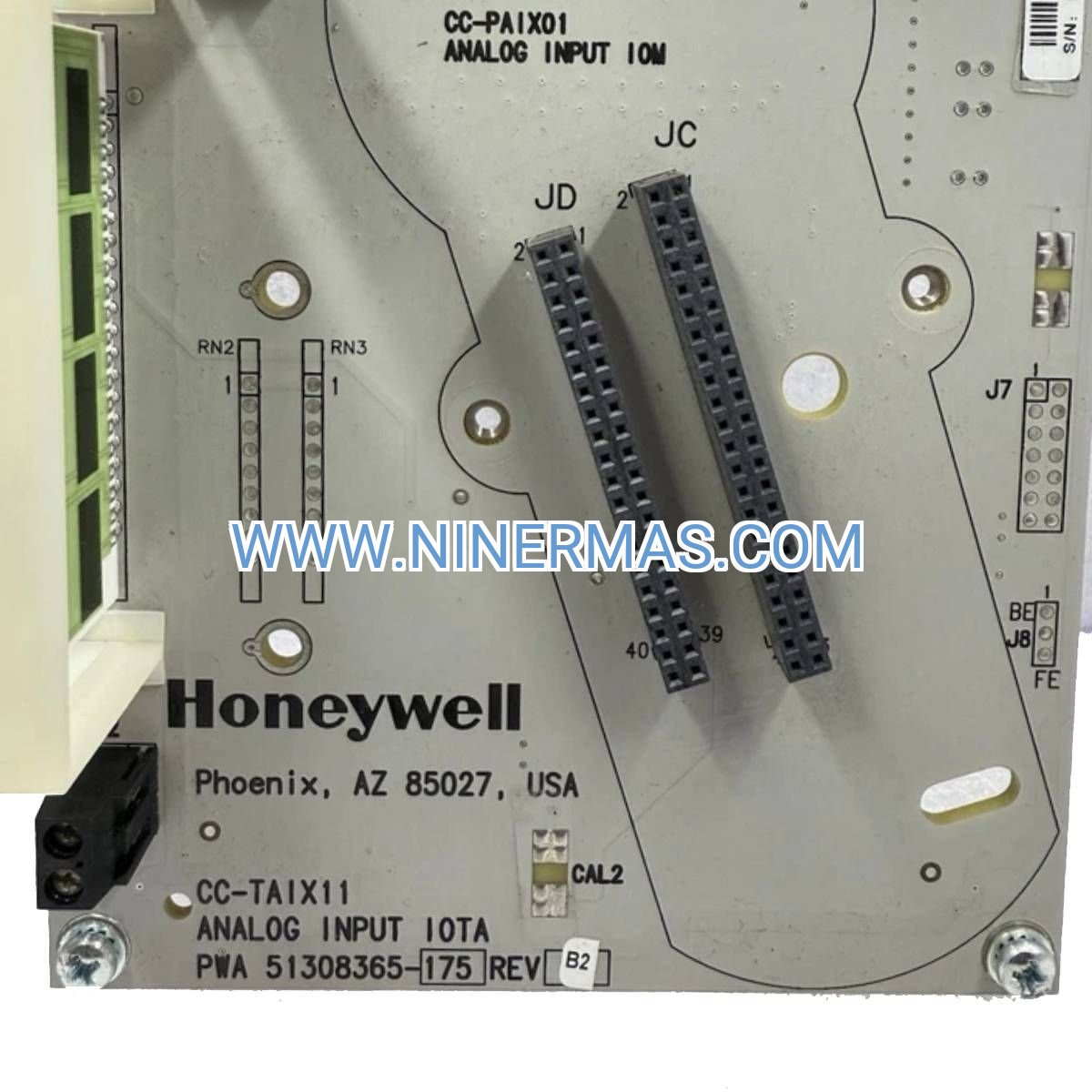

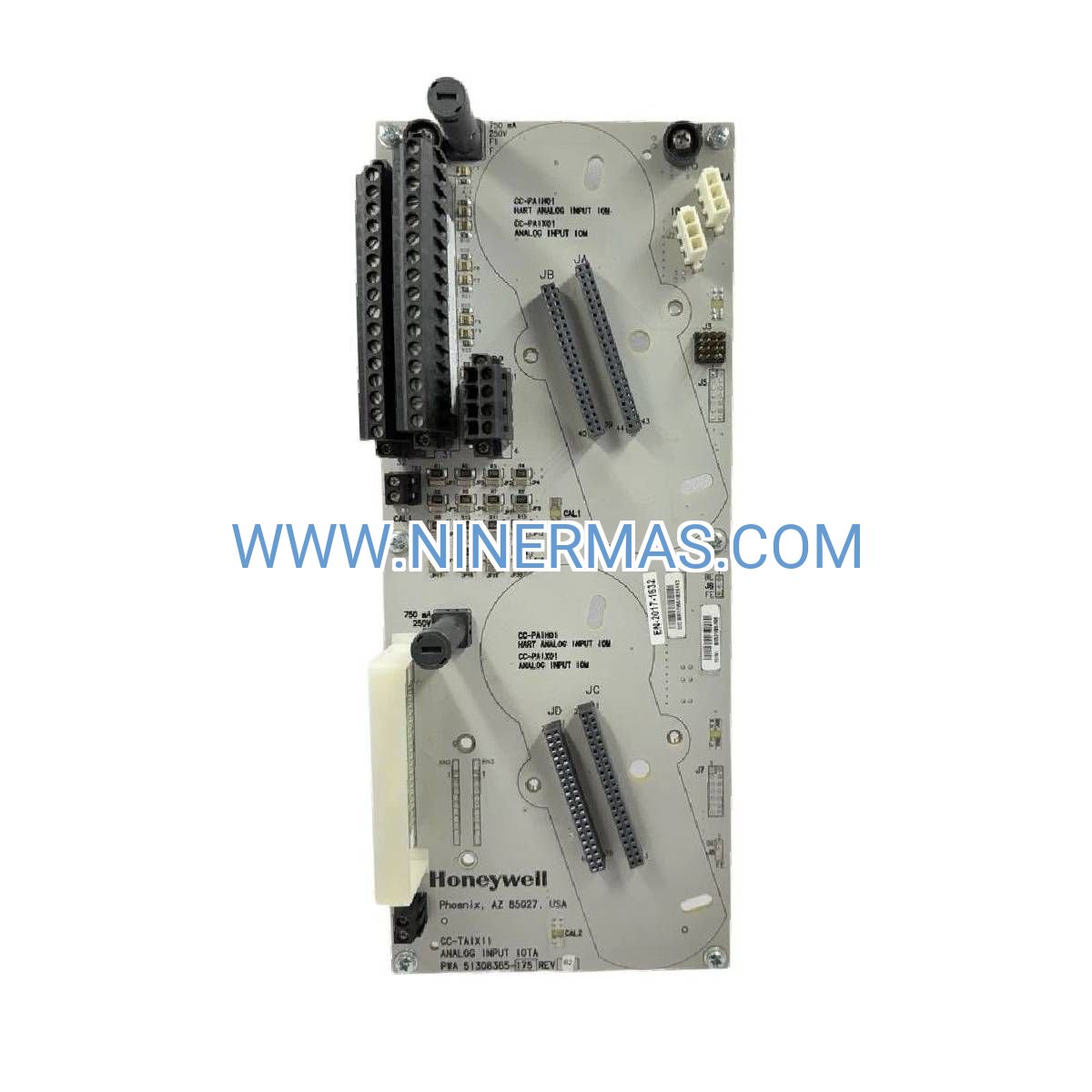

CC-TAIX11 Redundant Analog Input Module (Industrial-Grade 16-Channel IOTA)

The CC-TAIX11 represents Honeywell's advanced solution for mission-critical analog signal acquisition in Experion PKS Series C distributed control environments. Engineered with full redundancy and 16 differential input channels, this IOTA (Input/Output Termination Assembly) module delivers uninterrupted process monitoring across oil & gas, chemical processing, power generation, and water treatment facilities.

Designed for plant engineers and automation specialists managing complex industrial processes, the CC-TAIX11 eliminates single points of failure through automatic failover architecture while maintaining ±0.1% measurement accuracy. Whether you're upgrading legacy systems or deploying new control infrastructure, this module provides the reliability and precision demanded by continuous process industries.

Key advantages include universal input flexibility (4-20 mA current loops and 1-5V DC voltage without hardware reconfiguration), galvanic isolation protecting against electrical interference, and hot-swappable design enabling maintenance without production interruption. Discover how the CC-TAIX11 enhances your control system availability and measurement integrity.

Core Features & Benefits

→ Fault-Tolerant Redundancy
Dual-channel architecture with seamless automatic switchover ensures zero data loss during module failures, delivering 99.99% uptime for critical process variables.

→ High-Density Signal Consolidation
Sixteen independent input channels per module reduce cabinet footprint by 40% compared to legacy 8-channel designs, lowering installation costs and panel space requirements.

→ Software-Configurable Input Types
Each channel accepts either 4-20 mA current or 1-5V voltage signals through Experion Station configuration—no jumpers or DIP switches required, accelerating commissioning and reducing wiring errors.

✓ Multi-Layer Electrical Isolation
Channel-to-channel and channel-to-backplane isolation (1500V AC) eliminates ground loop interference and protects against voltage transients in harsh industrial environments.

✓ Online Module Replacement
Hot-swap capability allows technicians to replace failed modules during operation without process shutdown, minimizing mean time to repair (MTTR) and production losses.

✓ Built-In Diagnostics
Real-time LED indicators and Experion Station health monitoring provide instant visibility into channel status, power supply conditions, and communication integrity.

Typical Application Scenarios

Upstream Oil & Gas Production
Monitor wellhead pressure transmitters, separator level sensors, and flow meters across remote production facilities. The CC-TAIX11's redundant design ensures continuous data availability for safety-critical shutdown systems, while its wide operating temperature range (-40°C to +70°C with conformal coating) withstands extreme environmental conditions. Integration with Experion PKS enables predictive maintenance through trend analysis of sensor drift patterns.

Chemical Batch Processing
Acquire reactor temperature profiles, distillation column pressure gradients, and feed tank levels with 16-bit resolution. The module's ±0.1% accuracy maintains tight process control during exothermic reactions, reducing batch variability and improving product quality. Pair with digital output modules for complete PID loop closure in multi-stage synthesis operations.

Combined-Cycle Power Plants
Interface with turbine vibration sensors, boiler drum level transmitters, and emissions analyzers (NOx, CO, O2). Redundant operation guarantees uninterrupted data flow to turbine control systems, preventing costly emergency shutdowns. The CC-TAIX11's fast 100ms scan rate captures transient events during load changes and startup sequences.

Municipal Water Treatment
Connect pH probes, chlorine residual analyzers, turbidity meters, and flow totalizers across clarification, filtration, and disinfection stages. Galvanic isolation protects sensitive analytical instruments from electrical noise generated by variable-frequency drives and high-voltage UV systems. Supports regulatory compliance through accurate data logging and historian integration.

Pharmaceutical Manufacturing
Monitor clean-in-place (CIP) system temperatures, fermentation vessel dissolved oxygen levels, and sterile filtration differential pressures. The module's FDA 21 CFR Part 11-compliant audit trail capabilities (via Experion PKS) ensure data integrity for validation documentation and regulatory inspections.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-TAIX11 when your application requires high-availability analog input with channel counts between 8-16 signals per I/O drop. For applications with fewer than 8 channels, consider the 8-channel CC-TAIX01 to optimize cost. If you need thermocouple or RTD inputs, specify the CC-TCNT01 or CC-TAID11 modules instead. Verify your Experion PKS controller firmware supports IOTA redundancy (R410.2 or later required).

Extended Functions

Predictive Maintenance Integration: The CC-TAIX11 supports Honeywell's Experion Pulse analytics platform, enabling machine learning algorithms to detect sensor degradation, wiring faults, and calibration drift before they impact process quality. Historical trend data feeds predictive models that recommend optimal maintenance intervals.

Cybersecurity Features: Embedded secure boot and encrypted backplane communication protect against unauthorized configuration changes and man-in-the-middle attacks. Complies with IEC 62443 industrial cybersecurity standards for defense-in-depth architectures.

Custom Scaling & Linearization: Experion Station software provides square root extraction for flow measurement, custom polynomial curves for non-linear sensors, and user-defined engineering unit conversions—eliminating the need for external signal conditioners.

Delivery & Service Guarantee

Lead Time: In-stock modules ship within 24 hours via express courier (DHL, FedEx, UPS). Standard delivery to major industrial hubs: 3-5 business days (North America/Europe), 5-7 days (Asia-Pacific). Custom configurations with conformal coating or extended temperature ratings require 2-3 weeks factory lead time.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service—receive a tested spare module before returning the defective unit to minimize downtime.

Technical Support: Lifetime access to our certified Honeywell engineers for installation guidance, configuration assistance, and troubleshooting support. Phone, email, and remote desktop support available during your local business hours. Emergency 24/7 hotline for critical process issues.

Documentation Package: Each module includes installation manual, wiring diagrams, Experion Station configuration templates, and calibration certificates. Downloadable resources: AutoCAD panel layout drawings, HART device descriptions (DD files), and spare parts lists.

Frequently Asked Questions

Can the CC-TAIX11 accept HART-enabled transmitters for remote configuration?
Yes, the module passes HART digital signals transparently when connected to 4-20 mA HART transmitters. Use Experion Station's integrated HART interface or a handheld communicator for device configuration and diagnostics without interrupting the analog measurement.

What wire gauge and cable length are recommended for optimal signal integrity?
Use 18-22 AWG shielded twisted-pair cable with the shield grounded at the module end only. Maximum cable length: 1000 meters (3280 feet) for 4-20 mA current loops, 300 meters (984 feet) for 1-5V voltage signals. For runs exceeding these distances, install loop-powered isolators or consider upgrading to Foundation Fieldbus.

How does redundancy failover work during a module failure?
The redundant partner module continuously mirrors all channel data. Upon detecting a primary module fault (power loss, communication failure, or self-diagnostic error), the system switches to the backup module within 100ms—faster than most process time constants. No data buffering or manual intervention required.

Is the CC-TAIX11 suitable for Safety Instrumented Systems (SIS) applications?
The module is SIL 2 capable when configured per IEC 61511 guidelines and integrated with Experion Safety Manager. For SIL 3 applications, use the dedicated CC-TAIX51 safety-certified variant with additional diagnostic coverage and proven-in-use documentation.

Can I retrofit this module into an existing TDC 3000 system?
No, the CC-TAIX11 uses Experion PKS-specific backplane protocols and is not backward-compatible with TDC 3000 chassis. For TDC 3000 upgrades, consider a phased migration to Experion PKS or use the legacy-compatible MC-TAIH12 analog input FTA as an interim solution.

What is the typical power budget impact when adding CC-TAIX11 modules?
Each module draws 5W typical (7W maximum). A redundant pair consumes 10-14W total. Verify your Experion PKS power supply has sufficient capacity—the standard 8U-PWSP02 supplies 120W per chassis, supporting up to 8 redundant CC-TAIX11 pairs with 20% margin.

Ready to Enhance Your Process Control Reliability?

Upgrade your Experion PKS system with the proven performance of the CC-TAIX11 redundant analog input module. Our industrial automation specialists are standing by to assist with system design, configuration planning, and volume pricing for multi-module projects.

Contact our team today: Request a technical datasheet, discuss your specific application requirements, or place an order for immediate shipment. We provide complete system integration support—from initial specification through commissioning and ongoing maintenance.
