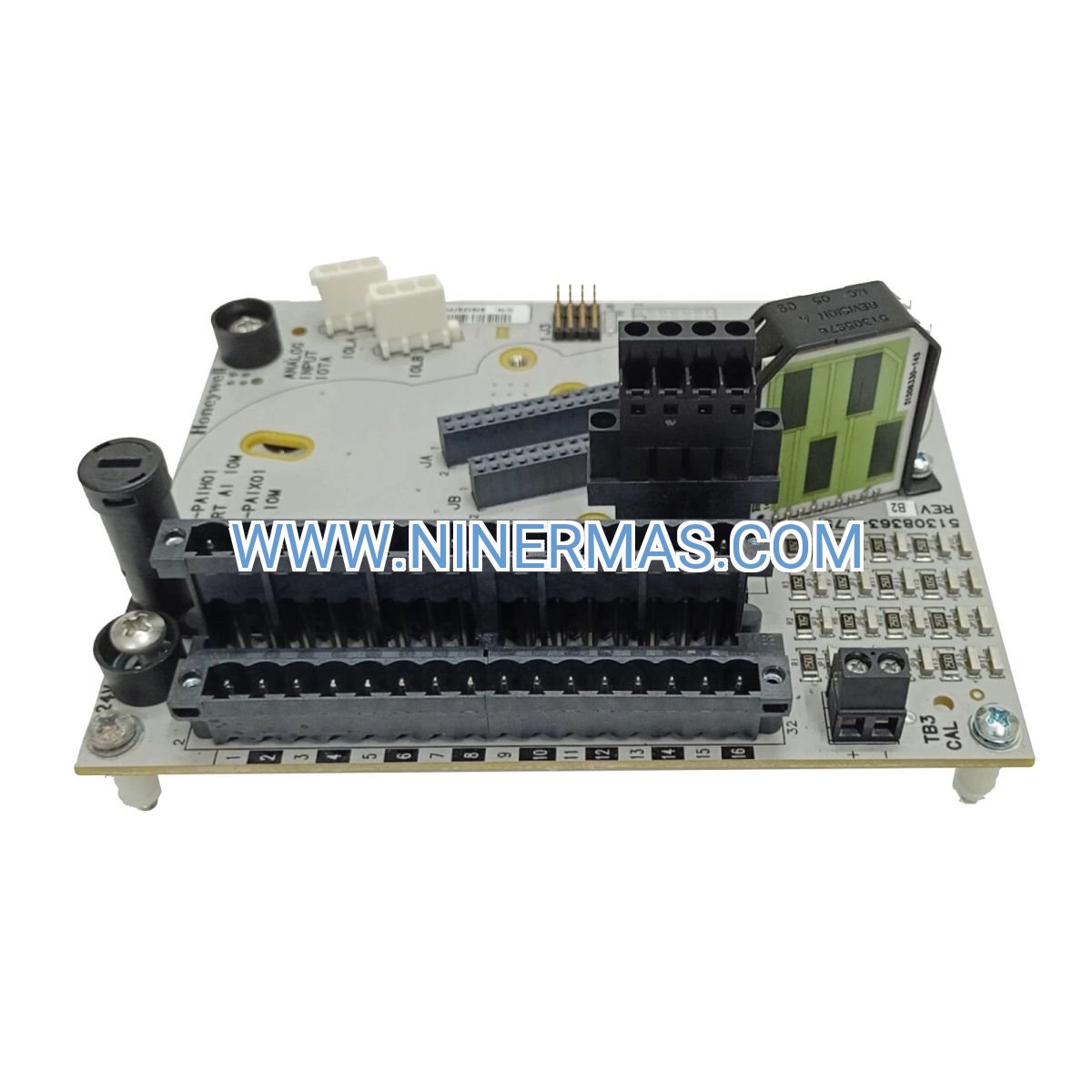

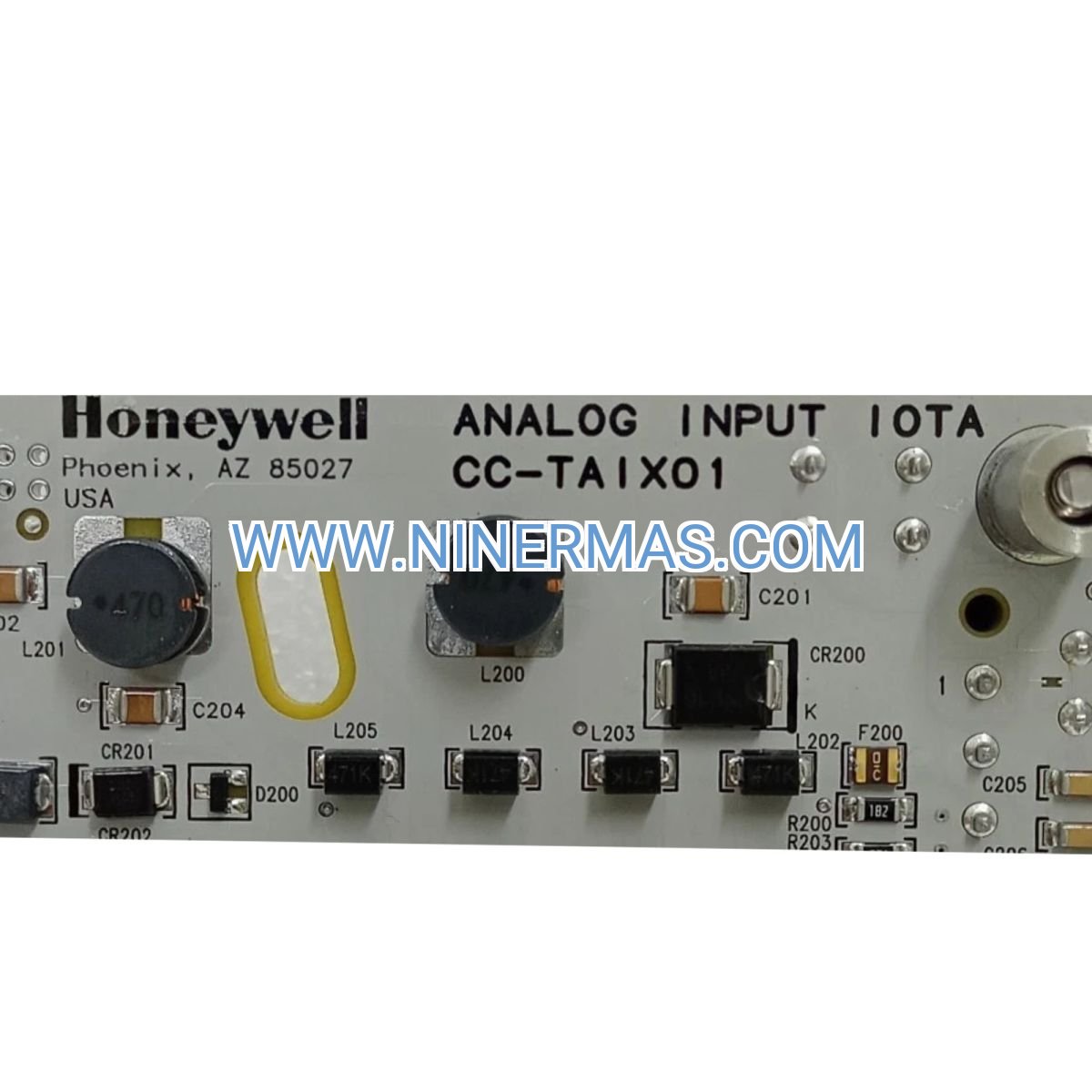

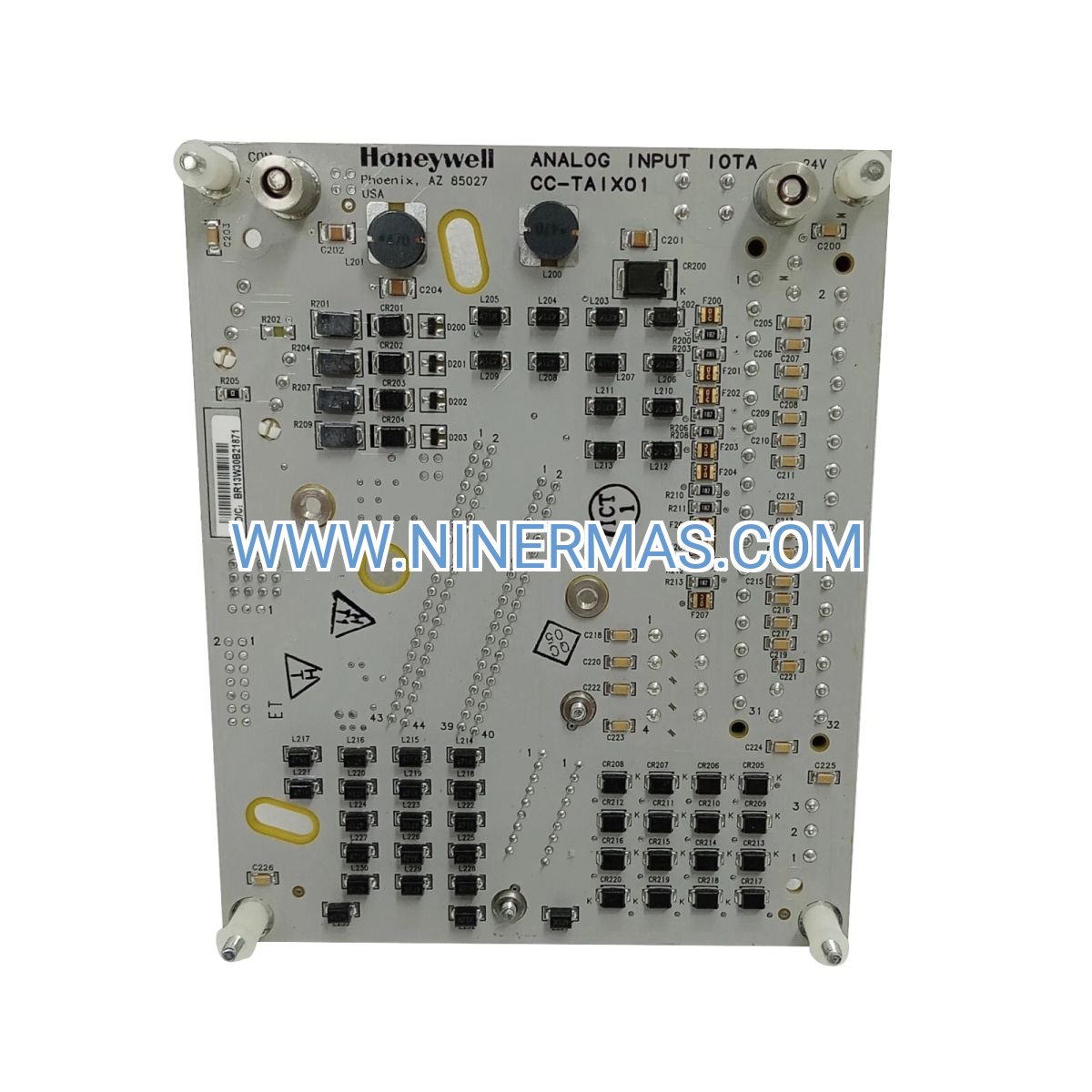

CC-TAIX01 Analog Input IOTA Assembly (Industrial-Grade Field Termination)

The CC-TAIX01 represents Honeywell's advanced approach to analog signal termination within Experion PKS distributed control architectures. Engineered as a 16-channel Input/Output Termination Assembly (IOTA), this field wiring interface bridges the critical gap between process instrumentation and high-level analog input modules in Series C control systems.

Designed for engineers managing complex process automation environments, the CC-TAIX01 eliminates traditional wiring complexity while maintaining signal integrity across harsh industrial conditions. Whether you're upgrading legacy infrastructure or deploying greenfield installations, this termination assembly delivers the reliability demanded by continuous process industries.

Key advantages include hot-swappable module support for zero-downtime maintenance, HART protocol transparency for advanced diagnostics, and proven compatibility with CC-PAIH01/CC-PAIH02 analog input modules. The assembly's robust construction withstands extreme temperatures (-40°C to +70°C) while maintaining IP20 protection standards across global certifications including CE, UL, CSA, ATEX, and IECEx.

Core Capabilities & Business Value

→ Rapid Installation Architecture
Pre-engineered terminal layout reduces field wiring time by 35-45% compared to conventional terminal blocks. Color-coded connection points and integrated labeling minimize commissioning errors, accelerating project timelines and reducing labor costs.

→ Signal Integrity Assurance
Shielded terminal design with dedicated ground connections ensures noise immunity in electrically harsh environments. Supports cable runs up to 300 meters while maintaining 4-20mA signal accuracy within ±0.1% specifications.

→ HART Diagnostic Transparency
Full HART protocol pass-through enables real-time device diagnostics, predictive maintenance alerts, and remote calibration capabilities when paired with HART-enabled input modules. Reduces unplanned downtime by enabling condition-based maintenance strategies.

✓ Hot-Swap Capability
Module replacement without system shutdown or process interruption. Critical for 24/7 operations where downtime costs exceed $10,000 per hour in typical refining applications.

✓ Modular Scalability Framework
Seamless integration with mixed I/O configurations allows incremental capacity expansion without architectural redesign. Compatible with analog output, digital input, and specialty I/O modules within unified chassis structures.

✓ Environmental Resilience
Operates reliably across -40°F to +158°F temperature ranges with 5-95% humidity tolerance. Conformal coating options available for corrosive atmosphere protection in chemical processing environments.

Industry Applications & Problem Resolution

Oil & Gas Production Facilities
Interfaces pressure transmitters, temperature sensors, and flow meters across wellhead monitoring, pipeline custody transfer, and separator control applications. Resolves signal degradation issues in offshore platforms where electromagnetic interference from VFDs and high-voltage equipment compromises measurement accuracy.

Chemical Manufacturing Operations
Enables precise reactor temperature profiling and batch composition control through multi-point analog input acquisition. Addresses the challenge of maintaining signal integrity in Class I Division 2 hazardous areas while supporting SIL-rated safety instrumented systems.

Power Generation Plants
Connects turbine vibration monitors, bearing temperature sensors, and steam pressure transmitters to centralized control systems. Solves the problem of distributed sensor networks requiring hundreds of individual wire terminations by consolidating connections into manageable IOTA assemblies.

Water & Wastewater Treatment
Integrates pH analyzers, dissolved oxygen probes, turbidity meters, and chlorine residual sensors for comprehensive process monitoring. Eliminates wiring errors that previously caused false alarms and regulatory compliance issues in municipal treatment facilities.

Pharmaceutical Production
Supports cleanroom-compatible installations for bioreactor monitoring, fermentation control, and sterile processing applications. Addresses GMP documentation requirements through traceable serial numbers and validated configuration management.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose CC-TAIX01 when deploying high-level analog input modules (CC-PAIH01/CC-PAIH02) requiring 16-channel termination capacity. For 8-channel applications or low-level signal types (thermocouples, RTDs), consult alternative IOTA models. Verify power budget allocation when configuring multiple IOTAs per carrier—typical consumption is 2.5W per assembly. In hazardous area installations, ensure proper barrier/isolator selection upstream of the IOTA terminals.

Advanced Integration Features

Distributed I/O Architecture Support
The CC-TAIX01 integrates seamlessly with Honeywell's ControlEdge I/O and remote I/O subsystems, enabling flexible topology designs from centralized to fully distributed configurations. Supports redundant I/O carrier implementations for SIL 2/3 safety applications when paired with appropriate safety modules.

Configuration Management Tools
Full integration with Experion Control Builder software provides graphical configuration, automatic I/O mapping, and comprehensive diagnostic visualization. Built-in self-test capabilities report terminal connection status, shield continuity, and backplane communication health to the control system.

Cybersecurity Compliance
Designed to support IEC 62443 industrial cybersecurity standards through secure backplane communication protocols. No external network connectivity eliminates attack surface while maintaining full diagnostic capability through the control system's secure infrastructure.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via expedited logistics partners. Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 10-15 business days for factory-configured assemblies with specific labeling, conformal coating, or extended temperature range options.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage periods.

Technical Support: Unlimited access to application engineering team for installation guidance, troubleshooting assistance, and system integration consulting. Response time: 4 hours for critical issues, 24 hours for standard inquiries.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, certification documents, and configuration templates for Experion Control Builder software.

Common Technical Questions

What is the recommended wire gauge for field connections to the CC-TAIX01 IOTA?
Use 14-22 AWG (0.5-2.5 mm²) stranded copper wire with 300V insulation rating. For optimal signal integrity in high-EMI environments, specify shielded twisted-pair cable with overall foil shield and drain wire. Terminate shields at the IOTA ground terminal only (single-point grounding) to prevent ground loops.

Can the CC-TAIX01 support intrinsically safe (IS) barrier connections for hazardous area sensors?
Yes, the IOTA accepts signals from approved IS barriers and galvanic isolators. Install barriers in the safe area with field wiring routed through appropriate conduit systems. Verify barrier output specifications match the CC-PAIH01/CC-PAIH02 input requirements (typically 4-20mA, 1-5VDC).

How does the hot-swap capability work during module replacement procedures?
The I/O carrier maintains backplane power and communication while individual modules are removed or installed. To replace a module: (1) Place associated control loops in manual mode, (2) Remove module retaining screw, (3) Extract module from carrier, (4) Insert replacement module, (5) Secure retaining screw, (6) Verify module recognition in Control Builder, (7) Return loops to automatic mode. Total downtime per module: typically under 60 seconds.

What diagnostic information does the CC-TAIX01 provide to the control system?
The IOTA reports terminal connection status, shield ground continuity, backplane communication health, and module presence detection. When paired with HART-enabled modules, it passes through device-level diagnostics including sensor range values, calibration dates, error codes, and predictive maintenance alerts from smart field devices.

Is the CC-TAIX01 compatible with legacy TDC 3000 LCN network infrastructure?
No, the CC-TAIX01 is exclusively designed for Experion PKS Series C systems utilizing the ControlNet or Fault Tolerant Ethernet (FTE) communication architecture. For TDC 3000 systems, migration to Experion PKS is recommended to leverage modern cybersecurity, diagnostic capabilities, and long-term product support.

What environmental conditions require conformal coating or specialized enclosure protection?
Specify conformal coating for installations exposed to corrosive gases (H2S, Cl2, SO2), salt spray environments (offshore platforms, coastal facilities), or condensing humidity conditions. For outdoor installations or wash-down areas, house the IOTA in NEMA 4X/IP66 rated enclosures with appropriate environmental sealing and temperature management.

Ready to Optimize Your Process Control Infrastructure?

Contact our application engineering team to discuss your specific analog input requirements, system architecture, and integration timeline. We provide complimentary pre-sales consultation including I/O count verification, power budget analysis, and cabinet layout recommendations to ensure successful first-time deployment.

Request a detailed quotation today or speak with a technical specialist about volume pricing for multi-unit projects. Expedited delivery available for urgent retrofit and emergency replacement scenarios.
