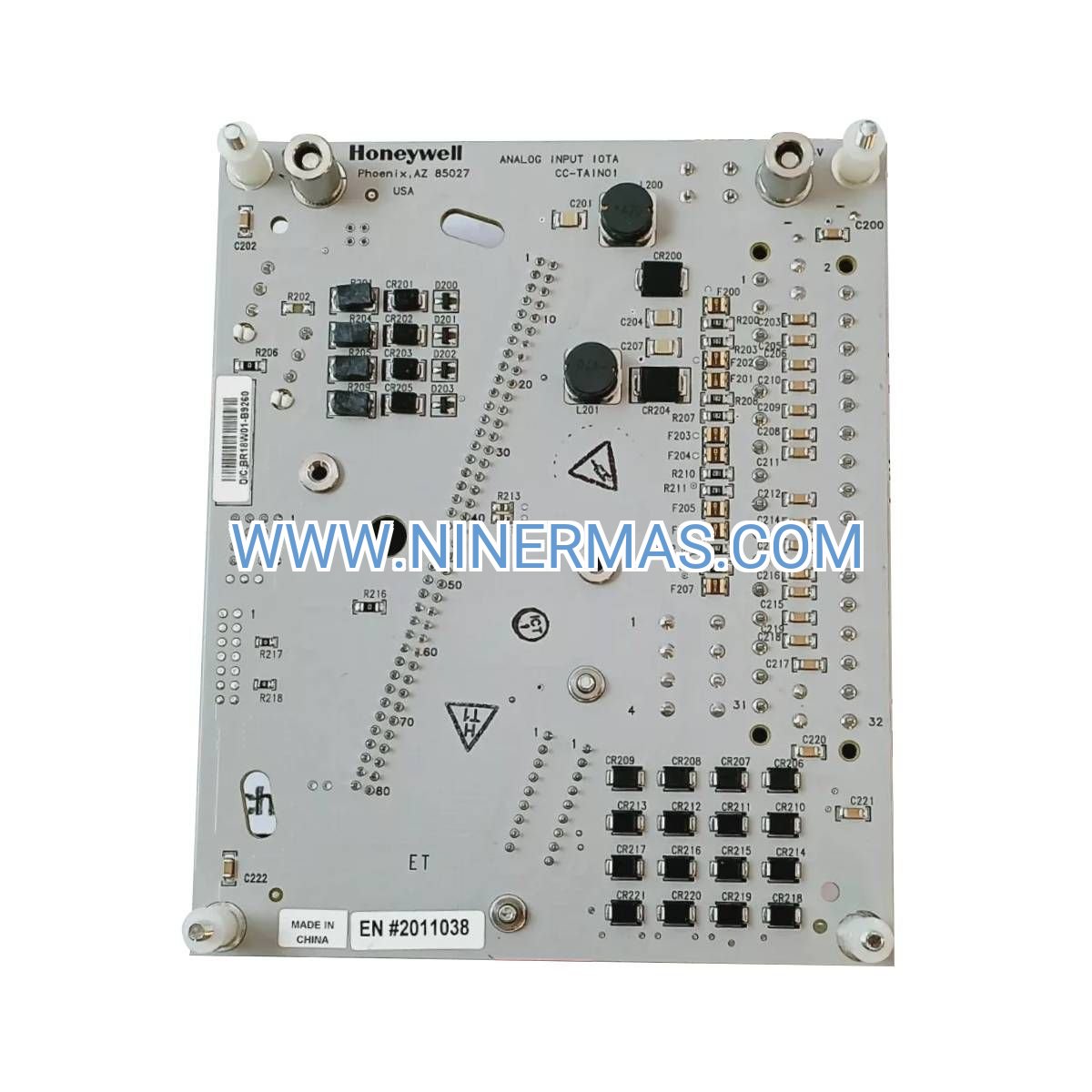

CC-TAIN01 Analog Current Input Module (Industrial-Grade Signal Acquisition)

The CC-TAIN01 represents Honeywell's proven approach to high-fidelity current signal acquisition within Experion PKS distributed control architectures. This 8-channel analog input module transforms 4-20mA transmitter signals into digital process variables with 16-bit resolution and ±0.1% accuracy, enabling precise monitoring of flow, pressure, temperature, and level measurements across oil & gas, chemical processing, power generation, and water treatment facilities.

Designed for mission-critical applications where signal integrity cannot be compromised, the CC-TAIN01 features channel-to-channel and channel-to-system galvanic isolation to eliminate ground loops and electrical noise interference. Integration with C300 controllers provides seamless data exchange for advanced regulatory control, cascade loops, and supervisory strategies—making it the preferred choice for process engineers upgrading legacy systems or expanding existing Experion PKS installations.

Whether you're instrumenting a new refinery unit, retrofitting aging DCS infrastructure, or standardizing I/O platforms across multiple sites, the CC-TAIN01 delivers the reliability, accuracy, and interoperability demanded by modern industrial automation. Backed by comprehensive technical documentation and 12-month warranty coverage, this module reduces commissioning time while ensuring long-term operational stability.

Core Features & Benefits

→ 8 Isolated Current Input Channels
Simultaneous acquisition of up to eight 4-20mA signals with independent channel isolation prevents cross-talk and protects against ground potential differences—critical for multi-transmitter installations in electrically noisy environments.

→ 16-Bit A/D Conversion with ±0.1% Accuracy
High-resolution digitization captures subtle process variations, enabling tighter control band performance and early detection of equipment degradation or process upsets that lower-resolution modules might miss.

→ Plug-and-Play C300 Controller Integration
Pre-configured for Experion PKS environments with automatic module recognition and simplified configuration through Control Builder software—reducing engineering hours during system expansion or module replacement.

→ Wide Operating Temperature Range (0-60°C)
Proven performance in non-climate-controlled equipment rooms, offshore platforms, and industrial enclosures where ambient temperatures fluctuate seasonally or due to adjacent heat-generating equipment.

→ Low Power Consumption (3.5W Typical)
Minimizes heat dissipation within I/O racks, allowing higher module density without forced cooling—reducing total cost of ownership for large-scale DCS deployments.

→ Field-Proven Reliability in Hazardous Environments
Extensive installed base in SIL-rated safety systems, continuous process units, and 24/7 operations where unplanned downtime translates directly to production losses and safety risks.

Typical Application Scenarios

Refinery Crude Unit Monitoring
Acquire flow transmitter signals from crude charge pumps, pressure measurements from distillation columns, and temperature inputs from heat exchanger networks. The CC-TAIN01's isolation architecture prevents electrical faults in one measurement loop from cascading to adjacent critical control points.

Chemical Reactor Batch Control
Monitor reagent feed rates, reactor pressure profiles, and jacket temperature during exothermic reactions where precise ingredient dosing determines product quality and batch yield. High accuracy ensures compliance with recipe tolerances and regulatory documentation requirements.

Power Plant Boiler Optimization
Track steam flow, feedwater pressure, and combustion air measurements for efficiency optimization and emissions control. Reliable signal acquisition supports advanced control strategies that reduce fuel consumption while maintaining NOx/SOx compliance.

Water Treatment SCADA Integration
Interface with level transmitters in clarifiers, flow meters on distribution mains, and pressure sensors across pump stations. The module's compatibility with industry-standard 4-20mA instrumentation simplifies integration with existing field devices.

Pharmaceutical Clean-in-Place (CIP) Systems
Monitor cleaning solution concentration, spray ball pressure, and return flow rates during automated sanitation cycles. Accurate current signal processing ensures validation-ready audit trails for FDA compliance documentation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-TAIN01 when your application requires standard 4-20mA current loop interfacing with C300 controllers. For voltage input requirements, consider the CC-TAIX01 module. For HART-enabled smart transmitter communication, consult Honeywell's HART-compatible analog input modules. Verify that your transmitter power supply configuration matches the module's non-powered input design (external loop power required).

Extended Functions

Experion PKS Integration: The CC-TAIN01 leverages Experion's unified engineering environment, allowing engineers to configure channel scaling, alarm limits, and signal conditioning parameters through Control Builder's intuitive graphical interface. Real-time diagnostics provide immediate visibility into open-circuit faults, out-of-range conditions, and module health status.

Redundancy Support: Deploy in redundant C300 controller configurations for high-availability applications where process continuity cannot tolerate single-point failures. Automatic failover ensures uninterrupted signal acquisition during controller switchovers.

Calibration & Maintenance: Factory-calibrated modules eliminate field calibration requirements during commissioning. Online diagnostics enable predictive maintenance strategies by tracking signal drift and module performance trends over time.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Expedited shipping available for critical outage support and emergency replacements. Bulk orders for project deployments ship within 7-10 business days with coordinated logistics.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects and component failures. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Pre-sales application engineering assistance helps optimize module selection and system architecture. Post-sales support includes configuration guidance, troubleshooting diagnostics, and integration consulting via phone, email, and remote desktop sessions.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and links to complete technical manuals. Control Builder configuration examples and sample code accelerate commissioning timelines.

Frequently Asked Questions

Can the CC-TAIN01 interface with 2-wire transmitters that require loop power?
The CC-TAIN01 provides current measurement only and does not supply loop power. Use external 24VDC power supplies or powered I/O modules to energize 2-wire transmitters, then connect the current loop to the CC-TAIN01 input terminals.

What is the maximum cable distance between field transmitters and the CC-TAIN01 module?
Typical installations support up to 1,000 meters (3,280 feet) with 18 AWG shielded twisted-pair cable. Actual distance depends on cable resistance, transmitter compliance voltage, and electrical noise environment. Consult Honeywell's wiring guidelines for site-specific recommendations.

Does this module support HART digital communication over the 4-20mA signal?
The CC-TAIN01 is optimized for analog current measurement and does not decode HART digital signals. For HART-enabled transmitter integration with access to diagnostic data and configuration parameters, specify Honeywell's HART-compatible analog input modules.

How does the CC-TAIN01 compare to legacy TDC 3000 analog input modules?
The CC-TAIN01 offers superior resolution (16-bit vs. 12-bit), faster update rates, and enhanced diagnostics compared to TDC 3000 modules. Migration from TDC 3000 to Experion PKS with CC-TAIN01 modules provides a clear upgrade path with backward-compatible I/O addressing for simplified cutover.

What preventive maintenance is required for optimal long-term performance?
The CC-TAIN01 is a solid-state module with no moving parts or consumable components. Recommended maintenance includes periodic inspection of terminal block connections for tightness, verification of shield grounding integrity, and review of diagnostic logs for early fault detection.

Are replacement modules hot-swappable during operation?
Yes, the CC-TAIN01 supports online insertion and removal (hot-swap) when installed in C300 I/O racks, allowing module replacement without shutting down the controller or adjacent I/O modules. Follow proper ESD precautions and Honeywell's hot-swap procedures to prevent transient faults.

Ready to Upgrade Your Process Control Infrastructure?

Contact our industrial automation specialists today for application-specific guidance, system architecture reviews, and competitive project pricing. Whether you're expanding an existing Experion PKS installation or planning a complete DCS migration, our team provides the technical expertise and product availability to keep your project on schedule.

Request a quote now or speak with an engineer to discuss your current signal acquisition challenges and discover how the CC-TAIN01 can improve measurement accuracy, reduce commissioning time, and enhance long-term system reliability.
