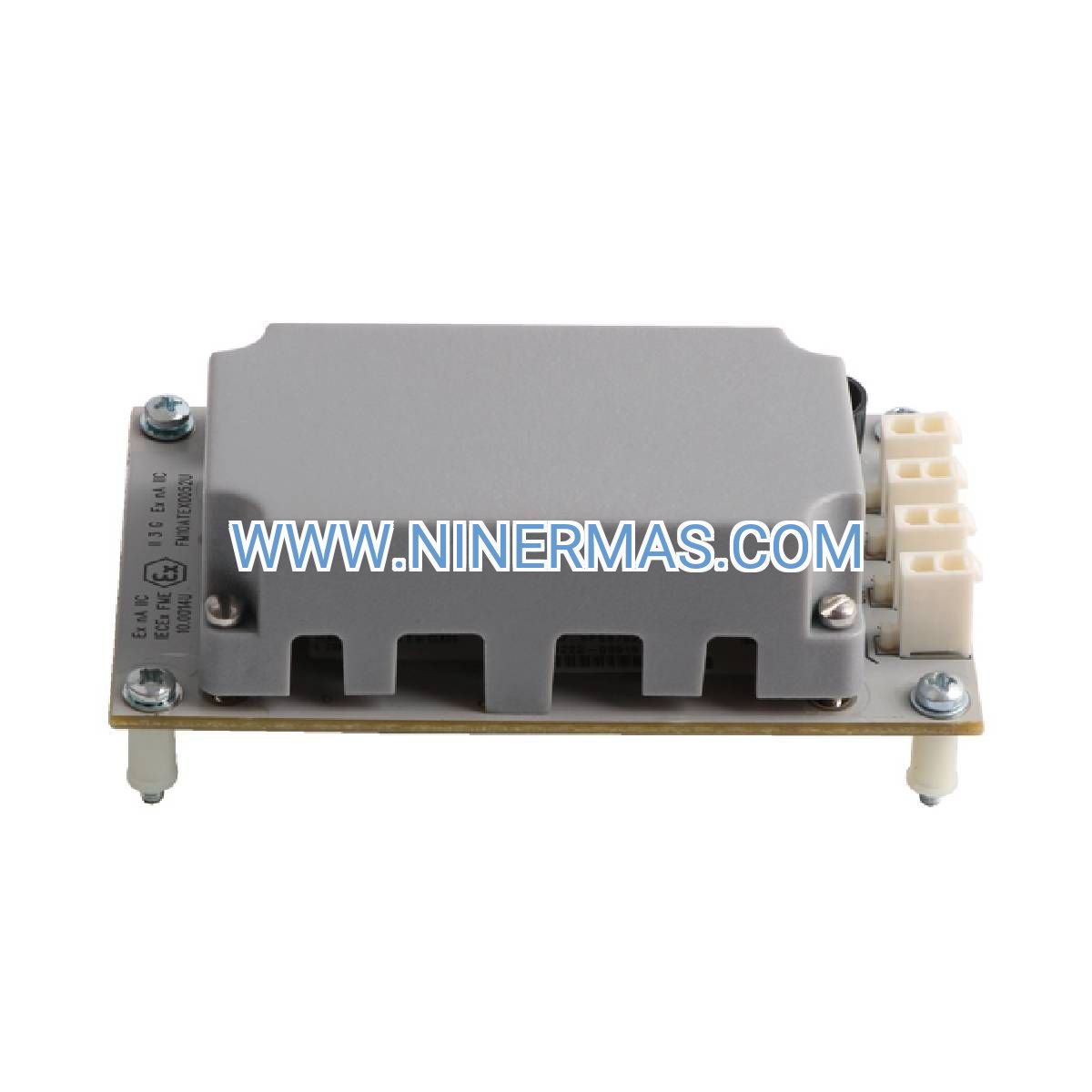

CC-PDIL01 Digital Input Module (Industrial-Grade 32-Channel Solution)

The CC-PDIL01 represents a field-proven digital input solution designed for mission-critical process control environments. Engineered with 32 independent 24VDC input channels and galvanic isolation technology, this module serves as the cornerstone for discrete signal acquisition in Honeywell Experion PKS distributed control architectures.

Industrial facilities across petrochemical refineries, pharmaceutical manufacturing, water treatment plants, and power generation stations rely on the CC-PDIL01 to monitor valve positions, safety interlocks, equipment status indicators, and alarm contacts with unwavering accuracy. The module's field-isolated design eliminates ground loop interference while maintaining signal integrity across extended cable runs up to 300 meters.

When precision matters and downtime is not an option, the CC-PDIL01 delivers enterprise-grade reliability backed by comprehensive diagnostics, hot-swap capability, and seamless integration with C200/C300 controller platforms. Every unit ships factory-tested with full certification documentation and 12-month warranty coverage.

Key Technical Advantages & Performance Benefits

→ High-Density Signal Acquisition: 32 discrete input channels per module maximize rack space efficiency while reducing installation costs by up to 40% compared to lower-density alternatives.

→ Galvanic Isolation Protection: Field-to-logic isolation safeguards control systems from voltage transients, ground potential differences, and electromagnetic interference in harsh industrial environments.

→ Rapid Response Characteristics: Sub-5ms input response time ensures real-time monitoring of fast-acting safety devices, emergency shutdown systems, and high-speed packaging equipment.

→ Hot-Swappable Architecture: Replace modules during live operation without process interruption or controller reboot—critical for continuous manufacturing operations with 99.9% uptime requirements.

→ Universal Voltage Compatibility: Accepts 18-30VDC input range, accommodating sensor voltage variations and eliminating nuisance trips from power supply fluctuations.

→ Built-In Diagnostics: Per-channel LED indicators and system-level fault reporting accelerate troubleshooting, reducing mean time to repair (MTTR) by 60% versus legacy modules.

Industrial Application Scenarios

✓ Petrochemical Process Safety Systems
Monitor emergency shutdown valve positions, flame detector contacts, and gas detection alarm outputs across refinery units. The CC-PDIL01's certified intrinsic safety barriers enable deployment in Class I Division 2 hazardous areas while maintaining SIL 2 compliance for safety instrumented functions.

✓ Pharmaceutical Batch Control
Track reactor vessel level switches, agitator motor status contacts, and clean-in-place (CIP) cycle confirmation signals. Field isolation prevents cross-contamination between production batches while ensuring FDA 21 CFR Part 11 audit trail integrity through timestamped event logging.

✓ Water Treatment SCADA Integration
Acquire pump run status, filter backwash cycle indicators, and chemical tank level alarms from remote lift stations. Extended cable distance capability (300m) reduces repeater requirements in geographically distributed municipal water systems.

✓ Power Generation Turbine Monitoring
Capture vibration sensor trip contacts, bearing temperature alarms, and governor position feedback from steam and gas turbine packages. Millisecond-resolution timestamping supports sequence-of-events analysis for post-trip forensics.

✓ Automotive Assembly Line Control
Interface with robotic cell safety gates, conveyor jam detectors, and part presence sensors in high-speed manufacturing environments. The module's 5mA low input current prevents sensor loading while supporting long cable runs in factory floor installations.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the CC-PDIL01 when your application requires high-density discrete input monitoring with field isolation. For applications needing sub-millisecond sequence-of-events recording, consider the 8C-PDIS01 SOE variant. When integrating with legacy TDC 3000 systems, verify compatibility with DC-TDIL11 interface modules. Always pair with appropriate terminal blocks and shielded cabling per Honeywell installation standards.

Advanced Integration Capabilities

Redundant System Architecture: Deploy dual CC-PDIL01 modules in fault-tolerant configurations with automatic failover switching. When paired with redundant C300 controllers, the system achieves 99.99% availability for critical process control applications.

Hybrid I/O Expansion: Combine digital input modules with CC-PDOB01 digital output modules, CC-PAIH02 analog input modules, and CC-PAON01 analog output modules on shared carrier assemblies. Mixed I/O configurations reduce panel footprint by 35% while simplifying wiring infrastructure.

Remote I/O Networking: Connect CC-PDIL01 modules to controllers via 51202324-100 I/O Link cables supporting distances up to 100 meters. Fiber optic extensions enable remote marshalling cabinets in hazardous areas while maintaining deterministic scan times.

Third-Party Device Integration: Interface with non-Honeywell sensors, switches, and transmitters using industry-standard 24VDC logic levels. The module's universal input design accepts both sinking and sourcing sensor configurations without external signal conditioning.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock CC-PDIL01 modules ship within 24-48 hours via express courier service. Typical delivery to North America, Europe, and Asia-Pacific regions: 3-7 business days.

Custom Configuration Services: Factory-programmed modules with pre-loaded I/O mapping and diagnostic settings available with 10-14 day lead time. Ideal for large-scale retrofit projects requiring plug-and-play deployment.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support Access: Unlimited phone and email support from certified Experion PKS engineers. Remote diagnostic assistance, configuration file review, and integration troubleshooting included at no additional charge.

Documentation Package: Every shipment includes installation manual, wiring diagrams, configuration worksheets, and calibration certificates. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

What cable specifications are recommended for field wiring to the CC-PDIL01 module?
Use 18-22 AWG shielded twisted-pair cable with drain wire for optimal noise immunity. Belden 9501 or equivalent multi-pair cable works well for grouped sensor connections. Maintain shield continuity and ground at the module end only to prevent ground loops.

Can the CC-PDIL01 interface with 12VDC or 48VDC sensor outputs?
The module is optimized for 24VDC nominal operation. While it accepts 18-30VDC inputs, 12VDC signals may not reliably trigger the input threshold. For 48VDC applications, use external voltage divider networks or consider the CC-PDIL11 high-voltage variant.

How does the CC-PDIL01 compare to the older TDC 3000 DC-TDIL11 module?
The CC-PDIL01 offers 60% faster scan rates, enhanced diagnostics, and hot-swap capability not available in DC-TDIL11 modules. Both modules maintain functional compatibility, allowing mixed deployment during phased migration projects.

What is the maximum number of CC-PDIL01 modules supported per controller?
C300 controllers support up to 40 I/O modules per controller, limited by backplane power budget and scan time requirements. Typical installations deploy 8-16 modules per controller rack for optimal performance.

Does the module support wet contact or dry contact input configurations?
The CC-PDIL01 accepts both wet contact (externally powered) and dry contact (module-powered) sensor configurations. Internal pull-up resistors enable dry contact operation without external power supplies.

Are there any special grounding requirements for hazardous area installations?
Follow NEC Article 504/505 grounding practices for Class I Division 2 installations. Use intrinsic safety barriers (MTL or Pepperl+Fuchs) when interfacing with sensors in Zone 0/1 hazardous locations. Consult Honeywell application note AN-CC-PDIL01-HA for detailed wiring diagrams.

Ready to Upgrade Your Control System?

Contact our industrial automation specialists today for application-specific configuration guidance, volume pricing, and integration support. Whether you're modernizing legacy TDC 3000 infrastructure or designing new Experion PKS installations, our team delivers turnkey solutions backed by decades of process control expertise.

Request a technical consultation: Our engineers will review your I/O requirements, recommend optimal module configurations, and provide detailed project quotations within 24 hours.
