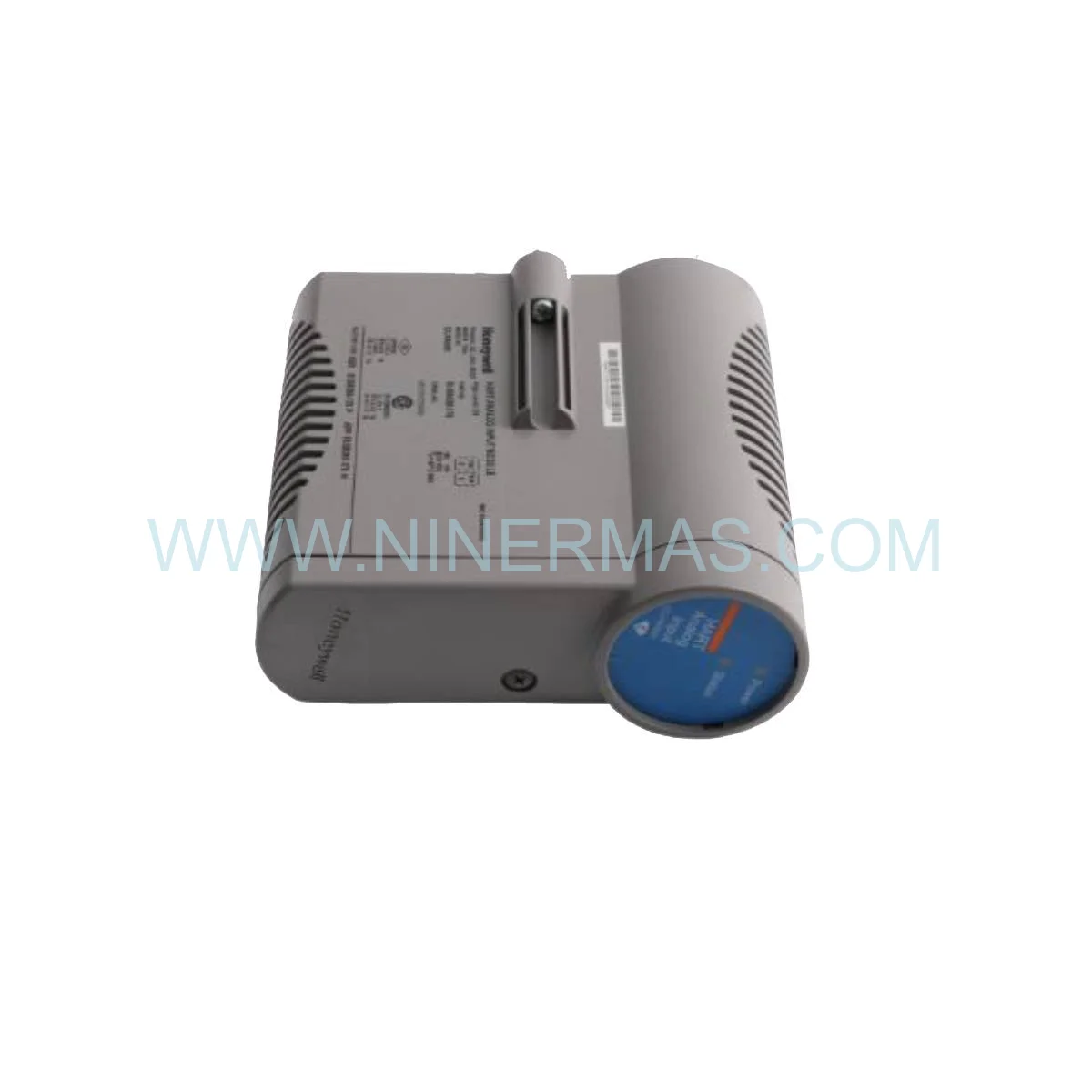

CC-PSP401 Speed Protection Module (Industrial-Grade Turbomachinery Safeguard)

The Honeywell CC-PSP401 (Part Number: 51454122-175) represents a mission-critical safety component engineered to prevent catastrophic over-speed failures in rotating equipment. This dual-redundant protection module integrates seamlessly into Experion PKS C200/C300 distributed control architectures, delivering sub-10-millisecond trip response times that safeguard turbines, compressors, and generators across power generation, oil & gas, and petrochemical facilities.

Designed for environments where equipment failure translates to multi-million-dollar losses and safety risks, the CC-PSP401 combines precision speed monitoring with fail-safe logic to meet SIL 2/3 functional safety standards. Plant engineers and instrumentation specialists rely on this module to create certified safety instrumented systems (SIS) that comply with IEC 61508 and API 670 requirements.

Whether you're upgrading legacy turbomachinery protection systems or designing greenfield installations, the CC-PSP401 delivers proven reliability with hot-swappable architecture, comprehensive diagnostics, and native Experion PKS integration—eliminating the complexity of third-party safety PLCs while maintaining unified control system visibility.

Core Capabilities & Technical Advantages

→ Dual-Channel Redundant Architecture
Two independent speed measurement channels operate in parallel, continuously cross-checking sensor inputs against configurable trip thresholds. This 1oo2 voting logic ensures that single-point sensor failures or wiring faults never compromise protection integrity, while built-in discrepancy alarms alert operators to degraded conditions before safety margins erode.

→ Lightning-Fast Trip Actuation
From the moment rotational speed exceeds the programmed setpoint, the CC-PSP401 activates emergency shutdown outputs in under 10 milliseconds—fast enough to prevent blade tip speed excursions that cause turbine disk bursts. This response time outperforms traditional relay-based systems by 300-500%, directly translating to reduced mechanical stress and extended equipment lifespan.

✓ Zero-Compromise Experion Integration
Unlike standalone safety controllers requiring protocol converters, the CC-PSP401 communicates natively over the Experion PKS backplane. Configuration, calibration, and diagnostics flow through the same Experion Station interface used for process control—streamlining engineering workflows and eliminating the training overhead of separate safety system platforms.

✓ Software-Defined Flexibility
Trip points, hysteresis bands, alarm delays, and voting logic adapt to your specific machinery profiles without hardware changes. Support for 0-100,000 RPM ranges with ±0.01% accuracy accommodates everything from low-speed reciprocating compressors to high-speed steam turbines, while field-adjustable parameters enable seasonal tuning for varying process conditions.

✓ Continuous Self-Diagnostics
Internal watchdog circuits monitor power supply integrity, processor health, and I/O channel functionality every scan cycle. Detected faults trigger immediate annunciation to operator displays and maintenance management systems, supporting predictive maintenance strategies that prevent unplanned shutdowns during critical production periods.

✓ Hot-Swap Serviceability
When deployed in redundant configurations, individual CC-PSP401 modules extract and replace without de-energizing the control rack or interrupting turbomachinery monitoring. This capability proves essential during planned maintenance windows and emergency component swaps, maintaining continuous protection coverage that traditional hardwired systems cannot match.

Industry-Specific Deployment Scenarios

Power Generation – Steam Turbine Governor Backup Protection
Utility-scale power plants face grid stability penalties and equipment damage when turbine governors fail during load rejection events. The CC-PSP401 serves as the independent over-speed protection layer required by NERC standards, monitoring turbine speed via magnetic pickups and commanding emergency stop valves through dedicated trip relays. When integrated with digital output modules, the system achieves SIL 3 certification for black-start generator protection schemes.

Upstream Oil & Gas – Centrifugal Compressor Surge Prevention
Natural gas processing facilities deploy the CC-PSP401 to monitor multi-stage centrifugal compressor trains where surge conditions cause rapid speed excursions. By interfacing with anti-surge control valves and recycle systems, the module prevents bearing failures and impeller damage that typically cost $500K-$2M in repairs plus 30-90 days of lost production. Dual-channel inputs accommodate both gearbox and compressor shaft speed sensors for comprehensive protection coverage.

Petrochemical Refineries – Catalytic Cracker Expander Turbines
Fluid catalytic cracking units (FCCUs) utilize expander turbines to recover energy from high-pressure flue gas streams. The CC-PSP401 protects these turbines from over-speed trips caused by sudden pressure surges or control valve malfunctions, integrating with distributed I/O networks to coordinate shutdown sequences across slide valves, combustion air dampers, and feed isolation systems—minimizing thermal shock to reactor vessels during emergency stops.

Marine Propulsion – LNG Carrier Main Engine Protection
Liquefied natural gas carriers employ dual-fuel diesel engines with electronic governors that require independent over-speed backup per classification society rules. The CC-PSP401's marine-rated variant monitors crankshaft speed via flywheel sensors, providing the redundant trip function mandated by DNV-GL and ABS standards while interfacing with engine control systems through safety-rated digital outputs.

Technical Specifications & Selection Criteria

Sensor Compatibility Guide: The CC-PSP401 accepts magnetic pickup sensors (8-30V AC output), proximity probes (200mV-10V DC), and TTL/HTL encoder signals. For applications requiring galvanic isolation, specify barrier-mounted sensor interfaces. Consult factory application engineers for sensor selection in hazardous area classifications (Class I Div 2, ATEX Zone 2).

Advanced Integration & Customization Options

Networked Diagnostics & Predictive Maintenance
When connected to Experion PKS Ethernet networks, the CC-PSP401 streams real-time speed data, alarm histories, and self-test results to enterprise asset management platforms. Integration with condition monitoring systems enables vibration-speed correlation analysis, bearing wear trending, and automated work order generation—transforming the module from a simple trip device into a comprehensive machinery health sensor.

Cybersecurity-Hardened Configurations
For critical infrastructure applications subject to NERC CIP or IEC 62443 compliance, the CC-PSP401 supports air-gapped operation with read-only configuration locks and encrypted parameter storage. Firmware updates require physical key-switch authorization, preventing unauthorized modifications through compromised network connections.

Multi-Train Coordination Logic
Refineries and chemical plants with parallel turbomachinery trains benefit from cross-module permissive logic that prevents simultaneous trips during grid disturbances. Custom ladder logic programs coordinate CC-PSP401 outputs with load-sharing controllers, ensuring at least one train remains online during transient over-speed events that don't warrant full plant shutdown.

Delivery Timelines & Comprehensive Service Package

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and full traceability documentation
Expedited Service: 24-48 hour dispatch available for emergency replacements (subject to inventory availability)
Custom Configurations: 10-15 business days for pre-programmed modules with customer-specific trip parameters and I/O mapping

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month service contracts available with annual calibration verification and priority technical support.

Technical Support Included: Unlimited phone/email consultation for configuration assistance, troubleshooting guidance, and system integration planning. On-site commissioning support available through our global service network.

Documentation Package: Each CC-PSP401 ships with installation manual, wiring diagrams, Experion Station configuration templates, and IEC 61508 safety certification documents. CAD drawings and 3D STEP models provided upon request for panel design integration.

Frequently Asked Questions

How does the CC-PSP401 speed protection module interface with existing DCS alarm systems?
The module's diagnostic and trip status signals map directly to Experion PKS alarm points through standard I/O configuration. Alarm priorities, acknowledgment requirements, and notification routing follow your existing DCS alarm philosophy without requiring separate safety system operator interfaces. For integration with third-party SCADA platforms, Modbus TCP gateways provide read-only access to speed values and module health status.

What sensor pulse rates and signal types achieve optimal measurement accuracy?
For turbomachinery operating above 3,000 RPM, magnetic pickup sensors with 60-tooth gear wheels deliver excellent signal-to-noise ratios and ±0.005% accuracy. Lower-speed applications (below 1,000 RPM) benefit from proximity probe systems with 1-pulse-per-revolution keyphasor marks. The module's auto-ranging input circuits accommodate 10 Hz to 100 kHz pulse frequencies without manual scaling adjustments.

Can I retrofit the CC-PSP401 into legacy TDC 3000 control systems for turbine protection upgrades?
Yes, through Experion-to-TDC gateway modules that bridge the proprietary communication protocols. This migration path allows phased control system modernization where turbomachinery protection upgrades to SIL-rated technology while process control remains on TDC 3000 hardware. Our application engineers provide detailed migration planning and configuration services to ensure seamless cutover with zero downtime.

What redundancy architectures meet SIL 3 certification requirements for critical turbine applications?
Deploy three CC-PSP401 modules in 2oo3 (two-out-of-three) voting configuration, with each module monitoring independent speed sensors and powered from separate 24V DC supplies. Trip outputs connect through triple-redundant solenoid drivers to emergency stop valves. This architecture achieves SIL 3 with proof test intervals up to 24 months, documented through TÜV-certified safety calculations included in our application support package.

Does the speed protection module support online replacement without shutting down the monitored turbine?
In redundant configurations (1oo2 or 2oo3), individual modules hot-swap while the turbine continues operation under protection of the remaining active channels. The Experion PKS backplane design includes module presence detection and automatic I/O transfer, ensuring bumpless switchover. Always verify the backup module's "healthy" status on the operator display before extracting the primary unit, and follow your facility's lockout/tagout procedures for safety-critical component maintenance.

How do I configure different trip setpoints for startup versus normal operating speed ranges?
The CC-PSP401 supports dual-setpoint logic with automatic mode switching based on external permissive signals or time delays. During turbine startup, the module monitors against a higher trip threshold (e.g., 110% rated speed) to accommodate acceleration transients, then automatically transitions to the normal operating setpoint (e.g., 105% rated speed) once the unit reaches steady-state conditions. Configuration through Experion Station's graphical interface requires no custom programming.

Ready to Upgrade Your Turbomachinery Protection System?

Contact our industrial automation specialists for application-specific configuration guidance, compatibility verification with your existing Experion PKS infrastructure, and volume pricing for multi-unit installations. We provide complete system integration support—from sensor selection and wiring design to FAT witnessing and commissioning assistance.

Request a detailed technical proposal: Share your turbomachinery specifications, current protection system architecture, and safety integrity level requirements. Our engineers will deliver a customized solution package within 24 hours, including module quantities, recommended redundancy configuration, and total project timeline.
