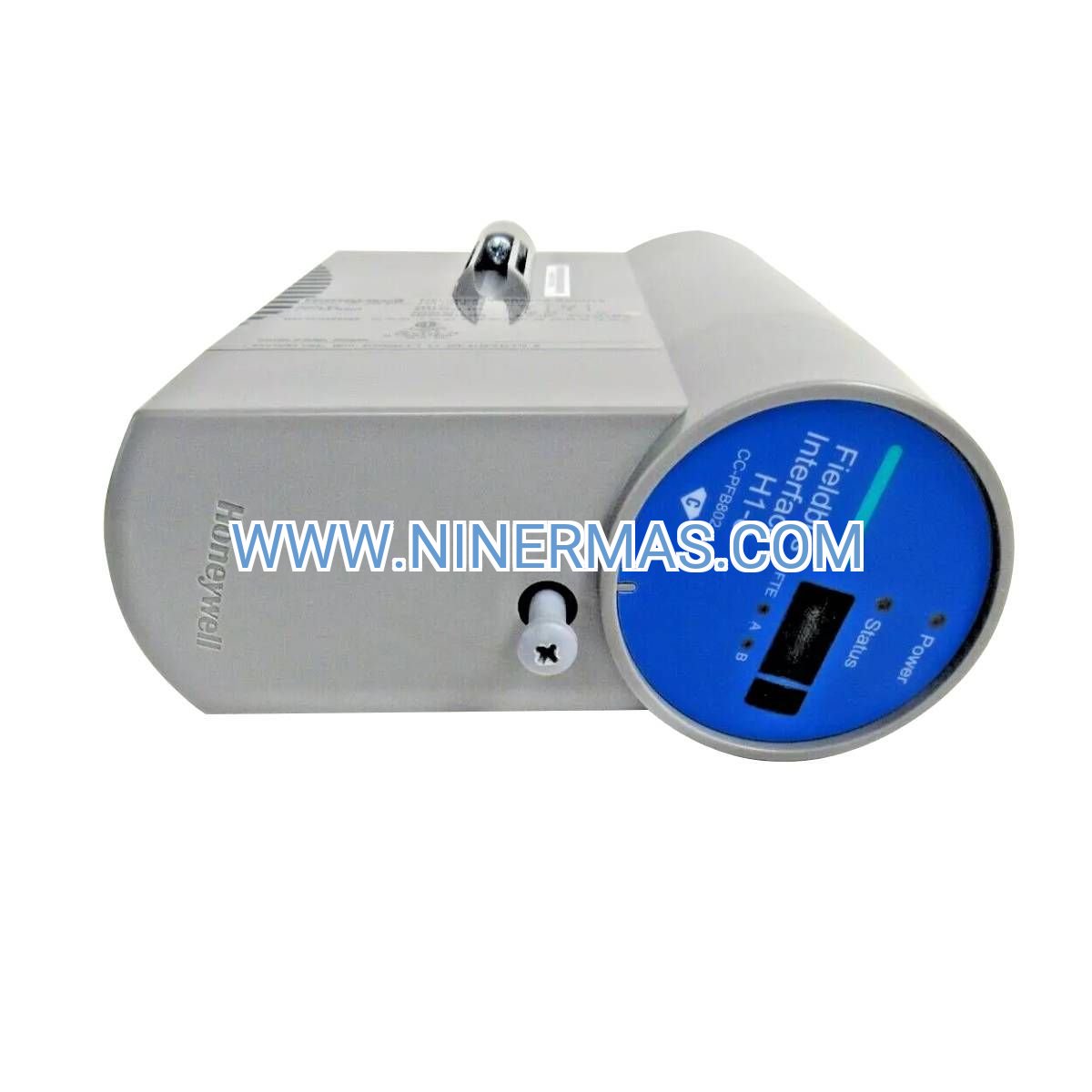

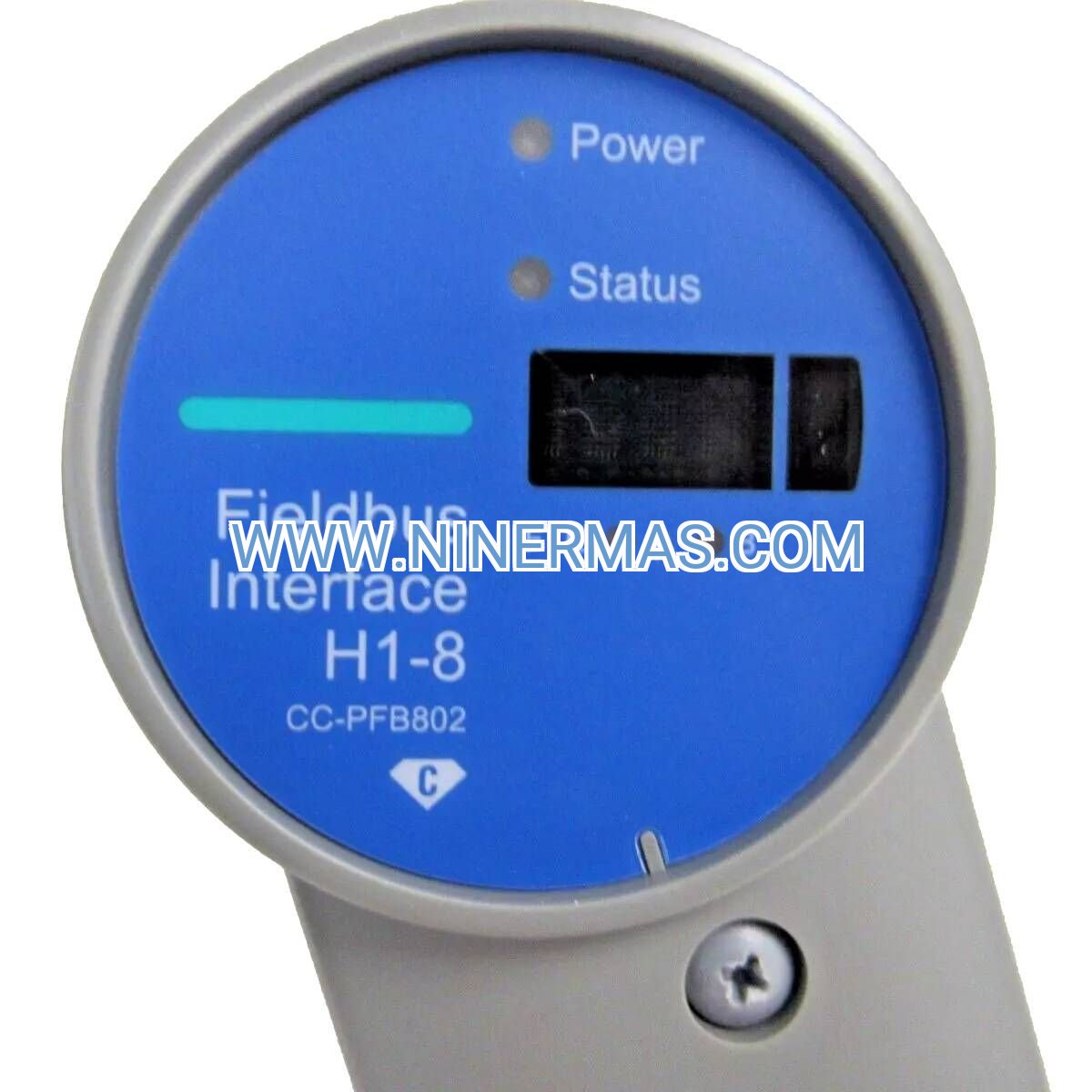

CC-PFB802 FOUNDATION Fieldbus H1 Gateway (8-Channel Industrial Interface)

The CC-PFB802 represents Honeywell's advanced solution for multi-segment FOUNDATION Fieldbus H1 network integration within Experion PKS distributed control architectures. This eight-channel communication gateway bridges field instrumentation with C200 and C300 series controllers, delivering deterministic data exchange, comprehensive device diagnostics, and scalable connectivity for process-critical applications across oil & gas, chemical, pharmaceutical, and power generation sectors.

Designed for engineers managing complex automation networks, this module addresses the challenge of integrating diverse field devices while maintaining system reliability and diagnostic visibility. Whether you're expanding existing Experion installations or building new process control infrastructure, the CC-PFB802 provides the robust connectivity foundation required for modern industrial operations.

With support for up to 128 field devices (16 per H1 segment), galvanic isolation, and hot-swappable architecture, this gateway minimizes downtime risk while maximizing network flexibility. The module's proven design ensures seamless interoperability with FOUNDATION Fieldbus-compliant transmitters, valve positioners, and analyzers from multiple vendors.

Core Features & Benefits

→ Eight Independent H1 Segments
Deploy up to 128 field devices across eight isolated communication channels, enabling logical network segmentation by process area, device type, or criticality level while reducing single-point-of-failure risks.

→ 1500V DC Channel Isolation
Protect your control system from electrical transients and ground loop interference with industrial-grade galvanic isolation between each H1 segment and the controller backplane, ensuring signal integrity in electrically noisy environments.

→ Experion PKS Native Integration
Achieve plug-and-play compatibility with C200 and C300 controllers through pre-configured function blocks and automatic device recognition, reducing commissioning time by 40-60% compared to third-party interfaces.

✓ Hot-Swappable Design
Replace or upgrade modules during live operation without system shutdown, supporting continuous production requirements and minimizing maintenance windows in 24/7 process facilities.

✓ Advanced Diagnostic Capabilities
Access real-time segment health metrics, device status indicators, communication error logs, and bandwidth utilization data through Experion Station, enabling predictive maintenance and rapid troubleshooting.

✓ Multi-Vendor Device Support
Connect FOUNDATION Fieldbus instruments from Rosemount, Endress+Hauser, Yokogawa, ABB, and 200+ certified manufacturers, protecting your investment in existing field instrumentation while enabling best-of-breed device selection.

Application Scenarios

Refinery Distillation Control
In crude oil distillation units, the CC-PFB802 manages temperature cascades, pressure compensation loops, and flow ratio controls by interfacing with 80-120 field devices per column. The module's deterministic communication ensures sub-second response times for critical safety interlocks while providing detailed device diagnostics that reduce unplanned shutdowns by identifying failing transmitters before process upsets occur.

Chemical Batch Processing
Pharmaceutical and specialty chemical manufacturers leverage the CC-PFB802's segment isolation to separate clean-in-place (CIP) instrumentation from production devices, maintaining FDA 21 CFR Part 11 compliance through audit-trail-enabled device configuration management. The eight-channel architecture supports parallel batch reactor monitoring with independent recipe execution.

Power Plant Turbine Monitoring
Combined-cycle power stations deploy the CC-PFB802 for gas turbine vibration monitoring, bearing temperature surveillance, and fuel control valve positioning. The module's 1500V isolation protects control systems from high-voltage switchgear interference, while redundant controller pairing ensures zero data loss during failover events.

Water Treatment SCADA Integration
Municipal water facilities use the CC-PFB802 to connect distributed pump stations, chlorination skids, and filtration systems across campus-wide H1 networks. The module's extended temperature range (-40°C to +70°C with conformal coating) supports outdoor enclosure installations in harsh climates.

Offshore Platform Safety Systems
Oil and gas platforms integrate the CC-PFB802 into SIL-rated emergency shutdown (ESD) systems, where the module's ATEX Zone 2 certification and marine-grade corrosion resistance enable deployment in hazardous area control rooms. Redundant module configurations provide 99.99% uptime for critical safety instrumented functions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-PFB802 when your application requires more than four H1 segments or when total device count exceeds 64 instruments. For smaller installations (1-4 segments), consider the CC-PFB401 or CC-PFB402 variants. Ensure your Experion PKS system runs firmware R410 or later for full diagnostic feature support. Calculate total segment loading to maintain <70% bandwidth utilization per H1 link for optimal performance.

Extended Functions

Redundant Controller Pairing: The CC-PFB802 supports dual-controller configurations where two Experion C300 controllers share access to all eight H1 segments. During primary controller failure, the standby unit assumes control within 50-100ms, maintaining continuous field device communication without manual intervention or data loss.

Remote Device Configuration: Utilize Experion Station's integrated device management tools to perform DD (Device Description) file uploads, calibration adjustments, and diagnostic testing on connected field instruments without requiring physical access to hazardous areas or process equipment.

OPC UA Connectivity: When paired with Experion PKS Server, the CC-PFB802 enables secure OPC UA data publishing to enterprise MES/ERP systems, cloud analytics platforms, and third-party SCADA applications, supporting Industry 4.0 digital transformation initiatives.

Custom Function Block Development: Advanced users can create specialized control algorithms using Experion Control Builder, leveraging the CC-PFB802's high-speed data exchange to implement model predictive control (MPC), soft sensors, or custom regulatory loops that execute within the controller while accessing real-time field device parameters.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx Express. Custom configurations (conformal coating, extended temperature testing) require 7-10 business days. Expedited same-day shipping available for critical outage situations (additional fees apply).

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Warranty includes free firmware updates, technical support access, and advance replacement service (RMA processed within 24 hours).

Technical Support: Our certified Honeywell specialists provide configuration assistance, network design review, troubleshooting guidance, and integration planning. Support available via email (4-hour response SLA), phone (immediate callback), and remote desktop sessions for complex commissioning challenges.

Documentation Package: Each module ships with installation manual, quick-start guide, DD files library (200+ device profiles), wiring diagrams, and Experion integration templates. Digital resources include video tutorials, configuration examples, and best-practice white papers.

Frequently Asked Questions

What cable type is recommended for H1 segment wiring in industrial environments?
Use Type A twisted-pair cable conforming to IEC 61158-2 specifications—Belden 3105A, Turck 6625050, or equivalent with 18 AWG conductors, 120-ohm impedance, and foil+braid shielding. Maximum trunk length is 1900 meters; use repeaters for longer runs. Install 100-ohm termination resistors at both segment ends.

Can the CC-PFB802 interface with legacy TDC 3000 or PlantScape systems?
No, the CC-PFB802 is engineered exclusively for Experion PKS platforms (C200/C300 controllers). For TDC 3000 integration, specify the CC-TFB811 module with IOTA compatibility. Migration from TDC to Experion typically requires controller replacement but preserves existing field wiring and devices.

How do I calculate maximum device count per H1 segment for my application?
Each segment supports 16 devices maximum, but practical limits depend on macrocycle time and device update rates. For 1-second control loops, limit to 12-14 devices per segment. High-speed applications (250ms loops) should use 8-10 devices. Use Honeywell's Segment Design Tool (available from support) to model your specific configuration.

Does the module support HART-over-FF or hybrid protocol configurations?
No, the CC-PFB802 is a pure FOUNDATION Fieldbus H1 interface. HART devices require separate analog I/O modules or HART multiplexers. For mixed-protocol environments, deploy the CC-PFB802 for FF devices alongside 8C-TAIMA1 analog input modules with HART pass-through capability.

What firmware version is required for full diagnostic feature access?
Experion PKS firmware R410 or later is required for advanced diagnostics including segment health scoring, predictive device failure alerts, and bandwidth analysis. Earlier firmware versions (R400-R410) support basic communication but lack trending and analytics features. Firmware updates are available through Honeywell Customer Portal.

Can I hot-swap the CC-PFB802 during live process operation?
Yes, when installed in redundant controller configurations. The standby controller maintains field device communication during module replacement. For non-redundant systems, hot-swap is possible but will interrupt communication to all eight segments for 10-15 seconds during module recognition and initialization.

Get Started Today

Ready to enhance your Experion PKS network with reliable FOUNDATION Fieldbus connectivity? Contact our automation specialists for application-specific configuration guidance, competitive pricing on volume orders, or technical consultation on network architecture design. We support global shipments with localized documentation and regional technical support partnerships.
