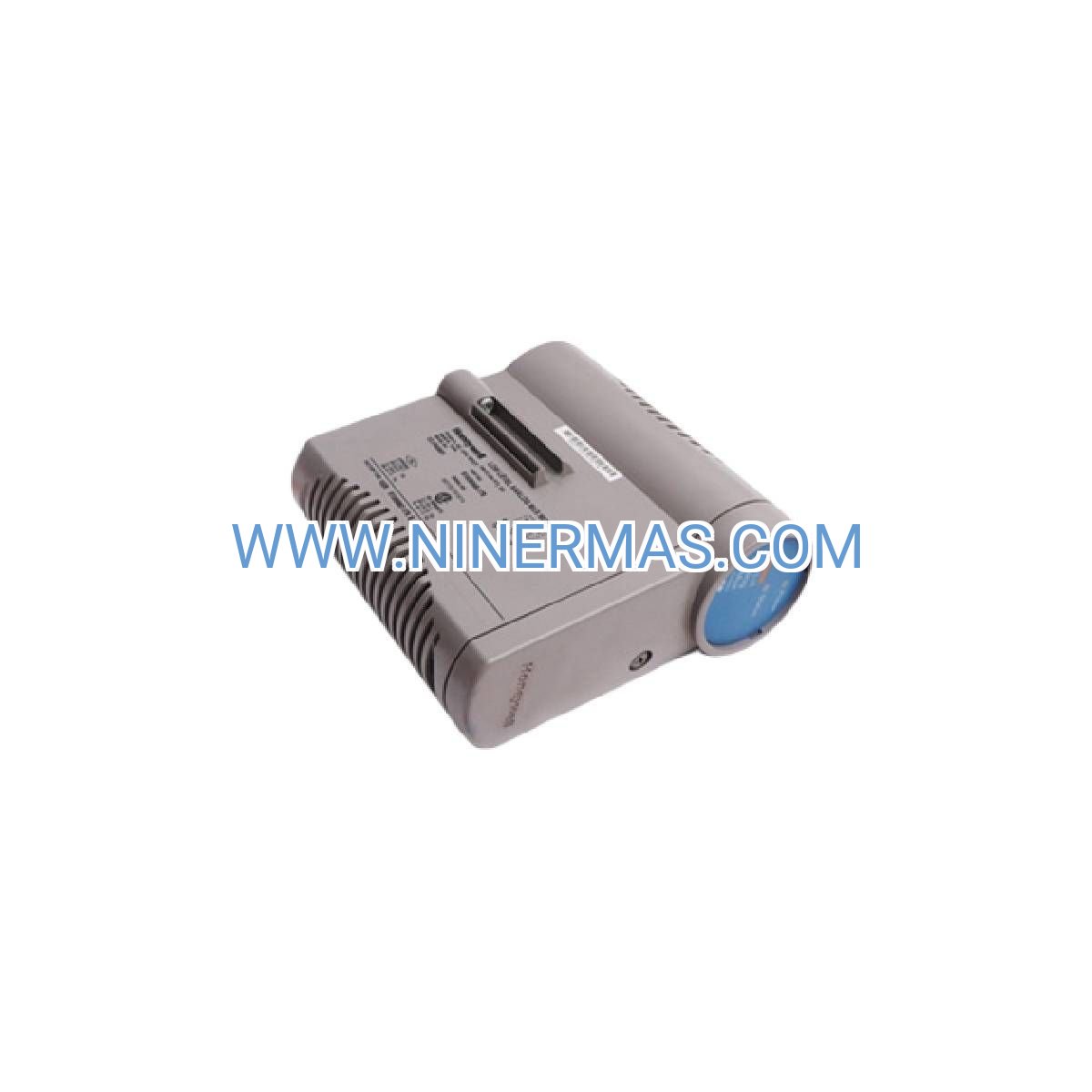

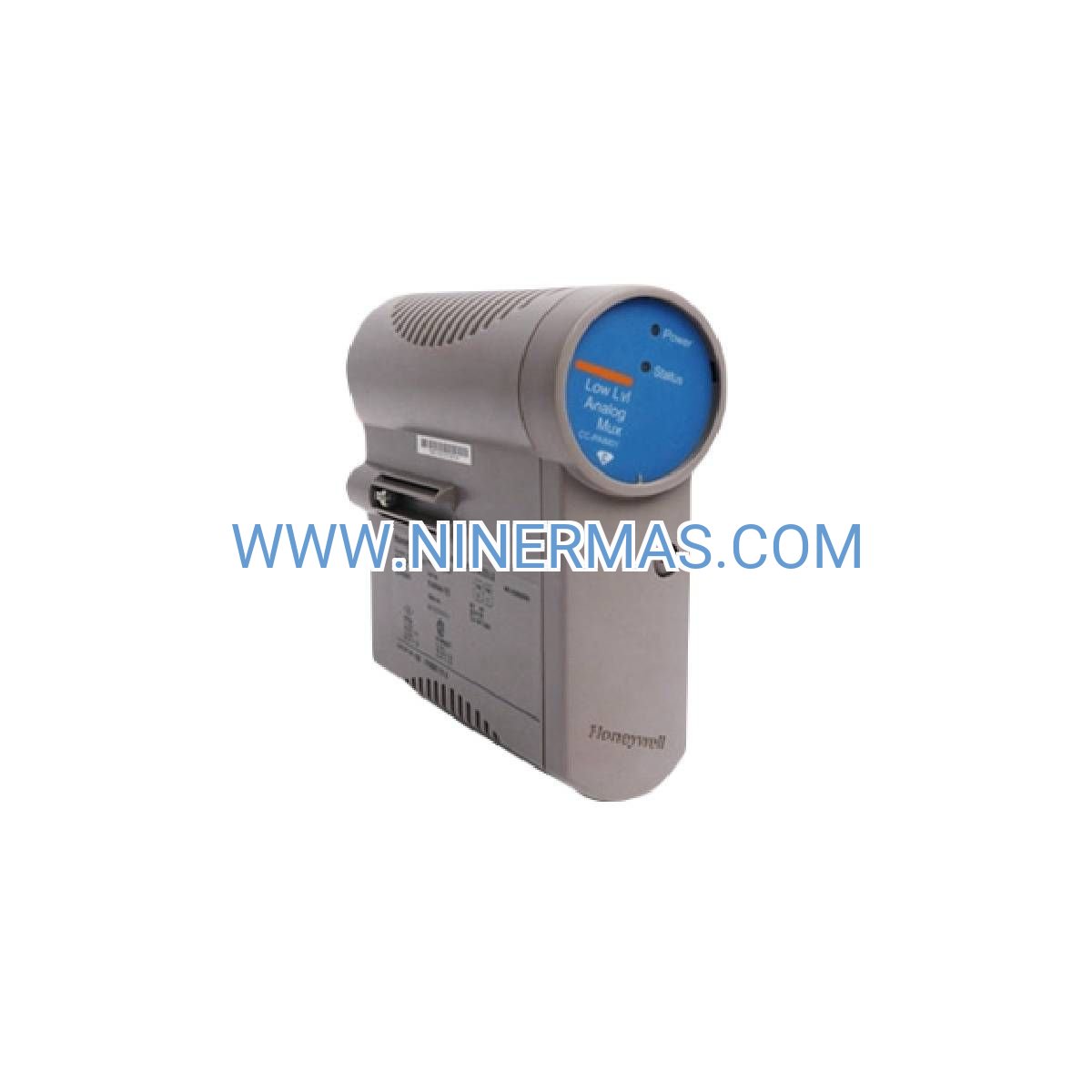

CC-PFB402 Fieldbus Interface Module (Industrial-Grade 4-Port H1 Communication Hub)

The CC-PFB402 represents a critical connectivity solution for industrial process control environments requiring reliable FOUNDATION Fieldbus H1 integration. This quad-port interface module bridges field instrumentation with Experion PKS distributed control architectures, delivering deterministic communication across four independent H1 segments. Designed for continuous operation in demanding manufacturing and process industries, the module ensures real-time data acquisition from smart transmitters, valve actuators, and analytical instruments while maintaining protocol integrity across extended network topologies.

Process engineers and automation specialists deploy the CC-PFB402 to eliminate communication bottlenecks in complex control schemes where multiple fieldbus segments converge. Unlike single-port alternatives, this four-channel design reduces hardware footprint while providing isolated communication paths that prevent cross-segment interference. The module integrates directly into IOTA carrier assemblies, simplifying installation and enabling hot-swappable redundancy configurations for mission-critical applications.

With proven compatibility across Honeywell C200 and C300 controller platforms, the CC-PFB402 accelerates system commissioning through auto-discovery protocols and embedded diagnostics. Each H1 link operates at standard 31.25 kbit/s transmission rates, supporting up to 16 field devices per segment depending on update cycle requirements. This architecture delivers the scalability and reliability essential for pharmaceutical batch processing, petrochemical refining, power generation, and water treatment operations where process uptime directly impacts operational profitability.

Core Capabilities & Technical Advantages

→ Quad-Channel Architecture: Four electrically isolated H1 links enable parallel fieldbus segment operation without signal crosstalk. Each channel features independent power conditioning and diagnostic monitoring, allowing simultaneous communication with up to 64 field devices across the module. This design reduces wiring complexity by 40% compared to distributed single-port solutions while maintaining full protocol compliance with IEC 61158-2 physical layer specifications.

✓ Seamless Experion Integration: Native compatibility with Experion Station engineering environment provides drag-and-drop device configuration and real-time network visualization. The module automatically registers with C200/C300 controllers via IOTA backplane communication, eliminating manual addressing procedures. Built-in function blocks support advanced control strategies including cascade loops, ratio control, and feedforward compensation directly within the fieldbus network layer.

✓ Enhanced Diagnostic Framework: Per-channel LED indicators provide instant visual feedback on link status, device communication health, and fault conditions. Embedded diagnostics accessible through Experion Station deliver granular insights into signal quality metrics, device response times, and network loading percentages. Predictive maintenance algorithms flag degrading cable performance before communication failures occur, reducing unplanned downtime by up to 30%.

✓ Redundancy-Ready Design: Supports dual-module configurations for fault-tolerant operation in critical control loops. Automatic failover mechanisms ensure bumpless transfer between primary and backup modules within 100 milliseconds, maintaining process stability during maintenance activities or hardware failures. Redundant architectures comply with IEC 61511 SIL 2 requirements for safety instrumented systems.

✓ Multi-Vendor Interoperability: Full compliance with FOUNDATION Fieldbus specifications guarantees seamless integration with devices from Emerson, Yokogawa, Endress+Hauser, ABB, and Siemens. The module's universal device description (DD) library supports over 500 registered device types, eliminating vendor lock-in and enabling best-of-breed instrumentation selection. Automatic device identification streamlines commissioning across heterogeneous field device populations.

✓ Industrial Environmental Hardening: Conformal-coated circuit boards withstand corrosive atmospheres, temperature cycling from 0°C to 60°C, and humidity levels up to 95% non-condensing. Vibration resistance meets IEC 60068-2-6 standards for installation in high-vibration environments including compressor stations and turbine enclosures. Extended temperature variants support outdoor cabinet installations in extreme climates.

Industrial Application Scenarios

Petrochemical Refining Operations: In fluid catalytic cracking units and distillation columns, the CC-PFB402 connects temperature transmitters, pressure sensors, and flow meters across multiple process zones. Each H1 link manages a dedicated process area—reactor monitoring, fractionation control, product blending, and emissions tracking—enabling centralized supervision while maintaining segment isolation. The module's redundancy capabilities ensure continuous operation during turnaround maintenance, preventing costly production interruptions that can exceed $500,000 per day in lost throughput.

Pharmaceutical Batch Manufacturing: Bioreactor systems and sterile filling lines demand precise control over temperature, pH, dissolved oxygen, and pressure parameters. The CC-PFB402 interfaces with validated fieldbus instruments that provide electronic batch records compliant with FDA 21 CFR Part 11 requirements. Four independent H1 segments support parallel batch operations, allowing simultaneous production of multiple formulations while maintaining complete data segregation for regulatory traceability. Built-in diagnostics facilitate qualification protocols and annual recertification procedures.

Power Generation Facilities: Combined-cycle plants and cogeneration systems utilize the CC-PFB402 for boiler control, turbine monitoring, and emissions management. One H1 link connects combustion analyzers and flame scanners, while additional channels interface with steam flow transmitters, feedwater control valves, and selective catalytic reduction systems. The module's fast scan rates (down to 100ms per device) support dynamic load-following operations required for grid frequency regulation and renewable energy integration.

Water & Wastewater Treatment: Municipal treatment plants deploy the CC-PFB402 across clarification, biological treatment, and disinfection processes. Fieldbus-connected pH analyzers, turbidity meters, and chlorine residual sensors provide continuous water quality monitoring, while intelligent valve positioners optimize chemical dosing and aeration control. The module's extended cable distance capability (1900 meters per segment) reduces the need for intermediate junction boxes in sprawling treatment facilities, lowering installation costs by 25% compared to traditional 4-20mA architectures.

Chemical Processing & Specialty Materials: Polymerization reactors and continuous mixing operations benefit from the CC-PFB402's ability to coordinate complex control sequences across multiple process variables. Fieldbus-enabled mass flow controllers, inline viscosity analyzers, and spectroscopic sensors communicate recipe parameters and real-time quality metrics directly to the DCS. This integration enables advanced process control strategies that improve product consistency, reduce off-spec batches by 15%, and optimize raw material utilization.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the CC-PFB402 when your application requires more than two H1 segments but fewer than eight. For single or dual-link requirements, the CC-PFB401 offers a cost-optimized alternative. Applications demanding eight or more H1 links should specify the CC-PFB802 to minimize hardware count and simplify spare parts inventory. Consider redundant configurations for processes where communication loss could trigger safety shutdowns, environmental releases, or product quality excursions exceeding $50,000 in recovery costs.

Cable Infrastructure Requirements: Specify Type A twisted-pair cable (Belden 3105A, Alpha Wire 6412, or equivalent) with 100Ω ±20% characteristic impedance. Maintain minimum bend radius of 10x cable diameter during installation. Use shielded cable in electrically noisy environments (VFD proximity, welding operations, RF transmitters) and ground shields at a single point to prevent ground loops. Segment lengths exceeding 1200 meters require field barrier modules or repeaters to maintain signal integrity.

Advanced Integration & Expansion Options

Controller Platform Compatibility: The CC-PFB402 operates seamlessly with Honeywell C200 and C300 controller families, including standard and high-availability configurations. Pair with CC-PCNT01 or CC-TCNT01 controllers for general process control, or integrate with 8C-PCNT01 platforms for applications requiring advanced regulatory control and model predictive algorithms. The module's IOTA architecture ensures plug-and-play compatibility across Experion PKS releases R410 through R520.

Hybrid I/O Architectures: Combine the CC-PFB402 with traditional analog and discrete I/O modules to create flexible control strategies. Use fieldbus for intelligent devices requiring two-way communication (smart positioners, multivariable transmitters, analyzers) while maintaining 4-20mA connections for simple sensors and legacy equipment. This hybrid approach optimizes total cost of ownership by applying fieldbus technology only where its benefits—advanced diagnostics, reduced wiring, enhanced accuracy—justify the incremental investment.

Asset Management Integration: Leverage the CC-PFB402's diagnostic data streams with Honeywell Experion Asset Management or third-party predictive maintenance platforms. The module exposes device health metrics, calibration drift indicators, and performance trending data through OPC UA interfaces, enabling condition-based maintenance strategies that reduce instrumentation failures by 40% and extend calibration intervals from 12 to 18 months. Integration with CMMS systems automates work order generation when device diagnostics exceed predefined thresholds.

Cybersecurity Considerations: The CC-PFB402 operates within Experion PKS's defense-in-depth security architecture, supporting network segmentation, role-based access control, and encrypted communication channels. Configure fieldbus segments on isolated VLANs separate from enterprise networks, and implement firewall rules that restrict Experion Station access to authorized engineering workstations. Regular firmware updates address emerging vulnerabilities and maintain compliance with IEC 62443 industrial cybersecurity standards.

Delivery, Warranty & Technical Support

Lead Times: Standard CC-PFB402 modules ship within 3-5 business days from our regional distribution centers. Custom configurations (extended temperature, conformal coating upgrades, factory redundancy testing) require 2-3 weeks for production and quality validation. Expedited shipping options available for emergency replacements and critical project deadlines.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty terms extend to 24 months when modules are purchased as part of complete Experion PKS system packages. Coverage includes free firmware updates, technical support access, and advance replacement service with 24-hour turnaround for critical applications.

Technical Support Services: Our certified Honeywell specialists provide application engineering assistance for network design, device configuration, and troubleshooting support. Services include pre-sales consultation, commissioning support, and post-installation optimization. Access to online resources includes configuration templates, device description files, and integration guides for over 200 common fieldbus instruments.

Documentation Package: Each CC-PFB402 ships with installation manual, quick-start guide, safety data sheet, and certificate of conformity. Digital resources include CAD drawings (DWG/DXF formats), 3D STEP models for panel layout, and Experion Station configuration files. Comprehensive training materials cover basic installation through advanced redundancy configuration and diagnostic interpretation.

Frequently Asked Questions

What determines the maximum number of devices per H1 link?
Device capacity depends on three factors: individual device macrocycle times (how frequently each device publishes data), network update rates required by your control strategy, and total bus loading. A link supporting 16 simple transmitters with 1-second update rates may only accommodate 8-10 complex analyzers requiring 500ms cycles. Use Honeywell's Fieldbus Configurator tool to model your specific device mix and validate network performance before commissioning.

Can the CC-PFB402 interface with non-Honeywell DCS platforms?
The module is engineered specifically for Experion PKS integration via IOTA backplane communication. Migration to alternative DCS platforms requires complete controller replacement. For multi-vendor environments, consider fieldbus gateways that bridge H1 networks to Modbus TCP, PROFINET, or OPC UA protocols, though this approach sacrifices some advanced diagnostic capabilities.

How does redundancy configuration affect system performance?
Redundant CC-PFB402 pairs operate in active-standby mode, with the backup module monitoring primary module health via backplane communication. Failover occurs automatically within 100 milliseconds when the primary module loses power, experiences communication faults, or undergoes controlled removal. During normal operation, redundancy adds no latency to fieldbus communication. Both modules must connect to the same H1 segments using approved Y-couplers or fieldbus junction boxes.

What cable types are compatible with H1 fieldbus segments?
Use Type A twisted-pair cable meeting IEC 61158-2 specifications: 18 AWG (0.82mm²) conductors, 100Ω ±20% characteristic impedance, and capacitance below 60 pF/m. Recommended cables include Belden 3105A, Turck 6625050, and Pepperl+Fuchs NBB-F-V3-E2. Avoid using standard instrumentation cable (Type B) as its higher capacitance limits segment length to 400 meters. Shielded variants provide superior noise immunity in electrically harsh environments but require proper grounding practices.

Does the module support HART-over-Fieldbus devices?
No, the CC-PFB402 implements pure FOUNDATION Fieldbus H1 protocol and does not support HART communication. HART devices require dedicated analog input modules like the CC-TAIN01 or CC-TAIX51. For applications mixing HART and Fieldbus instruments, design separate I/O subsystems or consider HART-IP gateways that enable HART device integration into Ethernet-based control networks.

What diagnostic capabilities help troubleshoot communication issues?
Experion Station provides real-time visualization of network topology, device status, and communication statistics for each H1 link. Diagnostic metrics include signal strength measurements, device response times, retry counts, and error frame statistics. The module logs fault events with timestamps for post-incident analysis. Advanced diagnostics identify specific cable faults (opens, shorts, impedance mismatches) and pinpoint their approximate location along the segment, reducing troubleshooting time by 60% compared to manual cable testing.

Optimize Your Process Control Infrastructure

The CC-PFB402 delivers the connectivity foundation essential for modern process automation architectures. By consolidating four H1 links into a single module, you reduce panel space requirements, simplify spare parts management, and accelerate commissioning timelines. Whether upgrading legacy 4-20mA systems or designing greenfield facilities, this interface module provides the scalability and reliability your operations demand.

Ready to enhance your Experion PKS deployment? Contact our application engineers to discuss your specific fieldbus requirements, receive customized network design recommendations, and obtain project-specific pricing. We support your automation initiatives from initial specification through commissioning and lifecycle support.
