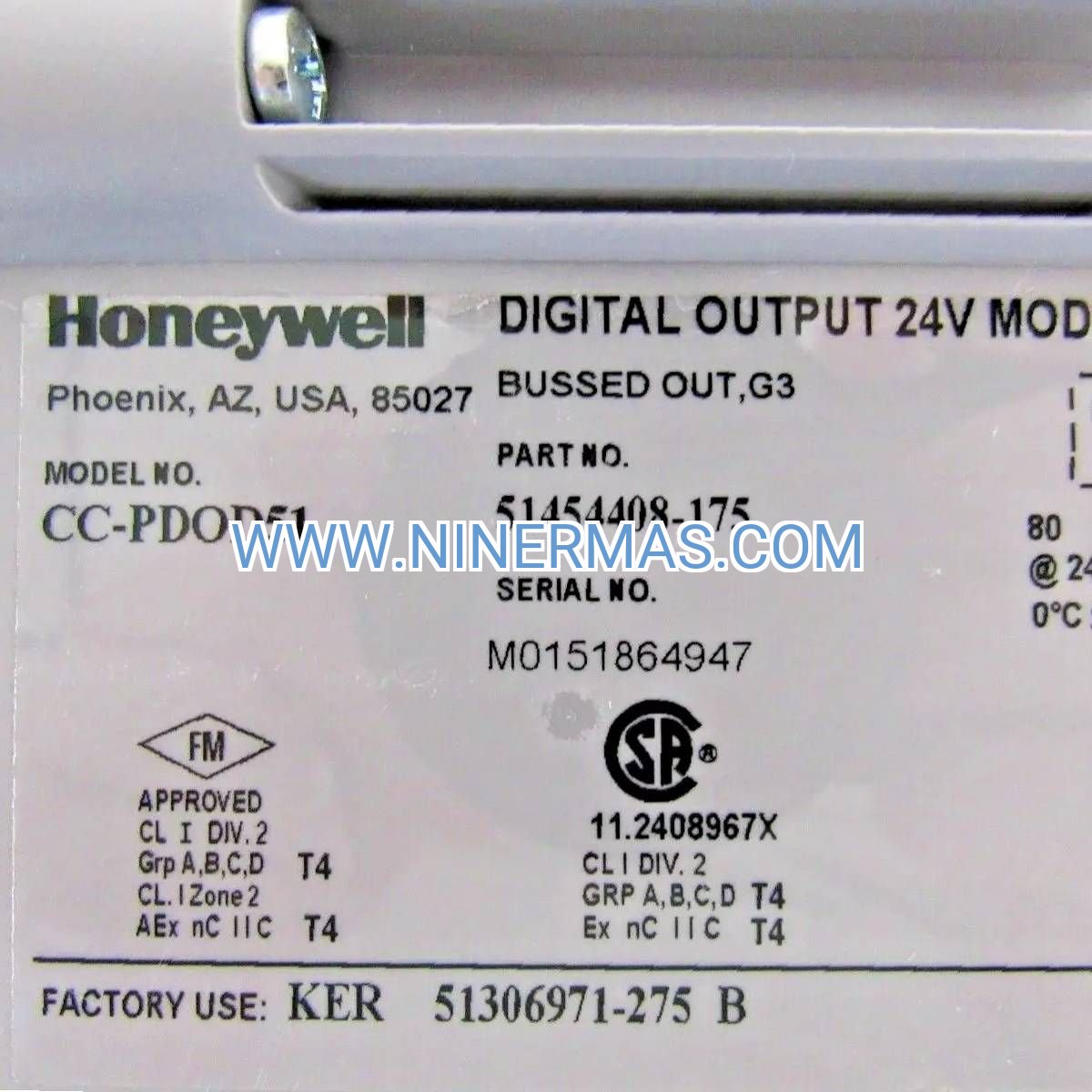

CC-PDOD51 Digital Output Module (Industrial-Grade 32-Channel Isolated Control)

The CC-PDOD51 represents a field-proven solution for discrete output control in mission-critical industrial environments. Designed for seamless integration with Honeywell Experion C200 and C300 distributed control platforms, this 32-channel module combines robust galvanic isolation with intelligent diagnostics to deliver uncompromising reliability across oil & gas facilities, chemical plants, power stations, and pharmaceutical production lines.

Built to withstand harsh industrial conditions, the CC-PDOD51 addresses the fundamental challenge of maintaining signal integrity in electrically noisy environments. Each output channel features field-to-logic isolation that eliminates ground loops and prevents electrical interference from compromising control accuracy. Process engineers and automation specialists rely on this module to control solenoid valves, motor contactors, alarm annunciators, and safety interlock devices where failure is not an option.

Whether you're upgrading legacy systems or designing new installations, the CC-PDOD51 delivers the performance, diagnostics, and flexibility demanded by modern industrial automation. Hot-swap capability minimizes downtime during maintenance, while comprehensive status monitoring enables predictive maintenance strategies that reduce total cost of ownership.

Core Features & Benefits

→ 32 Isolated Output Channels
Control up to 32 discrete field devices from a single module, reducing panel space requirements by 40% compared to relay-based solutions while improving system reliability through solid-state switching technology.

→ Field-to-Logic Galvanic Isolation
Each channel incorporates optical isolation that protects sensitive controller electronics from field voltage transients, ground potential differences, and electrical noise—critical for maintaining system stability in high-EMI environments.

→ Intelligent Fault Detection
Real-time diagnostics continuously monitor for short circuits, open loads, and over-current conditions, reporting status to the host controller for immediate operator notification and automated fault response sequences.

→ Hot-Swap Maintenance Capability
Replace modules during operation without process shutdown when properly configured, enabling maintenance during production runs and eliminating costly downtime for routine component replacement.

✓ Wide Operating Temperature Range
Qualified for 0°C to 60°C operation with -40°C to 85°C storage rating, ensuring reliable performance in both climate-controlled control rooms and harsh field-mounted enclosures.

✓ Global Safety Certifications
UL, CE, ATEX, and IECEx approvals provide compliance confidence for installations worldwide, including hazardous area classifications common in petrochemical and pharmaceutical facilities.

Typical Application Scenarios

Petrochemical Process Control
In refinery operations, the CC-PDOD51 manages emergency shutdown valve actuators, pump motor starters, and process isolation devices. The module's isolation architecture prevents ground loops in distributed field installations where equipment may be separated by hundreds of meters, ensuring consistent control response even during electrical storms or substation switching events.

Power Generation Systems
Utility operators deploy the CC-PDOD51 for boiler management, turbine control, and emissions monitoring systems. When paired with redundant C300 controllers, the module supports N+1 fault-tolerant architectures that maintain plant availability during component failures, protecting revenue streams and grid stability commitments.

Pharmaceutical Manufacturing
Batch process control in pharmaceutical production demands validated, traceable automation. The CC-PDOD51's comprehensive diagnostics provide the audit trail required for FDA 21 CFR Part 11 compliance, while its deterministic response times ensure precise control of sterilization cycles, mixing sequences, and material transfer operations.

Water & Wastewater Treatment
Municipal treatment facilities utilize the CC-PDOD51 to control chemical dosing pumps, aeration blowers, and clarifier mechanisms. The module's resistance to humidity and temperature fluctuations makes it ideal for outdoor installations and wet environments where conventional electronics fail prematurely.

Food & Beverage Processing
In food production lines requiring frequent washdown procedures, the CC-PDOD51 controls conveyor systems, packaging equipment, and CIP (clean-in-place) valve manifolds. Its sealed construction and conformal coating protect against moisture ingress and chemical exposure common in sanitary processing environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-PDOD51 when your application requires field-isolated discrete outputs for 24VDC loads up to 0.5A per channel. For higher current requirements (up to 2A), consider the CC-PDOB01 variant. Applications requiring AC output switching should specify relay-based modules. Verify controller compatibility—this module requires C200 or C300 series controllers running Experion PKS R400 or later firmware.

Extended Functions

Predictive Maintenance Integration: The CC-PDOD51 streams diagnostic data to Honeywell's Asset Performance Management (APM) platform via OPC UA connectivity. Machine learning algorithms analyze output current trends to predict valve coil degradation, contactor wear, and wiring faults before they cause process interruptions.

Cybersecurity Hardening: When deployed with Experion PKS R500 or later, the module benefits from secure boot verification, encrypted configuration downloads, and role-based access controls that align with IEC 62443 industrial cybersecurity standards.

Custom Configuration Services: NINERMAS offers pre-configured modules with customer-specific I/O mapping, diagnostic thresholds, and documentation packages that reduce commissioning time by up to 60%. Contact our engineering team to discuss your project requirements.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx Express. Custom-configured modules require 7-10 business days for factory programming and testing. Expedited processing available for critical outage situations.

Warranty Coverage: Every CC-PDOD51 includes a comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty programs (24/36 months) available for critical applications requiring long-term protection.

Technical Support: Our automation specialists provide pre-sales application engineering, installation guidance, and post-sales troubleshooting support. Access to configuration tools, firmware updates, and technical bulletins included with purchase.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration worksheets, and compliance certificates. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

What controller platforms support the CC-PDOD51 digital output module?
The CC-PDOD51 is compatible with Honeywell C200 and C300 series controllers within the Experion PKS ecosystem. Minimum firmware requirement is R400; R500 or later recommended for advanced diagnostic features and cybersecurity enhancements. Not compatible with legacy TDC 2000 or Series 8 systems.

Can this module control both inductive and resistive loads?
Yes, the CC-PDOD51 handles both load types. Inductive loads (solenoid valves, relay coils, contactor coils) benefit from internal flyback diode protection that suppresses voltage spikes during switching. For highly inductive loads exceeding 50mH, external suppression may improve contact life.

How does field isolation improve system reliability?
Galvanic isolation creates an electrical barrier between field wiring and controller logic, preventing ground loops, voltage transients, and electrical noise from propagating into sensitive control circuits. This is especially critical in large facilities where field devices and controllers may have different ground references separated by significant potential differences.

What diagnostic capabilities does the module provide?
The CC-PDOD51 monitors each channel for short-circuit conditions, open-load detection, and over-current faults. Status LEDs provide local indication, while detailed diagnostics are reported to the host controller for SCADA display, alarm generation, and maintenance management system integration.

Is hot-swap replacement possible without process shutdown?
Yes, when the controller is configured for hot-swap operation and proper safety procedures are followed. The module includes keying features that prevent incorrect insertion, and the controller firmware manages orderly shutdown and restart of I/O communications during replacement.

What cable specifications are recommended for field wiring?
Use 18-22 AWG shielded twisted-pair cable for output wiring. Maximum recommended distance is 300 meters (984 feet) in low-noise environments; reduce to 150 meters in high-EMI areas. Shield should be grounded at the module end only to prevent ground loops. Follow NEC Class 1 Division 2 wiring practices for hazardous locations.
