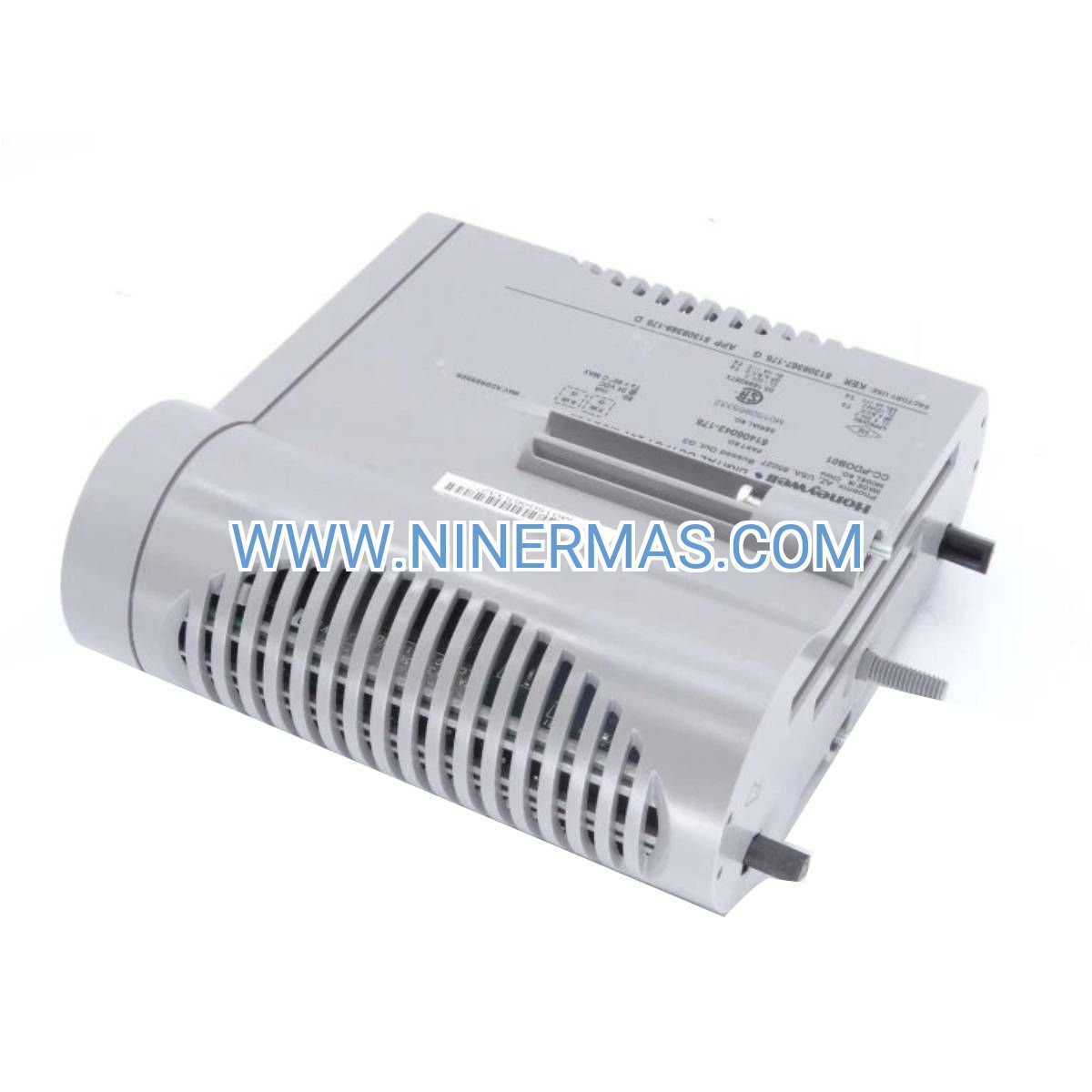

CC-PDOB01 Industrial-Grade Digital Output Module (32-Channel Field Isolated)

The CC-PDOB01 represents a proven solution for high-density digital output control in mission-critical industrial environments. This 32-channel field-isolated module delivers precise switching control for actuators, valves, contactors, and indicator systems across process automation, manufacturing, and infrastructure applications. Engineered for Honeywell C200 and C300 distributed control platforms, it combines robust electrical isolation with space-efficient design to maximize cabinet utilization while protecting sensitive control logic from field-side disturbances.

Industrial facilities demand reliable output control that withstands electrical noise, ground potential differences, and harsh operating conditions. The CC-PDOB01 addresses these challenges through galvanic isolation on every channel, bussed power architecture for simplified wiring, and hot-swap capability for maintenance without process interruption. Whether you're upgrading legacy systems or designing new installations, this module provides the performance and flexibility required for demanding control applications.

Backed by comprehensive diagnostics, per-channel status indication, and compatibility with industry-standard DIN rail mounting, the CC-PDOB01 streamlines installation, commissioning, and ongoing maintenance. Contact our automation specialists today to discuss your specific I/O requirements and system integration needs.

Core Capabilities & Technical Advantages

✓ Galvanic Isolation Architecture
Each of the 32 output channels features electrical isolation between field devices and control logic, eliminating ground loop interference and protecting the controller from voltage transients, short circuits, and field-side faults. This isolation is critical in noisy industrial environments where multiple grounding points can create potential differences.

✓ Space-Optimized High-Density Design
32 discrete outputs in a single compact module reduce panel footprint by up to 60% compared to traditional relay-based solutions. DIN rail mounting enables flexible cabinet layout and simplifies mechanical installation across standard enclosure configurations.

✓ Bussed Power Distribution
Common 24V DC power bus across all channels eliminates the need for individual power connections, reducing wiring complexity, installation time, and potential connection errors. Single power input supports all 32 outputs with 0.5A current capacity per channel.

✓ Real-Time Diagnostic Visibility
Individual LED indicators provide instant visual confirmation of output state for each channel. Module health status and fault conditions are accessible through the controller HMI, enabling rapid troubleshooting and reducing mean time to repair (MTTR).

✓ Hot-Swap Serviceability
Replace modules during operation without shutting down the control system or interrupting process operations. This capability is essential for continuous process industries where unplanned downtime translates directly to production losses.

✓ Industrial Environmental Rating
Operates reliably across 0°C to 60°C ambient temperature range with 5-95% non-condensing humidity tolerance. Conformal coating and industrial-grade components ensure long-term reliability in chemical processing, power generation, and heavy manufacturing environments.

Industrial Application Scenarios

→ Chemical & Petrochemical Processing
Control pneumatic valve actuators, motor-operated valves (MOVs), and emergency shutdown (ESD) solenoids in reactor systems, distillation columns, and pipeline networks. The field isolation prevents ground loops in distributed installations where field devices may be hundreds of meters from the control room. Pair with analog I/O modules for complete process variable monitoring and control.

→ Water & Wastewater Treatment
Operate pump contactors, chemical dosing solenoids, and aeration blower starters across clarifiers, filtration systems, and disinfection processes. The module's diagnostic capabilities enable predictive maintenance by tracking valve cycle counts and detecting stuck actuators before they cause process upsets.

→ Power Generation & Substation Automation
Drive circuit breaker trip coils, switchgear interlocks, and annunciator panels in generation facilities and electrical distribution systems. Compliance with ATEX Zone 2 certification supports deployment in classified areas with explosive atmosphere risk.

→ Automotive & Discrete Manufacturing
Manage conveyor diverters, robotic gripper actuators, safety light curtain resets, and assembly station interlocks in high-speed production lines. The 32-channel density supports complex material handling sequences while minimizing control cabinet space in space-constrained factory floors.

→ Food & Beverage Production
Control CIP (clean-in-place) valve manifolds, packaging line actuators, and ingredient dosing systems where washdown environments demand sealed enclosures. The module's robust construction withstands vibration and temperature cycling common in processing facilities.

Technical Parameters & Selection Criteria

Selection Guidelines:

Choose the CC-PDOB01 when your application requires high-density digital output control with electrical isolation. For applications driving inductive loads (solenoids, contactors), verify that load current does not exceed 0.5A per channel; use external relay modules for higher current requirements. If your system architecture uses IOTA-based distributed I/O, consider alternative models optimized for that topology. For mixed signal applications, the CC-PDOB01 can be installed alongside analog input/output modules in the same I/O rack, providing flexible system configuration.

Advanced Integration & Customization Options

System-Level Integration
The CC-PDOB01 communicates via Honeywell's high-speed I/O bus, supporting deterministic scan times and synchronized operation with other I/O modules. Configuration is performed through Honeywell Control Builder software, enabling parameter assignment, channel mapping, and diagnostic threshold setup. The module automatically reports its identity and configuration to the controller, simplifying commissioning and replacement procedures.

Redundancy & Fault Tolerance
For critical control applications requiring fault-tolerant operation, deploy CC-PDOB01 modules in redundant configurations where dual modules control the same field devices through voting logic. The controller can automatically switch to the backup module upon detecting a primary module fault, ensuring continuous operation.

Remote I/O Deployment
When installed in remote I/O racks connected via fieldbus networks, the CC-PDOB01 enables distributed control architectures that reduce wiring costs and improve system modularity. This approach is particularly effective in large facilities where field devices are geographically dispersed.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days from order confirmation. Expedited shipping options available for urgent requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical applications.

Technical Assistance: Our automation engineering team provides pre-sales application support, configuration guidance, and post-installation troubleshooting. Access to technical documentation, wiring diagrams, and configuration examples included with every purchase.

Documentation Package: Each module ships with installation manual, quick-start guide, and certification documents. CAD drawings and 3D models available for panel design integration.

Frequently Asked Questions

What types of loads can the CC-PDOB01 control effectively?
The module is designed for standard industrial loads including solenoid valves (AC and DC), motor starter coils, indicator lamps, and relay coils. Each channel includes flyback diode protection for inductive load switching. For resistive loads, ensure total current does not exceed 0.5A per channel. High-current applications require external relay or contactor interfaces.

How does field isolation improve system reliability?
Field isolation creates an electrical barrier between the controller's logic circuits and field wiring, preventing ground loops, voltage spikes, and short circuits in field devices from damaging the controller. This protection is essential in industrial environments where long cable runs, multiple grounding points, and electrical noise are common.

Can I replace a failed module without stopping the process?
Yes, when installed in hot-swap compatible I/O racks, the CC-PDOB01 can be removed and replaced during operation. The controller maintains output states during the swap, and the new module automatically inherits the configuration from the controller, minimizing downtime to seconds rather than hours.

What is the difference between bussed and individually powered outputs?
Bussed outputs share a common power connection across all channels, requiring only one 24V DC input for all 32 outputs. This simplifies wiring and reduces installation time compared to individually powered outputs where each channel requires separate power connections. Bussed architecture is ideal when all outputs operate at the same voltage level.

Is the module compatible with third-party controllers?
The CC-PDOB01 is specifically designed for Honeywell C200 and C300 controller platforms and uses proprietary I/O bus communication. It is not compatible with third-party PLCs or controllers from other manufacturers. For multi-vendor system integration, consider using standard fieldbus protocols at the controller level.

What diagnostic information is available for troubleshooting?
The module provides per-channel output status via LED indicators on the front panel. Through the controller HMI, you can access detailed diagnostics including module health, power supply status, communication errors, and individual channel faults. Historical fault logs support root cause analysis and predictive maintenance planning.

Order Your CC-PDOB01 Module Today

Enhance your industrial control system with proven, field-isolated digital output technology. Our team is ready to assist with technical specifications, system integration planning, and volume pricing for multi-module projects. Contact us now for expert guidance and fast delivery.
