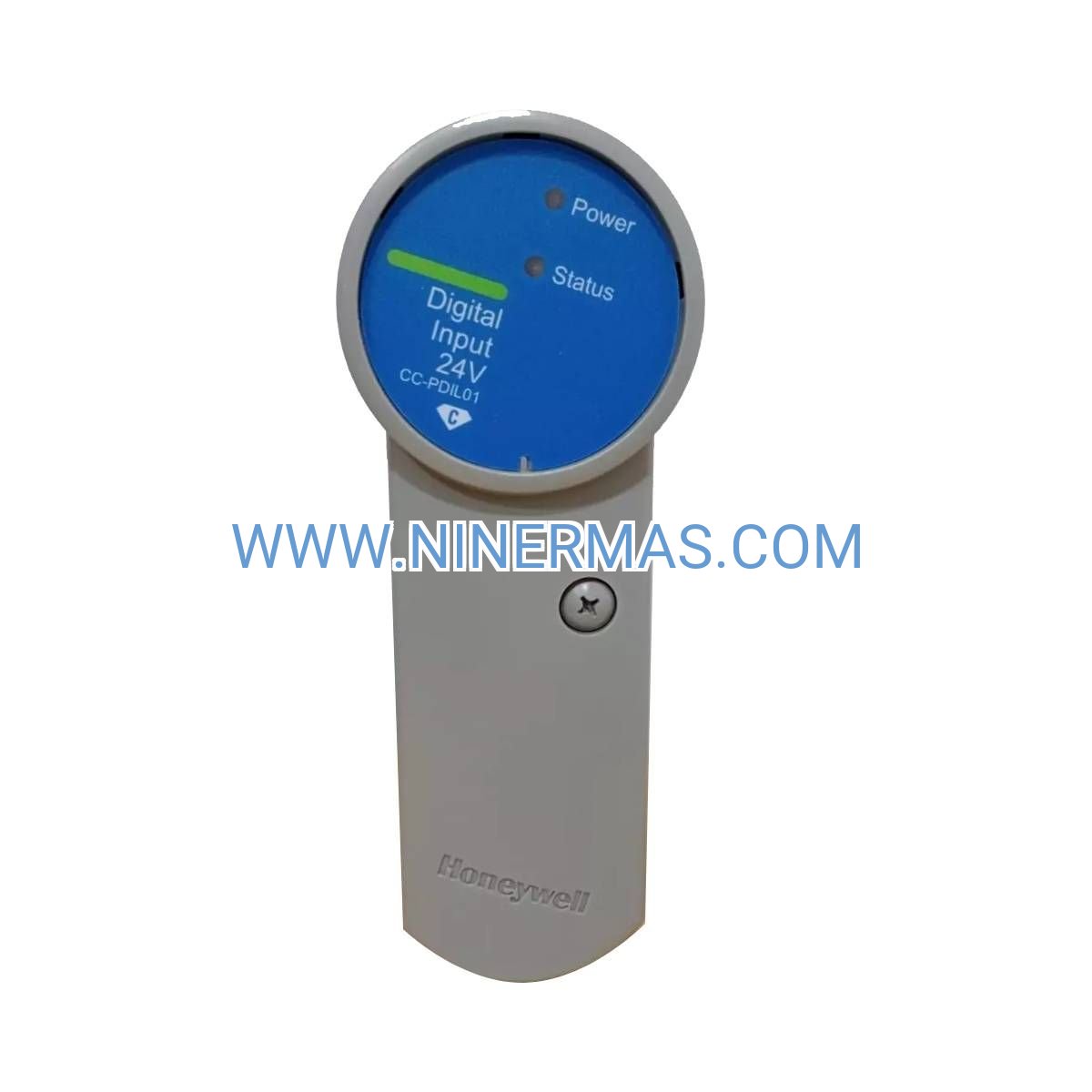

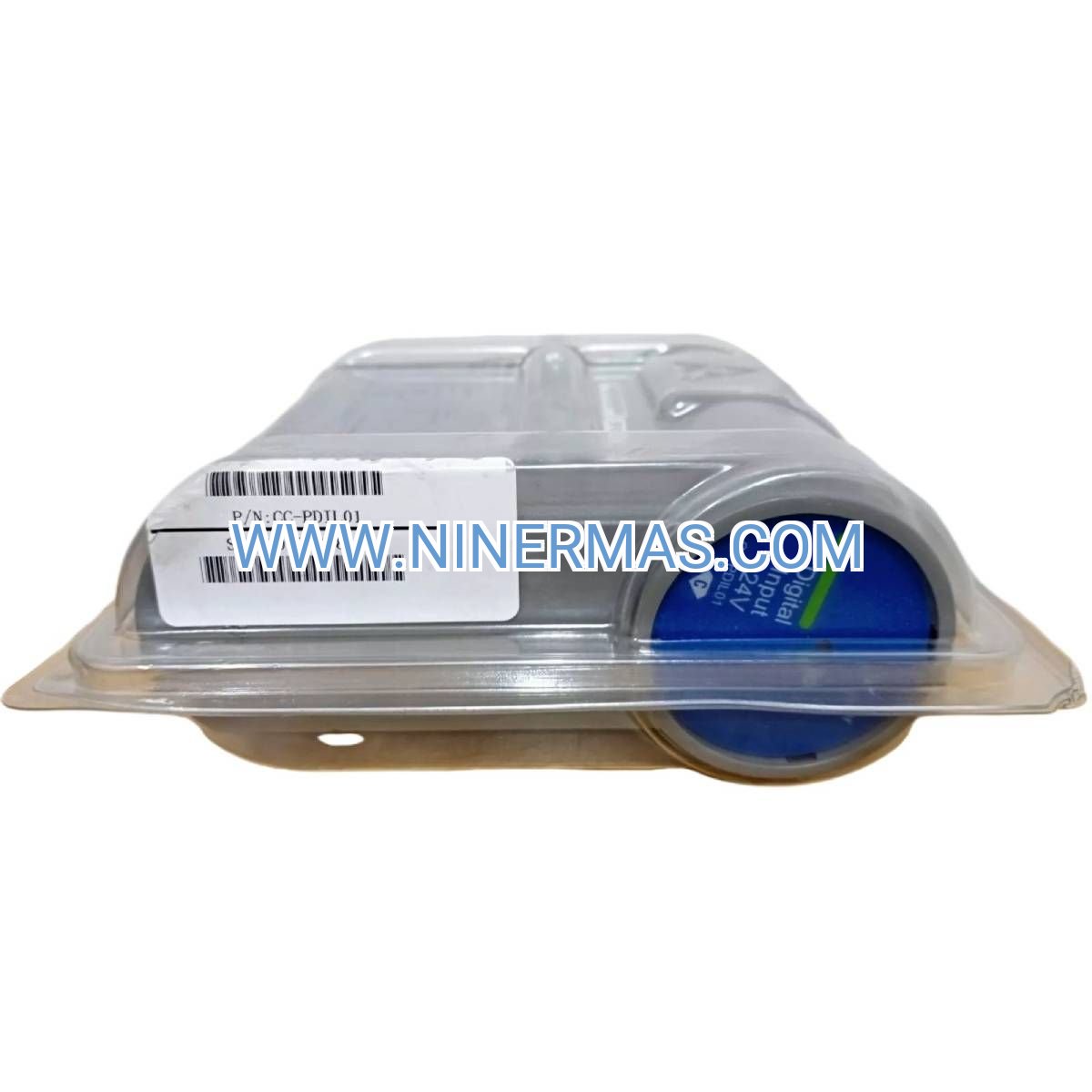

CC-PDIL01 Industrial Digital Input Module (32-Channel Field-Isolated 24VDC Sensing)

The CC-PDIL01 represents Honeywell's advanced approach to high-density discrete signal acquisition for mission-critical process control environments. Engineered as a core component within Experion PKS distributed control architectures, this 32-point digital input module combines galvanic field isolation, rapid signal processing, and hot-swappable serviceability to deliver uncompromising uptime across petrochemical refineries, pharmaceutical manufacturing, power utilities, and water treatment facilities.

Built for environments where sensor integrity directly impacts safety and production continuity, the CC-PDIL01 accepts 24VDC discrete signals from limit switches, proximity sensors, valve position indicators, and emergency shutdown contacts. Each input channel features independent isolation barriers that eliminate ground loop interference while maintaining sub-5-millisecond response characteristics essential for real-time process monitoring.

Integration within Experion PKS ecosystems enables seamless data exchange with C200/C300 controllers, providing operators with instantaneous visibility into field device states through Station HMI interfaces. When deployed alongside complementary I/O modules and redundant controller pairs, the CC-PDIL01 forms the foundation of fault-tolerant control strategies that meet IEC 61508 SIL-rated application requirements.

Core Features & Benefits

→ 32 Galvanically Isolated Input Channels
Independent channel isolation prevents electrical noise propagation between field circuits, protecting sensitive control electronics from voltage transients and ground potential differences common in industrial installations.

→ Wide Input Voltage Range (18-30VDC)
Accommodates voltage variations in field wiring without false triggering, reducing nuisance alarms caused by power supply fluctuations or cable voltage drop over extended distances up to 300 meters.

→ Sub-5ms Signal Response Time
Critical for high-speed sequencing applications including turbine trip monitoring, emergency shutdown verification, and batch process interlocking where delayed signal recognition could compromise safety or product quality.

✓ Hot-Swappable Architecture
Field-replaceable design allows module exchange during live operation when installed on appropriate carrier assemblies, eliminating costly process shutdowns for routine maintenance or hardware upgrades.

✓ Integrated Diagnostic Capabilities
Per-channel health monitoring with LED status indication and software-accessible fault registers enable predictive maintenance strategies, alerting technicians to wiring faults or sensor degradation before process disruptions occur.

✓ Minimal Power Consumption (≤5W)
Derives operating power from I/O bus backplane, reducing heat generation in densely populated control cabinets while simplifying power distribution design compared to externally powered alternatives.

Typical Application Scenarios

Refinery Emergency Shutdown Systems
Monitor critical safety instrumented functions including high-level switches in separation vessels, flame detection contacts, and manual ESD pushbutton stations. The CC-PDIL01's isolated inputs prevent common-cause failures in SIL-rated shutdown logic, while millisecond-level response ensures rapid actuation of final control elements during abnormal operating conditions.

Pharmaceutical Batch Processing
Track valve position confirmations, agitator motor auxiliary contacts, and clean-in-place (CIP) cycle completion signals across multi-stage reaction sequences. Integration with recipe management systems via Experion PKS controllers enables automated batch progression with full audit trail documentation required for FDA 21 CFR Part 11 compliance.

Power Generation Turbine Protection
Acquire vibration sensor trip contacts, bearing temperature alarm outputs, and governor limit switch states for steam and gas turbine control systems. When paired with sequence-of-events recording capabilities, the CC-PDIL01 provides forensic data for post-trip analysis and regulatory reporting.

Water Treatment SCADA Integration
Interface with pump run status feedback, tank level switches, chlorine analyzer alarm contacts, and flow meter pulse outputs across distributed lift stations and treatment plants. The module's field isolation protects central SCADA equipment from lightning-induced surges common in outdoor installations.

Automotive Paint Line Conveyor Control
Capture photoeye sensor states, carrier position switches, and zone occupancy detectors throughout multi-stage coating processes. High channel density reduces cabinet footprint while maintaining the signal integrity required for precise part tracking and quality assurance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-PDIL01 when your application requires high-density discrete input acquisition with individual channel isolation. For applications demanding sub-millisecond time-stamping (sequence-of-events recording), consider the 8C-PDIS01 SOE variant. If your system uses 120VAC field devices, specify the CC-PAIH01 AC input module instead. Always verify compatibility with your specific Experion PKS controller firmware revision before ordering.

Extended Functions

Redundant I/O Configuration Support
Deploy dual CC-PDIL01 modules in parallel for fault-tolerant architectures where continuous signal availability is mandatory. Redundancy management logic within C300 controllers automatically switches to the backup module upon primary module failure, maintaining uninterrupted process visibility.

Advanced Filtering & Debounce
Software-configurable input filtering eliminates contact bounce from mechanical switches and relays, preventing false state transitions that could trigger erroneous alarms or control actions. Adjustable time constants accommodate varying sensor characteristics without hardware modifications.

Cybersecurity-Hardened Communication
Integrates with Experion PKS security architecture supporting role-based access control, encrypted configuration downloads, and audit logging of all parameter changes—critical for compliance with NERC CIP, ISA/IEC 62443, and other industrial cybersecurity standards.

Third-Party System Integration
Expose input states to external systems via OPC UA, Modbus TCP, or DNP3 gateways for integration with plant-wide historians, asset management platforms, and enterprise MES/ERP systems without compromising real-time control performance.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom-configured modules with pre-loaded firmware or special certifications require 2-3 weeks. Expedited shipping options available for emergency outage support.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and component failures. Warranty includes advance replacement service with cross-shipment to minimize downtime during failure events.

Technical Support: Access to application engineers with Experion PKS expertise for configuration assistance, troubleshooting guidance, and system optimization recommendations. Support available via phone, email, and remote desktop sessions during business hours (extended coverage plans available).

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to complete technical manuals including configuration software utilities, diagnostic procedures, and spare parts cross-reference lists.

Frequently Asked Questions

How does the CC-PDIL01 interface with legacy TDC 3000 control systems?
The CC-PDIL01 maintains backward compatibility with TDC 3000 infrastructure when deployed with appropriate Universal Station or HPM controllers. For direct TDC 3000 rack mounting, the DC-TDIL11 module provides equivalent functionality with native TDC communication protocols.

What is the maximum permissible field wiring distance for reliable operation?
Field devices may be located up to 300 meters (984 feet) from the I/O module when using shielded twisted-pair cable with proper grounding. For distances exceeding 300m, consider local I/O marshalling cabinets with fiber-optic communication links to the central control room.

Can I combine different I/O module types on a single carrier assembly?
Yes, the modular design supports mixing digital input, digital output, and analog modules on one CC-MCAR01 carrier. Common configurations pair the CC-PDIL01 with CC-PDOB01 digital outputs and CC-PAIH02 analog inputs for comprehensive local I/O coverage within a compact footprint.

Does this module support high-resolution sequence-of-events recording?
Standard CC-PDIL01 modules provide millisecond-resolution timestamps suitable for most process applications. For sub-millisecond SOE requirements in turbine control or electrical protection systems, specify the 8C-PDIS01 variant with dedicated SOE hardware and GPS time synchronization capability.

What diagnostic capabilities are available for troubleshooting field wiring issues?
Built-in diagnostics include per-channel LED indicators showing real-time input states, module health status accessible via Experion Station, and detailed fault logs identifying open circuits, short circuits, or out-of-range voltage conditions on individual channels.

Is the module suitable for hazardous area installations?
The CC-PDIL01 carries ATEX Zone 2 and IECEx certifications for installation in non-hazardous areas of facilities with adjacent classified zones. For direct mounting in Division 1/Zone 1 hazardous locations, consult Honeywell's intrinsically safe barrier solutions or explosion-proof enclosure options.
