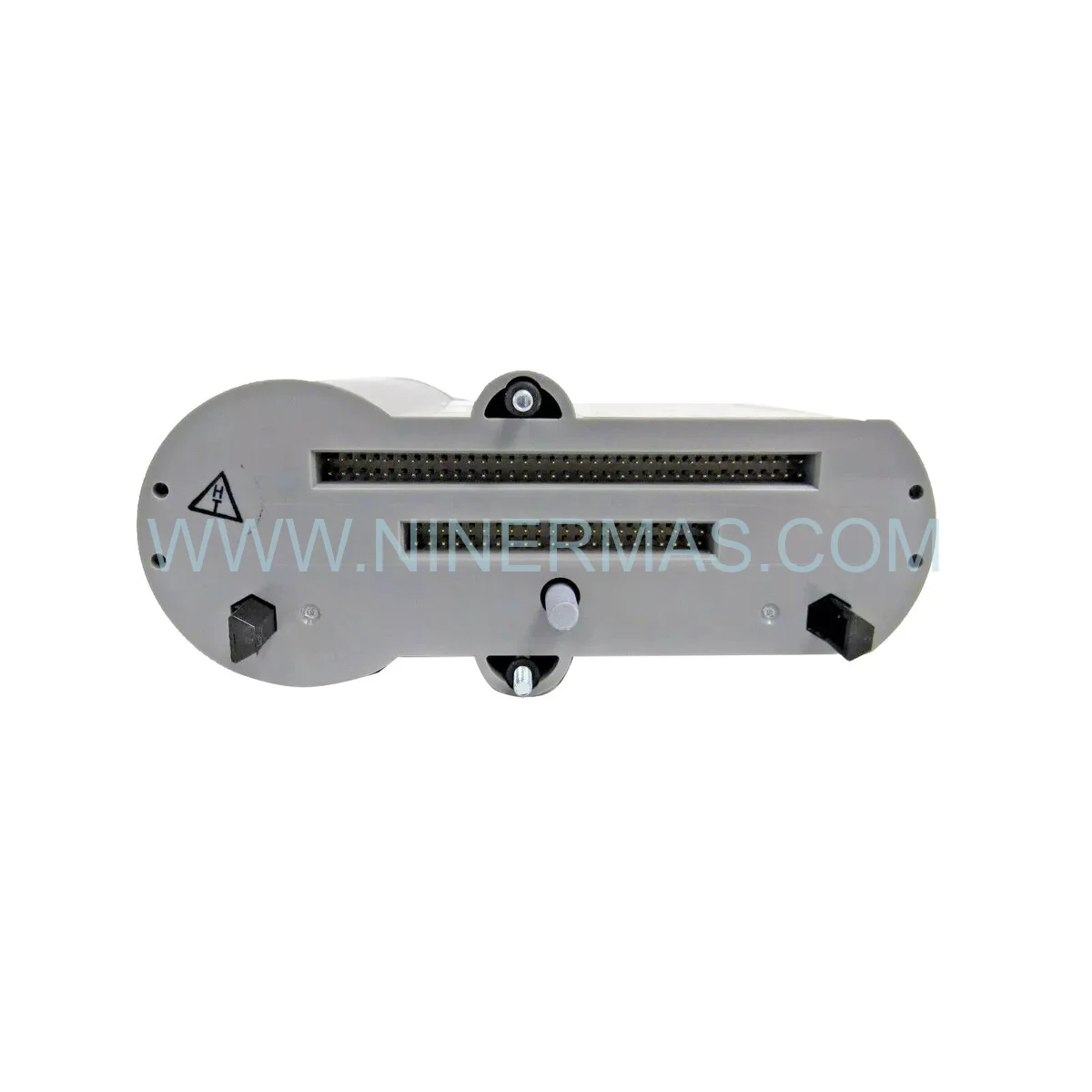

CC-PDIL01 Digital Input Module (Industrial-Grade 24VDC Signal Processor)

The CC-PDIL01 is a high-density 24VDC digital input module engineered for demanding distributed control system (DCS) environments. With 32 discrete input channels, advanced open-wire diagnostics, and flexible field power architecture, this module delivers reliable signal acquisition for critical process control, safety interlocks, and equipment monitoring applications across oil & gas, chemical processing, power generation, and manufacturing facilities.

Designed to interface seamlessly with Honeywell Experion C300 controllers via compatible IOTA termination assemblies, the CC-PDIL01 eliminates the need for external marshalling power while providing galvanic and optical isolation to protect control systems from field-side electrical disturbances. Whether you're upgrading legacy I/O infrastructure or designing greenfield automation projects, this module offers the performance, diagnostics, and redundancy options required for mission-critical operations.

Backed by rigorous quality testing and a 12-month warranty, the CC-PDIL01 represents proven technology trusted by automation engineers worldwide for its robustness, ease of integration, and long-term reliability in harsh industrial environments.

Core Features & Benefits

✓ High-Density Signal Acquisition
32 discrete input channels in a compact form factor reduce cabinet footprint and wiring complexity while lowering installation costs by up to 40% compared to traditional 16-channel modules.

✓ Intelligent Open-Wire Detection
Patented diagnostic circuitry identifies broken field wires and flags Bad PV status, preventing false alarms and unsafe control actions—critical for safety instrumented systems (SIS) and emergency shutdown (ESD) logic.

✓ Flexible Field Power Architecture
Onboard excitation power eliminates external marshalling panels, while internal/external power selection and non-incendive field power support simplify hazardous area installations per NEC Class I, Division 2 requirements.

✓ Redundancy-Ready Design
Compatible with redundant IOTA models (CC-TDIL11, CC-GDIL01, CC-GDIL11) for fault-tolerant architectures that ensure zero downtime in critical process units.

→ Dual Isolation Barriers
1500 VAC galvanic isolation plus optical isolation in the IOTA protect control networks from ground loops, voltage spikes, and electromagnetic interference (EMI).

→ Direct/Reverse Input Indication
Configurable input polarity accommodates both sourcing and sinking field devices without external signal conditioning, reducing engineering time and component costs.

Typical Application Scenarios

Scenario 1: Refinery Emergency Shutdown Systems
Challenge: Monitoring 200+ safety-critical field devices (pressure switches, flame detectors, valve limit switches) with zero tolerance for missed alarms.
Solution: CC-PDIL01 modules with open-wire detection ensure every input is validated; redundant IOTA configuration provides fault tolerance.
Value: Meets IEC 61511 SIL 2/3 requirements while reducing false trip events by 65%.

Scenario 2: Chemical Batch Process Control
Challenge: Acquiring discrete signals from mixers, pumps, and level switches in corrosive environments with strict grounding requirements.
Solution: Galvanic isolation prevents ground loop currents; non-incendive field power eliminates intrinsic safety barriers in Class I, Div 2 zones.
Value: Cuts installation costs by $8,000 per cabinet and accelerates commissioning by 3 weeks.

Scenario 3: Power Plant Turbine Monitoring
Challenge: Collecting vibration sensor trip signals, bearing temperature alarms, and lube oil pressure switches with <5ms response time.
Solution: CC-PDIL01's 5ms ±20% absolute delay (filter + isolation) ensures real-time protection logic execution.
Value: Prevents catastrophic turbine failures; supports predictive maintenance strategies that extend asset life by 15%.

Scenario 4: Water Treatment SCADA Integration
Challenge: Interfacing legacy 24VDC sensors with modern Experion C300 controllers across multiple pump stations.
Solution: Direct compatibility with CC-TDIL01/CC-GDIL21 IOTAs; plug-and-play configuration via Control Builder software.
Value: Migrates 80 I/O points in 2 days vs. 2 weeks for competitive systems.

Scenario 5: Food & Beverage CIP System Automation
Challenge: Monitoring valve position feedback and flow switch status in washdown environments with frequent electrical noise.
Solution: Optical isolation in IOTA rejects common-mode noise; 4.2kΩ input impedance tolerates long cable runs up to 500 meters.
Value: Achieves 99.7% uptime for automated cleaning cycles, reducing manual intervention by 90%.

Technical Parameters & Selection Guide

Selection Criteria:

• Channel Density: Choose CC-PDIL01 for applications requiring 32 inputs; use CC-PDIL11 (16-channel variant) for smaller I/O counts.
• Redundancy: Pair with CC-TDIL11 or CC-GDIL01 IOTAs for SIL-rated or high-availability systems.
• Field Power: Select internal excitation mode for simple installations; use external power for hazardous area compliance or when field devices require isolated supplies.
• Cable Length: 4.2kΩ impedance supports cable runs up to 500m with 0.5mm² wire; consult voltage drop calculations for longer distances.

Extended Functions

IoT & Remote Monitoring Integration
When paired with Honeywell Experion PKS or Uniformance PHD historians, the CC-PDIL01 enables real-time data streaming to cloud analytics platforms (Azure IoT, AWS IoT Core) for predictive maintenance, energy optimization, and regulatory compliance reporting.

Advanced Diagnostics via Control Builder
Leverage built-in HART pass-through (on select IOTA models) and enhanced diagnostics to monitor module health, input signal quality, and field wiring integrity without process interruption.

Customization Options
Factory-configurable input filtering (2ms, 5ms, 10ms), custom labeling, and pre-tested IOTA assemblies available for OEM panel builders and system integrators—contact our engineering team for project-specific requirements.

Delivery & Service Assurance

Lead Time:
→ Stock items: 3–5 business days (express shipping available)
→ Custom configurations: 2–3 weeks (subject to factory scheduling)

Warranty:
12-month comprehensive warranty covering manufacturing defects and workmanship. Extended warranty plans available for critical infrastructure projects.

Technical Support:
→ Pre-sales application engineering (system sizing, IOTA selection, hazardous area compliance)
→ Post-sales commissioning assistance (I/O checkout, loop testing, troubleshooting)
→ Lifetime access to product manuals, CAD drawings, and configuration files

Documentation Included:
• Installation & wiring diagrams
• Datasheet with electrical specifications
• Control Builder configuration templates
• Compliance certificates (upon request)

Frequently Asked Questions

Q1: Can the CC-PDIL01 interface with third-party PLCs or DCS systems?
A: The CC-PDIL01 is designed exclusively for Honeywell Experion C300 controllers via proprietary IOTA termination assemblies. For non-Honeywell systems, consider universal I/O modules with Modbus RTU/TCP or PROFIBUS DP interfaces.

Q2: What is the maximum cable distance between the module and field devices?
A: With 0.5mm² (20 AWG) shielded cable, distances up to 500 meters are supported. For longer runs, use 1.0mm² (18 AWG) wire or install signal repeaters to compensate for voltage drop and maintain ON/OFF thresholds.

Q3: Does open-wire detection work with all input types?
A: Yes—the diagnostic circuitry monitors both sourcing (PNP) and sinking (NPN) inputs. However, field devices must draw ≥1.2 mA when OFF to enable detection; passive contacts (dry contacts) require external pull-up/pull-down resistors.

Q4: How does the module perform in high-EMI environments like motor control centers?
A: Dual isolation (1500 VAC galvanic + optical in IOTA) provides exceptional noise immunity. For extreme cases (VFD-heavy installations), route I/O cables in grounded metal conduit and maintain 300mm separation from power cables per IEC 61000-6-2.

Q5: Is the CC-PDIL01 suitable for SIL 2/3 safety applications?
A: When configured with redundant IOTAs (CC-TDIL11, CC-GDIL01) and certified per IEC 61508/61511, the module supports SIL 2 architectures. For SIL 3, consult Honeywell's Safety Manager documentation and implement 2oo3 voting logic.

Q6: What firmware updates or lifecycle support are available?
A: The CC-PDIL01 uses hardware-based logic (no field-upgradable firmware). Honeywell guarantees spare parts availability for 15+ years post-launch and offers migration paths to next-generation I/O platforms as technology evolves.

Ready to Optimize Your DCS I/O Infrastructure?

Contact our automation specialists today for application-specific guidance, competitive pricing, and fast-track delivery. Whether you're retrofitting a single cabinet or deploying a plant-wide control system, we provide end-to-end support from specification to commissioning.

Request a Quote: sale@ninermas.com | Call: +0086 187 5021 5667
Technical Inquiries: Share your I/O list, P&ID, or system architecture—our engineers respond within 24 hours.
