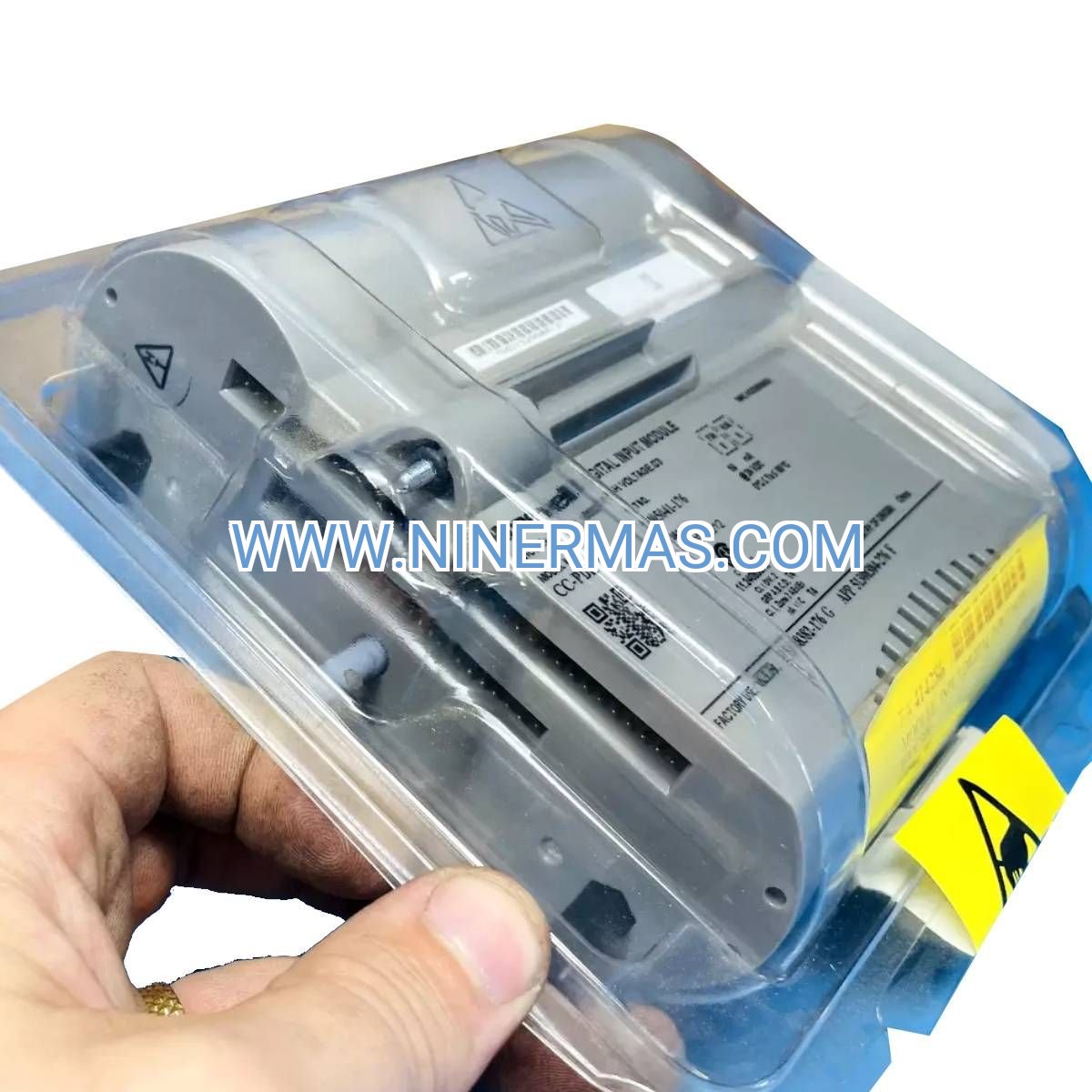

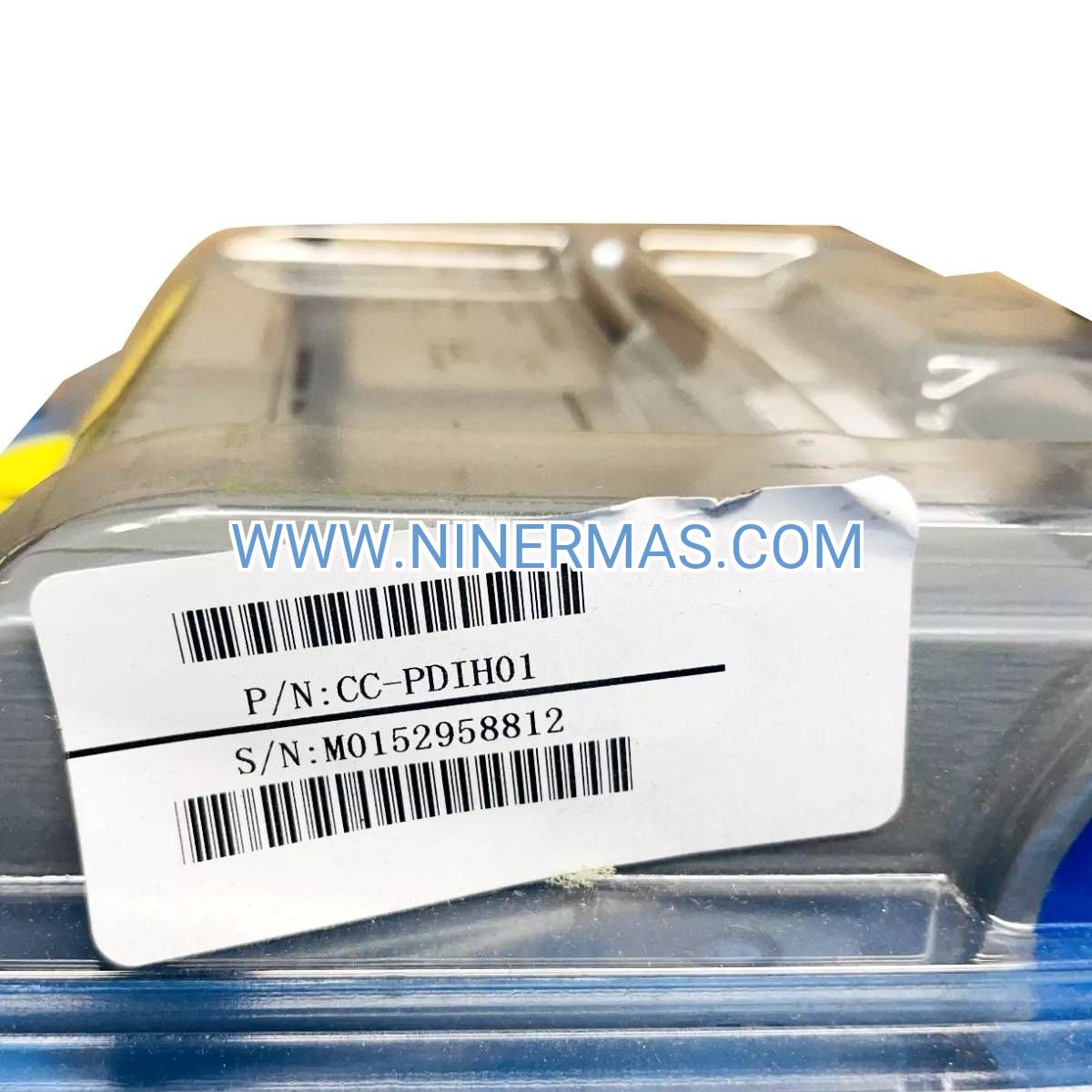

CC-PDIH01 Digital Input Module (Industrial-Grade High Voltage Acquisition)

The CC-PDIH01 represents Honeywell's advanced solution for high-voltage discrete signal monitoring in mission-critical industrial control systems. This 32-channel digital input module delivers galvanic isolation rated at 1500 VAC RMS, ensuring reliable signal integrity in electrically harsh environments where ground potential differences and electromagnetic interference threaten system stability.

Designed for seamless integration with C200 and C300 distributed control platforms, this module addresses the fundamental challenge faced by process industries: acquiring reliable digital signals from field devices operating at elevated voltages while maintaining complete electrical separation between channels. Whether monitoring emergency shutdown systems in petrochemical plants or tracking turbine status in power generation facilities, the CC-PDIH01 provides the robust signal acquisition backbone that modern industrial automation demands.

With hot-swap capability, sub-5ms response times, and compatibility with Experion PKS architecture, this module enables plant operators to maintain continuous operations while upgrading or servicing I/O infrastructure. The result is reduced downtime, enhanced safety compliance, and improved operational visibility across distributed control networks.

Core Features & Benefits

→ 32 Galvanically Isolated Channels
Each input channel features complete electrical isolation rated at 1500 VAC RMS, protecting control systems from voltage surges, ground loops, and cross-channel interference. This architecture ensures that a fault on one channel cannot propagate to adjacent inputs or compromise controller integrity.

→ Wide Input Voltage Range (24-48 VDC)
Accepts standard industrial voltage levels from diverse field devices including proximity sensors, limit switches, relay contacts, and valve position indicators. Eliminates the need for external signal conditioning in most applications, reducing installation costs and complexity.

→ Hot-Swap Capability
Replace or service modules without shutting down the control system. This feature minimizes planned maintenance windows and enables rapid response to hardware failures, directly improving plant availability metrics and reducing production losses.

✓ Fast Response Time (≤5ms)
Captures rapid state changes from high-speed machinery and safety interlocks. Critical for applications requiring immediate detection of alarm conditions, emergency stops, or process deviations that demand split-second control responses.

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme ambient conditions found in outdoor enclosures, boiler rooms, and refrigerated environments. Reduces the need for climate-controlled cabinets, lowering infrastructure costs.

✓ Low Power Consumption (≤8W)
Minimizes heat generation in densely populated I/O racks while reducing overall system power requirements. Contributes to energy efficiency goals and extends component lifespan through reduced thermal stress.

Application Scenarios

Petrochemical & Refining Operations
Monitor emergency shutdown (ESD) valve positions, fire and gas detection systems, and critical pump status indicators. The 1500VAC isolation protects control systems from voltage transients generated by large motor starters and switchgear operations common in hazardous area installations.

Power Generation Facilities
Track turbine trip conditions, generator breaker status, and auxiliary system alarms across coal, gas, nuclear, and renewable energy plants. High isolation voltage ensures reliable signal acquisition even during grid disturbances or lightning events that create severe ground potential differences.

Water & Wastewater Treatment
Acquire signals from level switches, flow indicators, and motor overload contacts distributed across large treatment facilities. Long-distance wiring (up to 300 meters) combined with galvanic isolation maintains signal integrity despite electrical noise from variable frequency drives and pump motors.

Manufacturing & Assembly Lines
Interface with safety light curtains, conveyor position sensors, and robotic cell interlocks. Fast response times ensure immediate detection of safety violations, while hot-swap capability allows maintenance during scheduled production breaks without extended downtime.

Pharmaceutical & Food Processing
Monitor clean-in-place (CIP) system status, batch reactor conditions, and packaging line sensors. The module's diagnostic capabilities support validation requirements and traceability mandates in regulated industries.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-PDIH01 when your application requires high-density digital input acquisition with superior noise immunity. If your field devices operate at standard 24VDC levels without requiring high isolation, consider lower-cost alternatives. For applications demanding SIL-rated safety functions, verify compatibility with your safety architecture or explore dedicated safety I/O modules.

Extended Functions

Advanced Diagnostics
Built-in channel-level fault detection identifies open circuits, short circuits, and isolation barrier degradation. Diagnostic data streams to Experion Station HMI, enabling predictive maintenance strategies that prevent unexpected failures.

Online Configuration
Modify channel parameters, alarm thresholds, and filtering settings without interrupting process control. Configuration changes take effect immediately, supporting agile commissioning and troubleshooting workflows.

Redundancy Support
Deploy in redundant controller configurations for high-availability applications. Automatic failover ensures continuous signal monitoring even during controller switchovers or communication path failures.

Third-Party Device Compatibility
Accepts discrete signals from any manufacturer's field devices, including proximity sensors, photoelectric switches, mechanical limit switches, and relay outputs. No proprietary protocols required.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; custom configurations or bulk orders may require 2-3 weeks. Expedited shipping available for urgent replacements.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime.

Technical Support: Access to application engineers for configuration assistance, wiring diagrams, and integration guidance. Support available via email, phone, and remote desktop sessions during commissioning.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates for Experion Station, and compliance certificates (CE, UL, RoHS).

Frequently Asked Questions

How does galvanic isolation improve system reliability in high-voltage environments?
Galvanic isolation creates a physical barrier between field wiring and the control system using optical or magnetic coupling. This prevents voltage surges, ground loops, and electrical noise from damaging sensitive controller electronics, while allowing signal information to pass through. In installations with multiple ground points or lightning exposure, this protection is essential for long-term reliability.

Can I mix different input voltage levels on the same CC-PDIH01 module?
Yes, the 24-48 VDC input range allows you to connect field devices operating at different voltages to the same module. Each channel independently adapts to its input signal level, simplifying wiring and reducing the number of module types required in your spare parts inventory.

What cable specifications are recommended for optimal noise immunity?
Use shielded twisted-pair cable with 18-22 AWG conductors for runs up to 300 meters. Connect cable shields to ground at the module end only (single-point grounding) to prevent ground loops. For runs exceeding 100 meters in high-EMI environments, consider using cable with foil plus braid shielding for maximum protection.

Does the module support integration with SCADA systems beyond Honeywell platforms?
While designed for C200/C300 controllers, the module's data is accessible to third-party SCADA systems via OPC UA, Modbus TCP, or other protocols supported by the Honeywell controller. This enables hybrid architectures where Honeywell I/O feeds non-Honeywell supervisory systems.

What maintenance procedures are required to ensure long-term performance?
The CC-PDIH01 is designed for maintenance-free operation. Recommended practices include annual inspection of terminal block connections for tightness, verification of diagnostic indicators, and periodic review of channel status logs to identify degrading field wiring before failures occur.

How does response time affect safety-critical applications?
The ≤5ms response time ensures that emergency stop signals, safety interlock violations, and alarm conditions are detected and communicated to the controller within a single scan cycle in most systems. This rapid detection is crucial for meeting safety integrity level (SIL) timing requirements in process safety applications.

Ready to Enhance Your DCS Infrastructure?

The CC-PDIH01 digital input module delivers the reliability, isolation, and performance required for demanding industrial automation applications. Whether you're upgrading legacy systems, expanding existing C200/C300 installations, or designing new control architectures, this module provides proven technology backed by Honeywell's engineering expertise.

Contact our technical sales team today to discuss your specific application requirements, receive custom wiring diagrams, or request a formal quotation. We provide configuration support, integration guidance, and rapid delivery to keep your projects on schedule.
