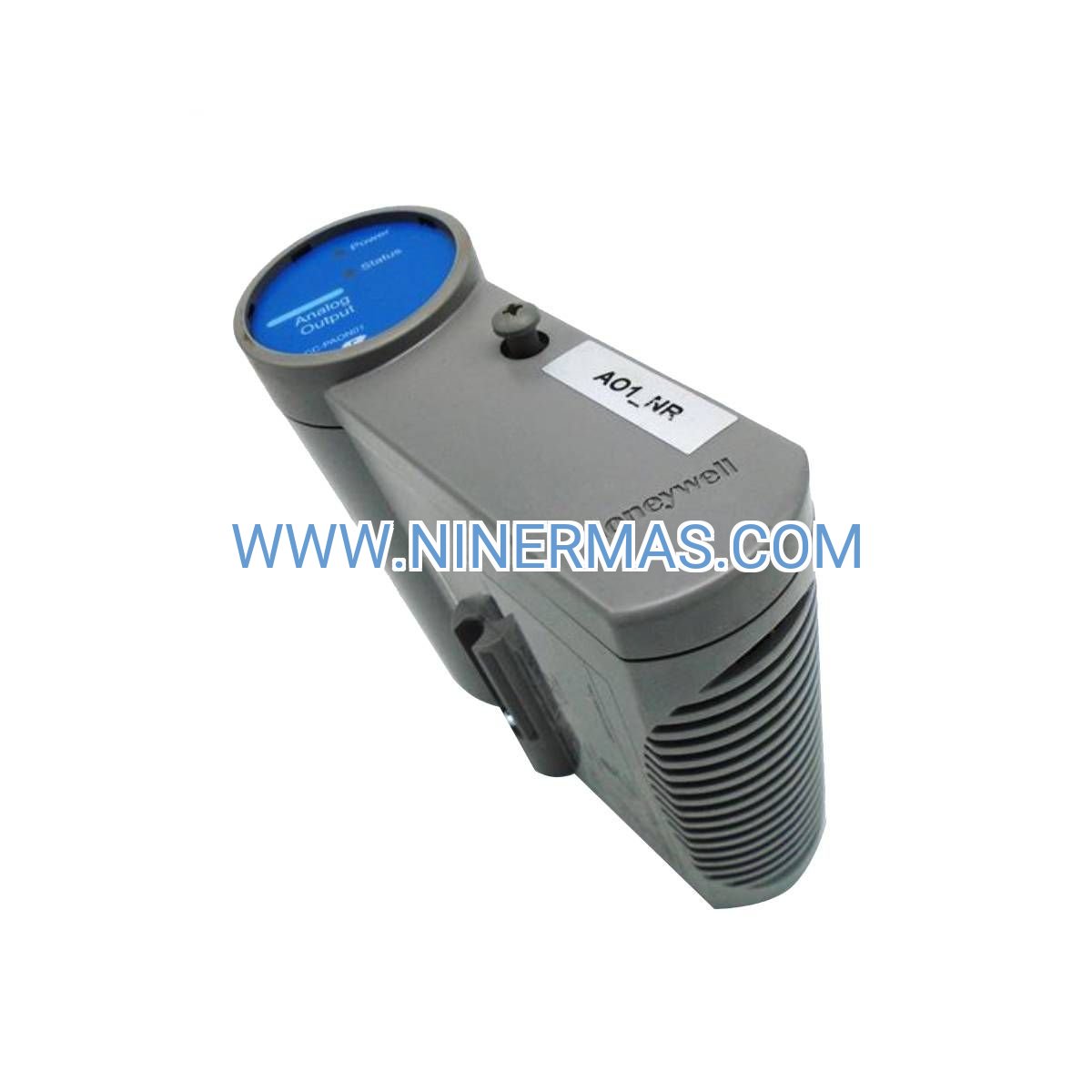

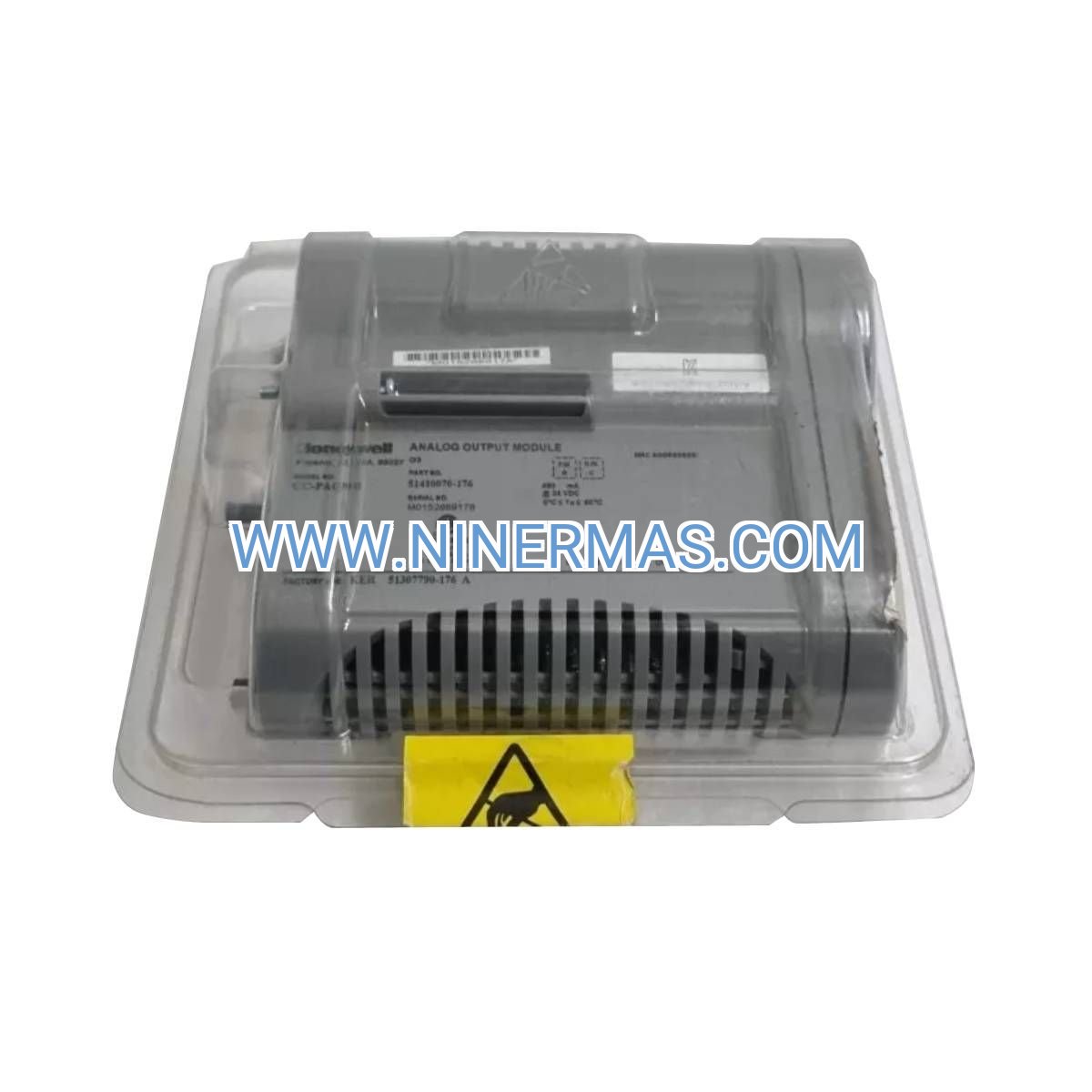

CC-PAON01 Analog Output Module (Industrial-Grade 4-20mA Control)

The CC-PAON01 (Part No. 51410070-175) represents Honeywell's commitment to precision industrial control, delivering eight independent 4-20mA current loop outputs with integrated HART communication. Designed for demanding process automation environments, this module serves as the critical interface between your Experion PKS control strategy and field instrumentation—ensuring accurate, reliable signal transmission across refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing operations.

Built for Honeywell C200 and C300 distributed control architectures, the CC-PAON01 addresses the core challenge of maintaining signal integrity in electrically noisy industrial environments. Channel-to-channel isolation prevents cross-talk, while 16-bit D/A conversion guarantees ±0.1% accuracy across the entire span. Whether you're regulating valve positioners in a petrochemical complex or controlling dosing pumps in water treatment, this module delivers the performance your critical processes demand.

What sets the CC-PAON01 apart is its dual-function HART capability—simultaneously transmitting analog control signals while enabling digital diagnostics and configuration. This means your maintenance team can interrogate smart field devices, adjust calibration parameters, and monitor device health without interrupting process control, dramatically reducing planned downtime and improving overall equipment effectiveness.

Core Features & Business Value

→ Eight Independent 4-20mA Output Channels
Control multiple field devices from a single module, reducing cabinet space requirements by up to 60% compared to single-channel solutions while lowering installation costs and simplifying wiring infrastructure.

✓ HART Protocol Integration
Access real-time diagnostics, device configuration, and performance data without process interruption—enabling predictive maintenance strategies that can reduce unplanned downtime by 35-50% according to industry benchmarks.

→ 16-Bit Resolution with ±0.1% Accuracy
Achieve tighter process control tolerances, minimizing product quality variations and reducing raw material waste in batch manufacturing applications where precision directly impacts profitability.

✓ Full Electrical Isolation
Channel-to-channel and channel-to-system isolation protects against ground loops and electrical noise, ensuring signal integrity in high-EMI environments like motor control centers and variable frequency drive installations.

→ Redundancy-Ready Architecture
Seamlessly integrates with redundant C300 controller configurations, providing bumpless transfer during controller switchover events—critical for continuous process industries where even momentary control loss can trigger costly shutdowns.

✓ Hot-Swap Capability
Replace modules during operation without system shutdown when installed in compatible I/O carriers, enabling maintenance during production runs and eliminating the need for costly process interruptions.

Typical Application Scenarios

Oil & Gas Upstream Production
In offshore platforms and remote wellhead installations, the CC-PAON01 controls pneumatic valve actuators and flow control devices with the reliability demanded by hazardous area classifications. Its HART capability allows technicians to verify valve travel and diagnose actuator issues remotely, reducing the need for costly helicopter trips to offshore facilities.

Chemical Batch Manufacturing
Pharmaceutical and specialty chemical producers leverage the module's precision for reactor temperature control and metering pump regulation. The 16-bit resolution enables tight control of exothermic reactions, while HART diagnostics provide the audit trail documentation required for FDA 21 CFR Part 11 compliance.

Power Generation & Utilities
Combined-cycle plants use the CC-PAON01 for turbine control valve positioning and emissions control system regulation. The module's 100ms update rate ensures responsive control during load changes, while redundancy support maintains control integrity during planned controller maintenance.

Water & Wastewater Treatment
Municipal treatment facilities depend on the CC-PAON01 for chemical feed pump control and pH adjustment systems. Channel isolation prevents interference between chlorination and coagulation control loops, while HART communication enables remote calibration verification without site visits.

Food & Beverage Processing
Breweries and dairy processors utilize the module for pasteurization temperature control and CIP (clean-in-place) system automation. The module's sanitary design compliance and diagnostic capabilities support HACCP documentation requirements and quality assurance protocols.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-PAON01 when your application requires multiple 4-20mA outputs with HART communication in a C200/C300 DCS environment. For applications requiring voltage outputs or higher channel density, consult our technical team for alternative module recommendations. Maximum cable run of 1000 meters (3280 feet) with 18 AWG shielded twisted pair—verify load resistance calculations for longer distances.

Extended Functions

Advanced Diagnostics Suite: Beyond basic HART communication, the CC-PAON01 provides comprehensive channel health monitoring including open circuit detection, short circuit identification, and output current verification. These diagnostics integrate directly with Experion Station HMI, enabling operators to identify wiring faults or field device failures before they impact process performance.

Calibration & Scaling Flexibility: Software-configurable output ranges allow field technicians to match module outputs to specific device requirements without hardware modifications. Square root extraction and custom characterization curves can be applied at the controller level, simplifying integration with non-linear devices like differential pressure flow transmitters.

Integration with Asset Management: When paired with Honeywell's Experion PKS Asset Management capabilities, the CC-PAON01 contributes device-level performance data to predictive maintenance algorithms. Trending of output current deviations can identify degrading valve positioners or failing actuators weeks before complete failure.

Delivery & Service Assurance

Lead Time: Standard configuration modules ship within 3-5 business days from our regional distribution centers. Custom-configured modules with pre-loaded parameters available with 7-10 business day lead time. Expedited shipping options available for emergency replacements.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications requiring guaranteed uptime.

Technical Support: Our certified Honeywell specialists provide installation guidance, configuration assistance, and troubleshooting support throughout the product lifecycle. Remote diagnostic services available to minimize on-site service calls and reduce mean time to repair.

Documentation Package: Each module ships with installation manual, wiring diagrams, HART device description files (DDFs), and configuration worksheets. CAD drawings and 3D models available for download to support panel design and layout planning.

Frequently Asked Questions

What is the maximum loop resistance for 4-20mA outputs on the CC-PAON01?
The module supports a maximum loop resistance of 600 ohms at 24VDC supply voltage, accommodating cable runs up to 1000 meters with standard 18 AWG wire. For longer distances or higher resistance loads, external loop power supplies can be implemented.

Can I mix HART and non-HART devices on the same CC-PAON01 module?
Yes, the module operates seamlessly with both HART-enabled smart devices and conventional 4-20mA devices. Non-HART devices simply ignore the digital communication signal and respond only to the analog current level.

How does the CC-PAON01 handle controller redundancy switchover?
The module maintains output states during redundant controller switchover events through bumpless transfer logic. Output values are synchronized between primary and backup controllers, ensuring continuous control without process disturbance during failover.

What configuration tools are required for CC-PAON01 setup?
Module configuration is performed through Honeywell Control Builder or Experion Station software—no separate configuration tools required. HART device configuration can be accomplished using any HART-compatible communicator or through the Experion PKS HART interface.

Is the CC-PAON01 suitable for SIL-rated safety applications?
The CC-PAON01 is designed for standard process control applications and is not SIL-certified. For safety instrumented systems requiring SIL 2 or SIL 3 certification, Honeywell offers dedicated safety I/O modules within the Safety Manager platform.

What preventive maintenance is recommended for the CC-PAON01?
The module is solid-state with no moving parts, requiring minimal preventive maintenance. Annual verification of output accuracy using a calibrated milliamp meter is recommended. Periodic inspection of terminal block connections and verification of HART communication integrity should be included in routine maintenance schedules.

Ready to Optimize Your Process Control?

Whether you're upgrading legacy I/O infrastructure, expanding existing C300 systems, or designing new process automation solutions, the CC-PAON01 delivers the precision, reliability, and diagnostic capability your operations demand. Our technical team is ready to assist with module selection, system integration planning, and configuration support.

Contact our industrial automation specialists today: Provide your application requirements, and we'll deliver a customized solution proposal with technical specifications, pricing, and delivery timeline within 24 hours.
