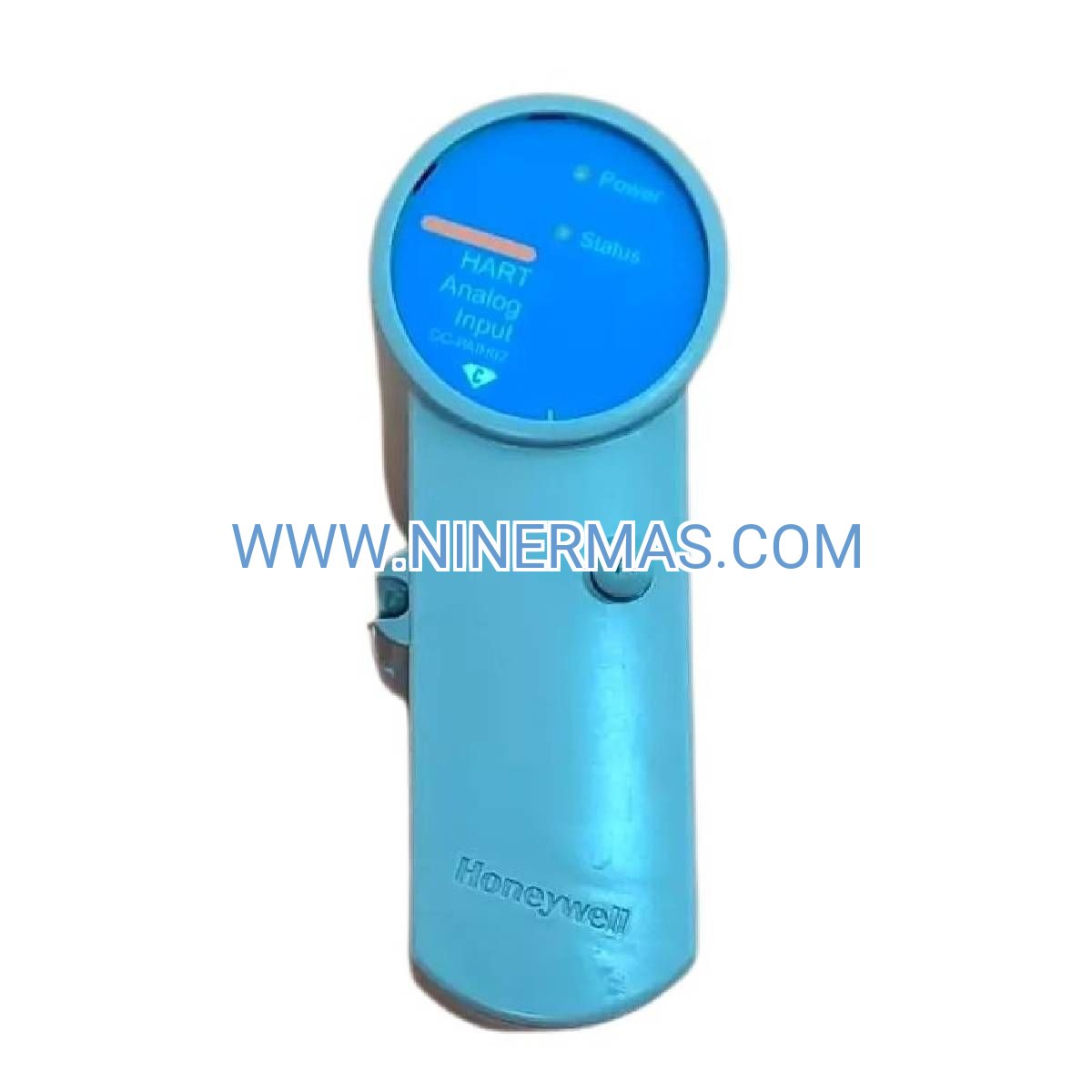

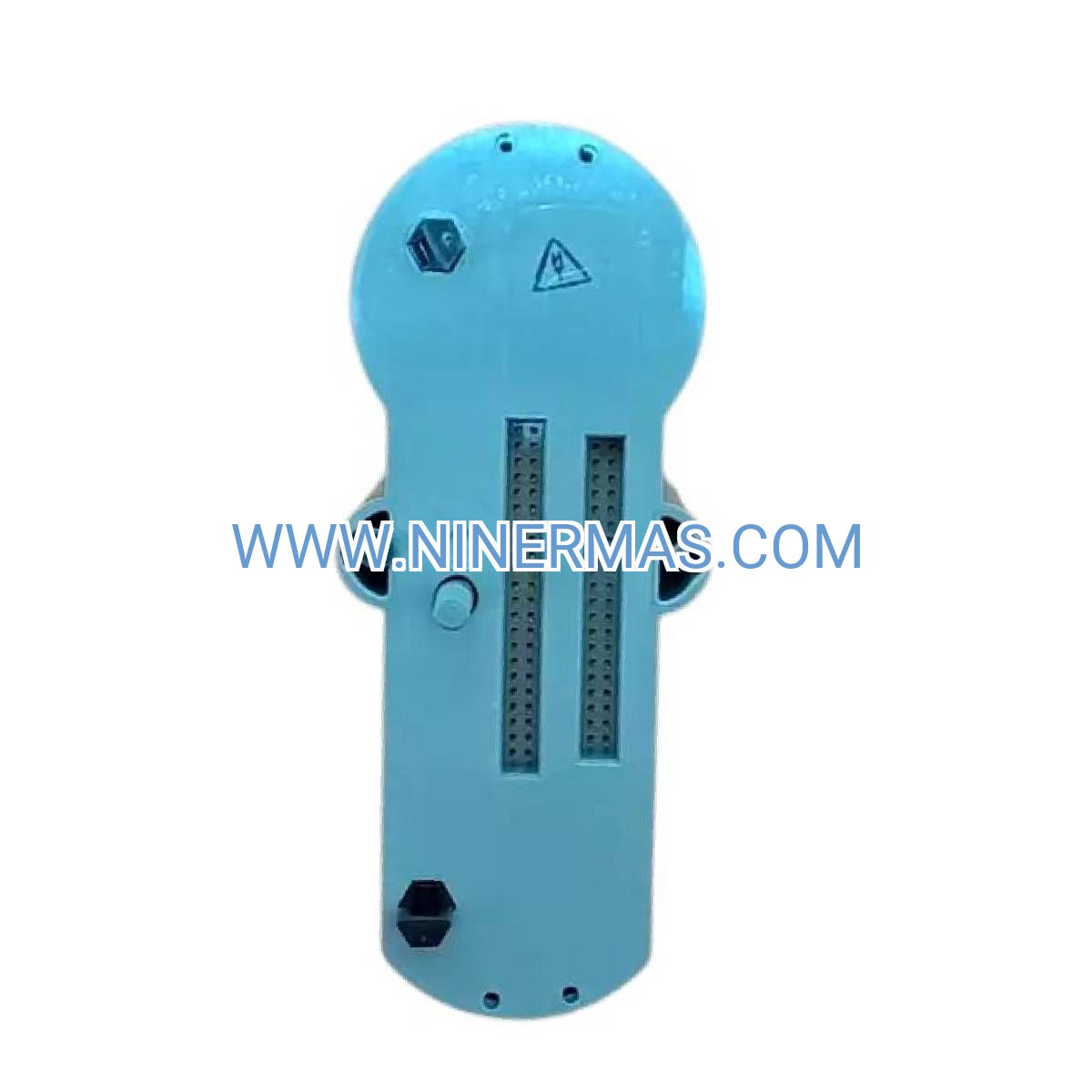

CC-PAIH02 High-Level Analog Input Module (Industrial-Grade HART Interface)

The CC-PAIH02 represents Honeywell's advanced solution for high-density analog signal acquisition in mission-critical process control environments. This 16-channel module combines precision measurement technology with HART digital communication, enabling simultaneous process control and intelligent device management across C200 and C300 distributed control architectures.

Designed for industries where measurement accuracy directly impacts product quality and operational safety, the CC-PAIH02 addresses the challenge of consolidating multiple analog signals while maintaining diagnostic visibility. Process engineers gain real-time access to device health data without disrupting control loops, reducing unplanned downtime by up to 40% through predictive maintenance capabilities.

With galvanic isolation, hot-swap functionality, and multi-range input flexibility, this module delivers the reliability and adaptability required for continuous process operations in refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing environments.

Technical Advantages & Business Value

→ Dual-Layer HART Communication
Simultaneously transmit 4-20mA process variables and access HART digital data for configuration, calibration, and diagnostics—eliminating the need for separate handheld communicators and reducing commissioning time by 30%.

→ 16-Bit Resolution with ±0.1% Accuracy
Capture subtle process variations that 12-bit systems miss, enabling tighter control band operation that improves product consistency and reduces raw material waste in batch processes.

→ Channel-to-Channel Isolation
Eliminate ground loop interference and cross-talk between signals, ensuring measurement integrity in electrically noisy environments such as motor control centers and high-voltage switchyards.

✓ Hot-Swappable Architecture
Replace failed modules during operation without system shutdown or process interruption—critical for 24/7 continuous manufacturing where every minute of downtime costs thousands in lost production.

✓ Multi-Range Input Flexibility
Configure each of the 16 channels independently for 4-20mA, 1-5V DC, or 0-10V DC signals through software, accommodating diverse transmitter types without hardware modifications or additional terminal blocks.

✓ Integrated Self-Diagnostics
Automatic detection of open circuits, short circuits, and out-of-range conditions with alarm generation, reducing troubleshooting time from hours to minutes and improving mean time to repair (MTTR) by 50%.

Industry Application Scenarios

Oil & Gas Refining
Monitor distillation column temperatures, reactor pressures, and flow rates across 16 measurement points per module. HART diagnostics identify transmitter drift before it impacts product specifications, preventing off-spec batches that cost $50,000+ in rework and disposal.

Chemical Manufacturing
Control exothermic reactions with precision pH, temperature, and level measurements. The module's isolation protects against electrical faults in hazardous classified areas when paired with intrinsic safety barriers, ensuring Zone 1/Division 1 compliance.

Power Generation
Acquire boiler drum level, steam pressure, and turbine vibration signals for combined-cycle plants. High channel density reduces cabinet space by 40% compared to 8-channel alternatives, lowering installation costs in retrofit projects.

Pharmaceutical Production
Validate critical process parameters for FDA 21 CFR Part 11 compliance. HART audit trails document calibration dates and configuration changes, streamlining regulatory inspections and reducing validation cycle time.

Water & Wastewater Treatment
Integrate chlorine residual analyzers, turbidity meters, and flow transmitters for municipal treatment plants. The module's 0-10V input range accommodates legacy instrumentation, protecting capital investments during phased modernization.

Technical Parameters & Selection Guide

Selection Criteria: Choose CC-PAIH02 when you need HART diagnostics with high channel density. For applications requiring only 4-20mA without HART, consider the lower-cost CC-PAIX02. If thermocouple or RTD inputs are needed, specify the 8C-PAIM01 multiplexer module instead. Maximum loop resistance for 4-20mA inputs is 600Ω; verify transmitter compliance voltage specifications.

Extended Capabilities

Predictive Maintenance Integration
HART variables such as sensor temperature, electronics diagnostics, and process alerts feed directly into Honeywell's Asset Performance Management (APM) software, enabling condition-based maintenance strategies that extend instrument life by 25%.

Cybersecurity Features
Role-based access control and encrypted HART communication protect against unauthorized configuration changes. Audit logging tracks all parameter modifications with user ID and timestamp for compliance with ISA/IEC 62443 industrial cybersecurity standards.

Redundancy Options
Deploy in fault-tolerant configurations with dual C300 controllers and redundant I/O networks. Automatic failover occurs within 100ms, maintaining process control during controller switchovers without bumping outputs or alarming operators.

Custom Scaling & Linearization
Apply square-root extraction for differential pressure flow measurement, or configure custom 20-point linearization tables for non-linear sensors—all through intuitive Control Builder software without programming.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-configured modules with custom firmware
Warranty Coverage: 12 months from shipment date, covering defects in materials and workmanship
Technical Support: Lifetime access to application engineers via phone and email; 4-hour response time for critical issues
Documentation Package: Installation manual, wiring diagrams, HART DD files, Control Builder configuration templates, and calibration certificates

Extended warranty programs available for up to 5 years, including advance replacement and on-site commissioning support for projects exceeding 50 modules.

Frequently Asked Questions

How does HART communication work alongside the 4-20mA signal?
HART uses frequency-shift keying (FSK) to superimpose digital data at 1200 baud onto the analog current loop. The low-amplitude AC signal (±0.5mA) doesn't affect the DC process variable, allowing simultaneous control and diagnostics without interference.

What is the maximum cable distance for reliable HART communication?
HART protocol supports cable runs up to 3000 meters (10,000 feet) for standard twisted-pair instrumentation cable with capacitance below 65 pF/m. For 4-20mA accuracy, limit voltage-input wiring to 100 meters to minimize noise pickup.

Can I retrofit this module into existing C200 systems?
Yes, the CC-PAIH02 is backward-compatible with C200 controllers running firmware R210 or later. Verify backplane slot compatibility and ensure adequate power budget (7W per module). Configuration migration from legacy TK-series modules is supported through Control Builder import utilities.

Does the module support HART multidrop mode?
No, the CC-PAIH02 operates in point-to-point HART mode only, where each channel connects to a single field device. Multidrop configurations (multiple devices on one pair) are not supported due to the simultaneous 4-20mA control requirement.

What happens during a channel failure or sensor fault?
The module generates a diagnostic alarm in the Experion operator interface and can be configured to drive the affected channel to a safe state (upscale, downscale, or last-good-value). Remaining 15 channels continue normal operation without interruption.

Is special calibration equipment required for field maintenance?
No external calibration is needed for the module itself—factory calibration is stored in non-volatile memory and remains valid for the product lifetime. Field transmitter calibration is performed using standard HART communicators or through the Experion Station HART interface.

Start Your Integration Today

Ready to enhance your process control system with advanced HART diagnostics? Our application engineers will review your I/O requirements, recommend optimal module quantities, and provide detailed wiring schematics within 24 hours. Contact us for project-specific pricing on orders of 10+ modules, or request a demo configuration file for your Experion system.
