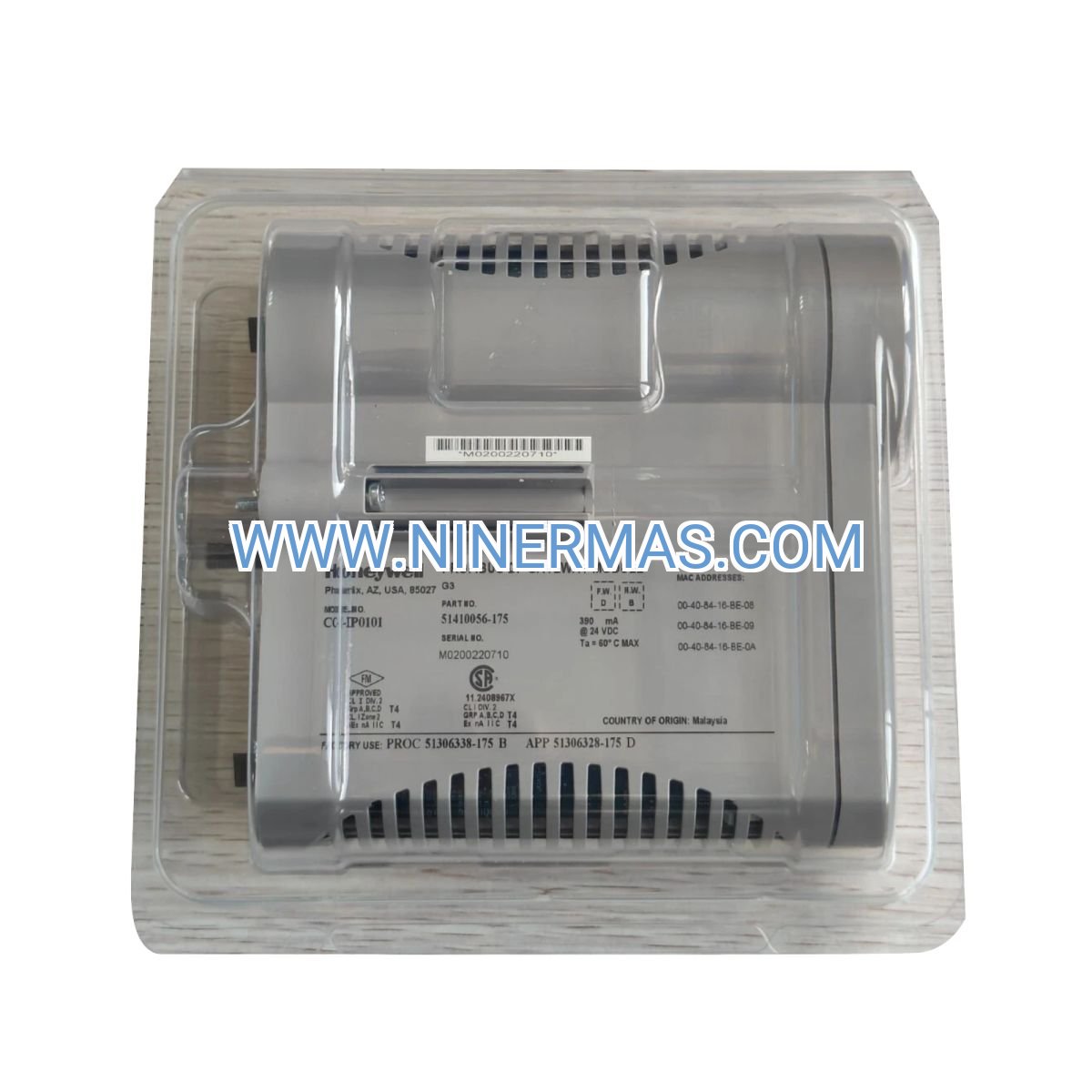

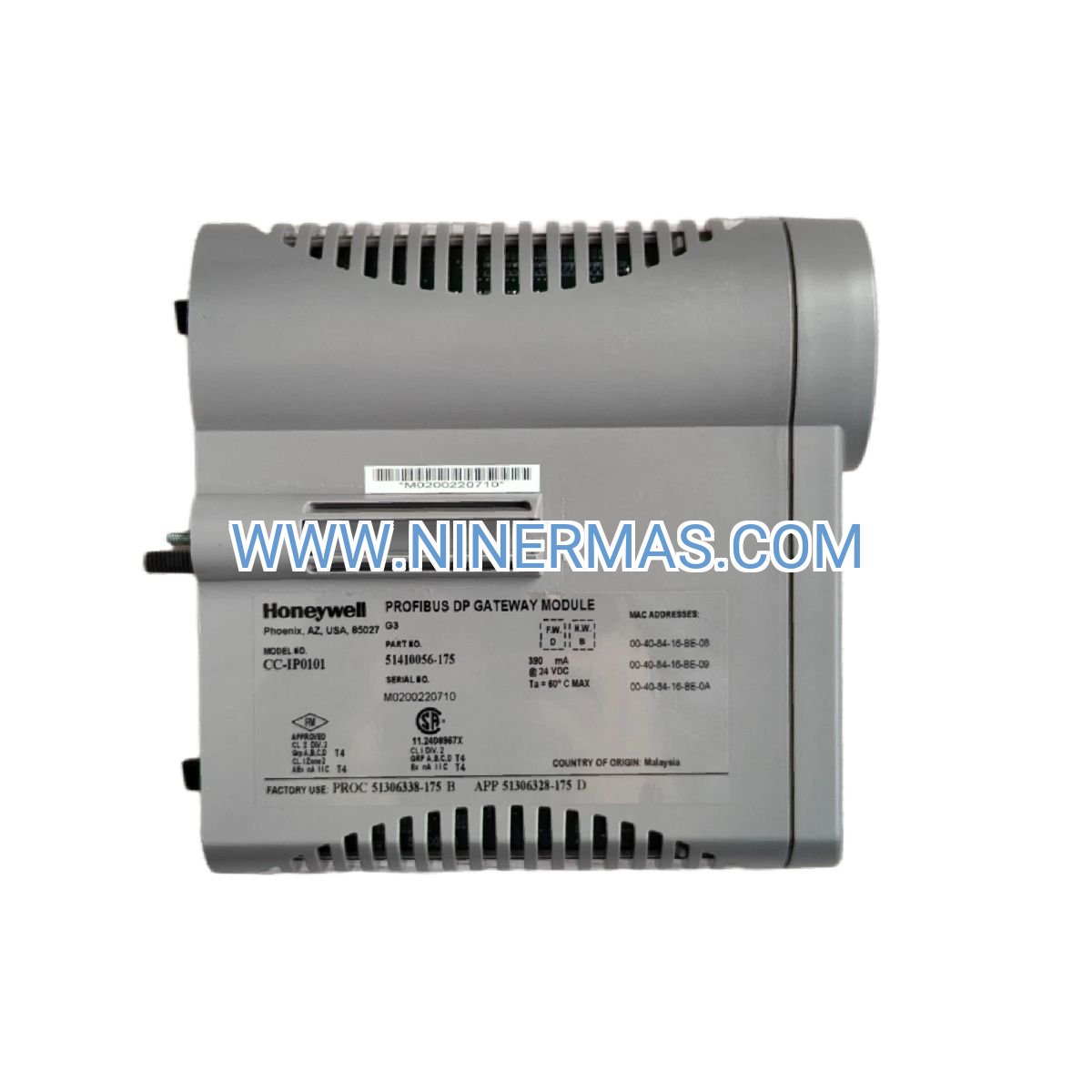

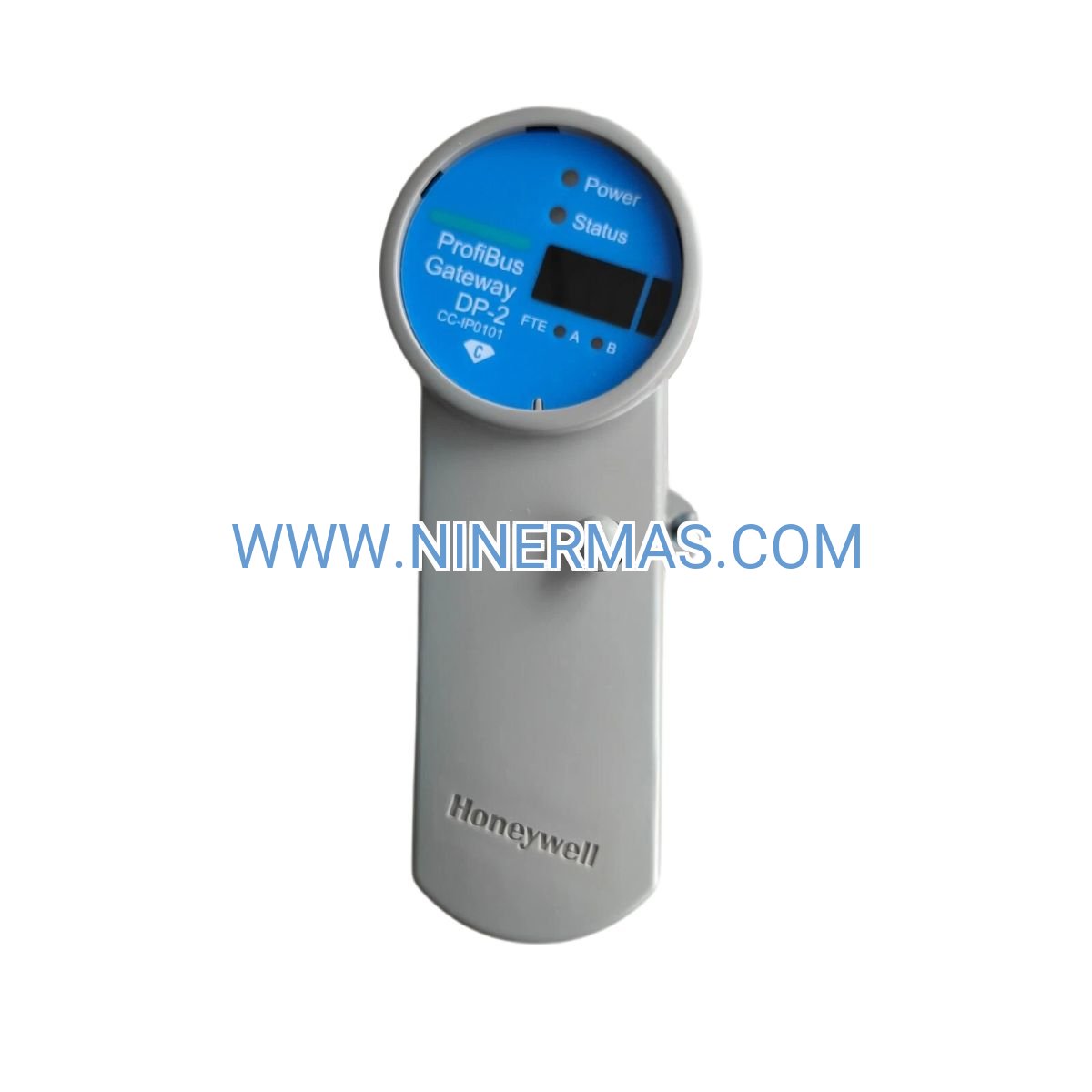

CC-IP0101 Profibus DP Gateway Module (Industrial-Grade Communication Bridge)

The CC-IP0101 represents a proven communication gateway solution engineered to establish reliable data pathways between Honeywell Experion Process Knowledge System (PKS) controllers and Profibus DP/PA field instrumentation networks. This module addresses the critical challenge of integrating legacy Profibus infrastructure with contemporary distributed control architectures, enabling operators to preserve existing field device investments while modernizing control room capabilities.

Process industries face mounting pressure to unify disparate automation protocols without disrupting production continuity. The CC-IP0101 solves this integration challenge by providing transparent protocol conversion, allowing Experion C300 controllers to communicate seamlessly with Profibus-enabled transmitters, analyzers, actuators, and drives. Target users include automation engineers, plant maintenance teams, and system integrators managing oil refineries, chemical plants, pharmaceutical facilities, and power generation sites.

Key advantages include plug-and-play Experion chassis compatibility, automatic baud rate detection eliminating manual configuration errors, support for up to 125 networked devices per gateway instance, and hot-swap capability ensuring zero-downtime maintenance in redundant controller configurations. The module's industrial-hardened design withstands harsh operating environments while maintaining deterministic communication performance critical for closed-loop process control.

Core Capabilities & Business Value

✓ Multi-Protocol Support: Handles Profibus DP V0/V1 and Profibus PA variants, enabling connection to both high-speed discrete I/O and intrinsically safe process instruments through a single gateway platform—reducing spare parts inventory and training requirements.

✓ Adaptive Communication Speed: Auto-detects network baud rates from 9.6 kbps to 12 Mbps, eliminating commissioning delays and configuration mistakes that typically extend project timelines by 15-20%.

✓ High Device Density: Supports 125 Profibus nodes per module, maximizing I/O consolidation and reducing cabinet footprint compared to legacy gateway solutions limited to 32-64 devices.

✓ Integrated Diagnostics: Real-time LED indicators and Experion Station software integration provide instant visibility into communication health, reducing mean time to repair (MTTR) by up to 40% during troubleshooting scenarios.

✓ Redundancy-Ready Architecture: Operates seamlessly in dual-controller Experion configurations with automatic failover, ensuring 99.9%+ system availability for mission-critical processes.

✓ Standards Compliance: CE, UL, ATEX Zone 2, and IECEx certifications enable global deployment across regulated industries without costly re-engineering.

Industry Application Scenarios

→ Oil & Gas Refining: Connects Profibus-based flow computers, custody transfer meters, and tank gauging systems to Experion PKS, enabling real-time optimization of crude distillation units while maintaining regulatory compliance for fiscal measurement accuracy.

→ Chemical Processing: Integrates Profibus PA field instruments in hazardous area reactor zones with Experion advanced process control (APC) strategies, improving batch consistency and reducing off-spec production by 8-12%.

→ Pharmaceutical Manufacturing: Bridges Profibus-enabled bioreactor instrumentation with Experion batch management systems, ensuring 21 CFR Part 11 audit trail compliance while accelerating recipe changeovers.

→ Power Generation: Links Profibus VFDs controlling boiler feed pumps and induced draft fans to Experion combustion optimization algorithms, achieving 2-3% fuel efficiency gains in coal-fired and combined-cycle plants.

→ Water/Wastewater Treatment: Connects distributed Profibus PA analyzers (pH, dissolved oxygen, turbidity) across treatment basins to centralized Experion SCADA, enabling predictive maintenance and reducing chemical consumption by 10-15%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-IP0101 when migrating legacy Profibus networks to Experion PKS, expanding existing Experion systems to incorporate Profibus field devices, or implementing phased DCS upgrades that require temporary protocol bridging. For applications requiring more than 125 Profibus nodes, deploy multiple gateways with network segmentation. Verify compatibility with Experion Station software version (R410 or later recommended) and confirm adequate 24 VDC power budget in target chassis.

Extended Integration Functions

GSD File Library: Pre-loaded device profiles for 500+ common Profibus instruments accelerate commissioning—simply import manufacturer GSD files into Experion Station to auto-configure device parameters, reducing engineering time by 60-70% compared to manual setup.

OPC UA Connectivity: When paired with Experion PKS R500+ releases, the gateway enables OPC UA server functionality, allowing third-party MES/ERP systems to access Profibus device data without custom driver development.

Cybersecurity Hardening: Supports Experion ControlEdge security features including role-based access control (RBAC), encrypted configuration downloads, and audit logging—meeting IEC 62443 industrial cybersecurity standards.

Custom Device Integration: For proprietary Profibus devices lacking standard GSD files, Honeywell Professional Services offers custom driver development and factory acceptance testing (FAT) to ensure seamless integration.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage scenarios (subject to inventory availability and carrier service levels).

Custom Configuration: Pre-programmed modules with customer-specific GSD files and network settings ship within 7-10 business days following engineering review.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects, component failures, and workmanship issues. Warranty includes advance replacement service with 24-hour dispatch for qualifying failures.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and firmware update recommendations. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, GSD file library on USB drive, and certificate of conformity. Full user manuals and CAD drawings available for download.

Frequently Asked Questions

Q: What cable specifications are required for reliable Profibus DP communication with this gateway?
A: Use Type A Profibus cable (shielded twisted pair, 9-pin D-sub connectors) with characteristic impedance of 135-165 ohms. Maximum segment length varies by baud rate: 1200m at 9.6-187.5 kbps, 400m at 500 kbps, 200m at 1.5 Mbps, 100m at 12 Mbps. Install bus terminators (220-ohm resistors) at both network ends.

Q: Can the CC-IP0101 interface directly with Profibus PA field instruments in hazardous areas?
A: The gateway connects to Profibus PA devices through approved DP/PA couplers or links (such as Pepperl+Fuchs SK series) that provide intrinsic safety barriers and power conditioning for Zone 1/Division 1 installations. The gateway itself mounts in safe-area control rooms.

Q: How does hot-swap functionality work during module replacement procedures?
A: In redundant Experion controller configurations, the standby controller maintains Profibus communication while you physically remove and replace the gateway module in the active chassis. Upon insertion, the new module auto-synchronizes configuration from the controller without requiring manual downloads or process interruption.

Q: What diagnostic capabilities help identify communication failures between Experion and Profibus devices?
A: Experion Station software displays real-time device status, communication error counters, and network topology maps. The gateway's onboard fault LED illuminates for bus-off conditions, while individual device diagnostics (available through GSD file parameters) pinpoint specific instrument failures or wiring issues.

Q: Does this module support integration with non-Honeywell DCS platforms?
A: The CC-IP0101 is engineered specifically for Honeywell Experion PKS architecture and requires Experion controllers/chassis. For third-party DCS integration, consider standalone Profibus-to-Modbus or Profibus-to-OPC gateways from vendors like HMS Networks or Moxa.

Q: What firmware update procedures ensure long-term compatibility with evolving Profibus standards?
A: Firmware updates deploy through Experion Station software using standard module download procedures. Honeywell releases periodic updates addressing new GSD file formats, enhanced diagnostics, and cybersecurity patches—available through authorized distribution partners or Honeywell Customer Portal.

Request Technical Consultation

Our application engineering team provides complimentary pre-sales support including network architecture review, device compatibility verification, and project-specific configuration guidance. Contact us with your Profibus device list, Experion system details, and application requirements to receive a tailored integration proposal within 24 hours.
