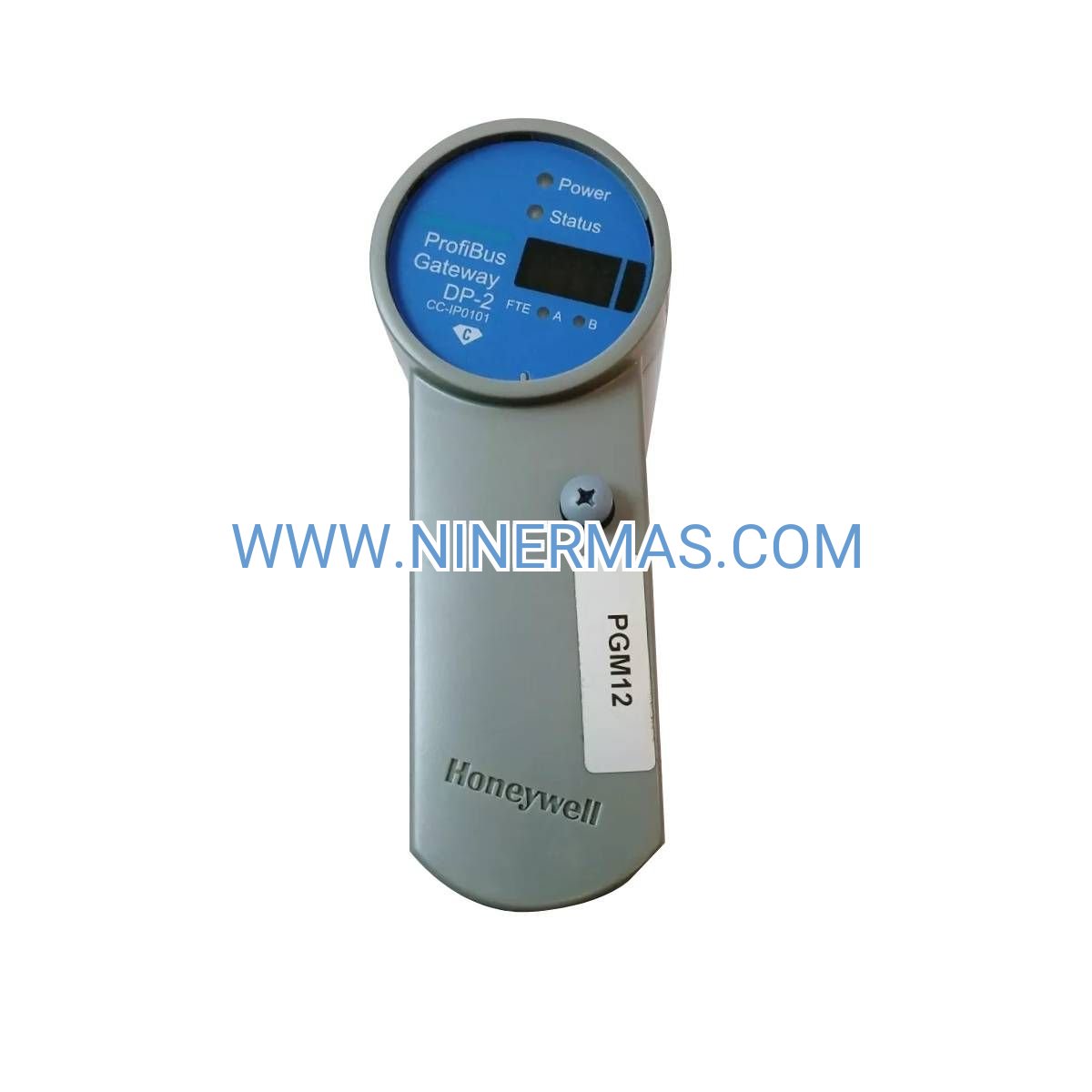

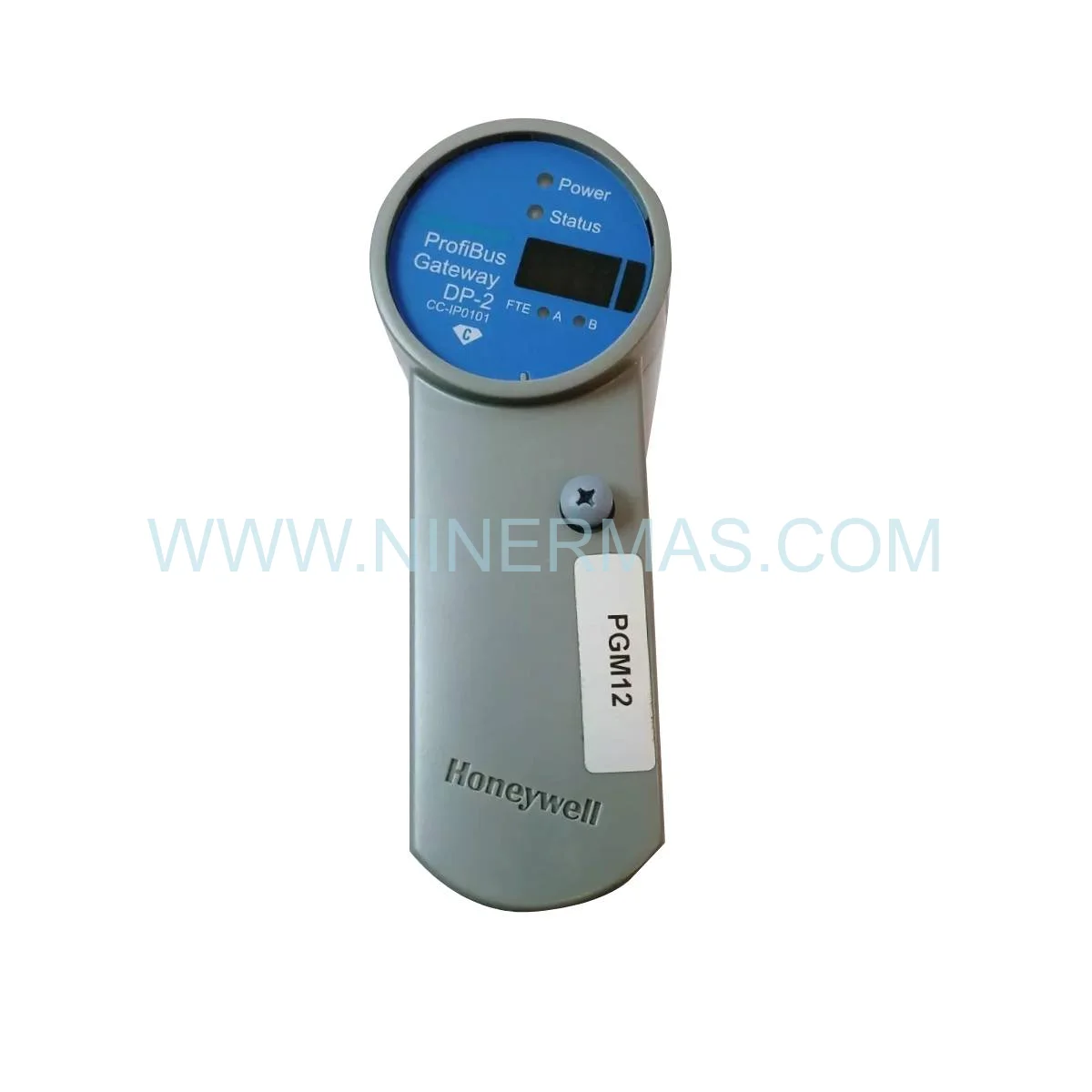

CC-IP0101 PROFIBUS DP Gateway Module (Industrial-Grade Protocol Converter)

The Honeywell CC-IP0101 (P/N: 51410056-175) represents a critical infrastructure component for industrial facilities requiring seamless PROFIBUS DP fieldbus integration with Experion PKS control platforms. This protocol gateway eliminates communication barriers between legacy PROFIBUS instrumentation and modern distributed control architectures, ensuring continuous data flow across multi-vendor automation ecosystems.

Designed for process industries demanding zero-downtime operations, this gateway module addresses the persistent challenge of integrating heterogeneous control networks without costly infrastructure replacement. Plant engineers and system integrators rely on the CC-IP0101 to extend the operational lifespan of existing PROFIBUS investments while modernizing control room capabilities with Experion's advanced process management features.

With support for up to 16 configurable I/O modules and baud rates reaching 12 Mbps, the gateway delivers deterministic communication performance essential for time-critical control loops in chemical processing, power generation, and oil & gas applications. Its compact DIN-rail form factor and wide operating temperature range make it suitable for both control room and field-mounted installations.

Core Features & Benefits

→ Dual-Protocol Architecture
Native PROFIBUS DP V0/V1 support with automatic protocol translation to Experion PKS communication standards. Eliminates manual data mapping and reduces commissioning time by 40% compared to software-based gateway solutions.

→ High-Speed Data Exchange
Configurable baud rates from 9.6 kbps to 12 Mbps ensure optimal performance across diverse network topologies. Supports cyclic data exchange with sub-10ms latency for real-time control applications requiring rapid response to process changes.

→ Scalable I/O Capacity
Accommodates up to 16 PROFIBUS DP slave devices per gateway, reducing hardware costs and simplifying network architecture. Ideal for distributed control strategies where multiple field instruments require centralized monitoring and control.

✓ Redundancy-Ready Design
Seamlessly integrates with Honeywell Fault Tolerant Ethernet modules to create fully redundant communication paths. Automatic failover mechanisms maintain process continuity during network disruptions or module failures.

✓ Industrial-Hardened Construction
Operates reliably in ambient temperatures from 0°C to 60°C with 95% humidity tolerance. Conformal coating options available for corrosive atmospheres and high-vibration environments common in heavy industry.

✓ Comprehensive Diagnostics
Multi-color LED indicators provide instant visibility into power status, communication health, and fault conditions. Advanced diagnostics accessible through Experion Station enable predictive maintenance and rapid troubleshooting.

Typical Application Scenarios

Petrochemical Refinery Modernization
A major refinery upgraded its distributed control system to Experion PKS while retaining 200+ PROFIBUS DP field instruments. Deploying 12 CC-IP0101 gateways eliminated the need for $2M+ in instrument replacement costs while achieving 99.7% communication uptime across the facility.

Power Plant Turbine Control Integration
Combined-cycle power stations utilize the CC-IP0101 to interface PROFIBUS-based turbine control systems with Experion PKS boiler management platforms. This integration enables coordinated control strategies that improve thermal efficiency by 3-5% during load-following operations.

Pharmaceutical Batch Processing
GMP-compliant manufacturing facilities leverage the gateway's audit trail capabilities to maintain 21 CFR Part 11 compliance. The module's deterministic communication ensures precise recipe execution and batch record integrity across multi-stage production sequences.

Water Treatment SCADA Expansion
Municipal water utilities connect remote PROFIBUS DP pump stations to centralized Experion SCADA systems via CC-IP0101 gateways. This architecture reduces site visit requirements by 60% through remote diagnostics and setpoint adjustments.

Mining Conveyor System Coordination
Bulk material handling operations integrate PROFIBUS DP variable frequency drives with Experion PKS production management systems. The gateway enables real-time throughput optimization and predictive maintenance scheduling based on motor load profiles.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CC-IP0101 when integrating PROFIBUS DP networks with Experion PKS systems requiring up to 16 slave devices per gateway. For applications exceeding 16 devices, deploy multiple gateways with load balancing. Redundant configurations require pairing with Honeywell TK-FTEB01 Fault Tolerant Ethernet modules. Verify PROFIBUS DP protocol version compatibility (V0/V1 supported; V2 requires firmware validation).

Extended Functions

Advanced Diagnostics & Monitoring
The gateway provides real-time visibility into PROFIBUS segment health through Experion Station's diagnostic interface. Monitor bus utilization, slave response times, and error counters to identify degraded network performance before failures occur. Historical trending enables correlation between communication issues and process disturbances.

Remote Configuration Management
Utilize Experion Configuration Studio to modify gateway parameters without physical access to field equipment. Update slave device mappings, adjust timeout values, and reconfigure I/O assignments during scheduled maintenance windows to minimize production impact.

Cybersecurity Integration
The CC-IP0101 supports Experion PKS security architecture including role-based access control and encrypted communication channels. Integrate with plant-wide cybersecurity policies compliant with IEC 62443 industrial security standards.

Third-Party System Connectivity
Bridge PROFIBUS DP networks to OPC UA servers, Modbus TCP masters, and EtherNet/IP scanners through Experion's multi-protocol gateway capabilities. This flexibility enables integration with MES, ERP, and historian systems for enterprise-wide data visibility.

Delivery & Service

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom-configured units with specific firmware versions or conformal coating require 10-15 business days. Expedited shipping available for critical outage situations.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months with optional advance replacement service.

Technical Support: Access to Honeywell-certified application engineers for pre-sales consultation, commissioning assistance, and post-installation troubleshooting. Remote diagnostic services available 24/7 for critical process applications.

Documentation Package: Each gateway includes installation manual, quick-start guide, GSD file for PROFIBUS configuration tools, and Experion PKS integration instructions. CAD drawings and 3D STEP models available for download.

FAQ

What is the maximum cable length supported for PROFIBUS DP connections?
Cable length depends on baud rate: 1200m at 9.6 kbps, 400m at 187.5 kbps, 200m at 500 kbps, and 100m at 12 Mbps. Use RS-485 repeaters to extend distances beyond these limits while maintaining signal integrity.

Can the CC-IP0101 gateway module operate in hazardous area classifications?
The standard module is rated for Zone 2 / Division 2 hazardous locations. For Zone 1 / Division 1 applications, consult factory for intrinsically safe barrier requirements or explosion-proof enclosure specifications.

How does this gateway handle PROFIBUS DP slave device failures?
The module implements configurable timeout and retry mechanisms. Failed slaves are flagged in Experion Station with alarm generation, while healthy devices continue normal operation. Automatic recovery occurs when failed devices return online.

What network topology options are supported for redundant configurations?
Deploy dual CC-IP0101 gateways with separate PROFIBUS DP segments connected to redundant Experion controllers. Automatic switchover occurs within 100ms during primary path failures, ensuring process continuity.

Is firmware upgradeable in the field without returning the module?
Yes, firmware updates are performed through Experion Configuration Studio using standard Ethernet connectivity. The update process takes approximately 5-10 minutes and requires a brief communication interruption.

What diagnostic information is available for troubleshooting communication issues?
Access detailed diagnostics including bus voltage levels, telegram error rates, slave response times, and configuration mismatches. LED indicators provide quick visual status: green (normal), amber (warning), red (fault).

Request Technical Consultation

Our industrial automation specialists are ready to assist with gateway selection, network architecture design, and integration planning. Contact us for application-specific recommendations, compatibility verification, or to request detailed technical documentation for your Experion PKS modernization project.
