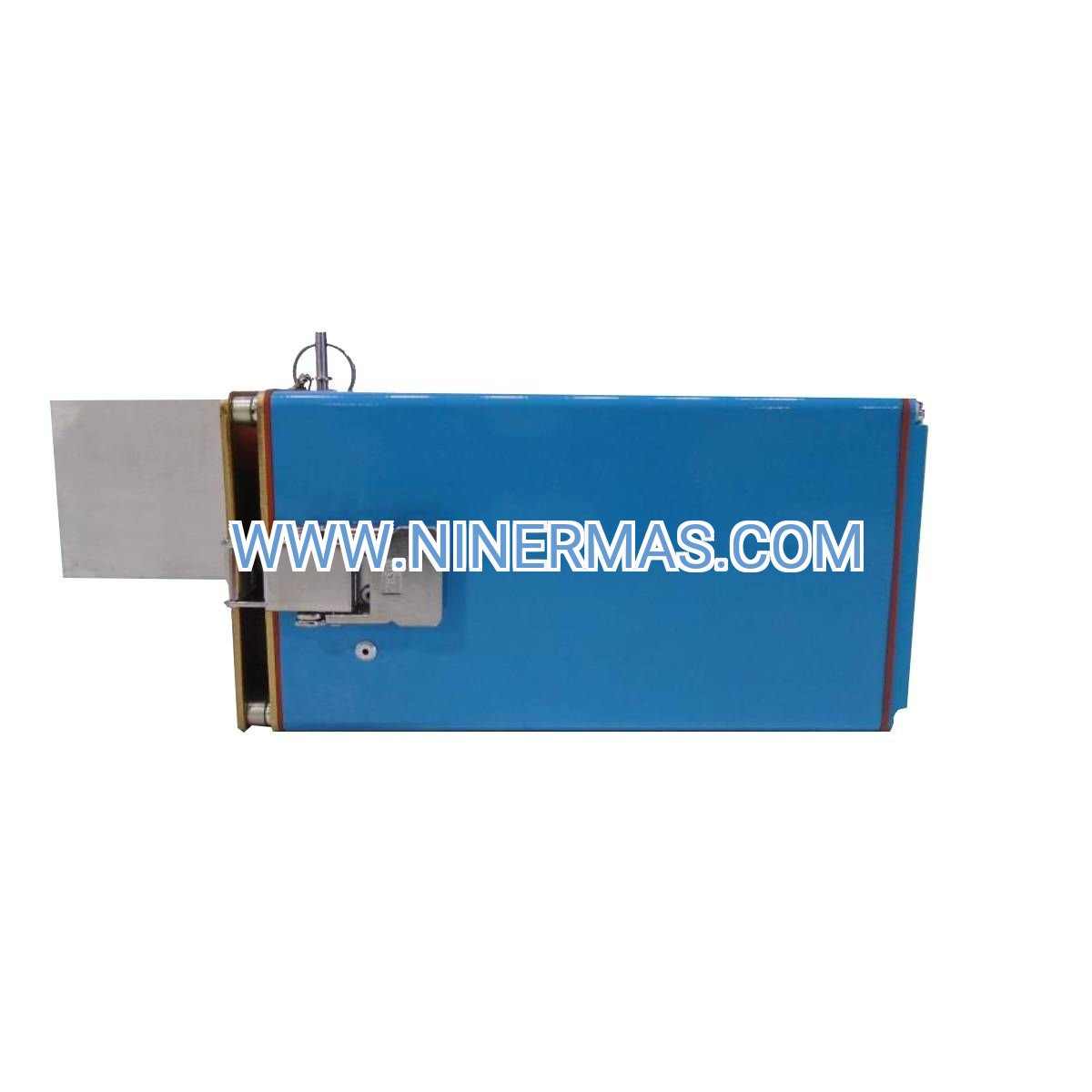

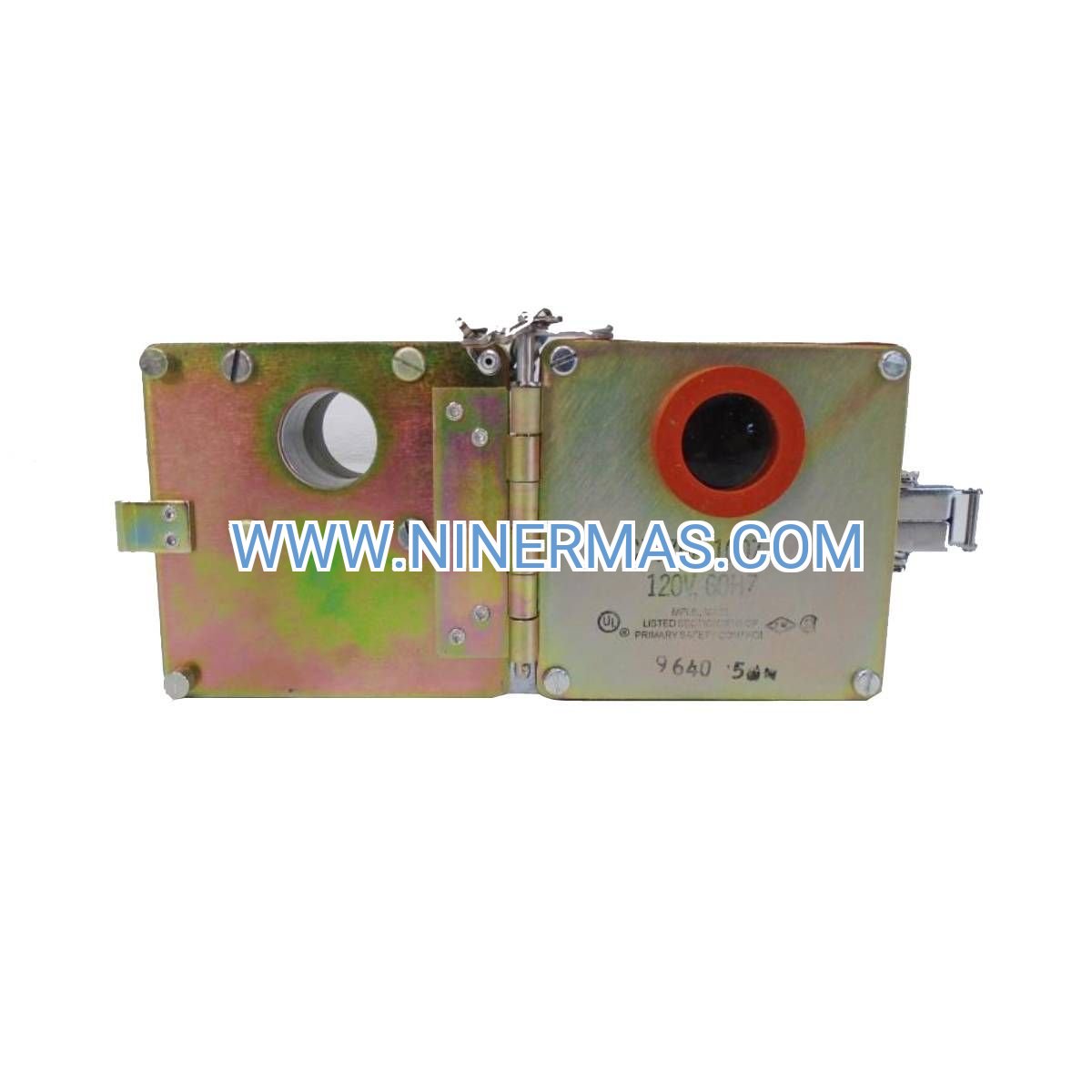

C7076A1007 Ultraviolet Flame Detector (Industrial-Grade Combustion Safety)

The C7076A1007 represents Honeywell's advanced solution for ultraviolet flame monitoring in demanding industrial environments. This precision-engineered detector combines adjustable sensitivity controls with dynamic self-checking capabilities to deliver uncompromising safety performance across oil, gas, and combination fuel burner systems. Designed for integration with R7886 amplifiers, it serves as the critical sensing element in combustion safeguard chains where flame failure detection can prevent catastrophic equipment damage and operational downtime.

Industrial facilities operating high-capacity boilers, process heaters, and thermal oxidizers require flame detection systems that adapt to varying fuel compositions and burner configurations. The C7076A1007 addresses this challenge through dual independent sensitivity controls offering a 400:1 adjustment range, enabling precise calibration for applications from low-intensity pilot flames to high-radiance main burners. Its self-checking shutter mechanism validates sensor integrity every five seconds, providing continuous diagnostic feedback that meets stringent safety standards for unattended operation.

Built to withstand the harsh realities of industrial combustion environments, this detector features a pressure-rated quartz viewing lens and vibration-resistant lockable controls. Whether you're upgrading legacy flame safeguard systems or designing new combustion control architectures, the C7076A1007 delivers the reliability and flexibility demanded by mission-critical heating processes.

Core Capabilities & Technical Advantages

✓ Dual Sensitivity Architecture
Two independently adjustable controls (A and B) provide 400:1 sensitivity range with remote switching capability. Enables single detector to serve multiple burner modes or fuel types without physical replacement, reducing spare parts inventory and maintenance complexity.

✓ Dynamic Self-Verification System
Integrated shutter tests sensor response every 5 seconds when paired with R7886 amplifier. Detects tube degradation, optical contamination, and electronic drift before they compromise safety, eliminating the need for manual proof-of-closure testing during startup sequences.

✓ Pressure-Rated Optical Assembly
Quartz viewing lens withstands up to 20 psig (138 kPa) furnace pressure. Maintains optical clarity in high-pressure burner applications where standard detectors require costly sight pipe extensions or purge air systems.

→ Vibration-Locked Calibration
Mechanical locking mechanism prevents sensitivity drift in high-vibration installations. Once calibrated, settings remain stable through thermal cycling and mechanical stress, ensuring consistent flame discrimination over multi-year service intervals.

→ Universal Voltage Compatibility
Operates across 100-240V AC power systems (50/60 Hz) with minimal power draw (7W maximum). Simplifies international installations and reduces transformer requirements in multi-voltage facilities.

→ Standardized Signal Interface
Outputs 1.4-5.5 mA flame current signal compatible with Honeywell R7886 amplifiers and legacy RM7800/RM7840 series controls. Facilitates retrofits into existing combustion management systems without control panel redesign.

Industrial Application Scenarios

Boiler & Steam Generation Systems
Package boilers and industrial steam generators require rapid flame failure response to prevent furnace explosions. The C7076A1007's sub-second detection speed combined with self-checking validation ensures compliance with NFPA 85 and FM approval requirements for attended and unattended operation. Dual sensitivity controls accommodate pilot-to-main flame transitions without detector changeover.

Process Heating & Thermal Oxidation
Chemical plants and refineries operating thermal oxidizers and process heaters face varying flame characteristics due to waste gas composition changes. Remote sensitivity selection allows operators to optimize detection thresholds for different process conditions without entering hazardous areas, improving both safety and operational flexibility.

Furnace & Kiln Operations
Cement kilns, glass furnaces, and metal heat-treating systems operate at extreme temperatures with high ambient radiation. The C7076A1007's narrow UV spectral response (190-270nm) discriminates true flame signals from furnace refractory glow, preventing false flame signals that cause nuisance shutdowns in high-temperature applications.

Multi-Fuel Burner Systems
Facilities switching between natural gas, fuel oil, and waste fuels encounter dramatically different flame UV emissions. Independent A/B sensitivity settings enable pre-calibration for each fuel type, with remote switching activated by fuel selection logic—eliminating manual detector adjustment during fuel changeovers.

Legacy System Modernization
Upgrading older Honeywell RM7800 or RM7840 flame safeguard systems benefits from the C7076A1007's backward-compatible signal output. Facilities can enhance safety with self-checking technology while retaining existing control panels and wiring infrastructure, minimizing retrofit costs and downtime.

Technical Specifications & Selection Criteria

Selection Guidelines:

Choose the C7076A1007 when your application requires adjustable sensitivity for multiple burner modes, fuel types, or flame intensities. The 400:1 range accommodates pilot flames as low as 1/400th of maximum sensitivity setting, making it ideal for systems with significant turndown ratios or dual-fuel capability.

Verify compatibility with R7886 amplifier—this detector is not interchangeable with fixed-sensitivity C7027 or C7035 models. For applications requiring fixed sensitivity or different mounting configurations, consult Honeywell's flame detector selection guide.

Ensure furnace pressure does not exceed 20 psig at the detector mounting location. Higher-pressure applications require sight pipe extensions or alternative detector mounting strategies.

Advanced Integration & Customization Options

Remote Sensitivity Control Integration
Wire external selector switches to enable control room adjustment of sensitivity settings without accessing the burner front. Particularly valuable in hazardous area installations or when detector is mounted in difficult-to-reach locations. Switch must be rated for 20 mA at 48V DC minimum.

Flame Signal Monitoring & Analytics
Connect flame current meter to the detector's test jack for continuous flame quality monitoring. Trending flame signal strength over time enables predictive maintenance by identifying burner degradation, fuel quality issues, or optical contamination before they trigger safety shutdowns.

Multi-Burner System Architecture
Deploy multiple C7076A1007 detectors with centralized R7886 amplifiers in parallel burner configurations. Each detector can be independently calibrated while sharing common alarm and interlock logic, simplifying control panel design in multi-burner boiler houses.

Legacy Control System Retrofits
The C7076A1007's signal output interfaces directly with older RM7800 and RM7840 series primary controls when used with R7886 amplifiers. This enables safety system upgrades without replacing entire control panels—preserving existing wiring, operator interfaces, and approved control logic.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-3 business days. Custom configurations or bulk orders may require 2-4 weeks—contact our sales team for expedited delivery options.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring guaranteed uptime.

Technical Documentation: Each detector ships with installation instructions, wiring diagrams, and calibration procedures. Complete technical data sheets, dimensional drawings, and FM/UL approval certificates available for download or upon request.

Application Engineering Support: Our combustion control specialists provide pre-sale consultation for detector selection, mounting location optimization, and integration with existing flame safeguard systems. Post-installation support includes troubleshooting assistance and calibration guidance.

Replacement Parts & Accessories: Quartz viewing lenses, mounting hardware, and electronics chassis available as service parts. R7886 amplifiers, remote selector switches, and flame signal meters stocked for immediate shipment.

Frequently Asked Questions

Q: Can the C7076A1007 replace my existing C7027 or C7035 flame detector?
A: No—the C7076A1007 requires the R7886 Dynamic Self-Check Amplifier and is not electrically compatible with amplifiers designed for C7027/C7035 models. If upgrading from fixed-sensitivity detectors, you must also replace the amplifier. However, the R7886 can interface with most Honeywell RM7800/RM7840 primary controls, allowing detector upgrades without full control panel replacement.

Q: What is the recommended calibration procedure for dual-fuel burner systems?
A: Set sensitivity control A for your primary fuel at normal operating conditions, then switch to secondary fuel and adjust control B independently. Use the remote selector switch to activate the appropriate setting when fuel changeover occurs. Lock both controls after calibration to prevent vibration-induced drift. Verify flame signal strength remains within 1.4-5.5 mA range for both fuel types.

Q: How does the self-checking feature improve safety compared to standard UV detectors?
A: The mechanical shutter tests sensor response every 5 seconds by briefly blocking UV light and verifying the flame signal drops to zero. This detects tube failures, optical contamination, and electronic malfunctions that could cause dangerous "false flame" conditions where the detector fails to recognize flame loss. Standard detectors only verify operation during startup, leaving systems vulnerable to in-service failures.

Q: What maintenance intervals are recommended for optimal performance?
A: Inspect and clean the quartz viewing lens every 3-6 months in clean fuel applications, monthly in heavy oil or contaminated environments. Verify flame signal strength quarterly and recalibrate if readings drift outside normal range. The UV tube typically provides 5+ years of service but should be replaced if self-check failures occur or signal strength degrades significantly.

Q: Can I use this detector in furnaces operating above 20 psig pressure?
A: The quartz lens is rated for 20 psig maximum. Higher-pressure applications require a sight pipe extension that positions the detector outside the pressurized zone while maintaining optical alignment with the flame. Consult Honeywell's installation guidelines for proper sight pipe design and purge air requirements in high-pressure installations.

Q: Is the C7076A1007 suitable for monitoring pilot flames in standing pilot systems?
A: Yes—the 400:1 sensitivity range accommodates very low-intensity pilot flames. Adjust sensitivity to the highest setting (control fully clockwise) and verify flame signal exceeds 1.4 mA minimum. For extremely small pilots, consider the high-sensitivity C7035 model or relocate the detector closer to the pilot flame for stronger signal strength.
