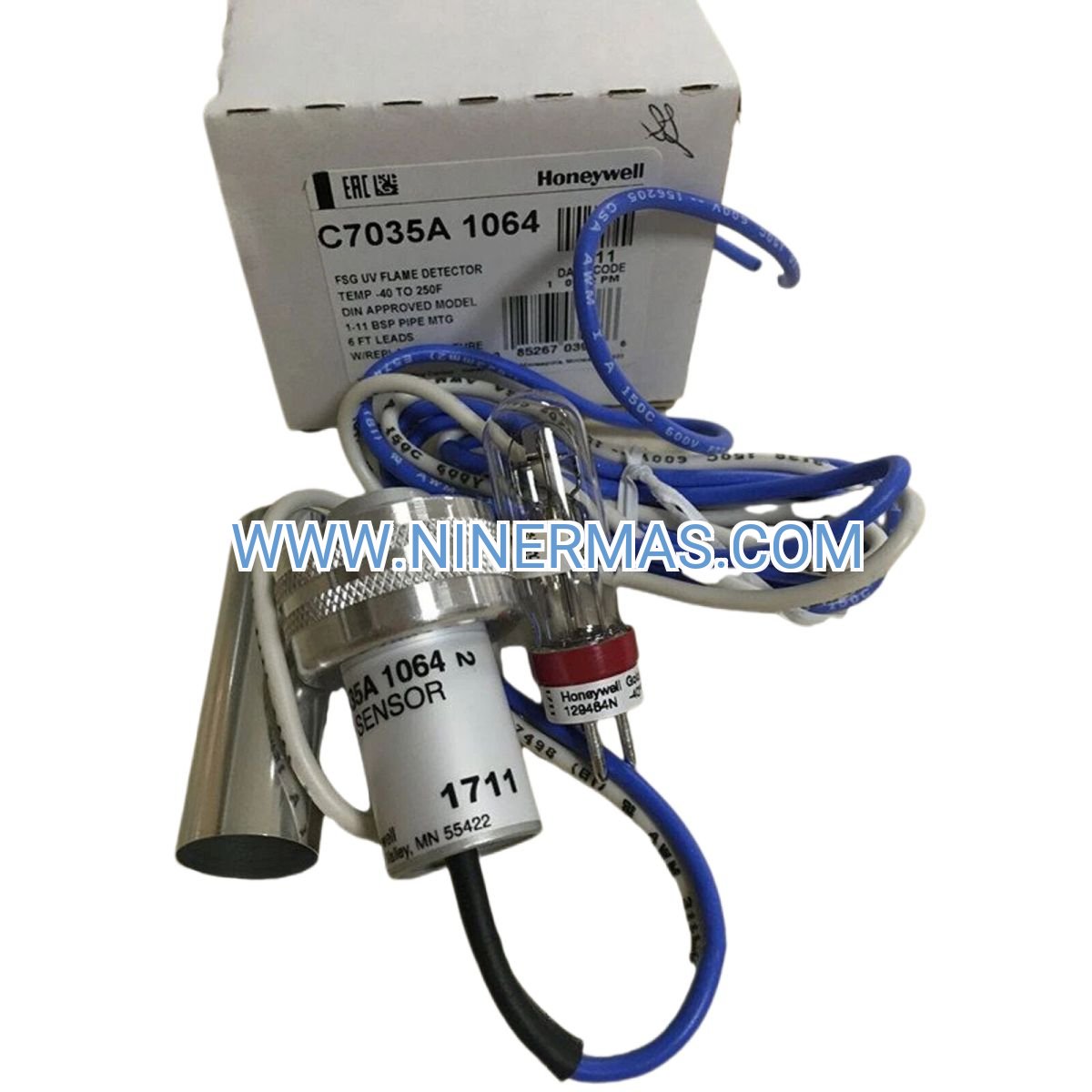

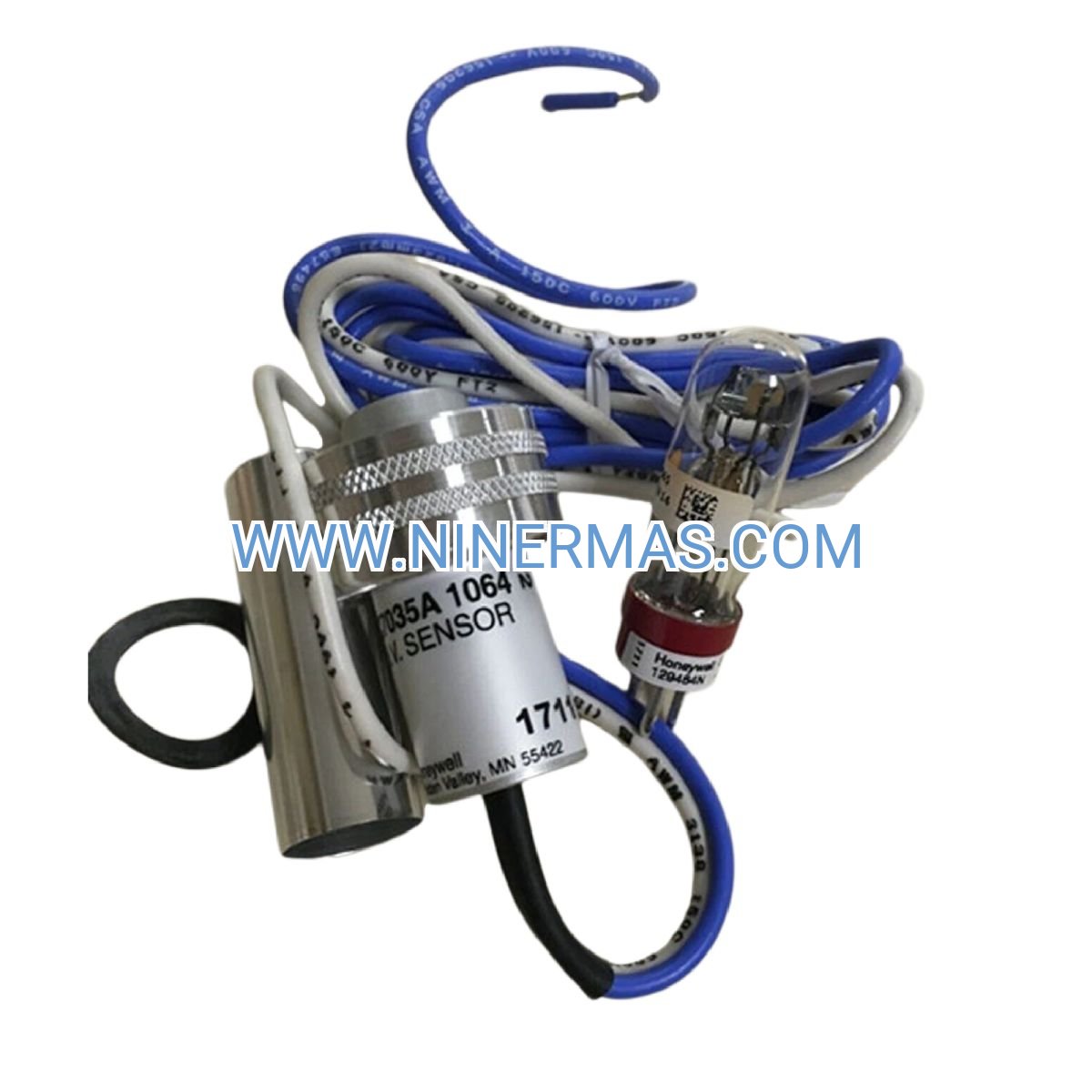

C7035A-1064 Minipeeper UV Flame Detector (Industrial-Grade Combustion Safety)

The C7035A-1064 Minipeeper represents Honeywell's commitment to precision flame supervision technology. Engineered for gas, oil, and dual-fuel burner systems, this ultraviolet flame detector delivers factory-calibrated accuracy in a compact, retrofit-friendly package. Whether you're managing steam boilers, process heaters, or thermal oxidizers, the C7035A-1064 provides the critical flame monitoring intelligence your facility demands.

Designed for industrial and commercial heating applications, this UV sensor addresses the core challenge of reliable flame detection in environments where safety cannot be compromised. Its ultraviolet-specific sensing technology eliminates false signals from ambient light or hot refractory surfaces, ensuring your burner management system receives accurate, real-time flame status data. For facility managers, maintenance teams, and system integrators seeking proven OEM-quality components, the C7035A-1064 delivers consistent performance backed by Honeywell's engineering heritage.

Key advantages include rapid flame recognition (1-2 second response), universal fuel compatibility, and seamless integration with Honeywell R4795, R7184, R7247, RM7800, and RM7840 control platforms. The standard 1-inch NPT mounting thread simplifies installation in existing sight ports, reducing downtime during upgrades or replacements.

Core Features & Performance Benefits

✓ Ultraviolet-Specific Detection Technology
Responds exclusively to UV radiation emitted by flames, filtering out infrared interference from hot surfaces and visible light contamination. This selectivity reduces nuisance trips and enhances system uptime in high-temperature environments.

✓ Factory-Calibrated Precision
Each unit ships pre-calibrated to optimal sensitivity thresholds, eliminating field adjustment requirements and ensuring consistent performance across multiple installations. Reduces commissioning time by up to 40% compared to field-adjustable alternatives.

✓ Compact Minipeeper Form Factor
Space-efficient design (0.17 kg / 0.37 lbs) fits tight installations and retrofit scenarios where larger flame scanners cannot be accommodated. Ideal for packaged boiler systems and modular burner assemblies.

✓ Rapid Flame Response (1-2 Seconds)
Fast signal acquisition enables quick startup sequences and immediate fault detection, critical for maintaining safe light-off procedures and preventing fuel accumulation hazards.

✓ Wide Operating Temperature Range
Functions reliably from 32°F to 140°F (0°C to 60°C), accommodating seasonal temperature variations and diverse installation environments without performance degradation.

✓ Multi-Fuel Compatibility
Detects UV emissions from natural gas, propane, light oil, heavy oil, and combination fuel flames, providing flexibility for facilities with variable fuel sources or dual-fuel burner systems.

Industrial Application Scenarios

→ Steam Generation & Power Boilers
In industrial boiler houses generating process steam or district heating, the C7035A-1064 provides continuous flame supervision required by NFPA 85 and FM Global standards. Prevents unsafe operating conditions during load swings and fuel changeovers, protecting pressure vessels and downstream equipment from damage.

→ Petrochemical Process Heaters
Refineries and chemical plants rely on the detector's UV-specific sensing to monitor fired heaters in environments with high radiant heat loads. The technology's immunity to infrared interference ensures accurate flame detection even when refractory temperatures exceed 1800°F, reducing false shutdowns that impact production throughput.

→ Commercial HVAC & Institutional Facilities
Hospitals, universities, and large office complexes use the C7035A-1064 in central heating plants where reliability directly impacts occupant comfort and critical operations. The detector's 18-24 month service life and straightforward replacement procedure minimize maintenance burden on facility teams.

→ Thermal Oxidizers & Emission Control
VOC abatement systems and fume incinerators require continuous combustion verification to maintain destruction efficiency and regulatory compliance. The detector's fast response time ensures immediate shutdown if flame loss occurs, preventing untreated emissions release.

→ Food Processing & Drying Operations
Bakeries, grain dryers, and food manufacturing facilities benefit from the detector's compact size in space-constrained burner installations. Its ability to function in ambient temperatures up to 140°F suits warm production environments without requiring additional cooling provisions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the C7035A-1064 when your application requires compact UV detection with factory calibration and you're using compatible Honeywell burner controls. For applications requiring adjustable sensitivity or self-check diagnostics, consider the C7076A series. Verify sight port dimensions and flame scanner positioning per Honeywell installation guidelines to ensure optimal UV signal strength.

Extended Capabilities & System Integration

Burner Management System Integration: When paired with Honeywell RM7800 or RM7840 integrated controls, the C7035A-1064 becomes part of a comprehensive flame safeguard system offering programmable safety timing, diagnostic LEDs, and remote monitoring capabilities. This integration enables predictive maintenance strategies through flame signal strength trending.

Retrofit & Upgrade Compatibility: The detector's standard NPT threading and compact dimensions make it an ideal drop-in replacement for aging flame scanners in legacy systems. Facilities can upgrade flame detection technology without modifying burner assemblies or control panels, reducing project costs and installation complexity.

Multi-Burner Configurations: In systems with multiple burners, each C7035A-1064 provides independent flame supervision, allowing individual burner control while maintaining overall system safety. This architecture supports modulating burner systems and staged firing sequences common in large industrial boilers.

Delivery Timeline & Service Assurance

Standard Delivery: In-stock units ship within 1-3 business days via express logistics. International orders typically arrive within 5-10 business days depending on customs clearance and destination.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes replacement unit shipment and technical support for installation verification.

Technical Support: Our engineering team provides pre-sale application consultation, wiring diagrams, and troubleshooting assistance. Post-installation support includes flame signal optimization and integration guidance with existing control systems.

Documentation Package: Each detector ships with installation instructions, wiring schematics, dimensional drawings, and compliance certifications. Digital copies of operation manuals and compatibility matrices available upon request.

Frequently Asked Questions

How do I verify the C7035A-1064 is functioning correctly after installation?
After mounting and wiring, initiate a burner startup sequence while monitoring the flame signal at the control panel. A strong, steady signal during stable combustion indicates proper operation. Most Honeywell controls provide flame signal strength indicators for verification. Annual testing with a UV light source confirms sensor responsiveness.

What causes premature UV tube failure in flame detectors?
Excessive vibration, thermal cycling beyond rated limits, and contamination from oil mist or particulates can shorten UV tube life. Ensure the detector is mounted in a location with stable temperatures and minimal mechanical stress. Regular sight glass cleaning prevents signal attenuation that can stress the sensor.

Can the C7035A-1064 detect pilot flames in addition to main burner flames?
Yes, the detector responds to UV radiation from both pilot and main flames. However, pilot flame detection range depends on pilot size and positioning relative to the detector's field of view. Consult Honeywell's flame scanner positioning guidelines for optimal coverage of both ignition and main flame zones.

Is this detector suitable for high-altitude installations above 5,000 feet?
The C7035A-1064 functions at high altitudes, but flame characteristics may change due to reduced oxygen partial pressure. Verify flame stability and UV signal strength during commissioning. Some applications may require burner adjustments to maintain adequate flame intensity for reliable detection.

What maintenance intervals are recommended for UV flame detectors?
Inspect the detector and sight glass quarterly for contamination or physical damage. Annual replacement of the UV sensor tube is recommended in continuous-duty applications to prevent age-related sensitivity degradation. Maintain records of flame signal strength to identify trending issues before failures occur.

How does the C7035A-1064 compare to infrared or flame rod detection methods?
UV detection offers superior discrimination against hot refractory backgrounds compared to infrared sensors, reducing false signals in high-temperature furnaces. Unlike flame rods that require direct flame contact, UV detectors provide non-contact monitoring suitable for larger burners and applications where flame rod positioning is impractical.

Take the Next Step in Burner Safety

Upgrade your flame supervision system with proven Honeywell technology. Contact our technical sales team for application-specific guidance, compatibility verification, and volume pricing. We provide complete documentation packages and integration support to ensure successful deployment in your facility.
