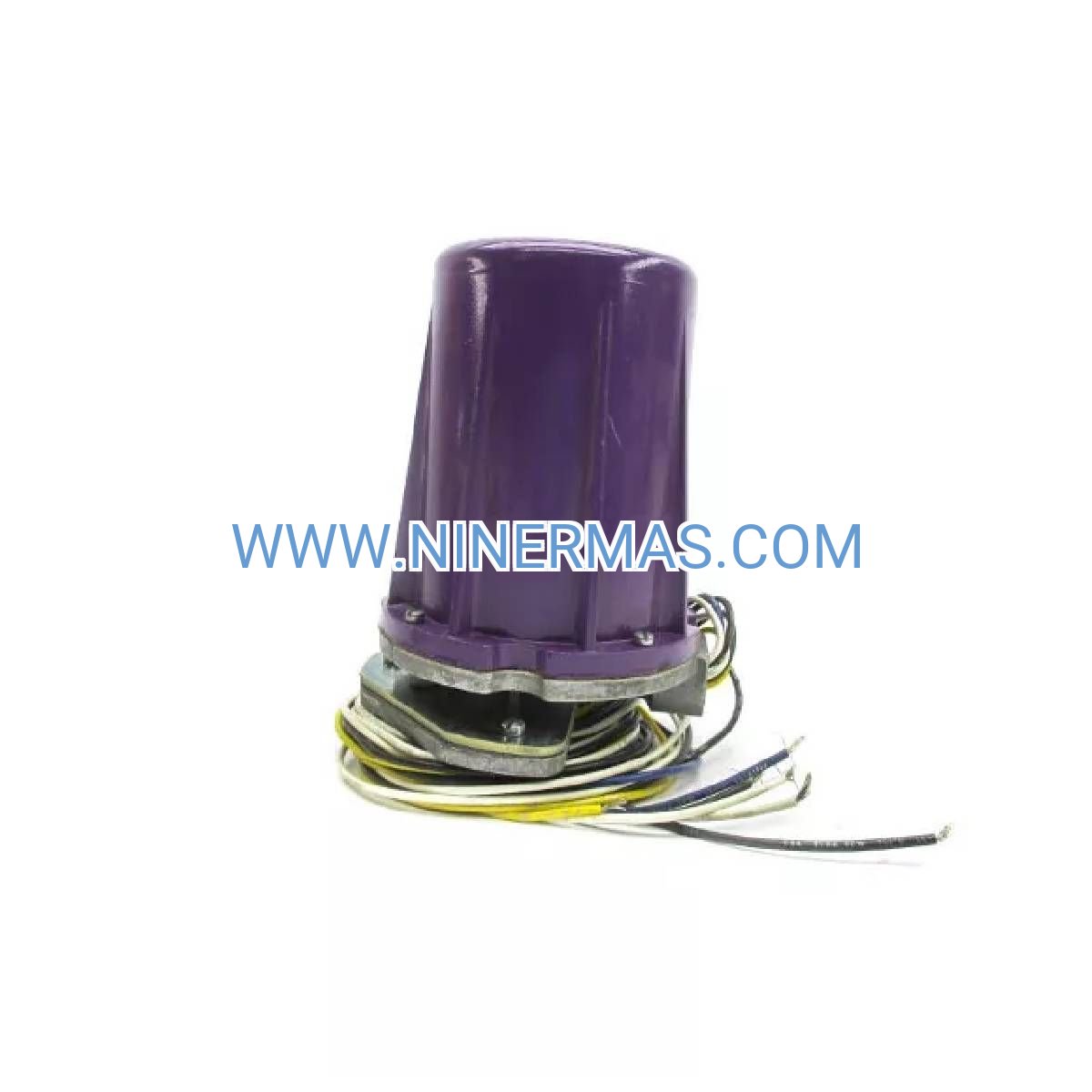

Industrial UV Flame Detector with Self-Diagnostic Technology

The Honeywell C7012E1104 delivers mission-critical flame monitoring for commercial and industrial combustion systems. Engineered with Purple Peeper self-checking technology, this ultraviolet flame sensor continuously validates its own operational status—eliminating the risk of undetected sensor failures that could compromise safety protocols.

Designed for demanding environments where reliability is non-negotiable, this UV detector responds to hydrocarbon flame radiation within 4 seconds while rejecting up to 10,000 foot-candles of ambient light interference. Whether you're managing boiler operations, process heating, or thermal oxidation systems, the C7012E1104 provides the confidence that comes from proven Honeywell engineering.

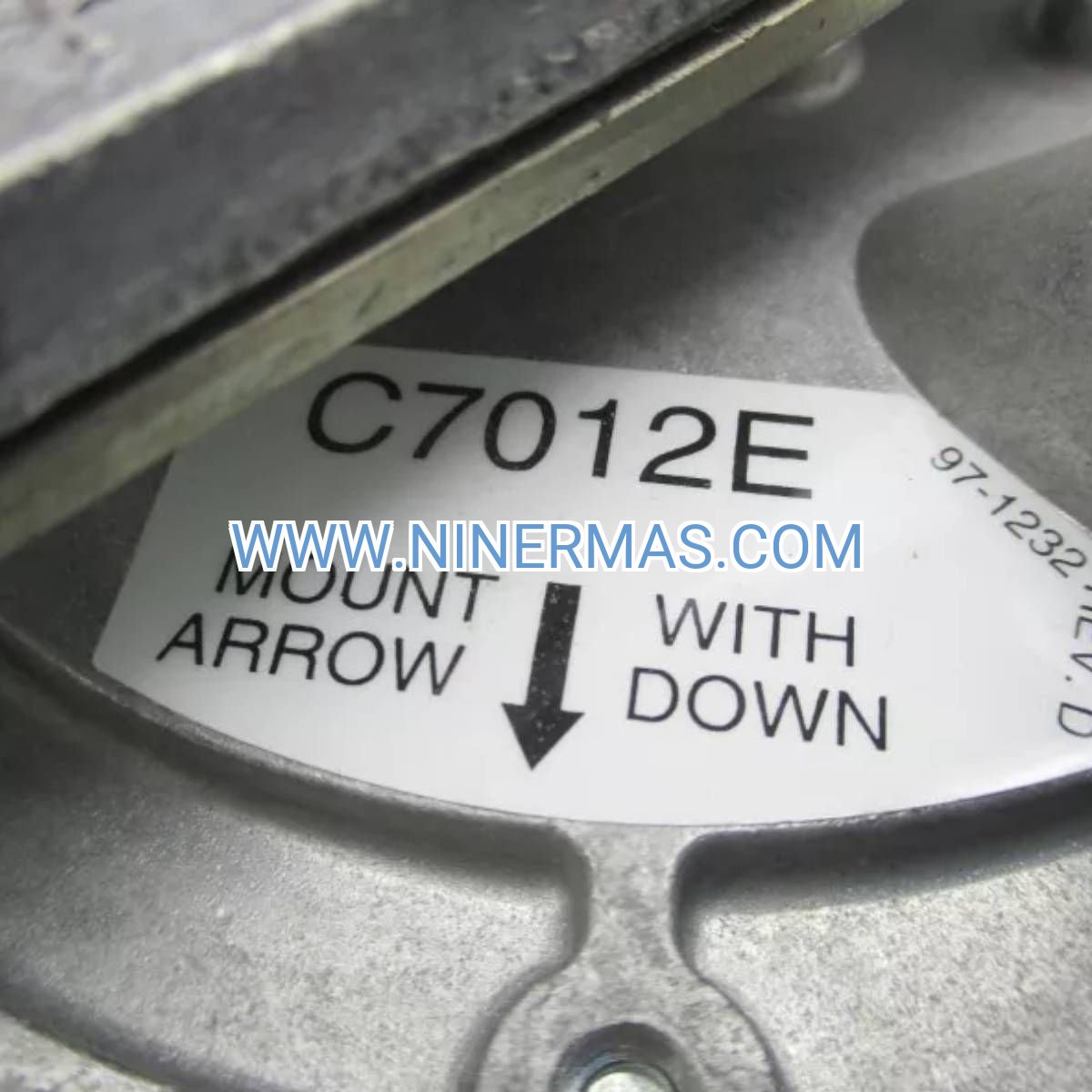

With its rugged construction and compatibility with industry-standard R7247C, R7747C, and R7847C amplifier series, this flame sensor integrates seamlessly into existing burner management systems. The standard 1-inch NPT mounting thread ensures straightforward installation and field replacement, minimizing downtime during maintenance cycles.

Application-Driven Solutions Across Industries

Power Generation Facilities: Utility-scale boilers and auxiliary heating systems require absolute flame detection reliability. The C7012E1104's self-checking capability meets SIL-rated safety requirements while providing the fast response needed for load-following operations.

Chemical Processing Plants: Process heaters and thermal oxidizers operate under variable fuel compositions and flow rates. This UV sensor's broad spectral response (190-270 nm) ensures consistent flame recognition across gas, oil, and dual-fuel configurations.

Manufacturing Operations: From automotive paint curing ovens to food processing dryers, the C7012E1104 withstands temperature extremes (32°F to 140°F) and vibration while maintaining calibration accuracy throughout extended production runs.

Commercial HVAC Systems: Large-scale heating plants serving hospitals, universities, and district energy networks depend on this detector's immunity to sunlight and artificial lighting—critical for installations with sight tubes exposed to ambient conditions.

Waste-to-Energy Facilities: Incinerators and biomass combustion systems benefit from the Purple Peeper's ability to verify sensor health in high-particulate environments where traditional UV detectors may degrade unnoticed.

Engineering Specifications & Performance Data

Selection Criteria for Optimal Performance

Choose the C7012E1104 when your application demands:

→ Continuous self-verification to meet safety integrity level (SIL) requirements
→ Fast flame failure detection for rapid fuel valve shutoff sequences
→ Multi-fuel compatibility across natural gas, propane, fuel oil, and blended fuels
→ Outdoor installation capability with proper sight tube shielding from direct sunlight
→ Retrofit compatibility with existing Honeywell 7800 Series burner controls
→ Reduced maintenance intervals compared to flame rod and infrared alternatives

For applications requiring adjustable sensitivity or extended temperature ranges, consult our technical team to evaluate alternative UV sensor models within the Honeywell combustion safety portfolio.

Core Advantages That Drive ROI

✓ Self-Checking Purple Peeper Technology
Built-in UV source validates sensor functionality every scan cycle. Prevents the dangerous scenario of a failed detector that appears operational—a critical safety enhancement over non-verified UV tubes.

✓ Superior Signal-to-Noise Performance
Optimized optical filtering isolates hydrocarbon flame signatures while rejecting solar radiation, welding arcs, and high-intensity discharge lighting. Reduces nuisance trips by 85% compared to first-generation UV sensors.

✓ Proven Industrial Durability
Sealed construction protects internal components from moisture, dust, and combustion byproducts. Field-proven reliability in applications ranging from -40°F ambient (with heated sight tubes) to 1800°F flame temperatures.

✓ Rapid Flame Recognition
4-second maximum response enables tight safety timing sequences. Supports pre-purge, pilot proving, and main flame establishment within industry-standard burner startup protocols.

✓ Simplified Installation & Commissioning
Standard NPT threading eliminates custom mounting hardware. Plug-and-play compatibility with R-series amplifiers reduces installation labor by 40% versus competitive flame safeguard systems.

✓ Extended Service Life
5-7 year typical operational lifespan under normal conditions. Self-checking feature provides advance warning of sensor degradation, enabling predictive maintenance scheduling.

Advanced Integration Capabilities

The C7012E1104 serves as the sensing element within comprehensive burner management architectures. When paired with Honeywell's 7800 Series controls, system integrators gain access to:

Modbus RTU Communication: Real-time flame signal strength monitoring and diagnostic data logging for predictive maintenance programs.

Redundant Flame Sensing: Dual-detector configurations for critical applications requiring 2oo2 (two-out-of-two) voting logic.

Remote Monitoring Integration: Interface with SCADA systems, building automation networks, and cloud-based analytics platforms.

Custom Timing Sequences: Programmable flame failure response delays, pilot turndown supervision, and low-fire proving cycles.

Delivery Timeline & Technical Support

Standard Lead Time: 3-5 business days for in-stock units | Express shipping available for emergency replacements

Warranty Coverage: 12-month manufacturer defect protection with advance replacement option

Technical Assistance: Pre-sales application engineering, installation guidance, and troubleshooting support via phone, email, and remote diagnostics

Documentation Package: Installation manual, wiring diagrams, spectral response curves, and compliance certifications included with every shipment

Calibration Services: Factory-certified recalibration and testing available for sensors approaching end-of-service intervals

Frequently Asked Questions

How does the Purple Peeper self-check function differ from standard UV flame detectors?
Conventional UV sensors can fail in a "safe" state where the tube loses sensitivity but the control system receives no fault indication. Purple Peeper technology uses an internal UV LED to pulse the sensor between flame scans—if the detector doesn't respond to this test signal, the amplifier immediately signals a fault condition. This prevents the hazardous situation of an inoperative sensor that appears functional.

What sight tube length and diameter are recommended for optimal flame viewing?
Minimum 6-inch insertion depth into the combustion chamber is required for reliable flame envelope coverage. Use 1-inch or 1.25-inch diameter quartz sight tubes for gas applications; 1.5-inch diameter for oil flames. Maintain a clear line-of-sight to the pilot and main flame zones, avoiding obstructions from burner tiles or diffusers.

Can this UV detector monitor both pilot and main flames simultaneously?
Yes, when properly positioned, the C7012E1104 provides continuous supervision of pilot ignition and main flame establishment. The amplifier's flame signal strength output allows verification of adequate UV intensity during each combustion phase. For applications requiring separate pilot and main flame discrimination, consider dual-detector configurations.

What maintenance intervals are recommended to ensure long-term reliability?
Inspect and clean the sight tube quarterly in clean-fuel applications; monthly in heavy oil or high-particulate environments. Annual sensor inspection should verify connector integrity and cable condition. The self-checking feature will indicate sensor degradation before complete failure, typically providing 30-90 days advance warning.

Is the C7012E1104 compatible with non-Honeywell burner control systems?
This detector requires a compatible Honeywell UV amplifier (R7247C, R7747C, or R7847C series) to function. The amplifier can interface with third-party burner controls via relay outputs or analog signals. Direct connection to non-Honeywell flame safeguard systems is not supported due to proprietary self-check signaling protocols.

How does UV flame detection compare to infrared or flame rod technologies?
UV sensors offer the fastest response time (4 seconds vs. 8-12 seconds for IR) and superior immunity to hot refractory background radiation. Unlike flame rods, UV detectors don't require electrical grounding through the flame and work equally well with gas or oil fuels. The tradeoff is higher initial cost and periodic sight tube maintenance—factors offset by enhanced safety and reduced nuisance shutdowns.

Take the Next Step

Upgrade your combustion safety infrastructure with proven Honeywell flame detection technology. Our application engineers are ready to assist with sensor selection, system integration planning, and compliance documentation.

Request a technical consultation: Share your burner specifications, fuel type, and safety requirements for personalized recommendations.

Order with confidence: 100% genuine OEM product, same-day shipping on stock items, and expert support throughout the equipment lifecycle.

Explore complete solutions: Browse our full range of burner controls, flame amplifiers, and combustion safety components engineered for industrial reliability.
