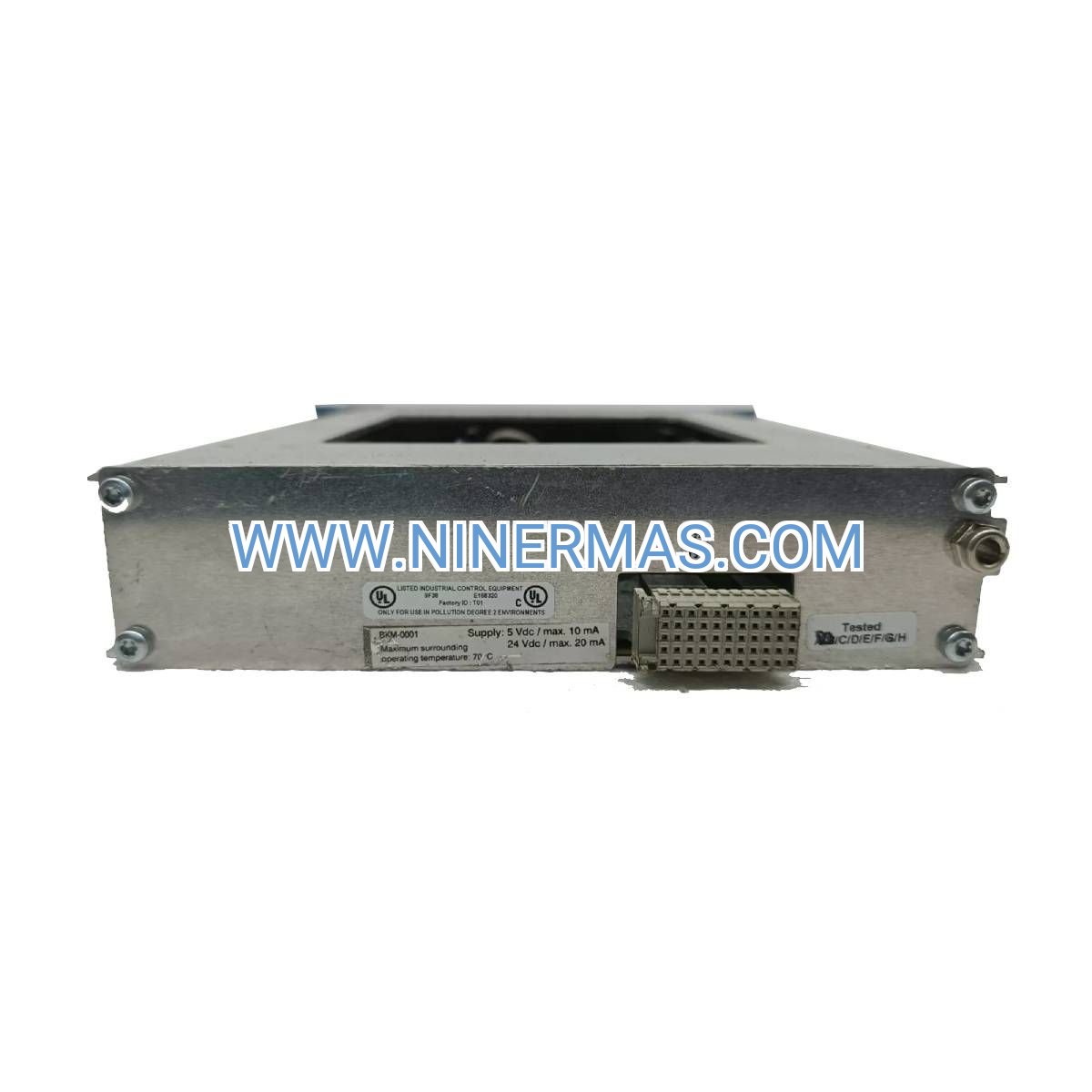

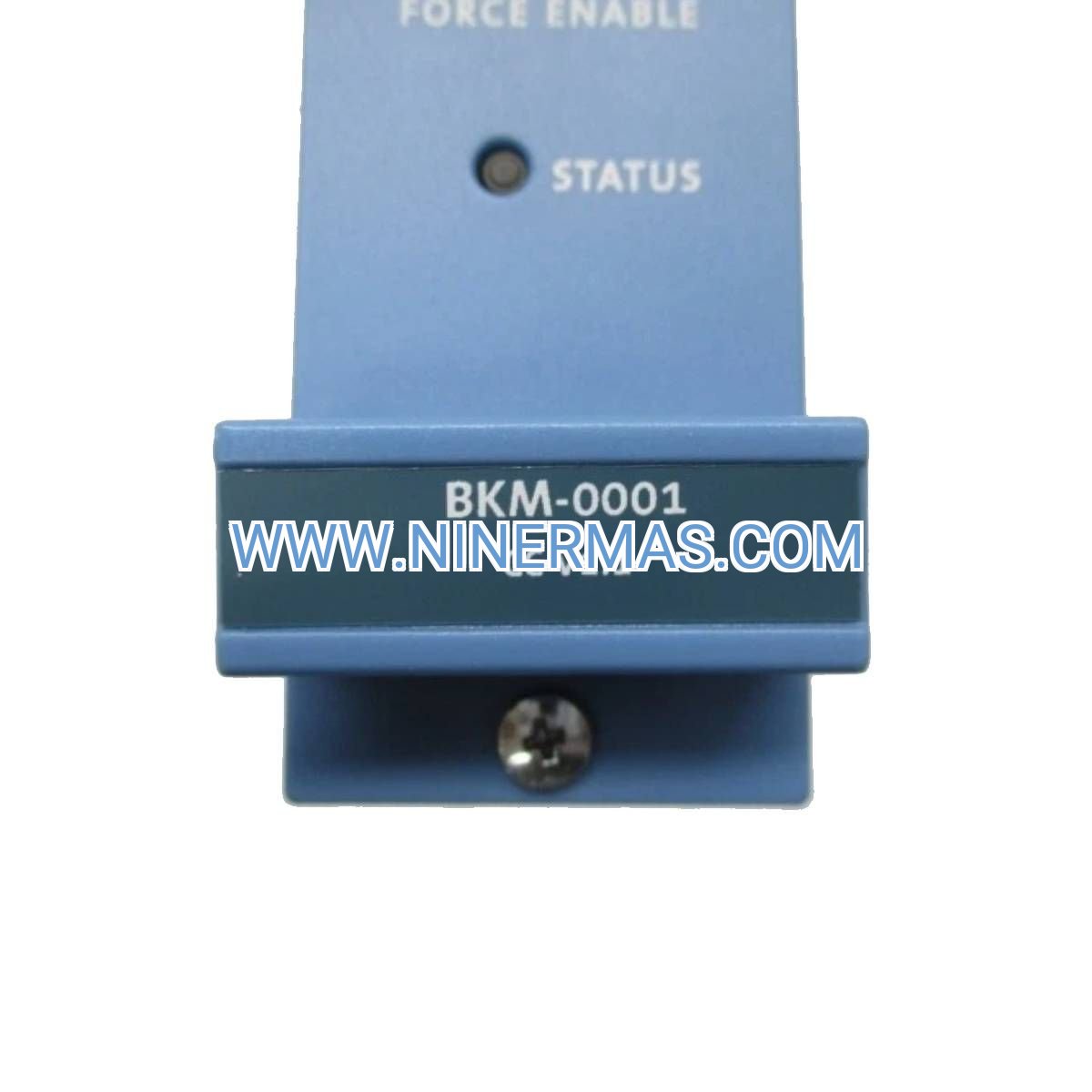

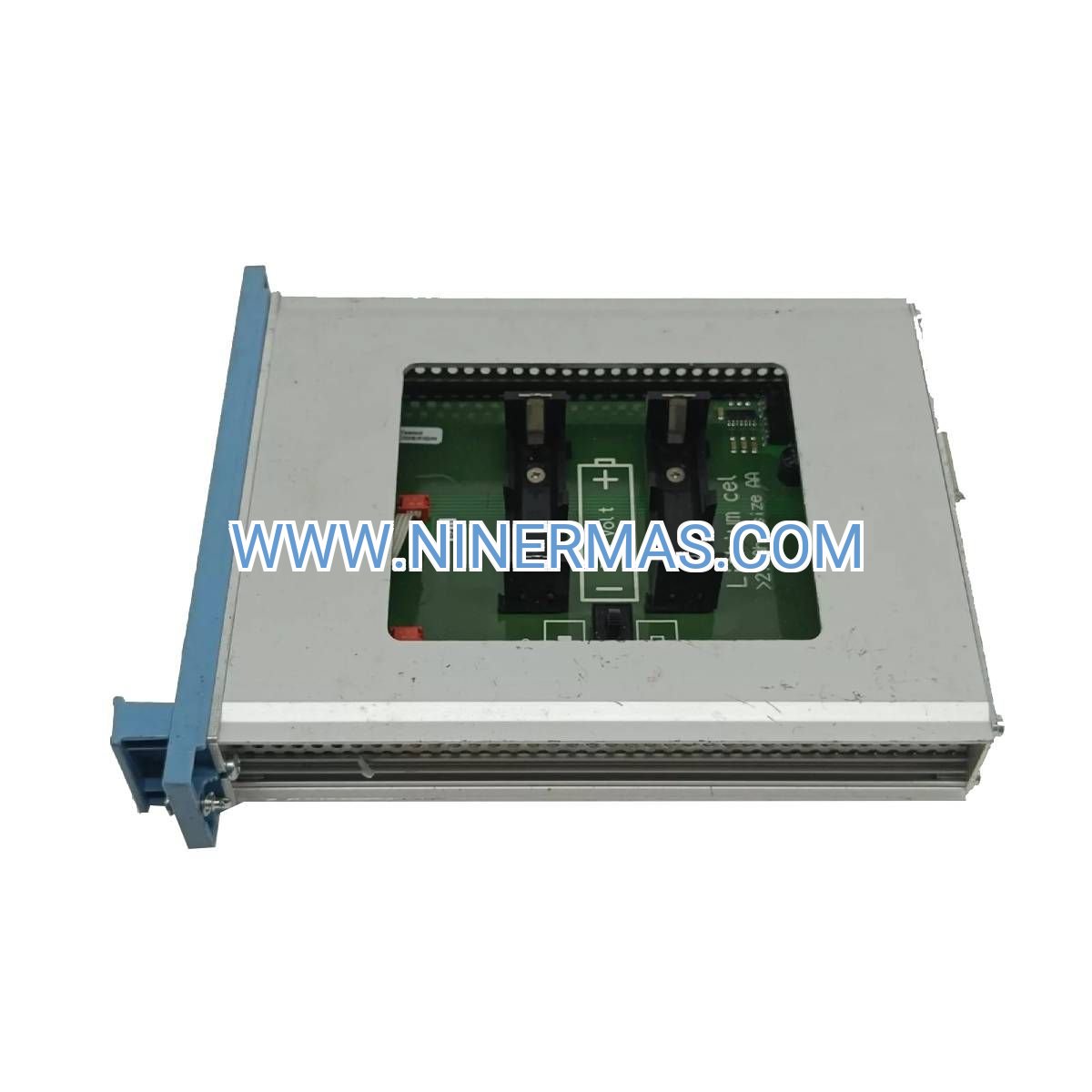

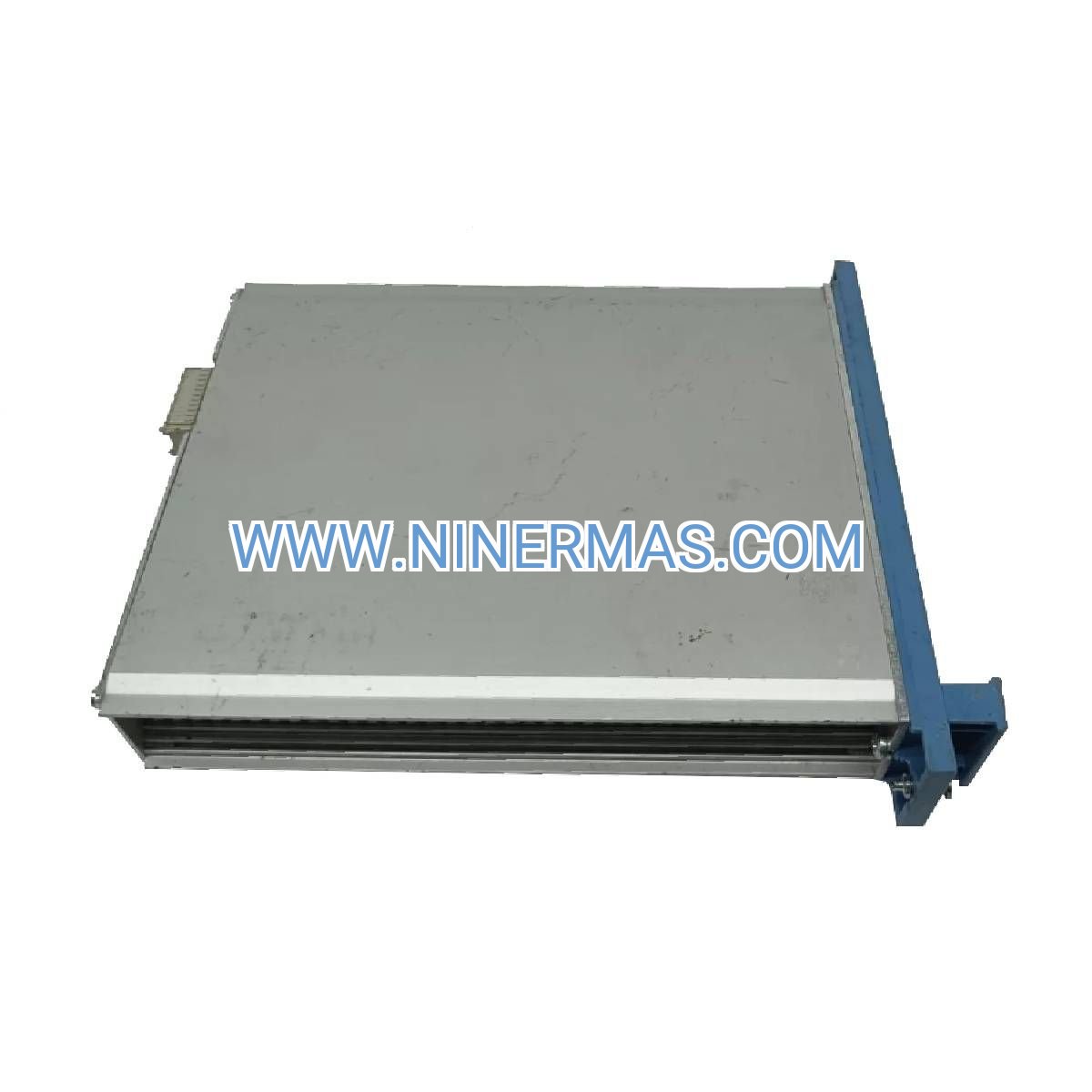

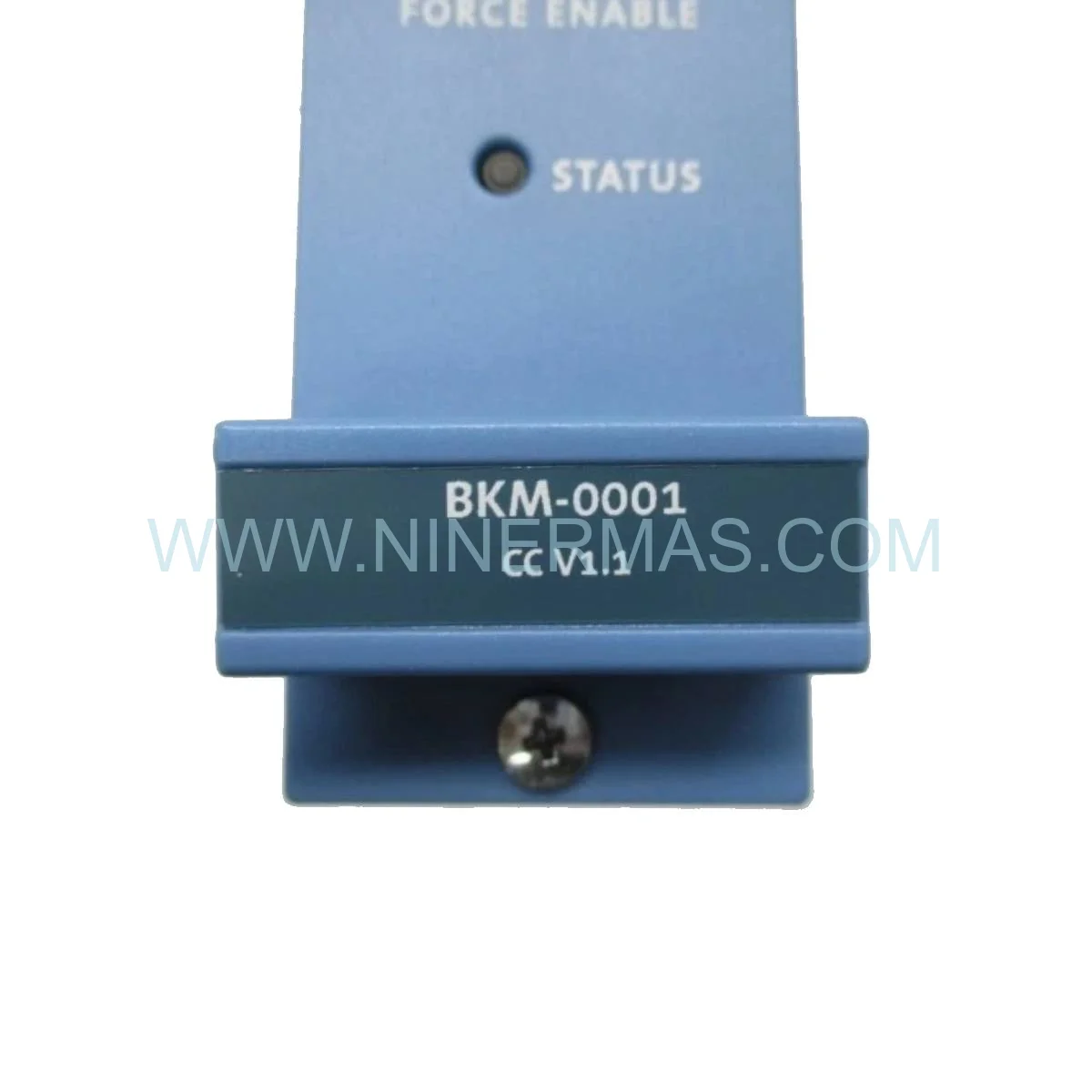

BKM-0001 Control Processor Module (Industrial-Grade DCS Component)

The BKM-0001 represents Honeywell's advanced control processing solution engineered for mission-critical distributed control systems across oil & gas, chemical manufacturing, power generation, and water treatment sectors. This 32-bit RISC-based processor delivers deterministic control execution, fault-tolerant operation, and seamless FSC ecosystem integration for plants demanding 99.9%+ uptime.

Designed to address the challenges of legacy system modernization and capacity expansion, the BKM-0001 bridges TDC 3000 infrastructure with contemporary Experion PKS platforms. Process engineers and automation managers rely on this module to eliminate single points of failure while maintaining backward compatibility with existing field instrumentation and operator interfaces.

With hot-swap capability, N+1 redundancy architecture, and multi-protocol communication support (Modbus RTU/TCP, Ethernet/IP, HART), the BKM-0001 minimizes planned downtime and accelerates mean time to repair (MTTR) during unplanned events. CE/TUV/UL/CSA/FM certifications ensure global compliance for hazardous area deployments.

Core Capabilities & Business Value

→ Deterministic Control Execution: 32-bit RISC architecture processes complex control algorithms with scan times from 10-100ms, ensuring precise regulation of temperature, pressure, flow, and level loops in continuous and batch processes.

✓ Fault-Tolerant Architecture: Supports 1:1 and N+1 redundancy configurations with automatic failover in <50ms, protecting critical processes from controller failures and reducing annual downtime by 95% compared to simplex systems.

✓ Zero-Downtime Maintenance: Hot-swappable design allows module replacement during operation without process interruption, cutting maintenance windows from hours to minutes and preserving production schedules.

→ Comprehensive Diagnostics: Built-in self-test routines and real-time health monitoring detect memory errors, communication faults, and power anomalies before they impact operations, enabling predictive maintenance strategies.

✓ Multi-Protocol Connectivity: Native support for Modbus, Ethernet/IP, and HART protocols eliminates gateway requirements when integrating third-party analyzers, drives, and smart transmitters, reducing system complexity by 30%.

→ Environmental Resilience: Operates reliably in 0-60°C ambient temperatures and 5-95% humidity environments, withstanding the thermal cycling and vibration typical of refinery control rooms and offshore platforms.

Industry Applications & Problem Resolution

Upstream Oil & Gas Production: In wellhead control and separator systems, the BKM-0001 coordinates pressure safety valves, level transmitters, and flow computers to maintain optimal production rates while preventing overpressure events. Paired with 8C-TDOD51 digital output modules for emergency shutdown (ESD) logic and 8C-PCNT05 controllers for distributed intelligence, it forms the backbone of unmanned platform automation.

Chemical Batch Processing: Pharmaceutical and specialty chemical manufacturers deploy the BKM-0001 to execute recipe-driven batch sequences with ±0.1% setpoint accuracy. Integration with MC-TAIH12 analog input FTAs and 51301877-100 analog output FTAs enables closed-loop control of reactor temperature, agitator speed, and ingredient dosing—critical for FDA 21 CFR Part 11 compliance and batch-to-batch consistency.

Power Plant Turbine Control: Combined-cycle and cogeneration facilities utilize the BKM-0001 for governor control, vibration monitoring, and emissions management. When networked with TK-FTEB01 fault-tolerant Ethernet modules and 8U-PWSP02-CN redundant power supplies, it achieves the <1-second response times required for grid frequency regulation and load-following operations.

Municipal Water Treatment: Drinking water and wastewater plants leverage the processor to orchestrate multi-stage filtration, chlorination, and UV disinfection processes. Interfacing with MTL4521 solenoid drivers for valve actuation and MTL4017 proximity interfaces for pump status monitoring, it maintains regulatory compliance with real-time pH, turbidity, and residual chlorine control.

Technical Parameters & Selection Criteria

Sizing Recommendations: For control strategies with <500 I/O points and scan times >50ms, a single BKM-0001 suffices. Applications requiring <20ms scans, complex PID tuning, or advanced control (MPC, fuzzy logic) benefit from dual-processor load sharing. Always provision 30% spare processing capacity for future expansion.

Advanced Integration & Customization

IIoT Connectivity: When combined with 51404125-200 Enhanced Process Network Interface Modules and 51402614-100 Ethernet boards, the BKM-0001 publishes real-time process data to cloud historians, SCADA systems, and MES platforms via OPC UA and MQTT protocols—enabling predictive analytics and remote expert support.

Cybersecurity Hardening: Supports role-based access control (RBAC), encrypted communications (TLS 1.2+), and audit logging to meet IEC 62443 industrial cybersecurity standards. Firmware updates can be deployed via secure channels without process disruption.

Custom Control Libraries: Pre-validated function blocks for cascade control, ratio control, and split-range output are available through Honeywell Control Builder. Custom algorithms can be developed in IEC 61131-3 languages (Ladder, FBD, ST) and downloaded during commissioning or runtime.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency replacements (subject to inventory availability and destination).

Custom Configurations: Factory-programmed modules with pre-loaded control strategies ship within 10-15 business days; includes factory acceptance testing (FAT) documentation.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and performance deviations from published specifications. Extended warranties and advance replacement programs available.

Technical Support: Unlimited access to automation engineers for installation guidance, configuration troubleshooting, and performance optimization. Remote diagnostic services available 24/7 for critical applications.

Documentation Package: Each shipment includes installation manual, wiring diagrams, configuration templates, and compliance certificates (CE Declaration of Conformity, UL listing, FM approval).

Frequently Asked Questions

How do I migrate from TDC 3000 LCN to FSC using the BKM-0001?
Migration requires 51404109-175 Remote Hardened Multiplexer IOP modules to bridge legacy LCN networks with FSC backplanes. Our engineering team provides migration planning services, including I/O mapping, control logic conversion, and cutover sequencing to minimize production impact.

What redundancy configuration delivers the best cost-performance balance?
For non-safety critical processes, N+1 redundancy (one spare processor for every 4-6 active units) optimizes capital costs while maintaining high availability. Safety instrumented systems (SIS) rated SIL 2 or higher mandate 1:1 redundancy with diverse hardware and voting logic.

Can the BKM-0001 interface with wireless field devices?
Yes, when paired with WirelessHART gateways or ISA100.11a access points, the processor ingests data from wireless transmitters and valve positioners. Ensure gateway firmware supports HART-IP or Modbus TCP for seamless integration.

What are the power consumption and heat dissipation specifications?
Typical power draw is 12W at 24V DC (0.5A); redundant pairs consume 24W total. Heat dissipation is 41 BTU/hr per module—standard convection cooling suffices in climate-controlled environments; forced air recommended for >45°C ambients.

Does the processor support IEC 61508 functional safety applications?
The BKM-0001 is suitable for basic process control (BPCS) functions. For safety instrumented functions (SIF), specify Honeywell Safety Manager or FSC-certified safety controllers with SIL 2/3 ratings and proven-in-use documentation.

How frequently should I perform preventive maintenance?
Inspect module seating, connector integrity, and cooling airflow quarterly. Firmware updates should align with Honeywell's security patch schedule (typically semi-annual). Capacitor-based components have a 10-year service life; plan module rotation accordingly.

Order Your BKM-0001 Processor Today

Secure your industrial control infrastructure with genuine Honeywell BKM-0001 processors backed by expert support and rapid fulfillment. Contact our automation specialists at sale@ninermas.com or +0086 187 5021 5667 for volume pricing, system design assistance, or technical consultations. Request a quote now to receive detailed specifications, compatibility verification, and delivery timelines tailored to your project requirements.
