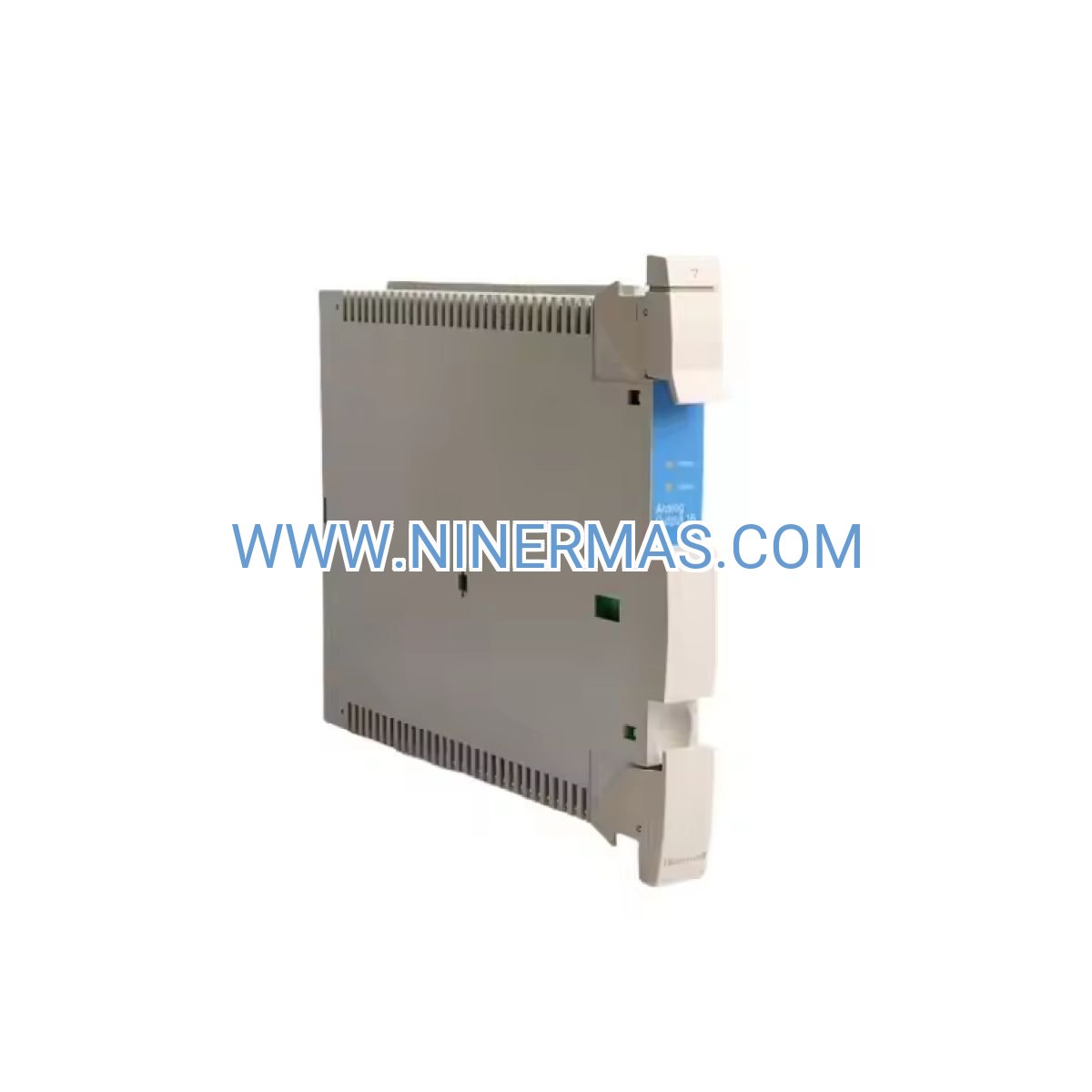

BC-THAI11 Analog Input Module (Industrial-Grade HART Signal Processor)

The BC-THAI11 represents a breakthrough in multi-channel signal acquisition technology for Honeywell Experion Process Knowledge System deployments. This industrial-grade module transforms raw field signals into actionable process data through 16 independently isolated HART-enabled channels, each delivering 16-bit resolution with ±0.1% accuracy across temperature ranges from 0°C to 60°C. Designed for mission-critical environments where downtime translates to revenue loss, the hot-swappable architecture enables maintenance without process interruption.

Process engineers and automation specialists rely on the BC-THAI11 to consolidate diverse analog signals—4-20 mA current loops, 1-5 VDC, and ±10 VDC voltage inputs—into a single, space-efficient package. Whether you're monitoring reactor temperatures in chemical synthesis, tracking flow rates in pipeline operations, or managing pressure profiles in power generation, this module serves as the critical interface between field instrumentation and your control strategy.

What sets the BC-THAI11 apart is its dual-layer communication capability: simultaneous 4-20 mA process variable transmission and HART digital diagnostics. This means you gain real-time access to transmitter health data, calibration status, and configuration parameters without disrupting the primary control loop—a game-changer for predictive maintenance programs and regulatory compliance documentation.

Core Capabilities & Business Value

✓ 16 Differential Channels with Galvanic Isolation
Eliminate ground loop interference and cross-channel noise. Each input features channel-to-channel and channel-to-bus isolation, protecting signal integrity in electrically noisy industrial environments. Business impact: Reduce false alarms by up to 60% and improve control loop stability.

→ HART Protocol Overlay on Every Channel
Access advanced diagnostics from smart transmitters while maintaining standard 4-20 mA operation. Query device status, retrieve calibration dates, and adjust configurations remotely. Business impact: Cut field service visits by 35% through remote troubleshooting.

✓ Hot-Swap Capability for Zero-Downtime Maintenance
Replace modules during operation without shutting down the C300 controller chassis. Automatic configuration restoration ensures seamless transition. Business impact: Avoid production losses averaging $50,000+ per unplanned shutdown.

→ Universal Signal Compatibility
Software-configurable inputs accept current (4-20 mA) or voltage (1-5 VDC, ±10 VDC) signals without hardware changes. Mix sensor types freely across channels. Business impact: Reduce spare parts inventory by 40% through standardized modules.

✓ 16-Bit A/D Conversion with 0.1% Accuracy
Capture subtle process variations that 12-bit systems miss. Ideal for applications requiring tight control tolerances or early deviation detection. Business impact: Improve product quality consistency and reduce material waste.

→ Backward & Forward Compatibility
Works with legacy Experion C200 controllers and current C300 platforms. Protect your infrastructure investment during phased upgrades. Business impact: Extend system lifecycle by 5-7 years without forklift replacement.

Industry Applications & Problem-Solving

Oil & Gas Production Facilities
Challenge: Monitoring wellhead pressures, separator levels, and pipeline flow rates across remote locations with limited technician access.
Solution: BC-THAI11's HART diagnostics enable remote validation of transmitter performance, while high channel density reduces junction box requirements in hazardous areas. Extended cable run support (up to 1500m for 4-20 mA) simplifies field wiring in sprawling facilities.

Chemical Manufacturing & Batch Processing
Challenge: Achieving recipe consistency across multiple reactors while meeting FDA 21 CFR Part 11 audit trail requirements.
Solution: Precision 16-bit conversion captures critical temperature and pH variations. HART data logging provides automatic documentation of sensor calibration status for regulatory inspections, eliminating manual record-keeping.

Power Generation & Cogeneration Plants
Challenge: Balancing boiler efficiency with emissions compliance through precise fuel-air ratio control.
Solution: Low-latency signal processing (< 100 ms update rate) supports fast-acting control loops. Noise immunity prevents false trips from electrical interference near high-voltage equipment, reducing nuisance shutdowns by 70%.

Water & Wastewater Treatment
Challenge: Managing variable influent conditions while maintaining discharge permit limits for pH, turbidity, and dissolved oxygen.
Solution: Multi-signal capability allows simultaneous monitoring of flow meters, analyzers, and level transmitters on a single module. Isolation protects sensitive analytical instruments from ground potential differences in outdoor installations.

Pharmaceutical & Biotech Production
Challenge: Validating critical process parameters (CPPs) for sterile manufacturing under cGMP guidelines.
Solution: Factory calibration certificates and 5-year stability specifications simplify IQ/OQ/PQ validation protocols. HART asset management integration with Experion PKS provides automated calibration due-date tracking.

Technical Parameters & Selection Guide

Selection Criteria: Choose the BC-THAI11 when your application requires (1) high channel density to minimize cabinet footprint, (2) HART diagnostics for predictive maintenance programs, (3) hot-swap capability for high-availability processes, or (4) mixed signal types within a single module. For applications needing only 8 channels or lacking HART requirements, consider the BC-TAIH11 as a cost-optimized alternative.

Advanced Integration Features

Experion Station Integration: The BC-THAI11 auto-discovers within Experion Control Builder, presenting all 16 channels as configurable function blocks. Drag-and-drop configuration accelerates commissioning—typical setup time is under 30 minutes per module versus 2+ hours for legacy systems.

Asset Management Connectivity: HART variables automatically populate Honeywell's Experion Asset Management (EAM) database, creating a digital twin of your field instrumentation. Track calibration schedules, monitor drift trends, and generate maintenance work orders based on predictive analytics rather than fixed intervals.

Cybersecurity Compliance: Firmware supports IEC 62443 industrial cybersecurity standards with role-based access control and encrypted configuration files. Meets requirements for critical infrastructure protection in regulated industries.

Custom Scaling & Linearization: Built-in math functions support square root extraction for flow calculations, polynomial linearization for non-linear sensors, and custom characterization tables—eliminating the need for external signal conditioners in 80% of applications.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: Factory-programmed modules with pre-loaded channel assignments available with 7-10 business day lead time. Ideal for large projects requiring plug-and-play deployment.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty options available for up to 36 months.

Technical Support: Lifetime access to our application engineering team for configuration assistance, troubleshooting, and system optimization. Average response time: < 4 hours during business hours (GMT+8).

Documentation Package: Every module ships with installation manual, wiring diagrams, Control Builder configuration templates, and calibration certificate. Downloadable resources include 3D CAD models and sample ladder logic.

Frequently Asked Questions

How does the BC-THAI11 handle HART multidrop configurations?
The module supports point-to-point HART only (one device per channel). For HART multidrop applications requiring multiple devices on a single pair, consider the BC-THMI11 multiplexer module which supports up to 15 devices per channel.

What cable specifications are recommended for optimal signal integrity?
Use 18 AWG (0.75 mm²) shielded twisted-pair cable with 100% foil + 85% braid coverage. Maximum loop resistance: 600Ω for 4-20 mA circuits. For voltage inputs, maintain cable capacitance below 0.1 µF to prevent signal degradation.

Can I retrofit BC-THAI11 modules into existing C200 controller chassis?
No, the BC-THAI11 is designed exclusively for C300 chassis. For C200 systems, use the legacy MC-TAIH12 module. However, C200-to-C300 migration kits are available that preserve your existing I/O termination assemblies, reducing upgrade costs by approximately 50%.

What is the typical power consumption impact when adding multiple modules?
Each BC-THAI11 draws 8W nominal. A fully populated 12-slot C300 chassis with all analog input modules would consume ~96W, well within the 250W backplane capacity. Always verify total load using Honeywell's C300 Power Budget Calculator tool.

Does the module require periodic recalibration for accuracy maintenance?
Factory calibration remains valid for 5 years under normal operating conditions (non-corrosive atmosphere, stable temperature). For applications subject to regulatory validation (pharmaceutical, food & beverage), annual verification is recommended using a precision calibrator traceable to NIST standards.

How do I access HART data from third-party HMI or historian systems?
Experion PKS exposes HART variables via OPC UA and Modbus TCP interfaces. Configure the desired HART parameters (e.g., sensor temperature, diagnostics flags) as published tags in Control Builder, then map them to your SCADA or historian using standard OPC clients.

Start Optimizing Your Process Control Today

Ready to reduce wiring costs, improve diagnostic capabilities, and future-proof your Experion PKS infrastructure? Our application specialists are standing by to discuss your specific requirements, provide compatibility verification for your existing system, and develop a migration roadmap that minimizes disruption to ongoing operations.

Contact our team now: Email sale@ninermas.com or call +0086 187 5021 5667 to request a detailed quotation, technical datasheet, or schedule a virtual consultation with our Experion PKS experts.
