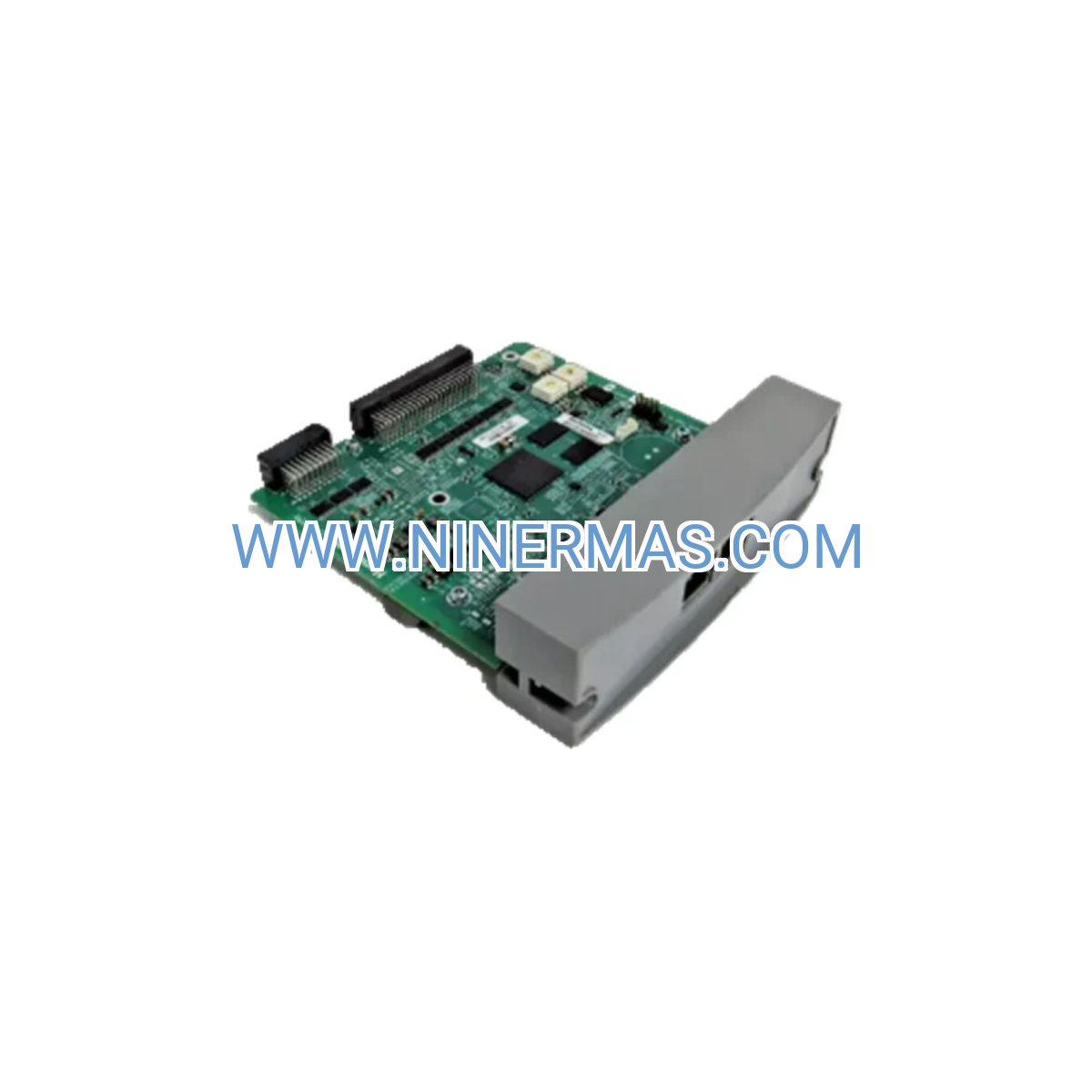

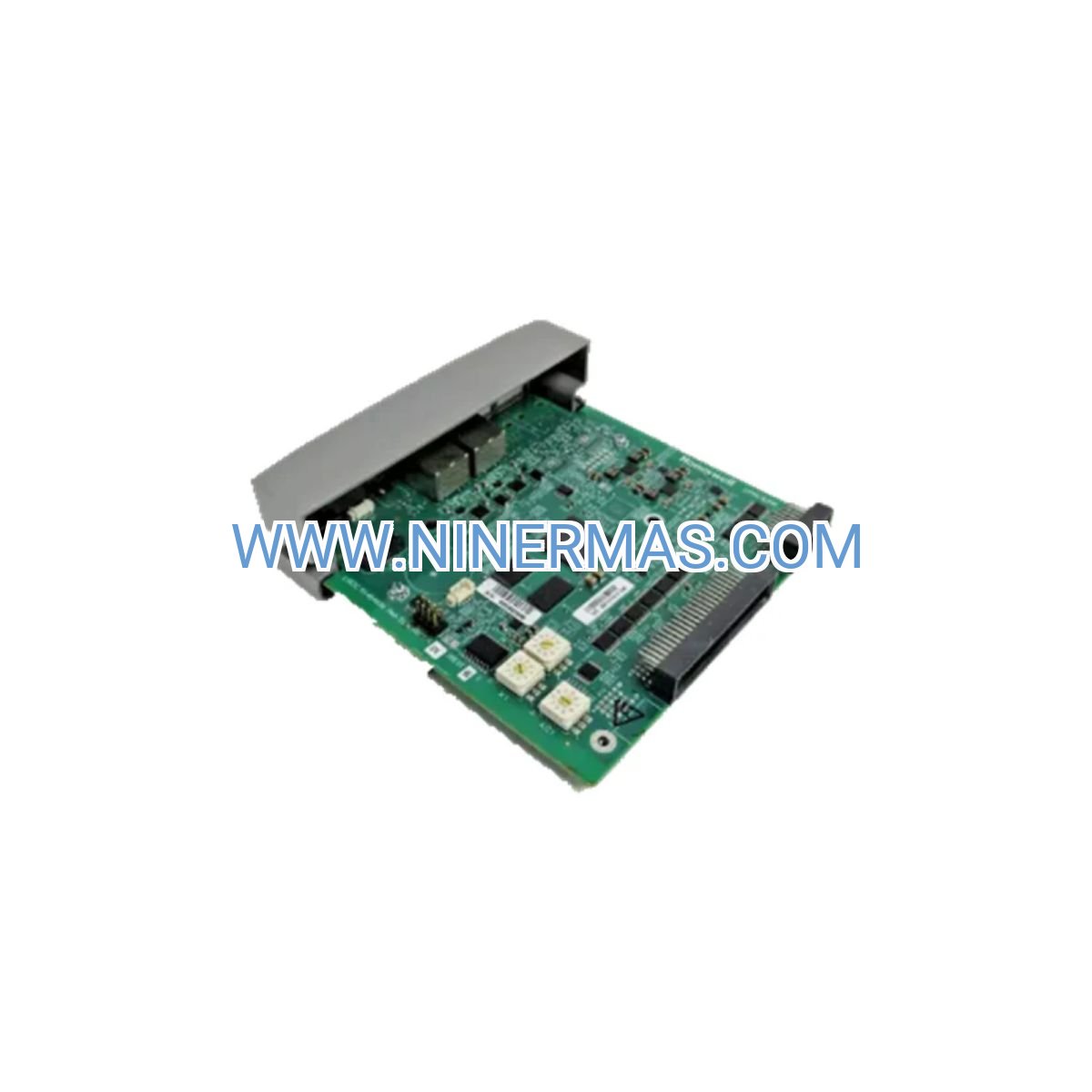

ABB SPFEC12 Analog Input Module (Industrial-Grade Multi-Channel Signal Processor)

The ABB SPFEC12 represents a proven solution for high-density analog signal acquisition in process automation environments. This industrial-grade module consolidates 15 independent input channels into a compact DIN-rail package, enabling cost-effective expansion of distributed control systems while maintaining measurement integrity across temperature, pressure, flow, and level monitoring applications.

Designed for integration into ABB Symphony Plus and AC 800M control architectures, the SPFEC12 addresses the challenge of multi-point data collection in space-constrained control cabinets. Process engineers and system integrators rely on this module to reduce wiring complexity, minimize installation footprint, and accelerate commissioning timelines in chemical processing, water treatment, and energy management facilities.

With field-proven reliability in harsh industrial conditions and comprehensive diagnostic capabilities, the SPFEC12 delivers the measurement accuracy and system uptime required for critical process control loops. Its hot-swappable design and self-calibration features reduce maintenance costs while ensuring continuous operation in 24/7 production environments.

Core Capabilities & Technical Advantages

→ 15 Isolated Analog Inputs
Simultaneous acquisition of 4-20 mA current loops and 1-5 V voltage signals with channel-to-channel isolation, eliminating ground loop interference and protecting against cross-talk in multi-sensor installations.

→ High-Resolution 16-Bit Conversion
Precision A/D conversion delivers ±0.1% full-scale accuracy, enabling detection of subtle process variations critical for quality control, energy optimization, and predictive maintenance strategies.

✓ Extended Temperature Range (-40°C to +70°C)
Ruggedized electronics withstand extreme ambient conditions in outdoor enclosures, boiler rooms, and refrigeration facilities without performance degradation or calibration drift.

✓ Fieldbus-Ready Communication
Native compatibility with Modbus RTU/TCP and ABB proprietary protocols ensures seamless integration with existing SCADA infrastructure, third-party PLCs, and cloud-based analytics platforms.

✓ Hot-Swap Capability
Field-replaceable architecture allows module exchange during live operation, minimizing downtime during maintenance cycles and supporting rapid fault recovery in mission-critical processes.

✓ Intelligent Diagnostics
Built-in self-test routines continuously monitor signal integrity, power supply status, and communication health, triggering early warnings before failures impact production output.

Industry Applications & Use Cases

Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and flow rates across multi-stage batch processes. The SPFEC12's isolation protects control systems from electrical noise generated by variable frequency drives and high-voltage equipment, ensuring stable PID loop performance.

Water & Wastewater Treatment
Track pH levels, turbidity, dissolved oxygen, and chemical dosing rates in treatment trains. Galvanic isolation prevents corrosion-induced measurement errors in wet environments, while the extended temperature rating supports outdoor installation in pump stations and clarifiers.

Power Generation & Distribution
Supervise generator voltage, transformer currents, and auxiliary system parameters in substations and co-generation facilities. High accuracy enables compliance with grid code requirements and supports condition-based maintenance programs.

Food & Beverage Manufacturing
Control pasteurization temperatures, fermentation pressures, and CIP (clean-in-place) flow rates with the precision required for HACCP compliance. The module's compact footprint fits into hygienic control panels with limited space allocation.

HVAC & Building Automation
Aggregate chiller performance data, boiler efficiency metrics, and air handling unit setpoints across campus-wide energy management systems. Modbus connectivity simplifies integration with BACnet gateways and building management software.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SPFEC12 when your application requires high-density analog input consolidation with superior noise immunity. For applications with fewer than 10 channels, consider the ABB AI523 8-channel module for cost optimization. If advanced diagnostics and predictive maintenance features are priorities, evaluate the IMFEC12 variant with enhanced onboard intelligence.

Advanced Integration & Connectivity Options

The SPFEC12 supports seamless integration with ABB Control Builder software, providing drag-and-drop configuration of input scaling, alarm thresholds, and data logging parameters. Engineers can leverage pre-built function blocks for common process calculations (flow totalization, averaging, rate-of-change detection) to accelerate programming cycles.

For IoT-enabled operations, the module's Modbus TCP interface connects directly to edge computing gateways, enabling real-time data streaming to cloud analytics platforms (AWS IoT, Azure Industrial IoT, Google Cloud Platform). This architecture supports remote monitoring dashboards, machine learning-based anomaly detection, and mobile alert notifications.

Customization options include factory-configured input ranges, customer-specific calibration certificates, and extended warranty packages for critical infrastructure projects. Consult with our application engineers to specify optimal configurations for your unique process requirements.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days. Custom-configured modules require 10-15 business days for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 60 months.

Technical Assistance: Access to ABB-certified application engineers for pre-sales consultation, system design review, and post-installation troubleshooting. Remote diagnostic support available via secure VPN connection.

Documentation Package: Each module includes installation manual, wiring diagrams, Modbus register map, Control Builder library files, and calibration certificate. CAD drawings (DWG/DXF) and 3D STEP models available for download.

Frequently Asked Questions

How do I connect the SPFEC12 to my existing Modbus network?
The module features screw-terminal connections for RS-485 Modbus RTU (A/B/GND) or RJ45 Ethernet port for Modbus TCP. Configure the device address (1-247) and baud rate (9600-115200 bps) via DIP switches or software utility. Refer to Section 4.2 of the installation manual for detailed wiring schematics.

What is the maximum cable length for 4-20 mA sensor connections?
With proper shielded twisted-pair cable (18-22 AWG), the SPFEC12 supports sensor runs up to 1000 meters (3280 feet) without signal degradation. For installations exceeding 500 meters, use low-capacitance instrumentation cable and verify loop resistance remains below 600 ohms.

Can this module reduce energy consumption in my control system?
Yes. By consolidating 15 inputs into a single module (versus multiple 4-channel cards), the SPFEC12 reduces overall power draw by approximately 30-40% compared to distributed I/O architectures. Lower heat generation also decreases cooling requirements in control cabinets.

What installation clearances are required for proper ventilation?
Maintain minimum 25 mm (1 inch) spacing above and below the module for convective cooling. In high-ambient-temperature environments (>50°C), increase spacing to 50 mm or install forced-air ventilation to ensure thermal performance within specifications.

Does the SPFEC12 support remote monitoring and diagnostics?
Absolutely. When connected via Modbus TCP, the module exposes diagnostic registers for channel health, power supply voltage, internal temperature, and communication error counters. Integrate these parameters into your SCADA system for real-time status visualization and automated alarm generation.

Is the module suitable for hazardous area installations?
The SPFEC12 carries ATEX Zone 2 and IECEx certification for installation in non-hazardous areas of facilities with occasional explosive atmospheres. For Zone 1/Division 1 applications, specify the intrinsically safe barrier version (SPFEC12-IS) with appropriate Zener barriers.

Get Started with Your Signal Acquisition Upgrade

Ready to enhance your process monitoring capabilities? Contact our industrial automation specialists for a free system assessment and customized quotation. We'll help you determine the optimal module quantity, recommend compatible accessories (terminal blocks, surge protectors, cable assemblies), and provide integration support to ensure seamless deployment.

Request a quote today: Email your application details to our team, or call our technical hotline for immediate assistance with product selection and pricing.
