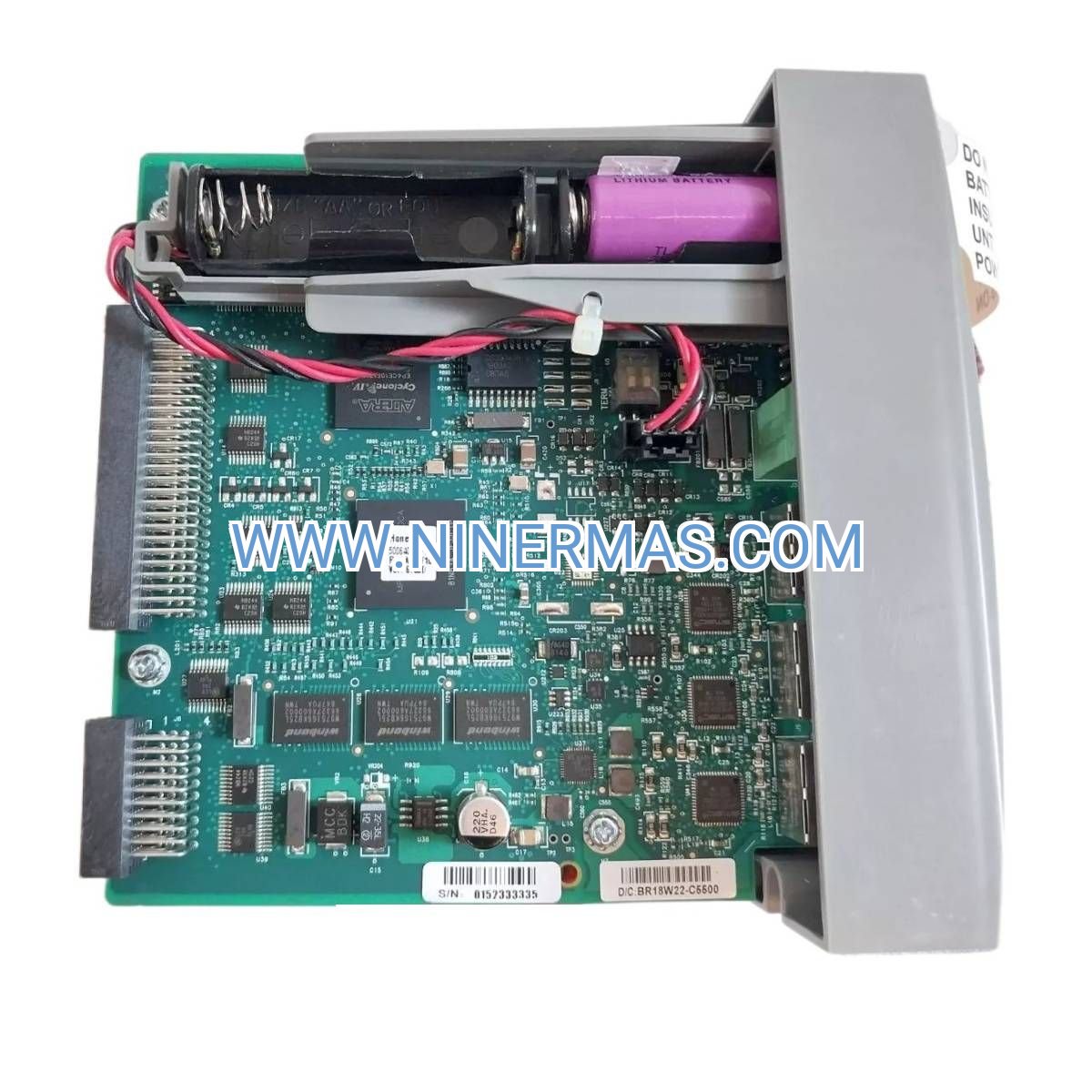

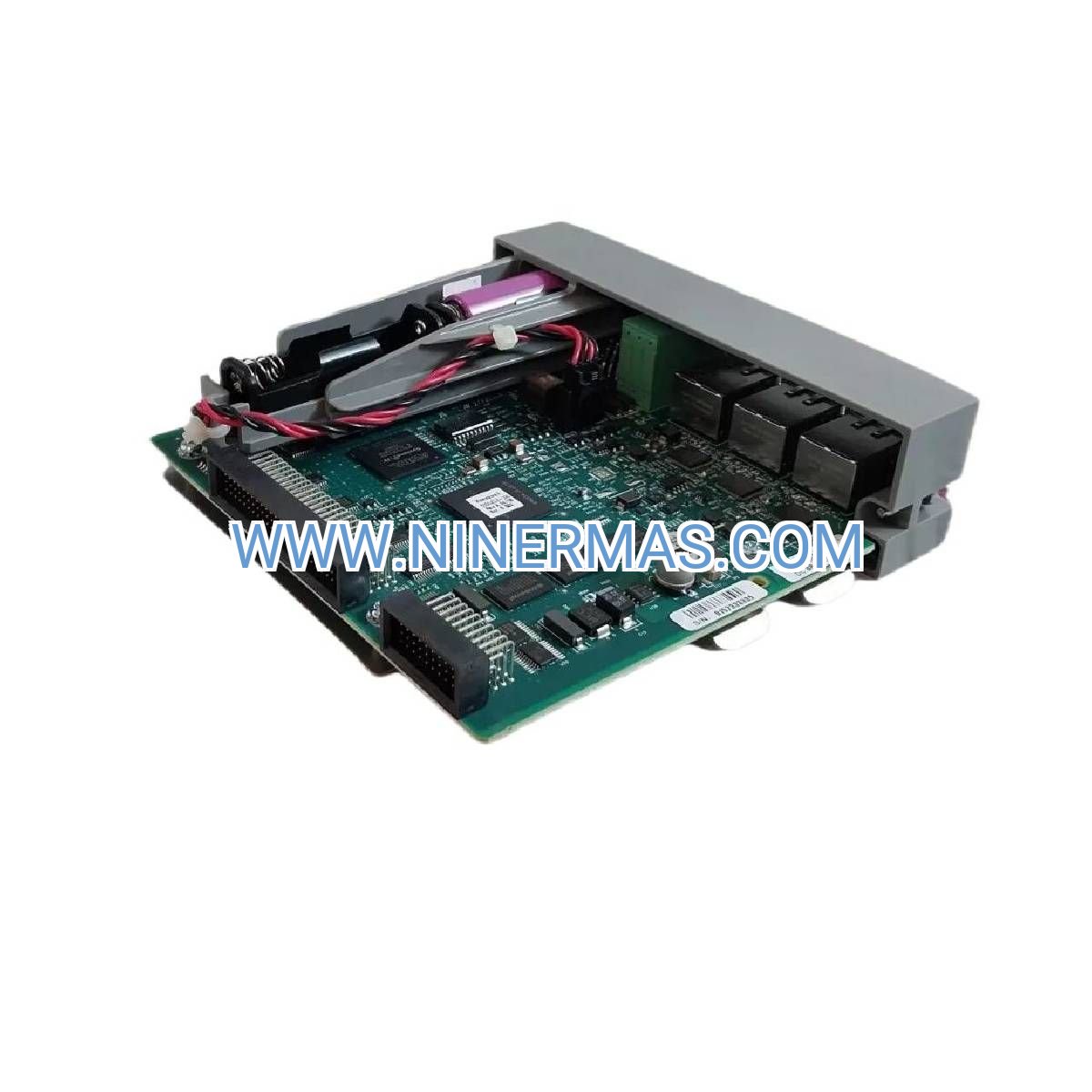

900C75-0560 ControlEdge 900 CPU Module (Industrial-Grade Process Controller)

The 900C75-0560 represents Honeywell's next-generation CPU architecture for the ControlEdge 900 distributed control platform. Engineered for mission-critical process automation, this controller delivers deterministic performance across oil & gas, water treatment, manufacturing, and power generation sectors. With native Modbus RTU and Ethernet/IP protocols, the module bridges legacy infrastructure with modern IIoT ecosystems while maintaining microsecond-level scan cycle precision.

Designed for harsh industrial environments, the CPU operates reliably from -40°C to +70°C without derating, accepts universal 85-264V AC power input, and supports hot-standby redundancy configurations. Whether you're upgrading aging DCS infrastructure or deploying greenfield automation projects, the ControlEdge 900 CPU provides the processing horsepower and communication flexibility demanded by today's smart manufacturing initiatives.

This controller integrates seamlessly with distributed I/O racks, third-party SCADA systems, and Honeywell's Experion ecosystem, offering unmatched scalability for systems ranging from standalone skid packages to enterprise-wide process control networks. Certified for Zone 2/Division 2 hazardous locations (ATEX/IECEx), the 900C75-0560 meets global safety standards while delivering the reliability industrial operators expect from Honeywell automation technology.

Core Capabilities & Technical Advantages

→ Deterministic Real-Time Processing
Proprietary scan engine executes control logic with sub-millisecond jitter, ensuring predictable response times for closed-loop PID control, sequential batch operations, and safety-interlocked processes. Ideal for applications where timing precision directly impacts product quality or operational safety.

→ Multi-Protocol Communication Architecture
Dual-port design supports simultaneous Modbus RTU (RS-485) and Ethernet/IP connectivity, eliminating the need for protocol gateways. Native OPC UA server functionality enables direct integration with MES/ERP systems, while legacy Modbus compatibility preserves investments in existing field instrumentation.

→ Extended Environmental Tolerance
Conformal-coated PCBs and industrial-grade components withstand temperature extremes (-40°C to +70°C), humidity fluctuations (5-95% RH), and vibration/shock conditions typical of offshore platforms, mining operations, and outdoor enclosures. No forced-air cooling required, reducing maintenance overhead.

✓ Universal Power Supply Compatibility
Wide-range AC input (85-264V, 47-63 Hz) accommodates global voltage standards without step-down transformers, simplifying international deployments and reducing panel space requirements. Built-in surge protection guards against transient voltage spikes common in industrial power distribution systems.

✓ Hot-Standby Redundancy Support
Bumpless failover architecture synchronizes control states between primary and backup CPUs in real-time. Automatic switchover occurs within 50 milliseconds upon primary controller failure, maintaining process continuity for critical applications like compressor control, distillation columns, and wastewater treatment.

✓ Scalable I/O Capacity
Supports up to 2,048 discrete points and 512 analog channels through distributed I/O networks, accommodating everything from small skid-mounted packages to plant-wide control systems. Modular expansion eliminates over-provisioning costs while future-proofing system growth.

Industry Applications & Use Cases

Upstream Oil & Gas Production
The 900C75-0560 CPU manages wellhead control panels, separator automation, and pipeline monitoring in remote locations where temperature extremes and power quality issues challenge conventional PLCs. Modbus RTU connectivity integrates legacy RTUs and flow computers without costly retrofits. Operators achieve 99.9% uptime through redundant controller configurations, minimizing production losses from equipment failures.

Municipal Water & Wastewater Systems
Deploy this controller for lift station management, chemical feed control, and filtration process optimization. The wide operating temperature range suits outdoor pump stations and unheated buildings, while Ethernet/IP communication enables centralized SCADA monitoring across distributed facilities. Typical installations reduce energy consumption 15-20% through optimized pump sequencing and variable frequency drive integration.

Batch Manufacturing & Process Industries
Pharmaceutical, food & beverage, and specialty chemical manufacturers leverage the CPU's IEC 61131-3 programming environment for recipe management, material tracking, and regulatory compliance documentation. Built-in audit trails and electronic signatures support FDA 21 CFR Part 11 validation requirements, while deterministic scan cycles ensure repeatable batch quality.

Power Generation Auxiliary Systems
Control boiler feedwater pumps, cooling tower fans, emissions monitoring equipment, and fuel handling systems with a single controller platform. The ControlEdge 900 architecture interfaces with turbine control systems via Modbus, consolidating auxiliary process control while maintaining isolation from critical generation equipment per NERC CIP cybersecurity standards.

Mining & Metals Processing
Crusher control, conveyor interlocking, and ore processing applications benefit from the CPU's vibration tolerance and dust-resistant enclosure ratings. Redundant configurations prevent costly downtime in continuous mining operations, while remote diagnostics via Ethernet reduce site visit requirements for geographically dispersed facilities.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 900C75-0560 when your application requires Modbus RTU serial communication, moderate I/O density (under 2000 points), and standard (non-safety) control functions. For safety-rated applications, consider the 900C75-0561 variant with SIL 2 certification. Projects exceeding 2000 I/O points should evaluate the 900C76 series with enhanced processing capacity.

Advanced Integration & Expansion Options

IIoT Connectivity & Cloud Integration
Built-in OPC UA server enables direct data publishing to cloud platforms (AWS IoT, Azure IoT Hub, Google Cloud IoT) without edge gateways. MQTT client functionality supports lightweight telemetry streaming for predictive maintenance analytics and remote performance monitoring. Cybersecurity features include TLS 1.3 encryption, role-based access control, and audit logging compliant with IEC 62443 industrial security standards.

Programming Environment Flexibility
ControlEdge Builder software supports all five IEC 61131-3 languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), and Instruction List (IL). Pre-built function blocks for PID control, totalizers, and alarm management accelerate development, while simulation mode enables offline testing before commissioning.

Customization & OEM Solutions
Honeywell offers firmware customization for high-volume OEM applications, including custom communication protocols, specialized control algorithms, and branded HMI interfaces. Consult our application engineering team for projects requiring 50+ controllers or unique functional requirements beyond standard catalog capabilities.

Delivery, Warranty & Technical Support

Lead Times: Stock units ship within 3-5 business days via express courier (DHL/FedEx). Custom-configured controllers with pre-loaded programs require 10-15 business days. Bulk orders (10+ units) qualify for expedited production scheduling and volume pricing—contact our sales team for project-specific quotations.

Warranty Coverage: Every 900C75-0560 CPU module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) available for critical infrastructure applications. Warranty includes advance replacement service with next-business-day shipping for qualified failures.

Technical Support Services: Our certified Honeywell engineers provide complimentary pre-sales application consultation, including I/O sizing, network architecture design, and communication protocol selection. Post-purchase support includes configuration assistance, troubleshooting guidance, firmware updates, and on-site commissioning services (quoted separately).

Documentation Package: Each controller ships with installation manual, quick-start guide, Modbus register map, and ControlEdge Builder software license (USB dongle). CAD drawings (DWG/PDF), 3D STEP models, and sample ladder logic programs available for download from our technical resource library.

Frequently Asked Questions

Can the 900C75-0560 replace older ControlEdge UOC controllers in existing systems?
Yes, the CPU maintains backward compatibility with ControlEdge UOC I/O modules and communication cards. Migration requires ControlEdge Builder version 3.5 or later to convert legacy programs. Our technical team provides complimentary migration assessment services to identify potential compatibility issues before hardware procurement.

What is the maximum Modbus RTU network distance supported?
The RS-485 port supports up to 1200 meters (4000 feet) at 9600 baud using twisted-pair cable with proper termination. For longer distances, deploy Modbus TCP over fiber optic Ethernet or use RS-485 repeaters at 1200-meter intervals. Network topology supports up to 32 slave devices per Modbus RTU segment.

Does this controller support IEC 61850 protocol for substation automation?
The standard 900C75-0560 does not include native IEC 61850 support. For utility substation applications, consider the ControlEdge RTU variant (900R series) with certified IEC 61850 MMS and GOOSE messaging. Alternatively, deploy a protocol gateway to bridge Modbus and IEC 61850 networks.

How do I implement redundant controller configurations?
Redundancy requires two 900C75-0560 CPUs, a redundancy link cable (part #900C75-REDLINK), and ControlEdge Builder Professional license. Controllers synchronize via dedicated Ethernet connection with configurable heartbeat intervals (10-1000 ms). Failover triggers automatically upon primary CPU fault, communication loss, or manual switchover command. Consult application note AN-CE900-RED for detailed wiring diagrams.

What cybersecurity features protect against industrial network threats?
The CPU implements multiple security layers: MAC address filtering, IP whitelisting, encrypted Modbus TCP (TLS), user authentication (LDAP/RADIUS), and role-based permissions (operator/engineer/administrator). Firmware updates require cryptographic signature verification. For defense-in-depth strategies, deploy industrial firewalls and network segmentation per ISA/IEC 62443 zone/conduit models.

Can I monitor controller diagnostics remotely without SCADA software?
Yes, the embedded web server provides browser-based access to real-time diagnostics, including CPU load, memory utilization, I/O health, and communication statistics. Mobile-responsive interface supports tablets and smartphones for field troubleshooting. SNMP traps enable integration with enterprise network management systems (Nagios, PRTG, SolarWinds).

Ready to Optimize Your Process Control Architecture?

The Honeywell 900C75-0560 ControlEdge 900 CPU delivers the processing power, communication flexibility, and environmental resilience demanded by modern industrial automation. Whether you're modernizing legacy DCS infrastructure, deploying new process control systems, or integrating IIoT analytics, this controller provides a future-proof foundation for operational excellence.

Request a technical consultation today to discuss your specific application requirements, receive customized I/O configuration recommendations, and obtain project-specific pricing. Our automation specialists are ready to help you design reliable, scalable control solutions that maximize uptime and minimize total cost of ownership.
