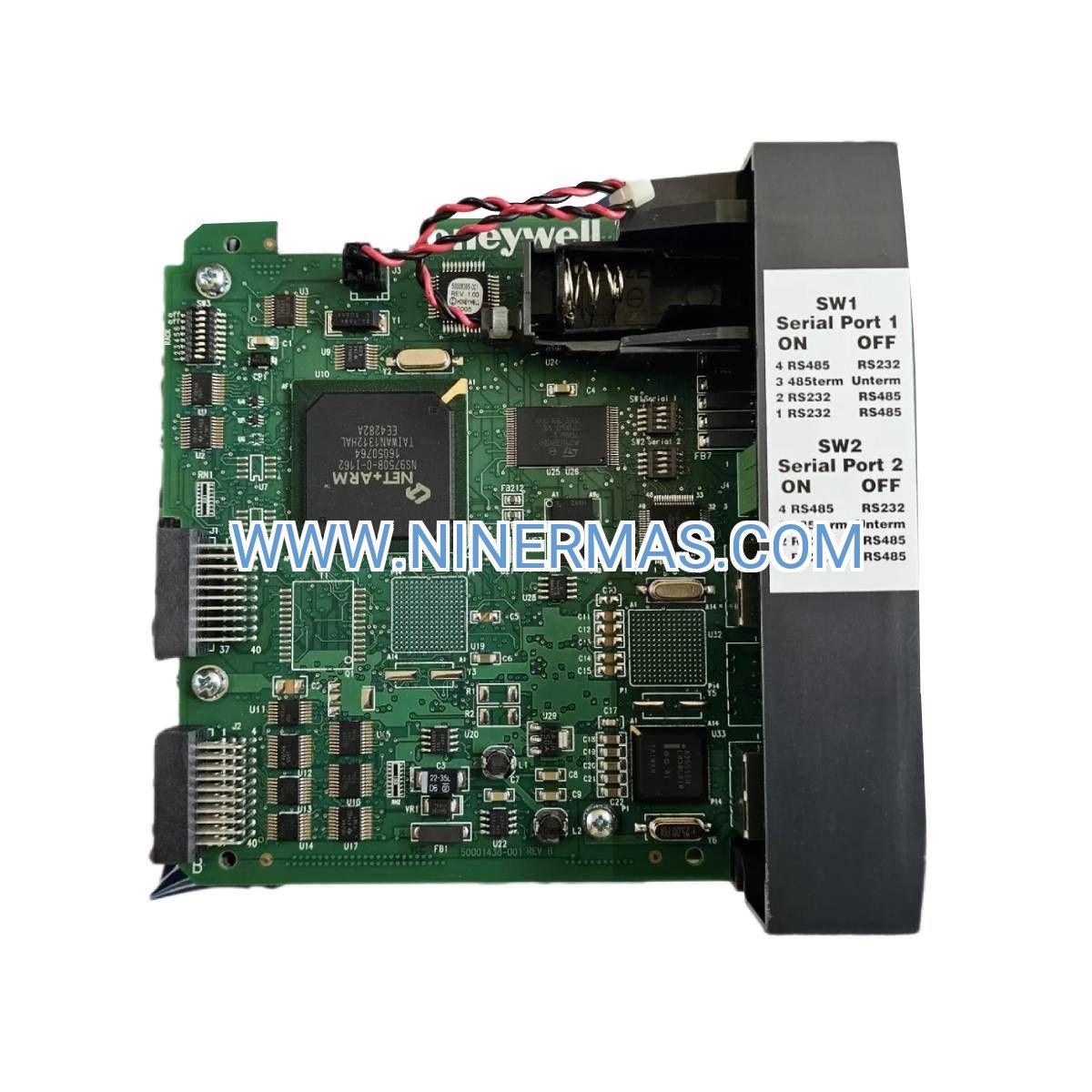

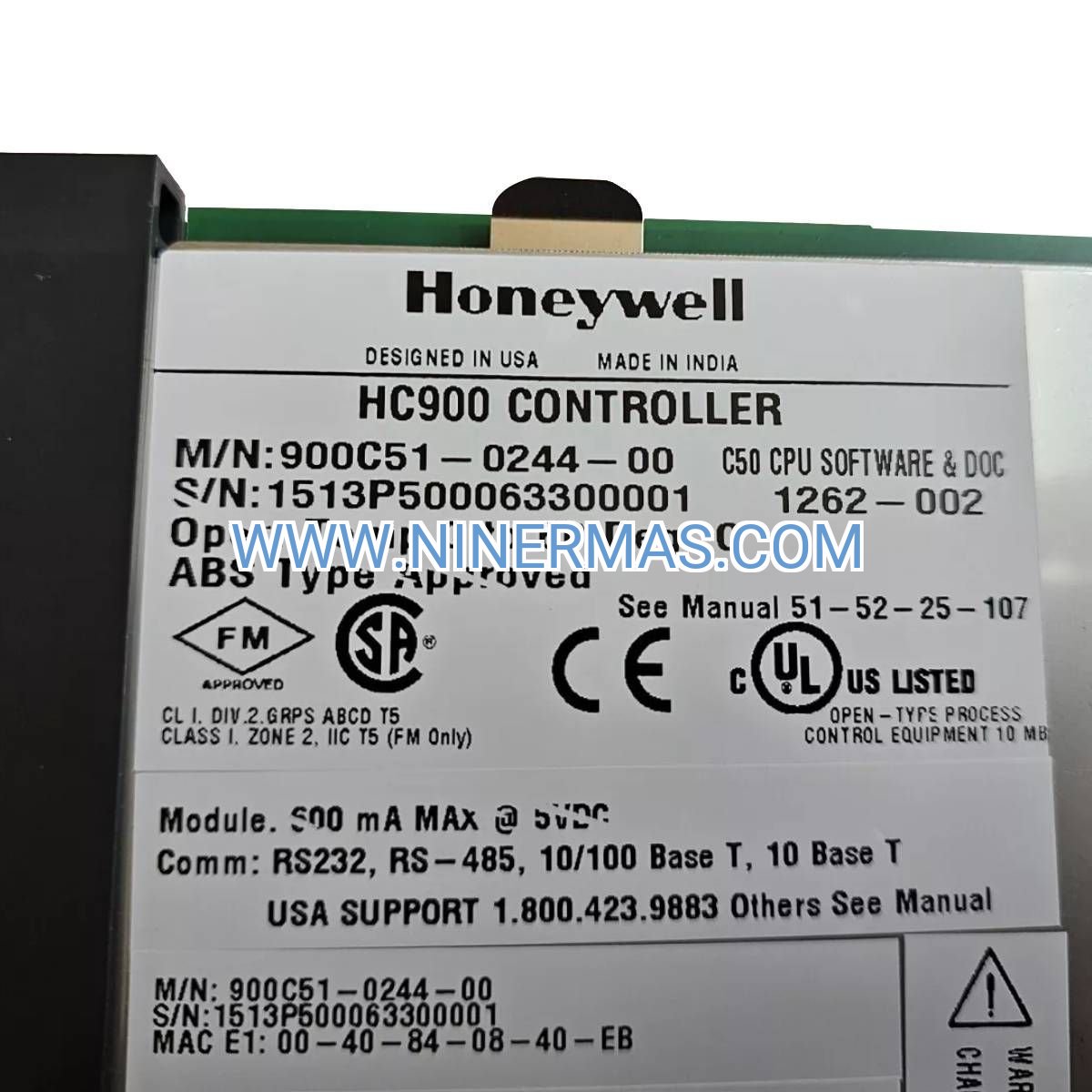

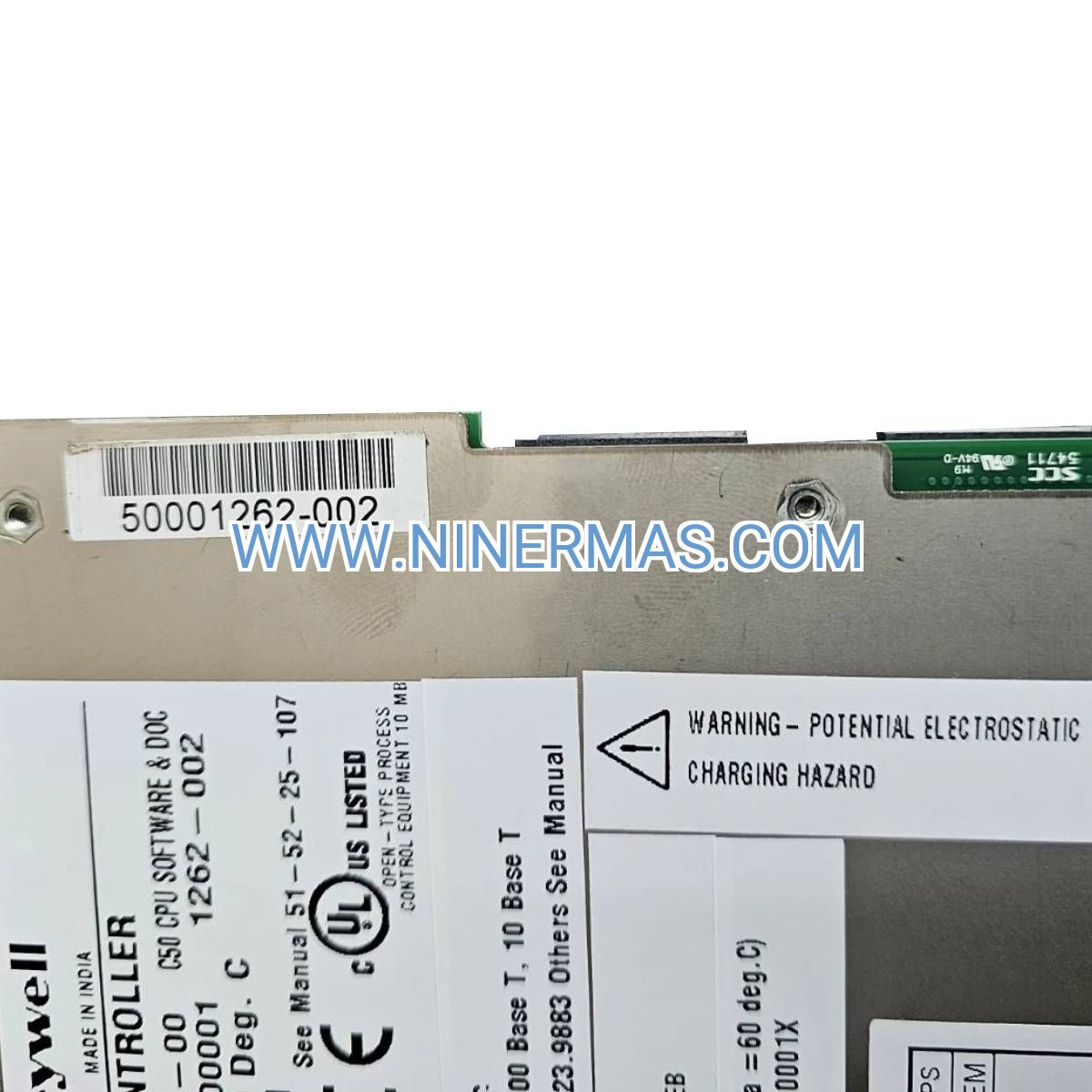

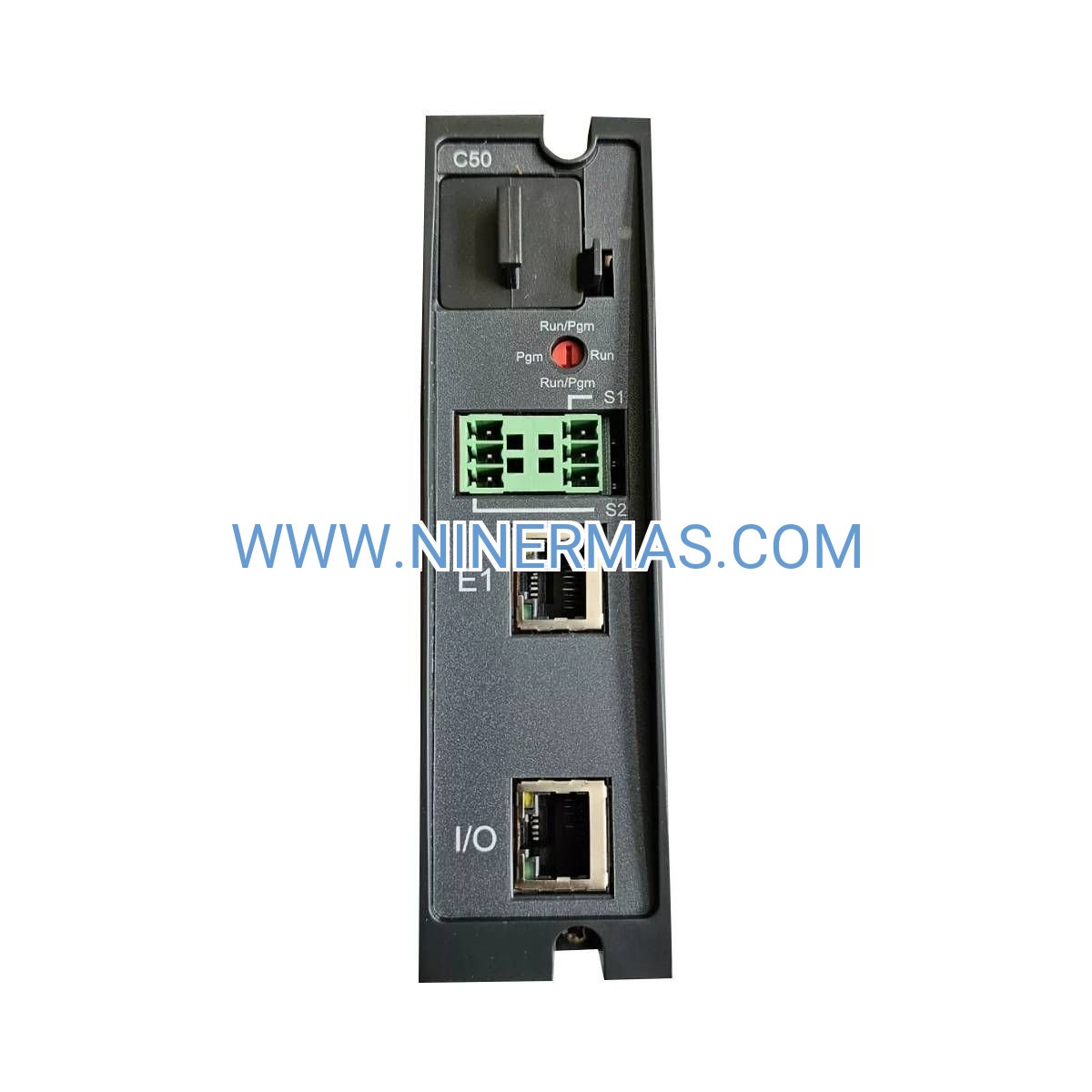

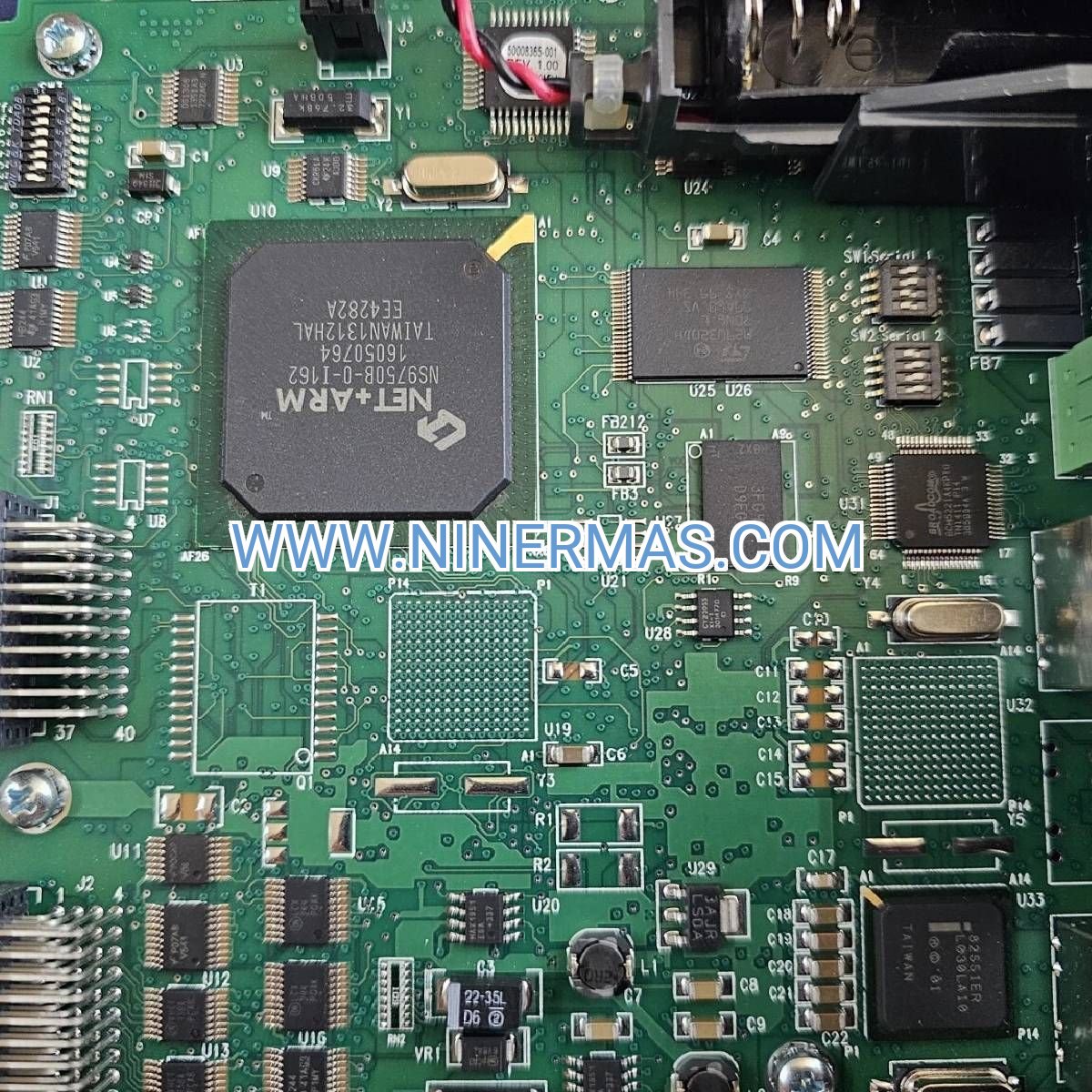

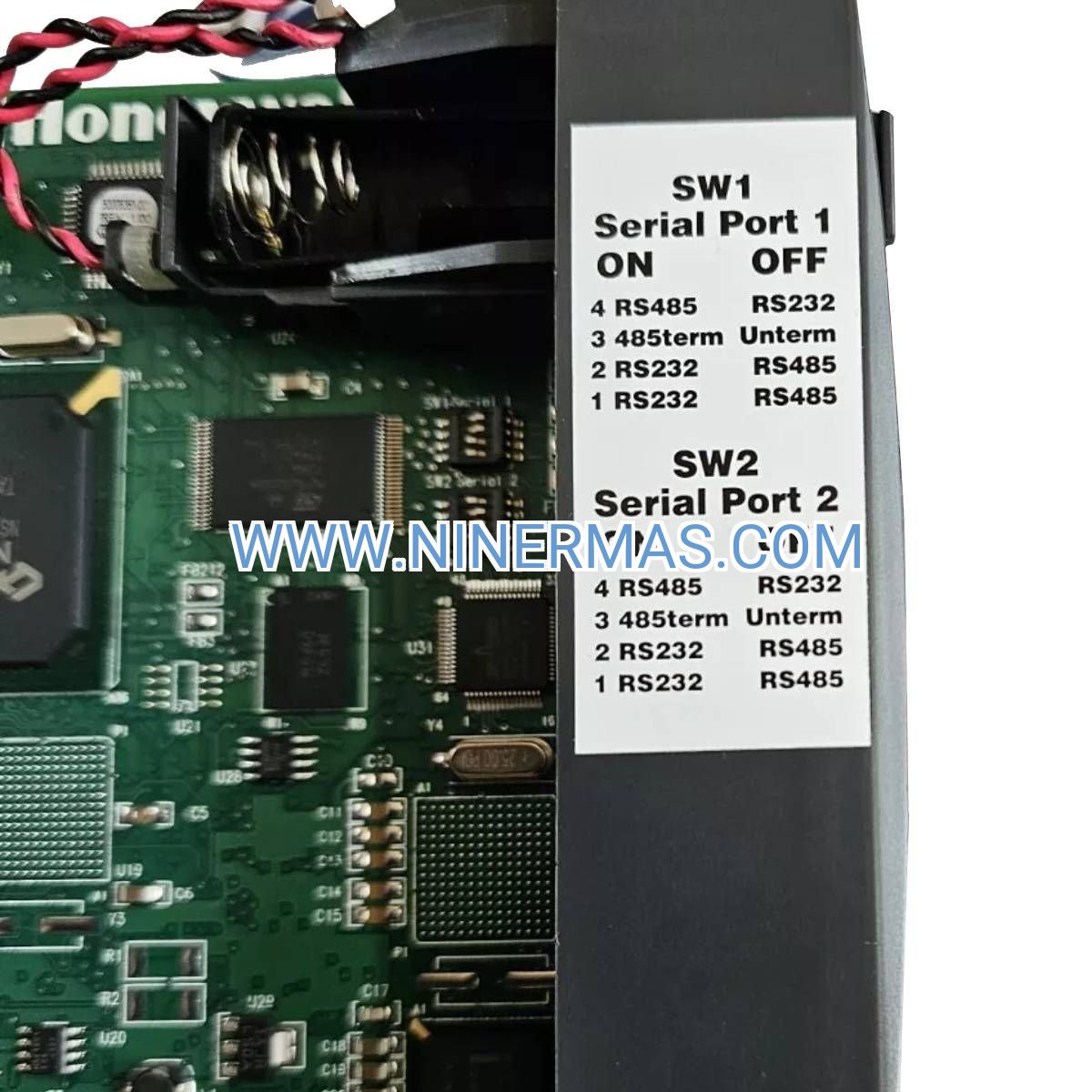

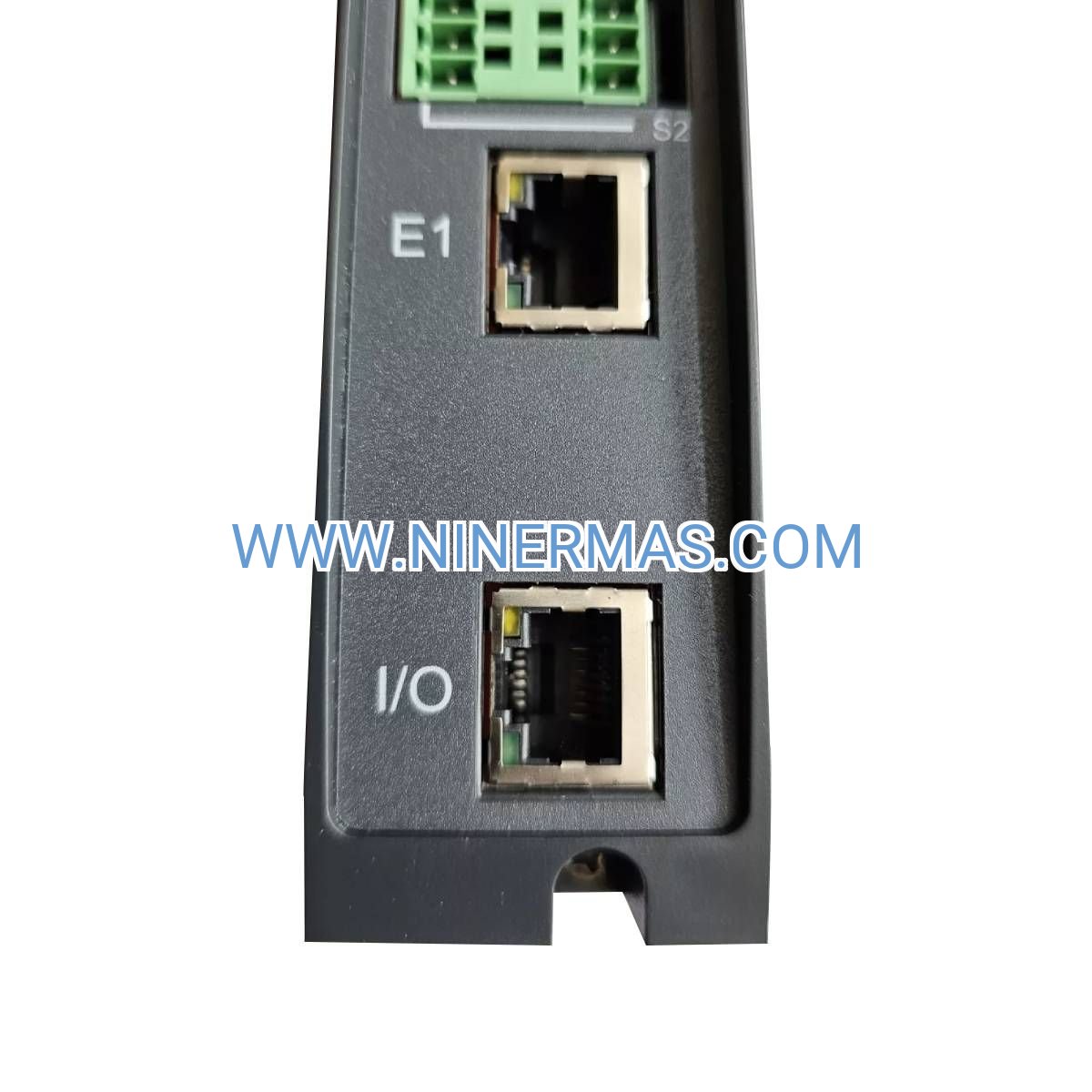

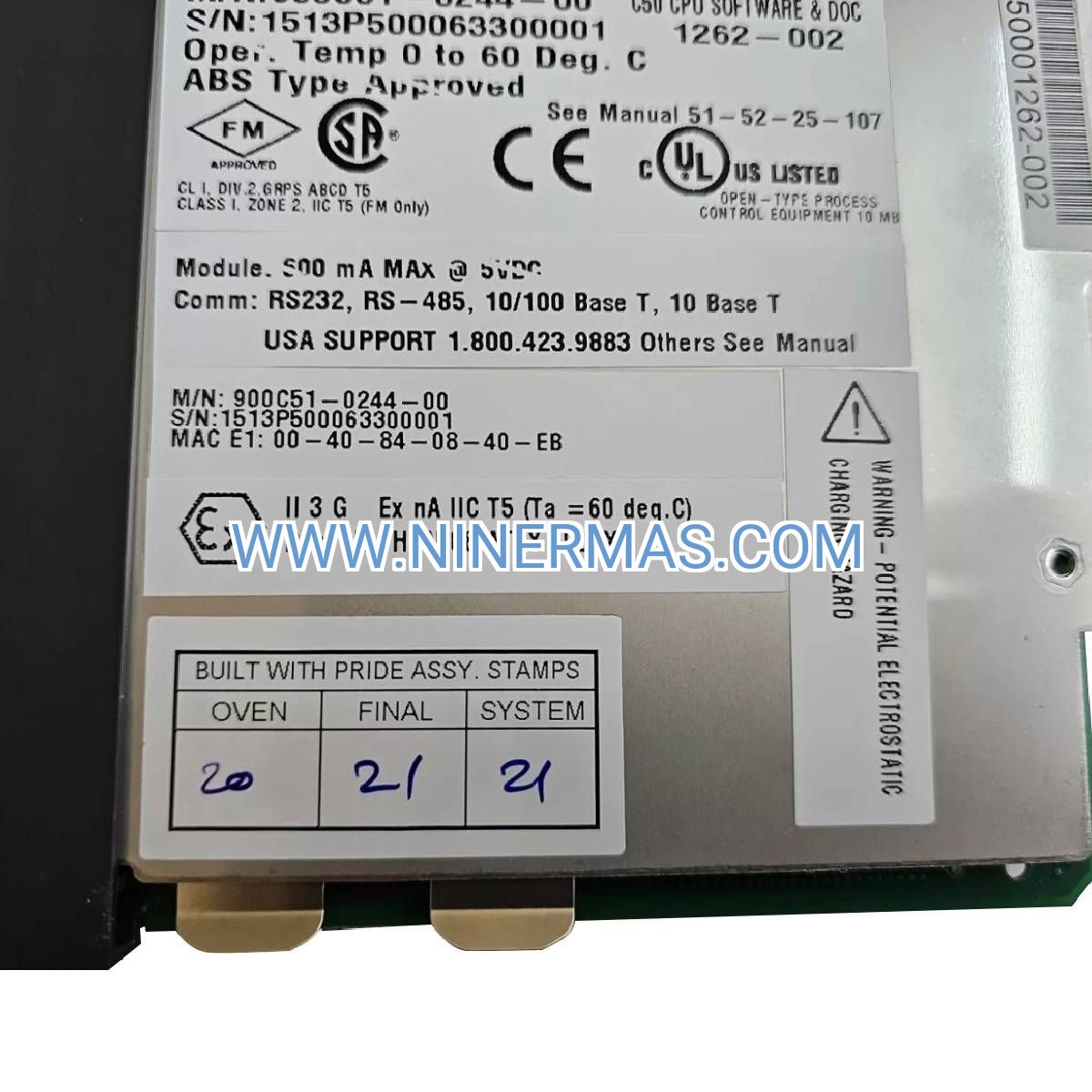

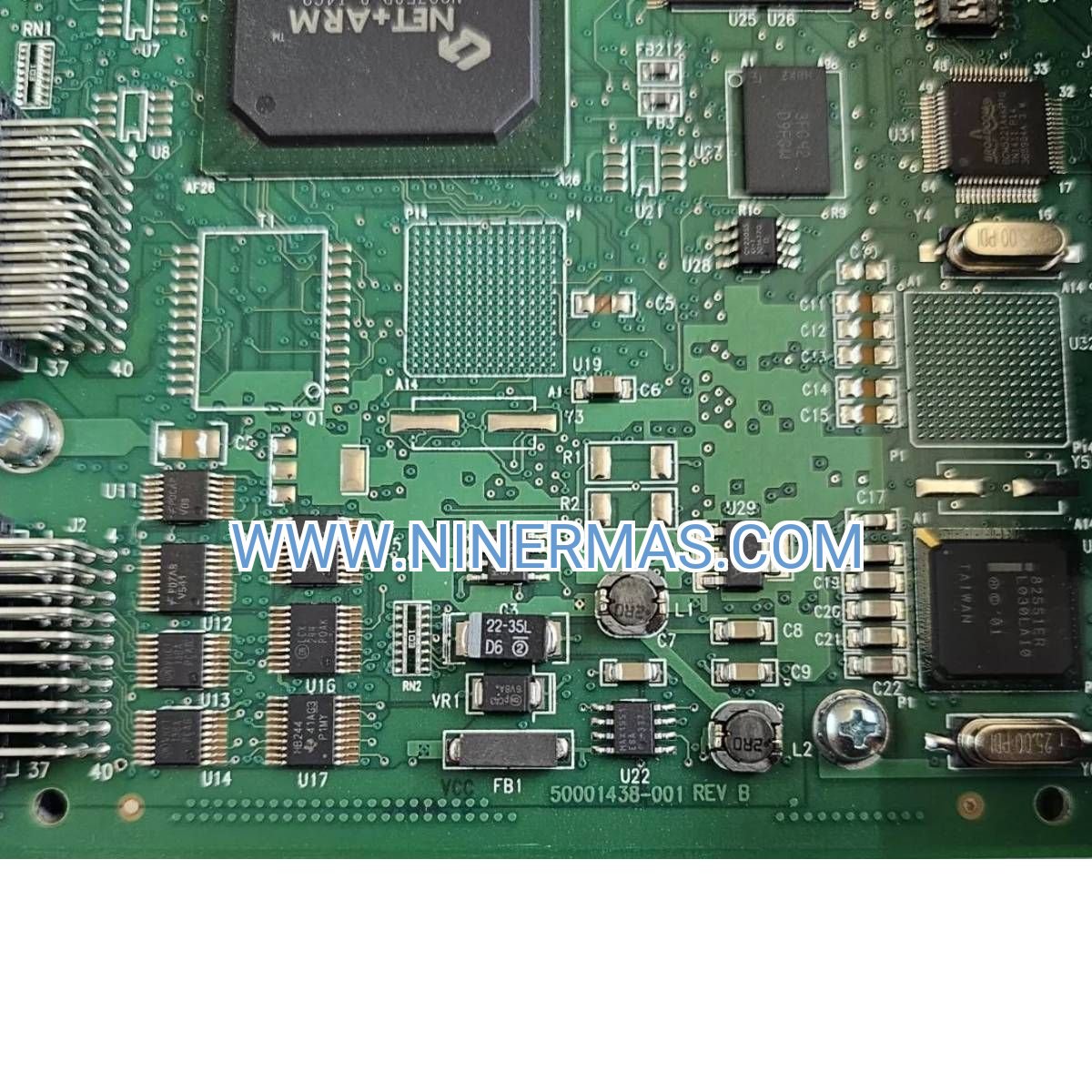

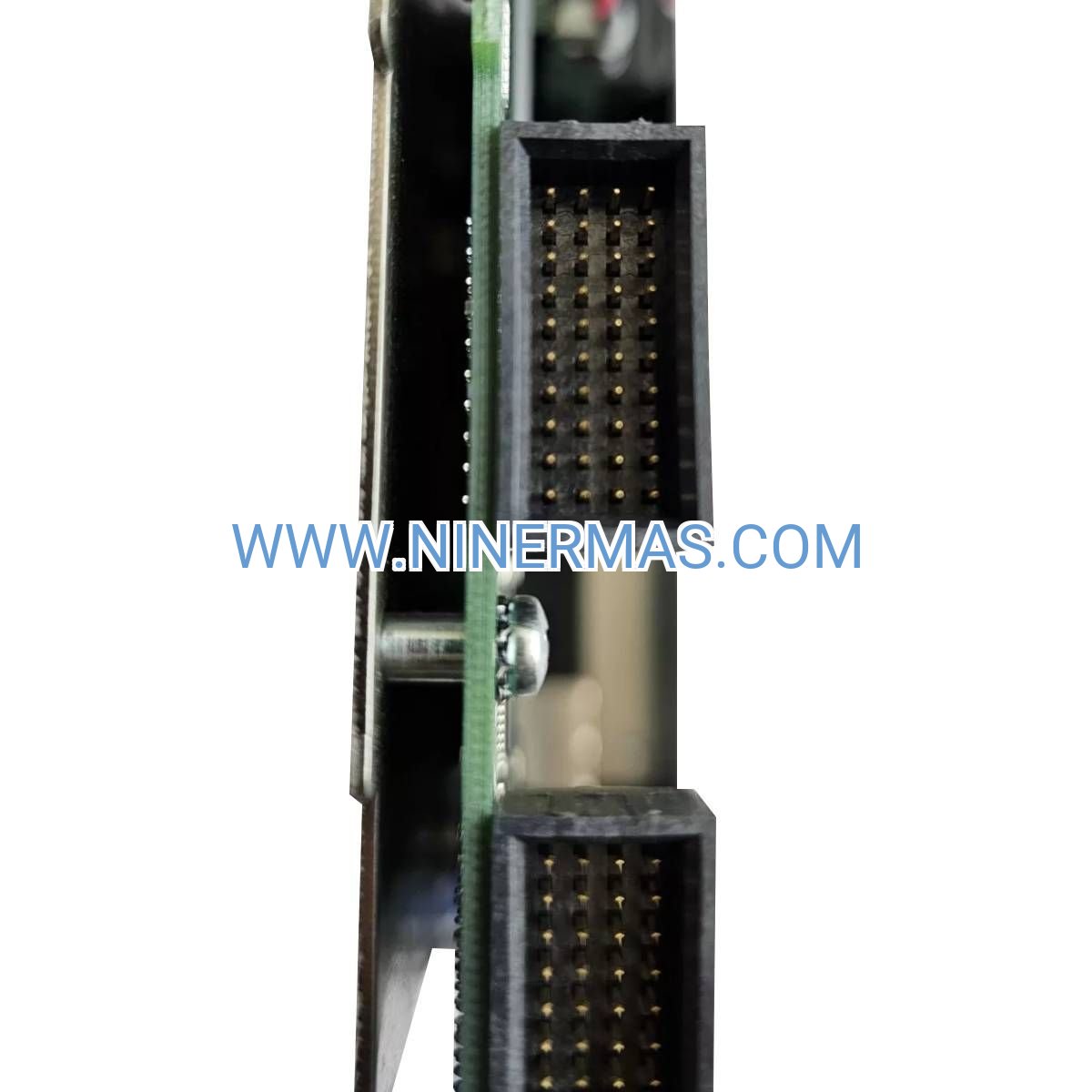

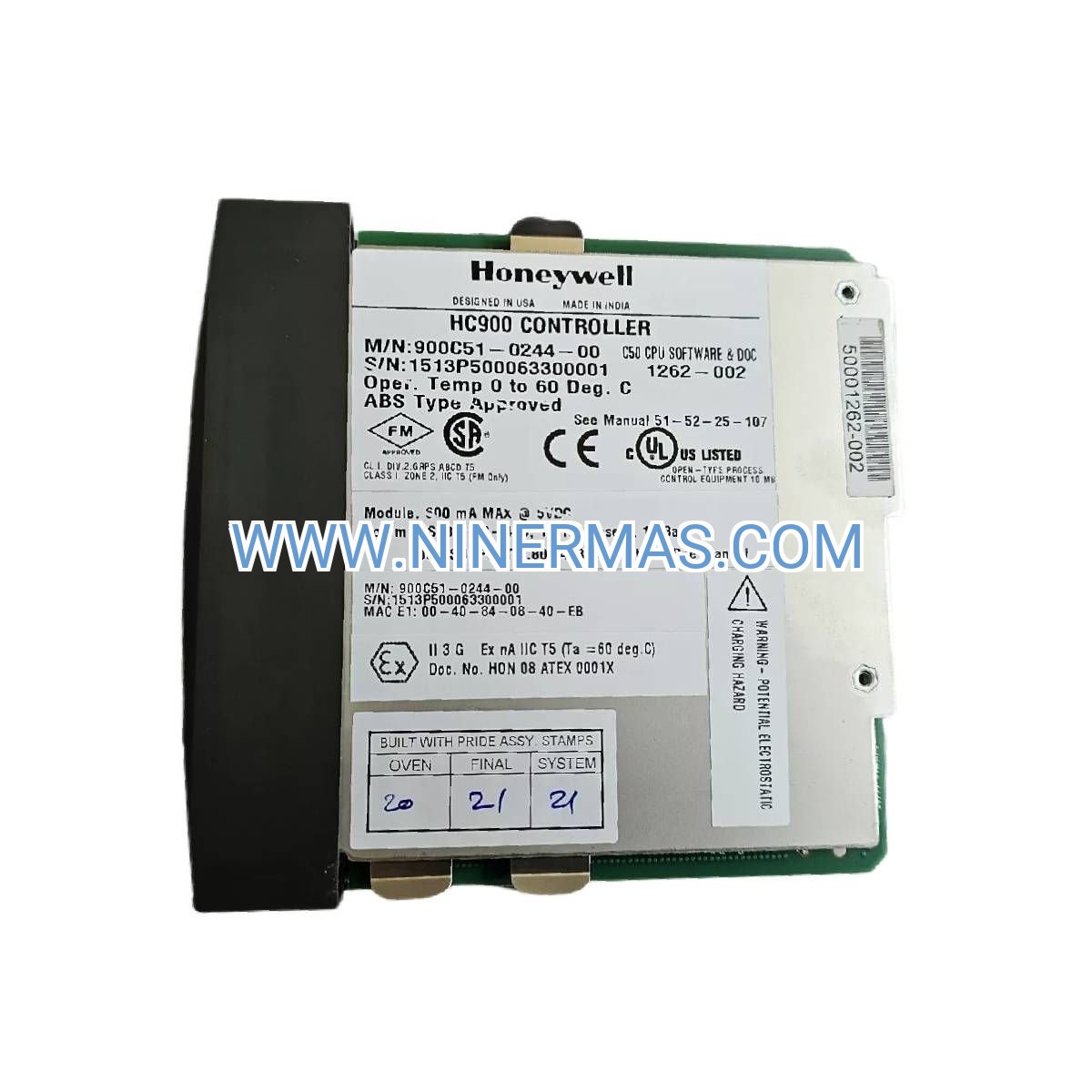

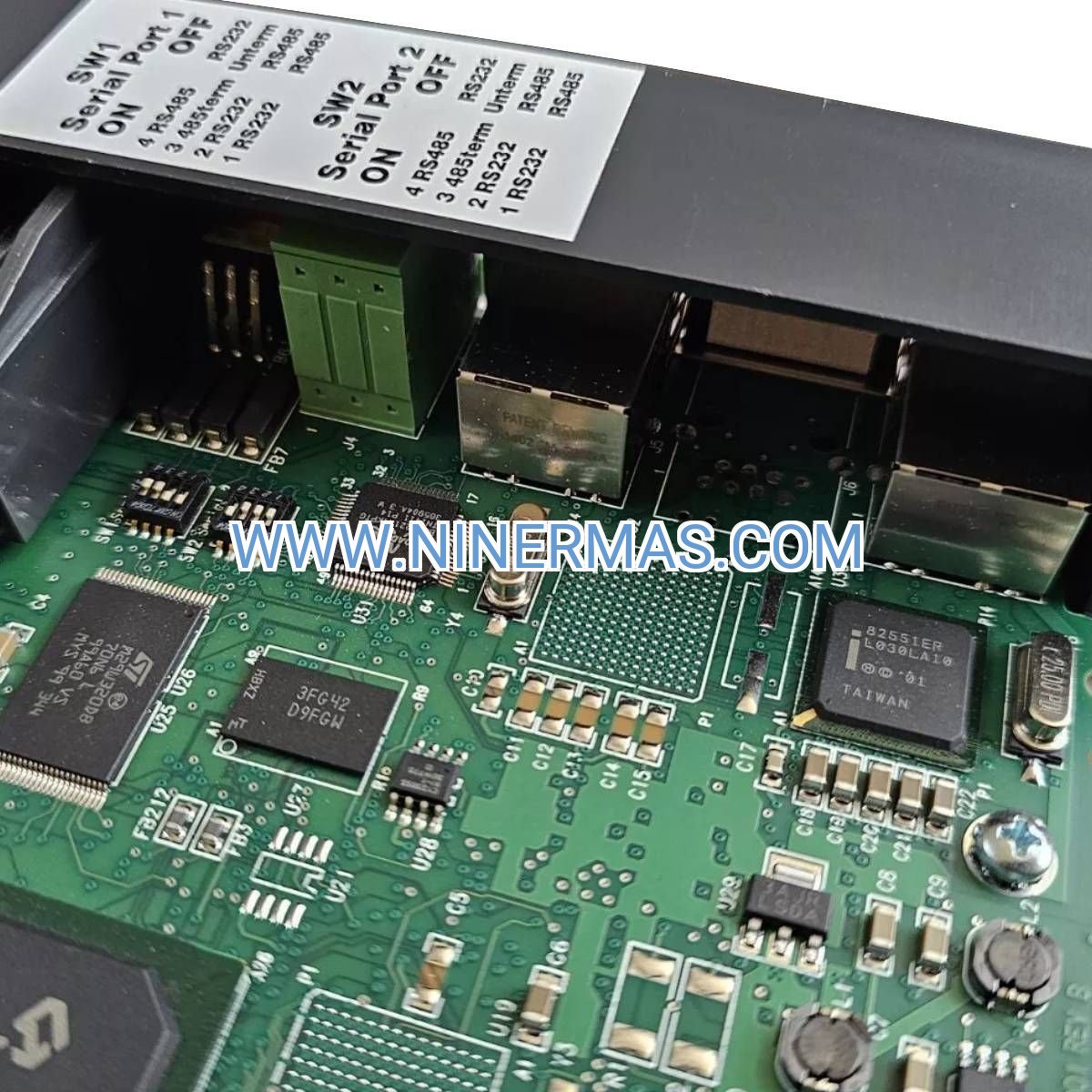

Honeywell 900C51-0244-00 C50 CPU Controller (Industrial-Grade Hybrid Control Platform)

The Honeywell 900C51-0244-00 represents a breakthrough in unified process automation, merging continuous regulatory control with discrete logic execution in a single, field-proven platform. Built on the ControlEdge HC900 architecture, this C50 CPU module eliminates the traditional divide between DCS and PLC systems, delivering enterprise-class performance for mid-scale industrial applications across chemical processing, energy production, water treatment, and manufacturing operations.

Designed for engineers who demand reliability without complexity, the 900C51-0244-00 combines 2000-point I/O capacity with deterministic scan performance, hot-swappable modularity, and multi-protocol connectivity. Whether you're modernizing legacy TDC 3000 infrastructure or building greenfield automation systems, this controller provides the scalability and cybersecurity features required for Industry 4.0 readiness.

With certifications spanning UL, CE, ATEX, and IECEx standards, the C50 CPU operates reliably in harsh environments from -40°C to +70°C ambient conditions. Backed by Honeywell's global support network and our 12-month comprehensive warranty, this controller delivers measurable ROI through reduced integration costs, simplified maintenance, and extended operational lifespan.

Core Capabilities & Business Value

→ Unified Control Architecture
Eliminate dual-system complexity by running PID loops, batch sequencing, and ladder logic on a single controller. Reduces hardware costs by 30-40% compared to separate DCS/PLC configurations while simplifying operator training and spare parts inventory.

→ Scalable I/O Framework
Start with 128 points and expand to 2000 I/O across distributed racks without controller replacement. Supports analog (4-20mA, RTD, TC), digital (24V DC/AC), and specialty modules (HART, FOUNDATION Fieldbus) for maximum application flexibility.

→ Hot-Swap Serviceability
Replace I/O cards, communication modules, and power supplies under full load without process interruption. Reduces planned maintenance windows by 75% and enables 24/7 operation in continuous process industries.

→ Multi-Protocol Connectivity
Native support for Modbus RTU/TCP, Ethernet/IP, OPC DA/UA, and Honeywell proprietary protocols. Integrate seamlessly with SCADA systems, MES platforms, and third-party devices without protocol gateways.

→ IEC 61131-3 Programming Environment
Develop control strategies using Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), or Sequential Function Chart (SFC). Leverage pre-built function blocks for PID control, alarming, and data logging to accelerate commissioning.

✓ Cybersecurity Hardening
Role-based access control, encrypted Ethernet communications, and audit logging meet ISA/IEC 62443 industrial cybersecurity standards. Protect critical infrastructure from unauthorized access and cyber threats.

Industry Applications & Problem-Solving

Batch Chemical Manufacturing
Manage multi-stage reactor sequences with precise temperature ramping, ingredient dosing, and agitation control. The C50 CPU's deterministic scan ensures repeatable batch quality while recipe management features enable rapid product changeovers. Typical deployment controls 8-12 reactors with centralized operator interface.

Municipal Water Treatment
Orchestrate lift station pumps, clarifier processes, and chlorination systems across distributed sites. Remote I/O capability extends control to unmanned facilities up to 10 km away via fiber optic links. Alarm prioritization and SMS notification reduce emergency response times by 60%.

Oil & Gas Wellhead Control
Monitor downhole pressure, regulate separator levels, and control pipeline valves in hazardous Zone 2 locations. ATEX-certified operation withstands temperature extremes and vibration. Integrated data historian captures production metrics for regulatory compliance reporting.

Food & Beverage Processing
Execute CIP (Clean-In-Place) sequences, pasteurization cycles, and packaging line coordination with FDA 21 CFR Part 11 audit trail compliance. Stainless steel I/O modules and IP67-rated field devices meet sanitary design requirements.

Power Generation Auxiliary Systems
Control boiler feedwater pumps, cooling tower fans, and fuel handling equipment with sub-100ms response times. Redundant Ethernet architecture ensures continued operation during network failures. Seamless integration with turbine control systems via Modbus TCP.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the C50 CPU for applications requiring up to 2000 I/O points and 128 PID loops. For larger systems (up to 4000 points), consider the C70 CPU variant. If controller redundancy is mandatory, specify the C70R redundant pair configuration. Evaluate total I/O count including future expansion—reserve 20% capacity for growth.

Advanced Integration Features

IoT & Cloud Connectivity: Optional OPC UA server enables secure data exchange with cloud analytics platforms (Azure IoT, AWS IoT Core, ThingWorx). Publish real-time process variables, alarms, and performance metrics for predictive maintenance and remote monitoring applications.

Customization Options: Factory-configured controllers available with pre-loaded application templates for common industries. Custom I/O mapping, alarm setpoints, and communication parameters reduce commissioning time by 40%. Contact our engineering team for application-specific configurations.

Third-Party Integration: Certified drivers for Rockwell FactoryTalk, Siemens WinCC, Wonderware System Platform, and Ignition SCADA. Modbus register mapping documentation and sample code accelerate integration with legacy equipment.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units. Expedited 24-hour shipping available for critical replacements. Custom-configured controllers ship within 7-10 business days after order confirmation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month warranty plans available with annual calibration service. Advance replacement program minimizes downtime during warranty claims.

Technical Assistance: Lifetime access to our application engineering team for configuration support, troubleshooting guidance, and firmware updates. Online knowledge base includes wiring diagrams, programming examples, and integration guides. On-site commissioning support available in major industrial regions.

Documentation Package: Each controller ships with installation manual, quick-start guide, Modbus register map, and IEC 61131-3 function block library. CAD drawings (DWG, STEP) and panel cutout templates available for download.

Frequently Asked Questions

How does the C50 CPU compare to traditional PLCs for process control?
Unlike standard PLCs optimized for discrete logic, the C50 CPU features dedicated PID algorithm processing with anti-windup, feedforward, and cascade control capabilities. Scan time prioritization ensures regulatory loops execute at consistent intervals regardless of logic program complexity—critical for maintaining process stability in temperature, pressure, and flow control applications.

What programming software is required for configuration?
Honeywell Control Builder (version 9.0 or later) or Hybrid Control Designer software. Both support offline simulation, online debugging, and version control integration. Software licenses sold separately—contact us for bundled controller + software packages.

Can I migrate existing Honeywell TDC 3000 applications to this platform?
Yes, the HC900 platform includes TDC 3000 migration tools that convert CL (Control Language) programs to IEC 61131-3 function blocks. Typical migration projects achieve 70-80% automatic conversion with manual validation required for custom algorithms. Our engineering team provides migration consulting services.

Is redundant operation supported for high-availability applications?
The C50 CPU supports redundant I/O and communication paths but not controller-level redundancy. For hot-standby controller redundancy, upgrade to the C70R CPU series which provides bumpless transfer during primary controller failure. Redundant configurations require dual power supplies and Ethernet switch modules.

What is the maximum distance for remote I/O racks?
Using copper Ethernet: 100 meters per segment (extendable with industrial switches). Using fiber optic transceivers: up to 10 km for single-mode fiber, 2 km for multi-mode fiber. Remote I/O racks require local 24V DC power supplies—centralized power distribution not supported.

How do I ensure cybersecurity compliance for critical infrastructure?
Implement network segmentation using industrial firewalls (e.g., Tofino Xenon), enable HTTPS encryption for web server access, configure user authentication via RADIUS/LDAP, and disable unused communication ports. Regular firmware updates address discovered vulnerabilities—subscribe to Honeywell security bulletins for notifications.

Ready to Optimize Your Process Control?

Contact our automation specialists today for application consultation, system sizing, and competitive quotations. Provide your I/O count, communication requirements, and environmental conditions for a tailored solution proposal within 24 hours. Volume discounts available for multi-controller projects.

Request Technical Documentation: Email sale@ninermas.com with your project details to receive wiring diagrams, programming examples, and integration guides.
