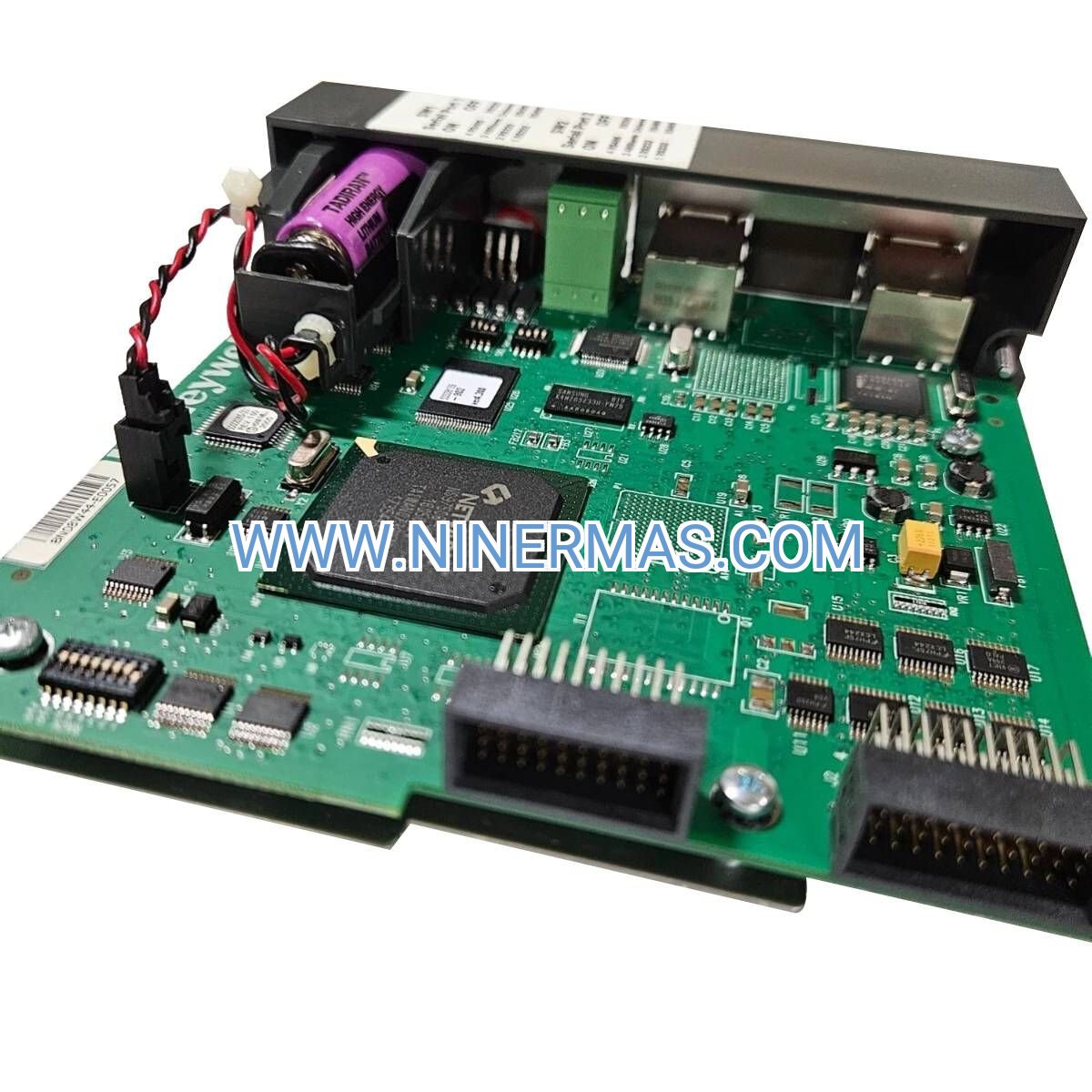

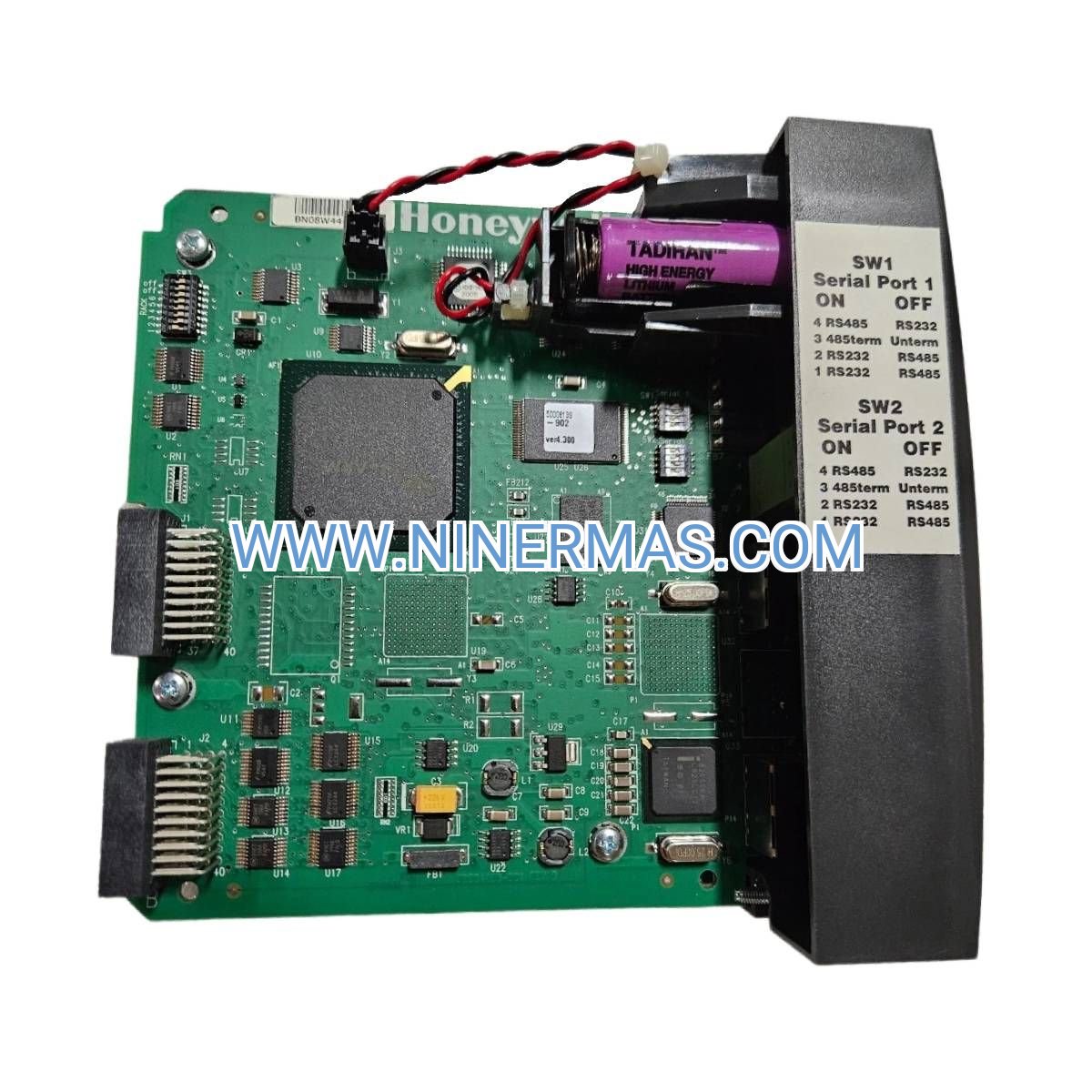

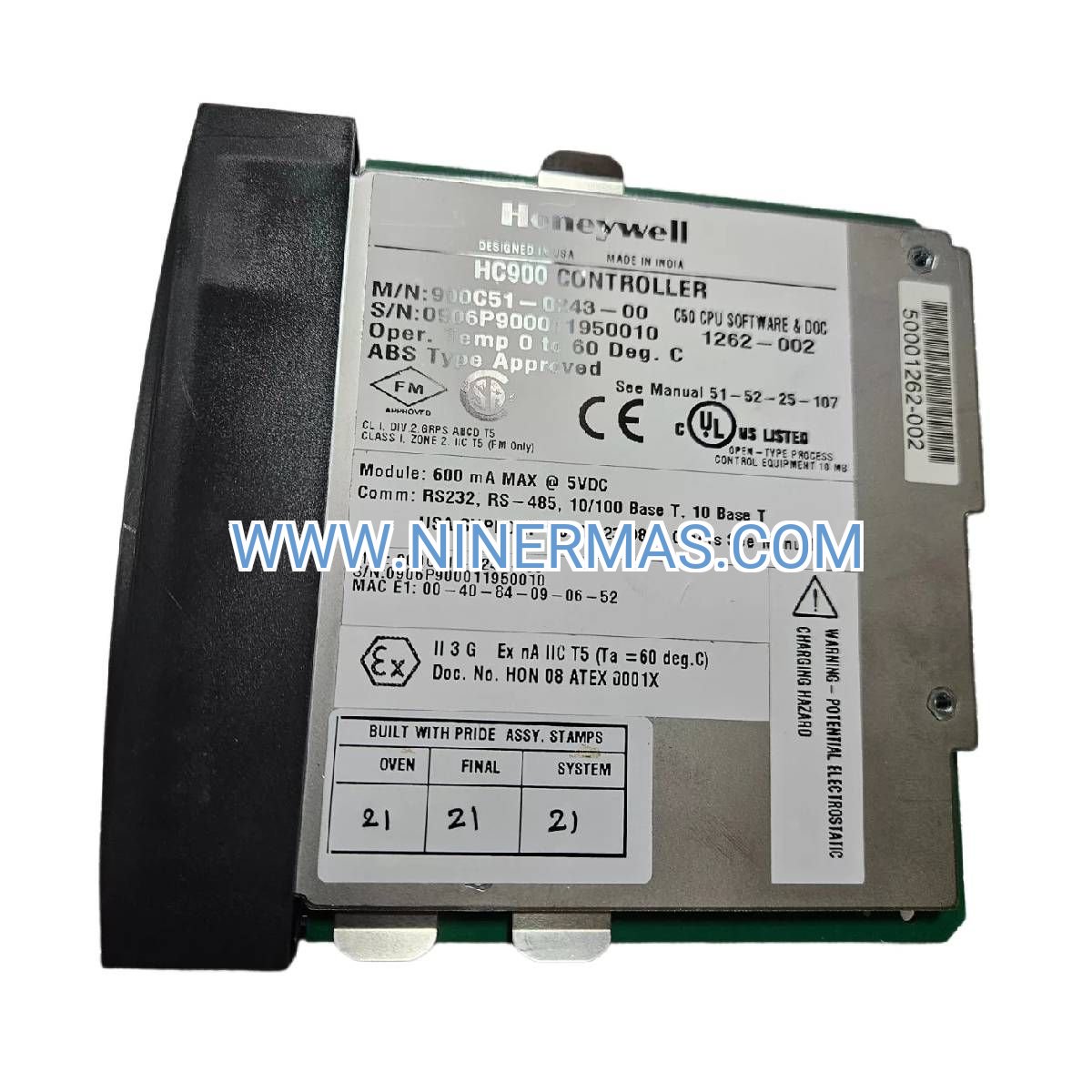

900C51-0243-00 C50 CPU Module – Industrial-Grade Hybrid Control Processor

The Honeywell 900C51-0243-00 C50 CPU module delivers enterprise-class process automation for thermal management, batch sequencing, and continuous manufacturing operations. Built on the proven ControlEdge HC900 architecture, this controller combines regulatory loop control with programmable logic execution in a single, compact platform designed for harsh industrial environments.

Engineered for process industries requiring precise temperature regulation, multi-zone control, and recipe-driven production, the 900C51-0243-00 addresses critical challenges in heat treatment, chemical processing, and material handling applications. Plant engineers and automation specialists rely on this CPU for its deterministic scan performance, extensive I/O capacity, and seamless integration with distributed control networks.

With dual communication interfaces, configurable scan rates, and support for up to 1024 control points, this module serves as the central intelligence for mid-scale automation systems where reliability and flexibility are non-negotiable.

Core Capabilities & Technical Advantages

→ Hybrid Control Architecture
Executes both continuous PID loops and discrete ladder logic within unified programming environment, eliminating need for separate PLC and DCS systems while reducing integration complexity and maintenance overhead.

→ Deterministic Performance
Configurable scan cycles from 10ms to 100ms ensure predictable response times for time-critical control sequences, with guaranteed execution timing for safety interlocks and emergency shutdown logic.

→ Scalable I/O Framework
Supports up to 1024 distributed I/O points across multiple racks, accommodating system expansion without controller replacement while maintaining centralized configuration and diagnostics.

→ Multi-Protocol Connectivity
Integrated Ethernet, RS-485, and USB ports enable simultaneous connections to HMI systems, SCADA platforms, and engineering workstations without external gateways or protocol converters.

→ Industrial-Hardened Design
Operates reliably in 0°C to 60°C ambient temperatures with ±20% power supply tolerance, meeting UL/CE/CSA/ATEX certifications for hazardous location installations.

✓ Memory Architecture
2MB program storage and 4MB data memory accommodate complex control strategies, historical trending, and alarm management without external data logging devices.

Industry Applications & Use Cases

Thermal Oxidizer Control
Manages multi-zone temperature profiles, combustion air ratios, and VOC destruction efficiency in environmental compliance systems. Addresses precise burner sequencing and flame safety monitoring requirements while maintaining regulatory reporting capabilities.

Batch Reactor Automation
Orchestrates recipe-driven production sequences including ingredient charging, temperature ramping, agitation control, and discharge operations. Solves challenges of repeatable batch quality and electronic batch record generation for pharmaceutical and specialty chemical manufacturing.

Heat Treatment Furnace Systems
Controls multi-zone heating profiles, quench timing, and atmosphere management for metallurgical processing. Delivers uniform temperature distribution and documented process validation required for aerospace and automotive component certification.

Distillation Column Operations
Regulates reflux ratios, reboiler duty, and product draw rates for continuous separation processes. Provides advanced control algorithms for composition optimization and energy efficiency improvement in refining and petrochemical applications.

Continuous Manufacturing Lines
Coordinates material flow, quality checkpoints, and production tracking across integrated process equipment. Enables real-time production monitoring and OEE calculation for lean manufacturing initiatives.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the C50 CPU for applications requiring up to 1024 I/O points with moderate computational demands. For systems exceeding 1024 points or requiring advanced process optimization algorithms, consider the C70 CPU variant. Applications demanding fault-tolerant operation should specify redundant C70R configurations with hot-standby failover capability.

Advanced Integration & Expansion Options

IoT Connectivity Enhancement
Native OPC UA server functionality enables direct cloud platform integration for remote monitoring, predictive maintenance analytics, and enterprise MES/ERP data exchange without middleware servers.

Cybersecurity Features
Role-based access control, encrypted communication channels, and audit logging capabilities meet IEC 62443 industrial cybersecurity standards for connected manufacturing environments.

Custom Function Blocks
User-defined control algorithms and proprietary process models can be encapsulated as reusable function blocks, accelerating project deployment and standardizing control strategies across multiple installations.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier with full tracking and insurance coverage.

Custom Configuration: Pre-programmed controllers with customer-specific logic and I/O mapping available with 7-10 business day lead time.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering component defects and workmanship issues, with advance replacement service to minimize production downtime.

Technical Support: Unlimited application engineering assistance including configuration review, troubleshooting guidance, and performance optimization recommendations via phone, email, and remote desktop support.

Documentation Package: Complete installation manual, programming reference guide, I/O wiring diagrams, and Modbus register mapping tables provided with every controller shipment.

Frequently Asked Questions

What programming software is compatible with the 900C51-0243-00 controller?
The HC900 Hybrid Control Designer software (version 8.0 or later) provides complete configuration, programming, simulation, and diagnostics capabilities. Software licenses are available separately and support offline development with controller emulation.

Can this CPU module integrate with existing Honeywell DCS infrastructure?
Yes, the HC900 platform supports seamless integration with Experion PKS and TPS systems via standard OPC interfaces, enabling hybrid architectures that combine distributed HC900 controllers with centralized operator stations.

What is the maximum distance for RS-485 communication networks?
RS-485 networks support up to 1200 meters (4000 feet) at 9600 baud with proper termination and shielded twisted-pair cabling. Higher baud rates reduce maximum distance according to EIA-485 specifications.

Does the controller support redundant power supply configurations?
While the C50 CPU accepts single 24V DC input, redundant power can be achieved using external diode-OR modules or redundant power supplies with built-in load sharing, ensuring continuous operation during power source failures.

How does scan time configuration affect control loop performance?
Faster scan rates (10-25ms) provide tighter control for rapid processes like motion control or fast batch sequences, while slower rates (50-100ms) are suitable for thermal processes with large time constants, optimizing CPU utilization and network bandwidth.

What cybersecurity measures protect against unauthorized access?
Multi-level password protection, MAC address filtering, and encrypted Ethernet communication prevent unauthorized configuration changes. Audit logs track all programming modifications with user identification and timestamp records.
