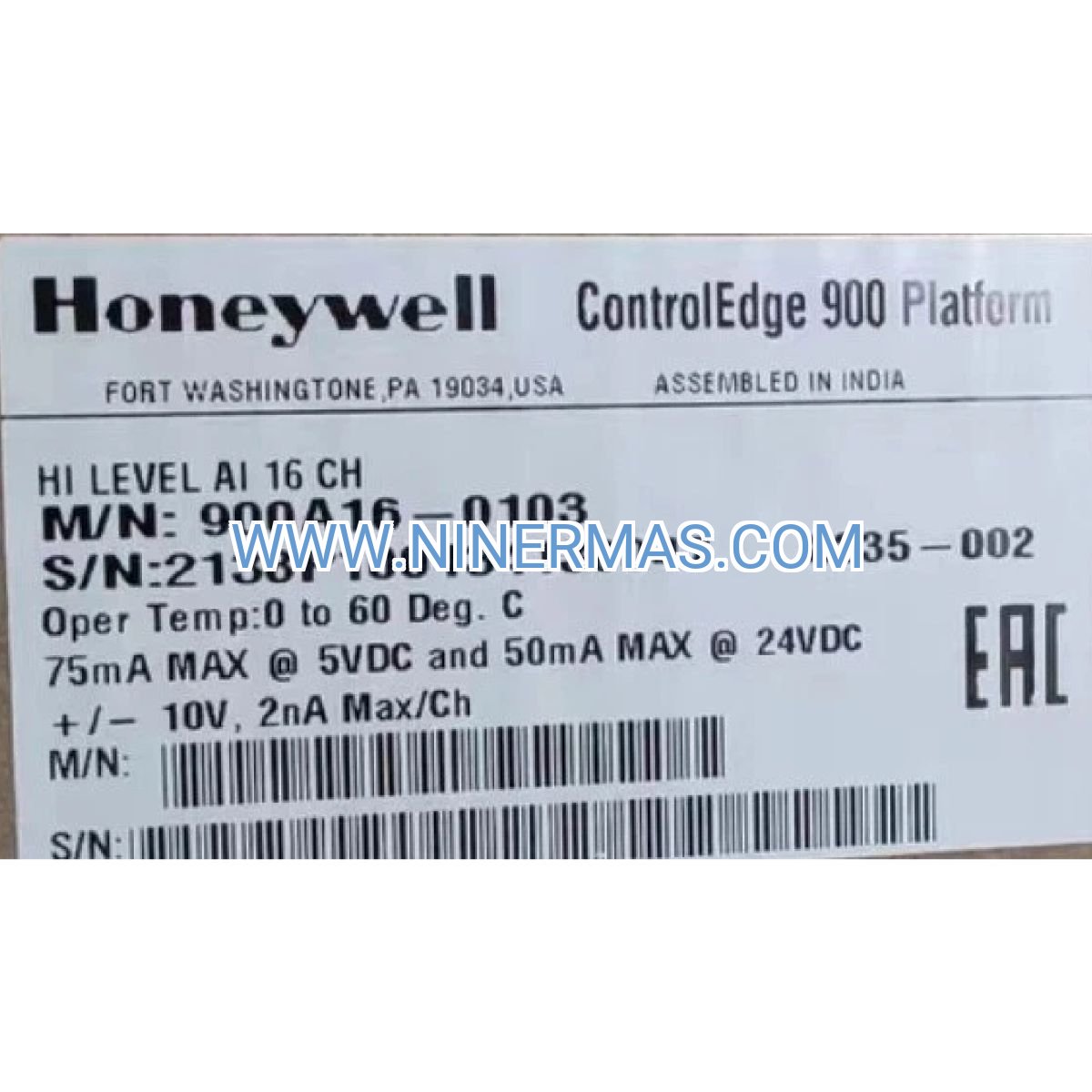

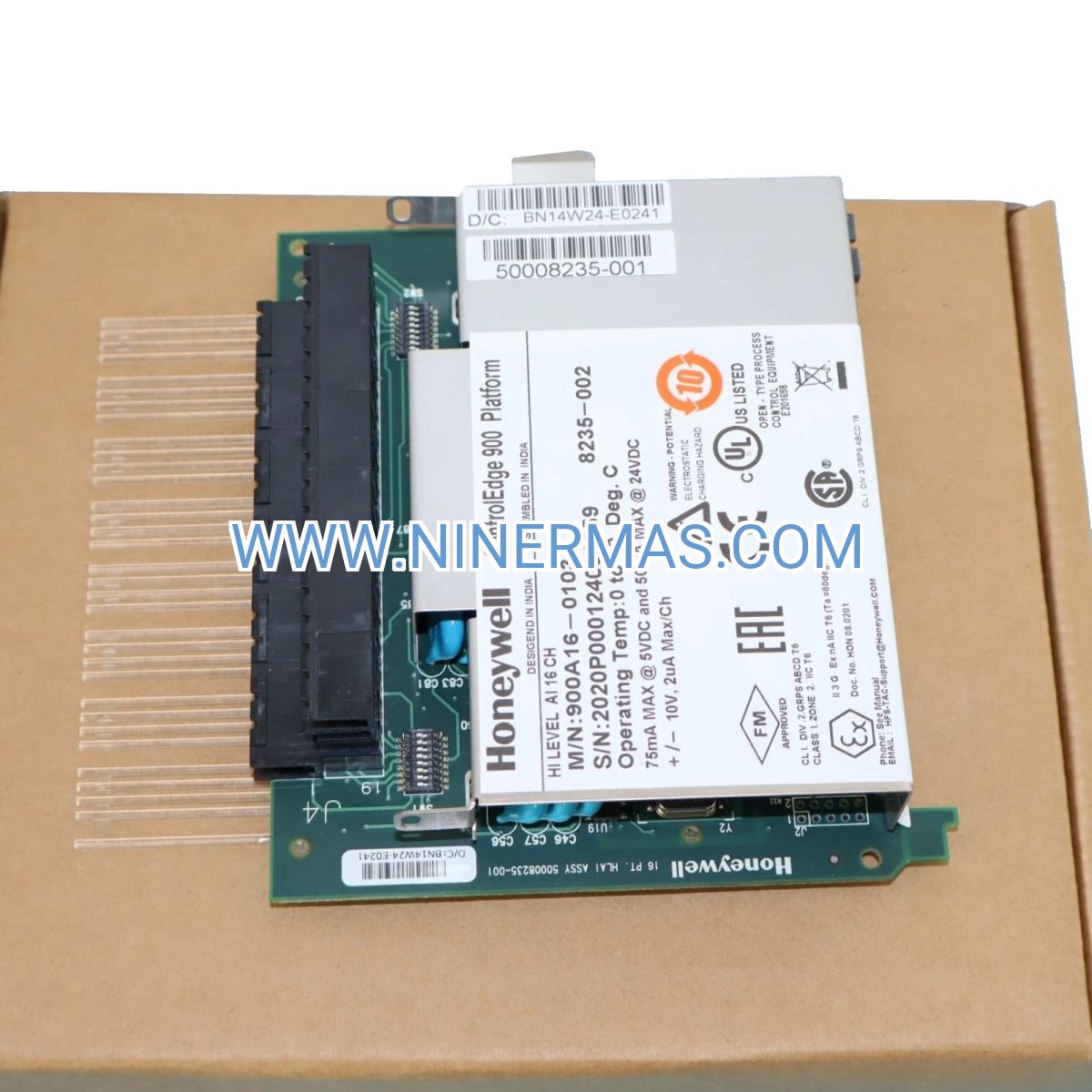

900A16-0103 High-Precision Analog Input Module (Industrial-Grade 16-Channel Solution)

The 900A16-0103 represents Honeywell's commitment to precision signal acquisition in mission-critical industrial environments. Designed as a cornerstone component for ControlEdge HC900 distributed control systems, this 16-channel analog input module transforms raw sensor data into actionable intelligence across manufacturing, energy, and process industries.

Process engineers face constant pressure to maintain tight control over production variables while minimizing downtime. This module addresses those challenges by delivering 16-bit resolution monitoring of voltage and current signals from field transmitters, enabling real-time visibility into temperature, pressure, flow, and level measurements that drive operational decisions.

What sets the 900A16-0103 apart is its combination of channel density, isolation architecture, and configuration flexibility—allowing a single module to replace multiple legacy I/O cards while reducing panel space requirements by up to 40% and simplifying maintenance protocols through standardized diagnostics.

Core Capabilities & Business Impact

→ Multi-Signal Compatibility: Accepts 0-10V DC, ±10V DC, 0-20mA, and 4-20mA inputs on any channel without hardware changes, eliminating the need for multiple module types and reducing spare parts inventory costs by 30-50%.

✓ Channel-to-Channel Isolation: Galvanic isolation between all inputs and system bus prevents ground loop interference and protects against voltage surges, reducing false alarms and unplanned shutdowns in electrically noisy environments.

→ ±0.1% Full-Scale Accuracy: Maintains measurement precision across -40°C to +70°C operating range, ensuring regulatory compliance for pharmaceutical batch records, custody transfer metering, and quality control applications.

✓ Hot-Swappable Architecture: Field-replaceable design with automatic configuration download enables maintenance without system shutdown, minimizing mean time to repair (MTTR) to under 5 minutes for typical module exchanges.

→ Integrated Diagnostics: Built-in self-test routines detect open circuits, short circuits, and out-of-range conditions with per-channel status reporting, accelerating troubleshooting and reducing diagnostic time by 60%.

✓ Low Power Consumption: 5W typical draw per module reduces cooling requirements and enables deployment in hazardous area enclosures with limited heat dissipation capacity.

Industry Applications & Problem Resolution

Oil & Gas Production Facilities: Monitor wellhead pressures, separator levels, and pipeline flow rates across distributed gathering systems. The module's wide temperature range (-40°C capability) supports outdoor installations in extreme climates, while isolation prevents measurement errors from cathodic protection systems.

Chemical Batch Processing: Track reactor temperatures, feed flow rates, and product pH levels with the accuracy required for FDA 21 CFR Part 11 compliance. Independent channel configuration allows mixing thermocouple, RTD, and transmitter signals within a single module, simplifying recipe management.

Water & Wastewater Treatment: Acquire data from turbidity sensors, chlorine analyzers, and flow meters across multiple treatment stages. The 4-20mA loop support with built-in termination resistors eliminates external signal conditioning, reducing installation costs by $150-300 per channel.

Power Generation Plants: Interface with steam pressure transmitters, feedwater flow meters, and condenser vacuum sensors in balance-of-plant systems. Channel isolation protects control systems from electrical transients during generator synchronization and load changes.

Food & Beverage Manufacturing: Monitor pasteurization temperatures, CIP solution concentrations, and packaging line pressures with the repeatability needed for HACCP documentation. Stainless steel-compatible mounting supports washdown environments.

Technical Specifications & Selection Criteria

Selection Guidelines: Use this module when monitoring 4-20mA transmitters or 0-10V sensors in non-hazardous areas. For intrinsically safe applications, specify the 900A16-0101 variant with ATEX/IECEx certification. When channel count exceeds 16 points, deploy multiple modules on the same HC900 rack using sequential slot assignments.

Advanced Integration Features

OPC UA Connectivity: Native support for OPC UA server functionality enables direct data access from SCADA systems, historians, and MES platforms without middleware, reducing integration costs by $5,000-15,000 per project.

Modbus TCP/IP Gateway: Built-in protocol conversion allows legacy Modbus devices to communicate with modern Ethernet-based control networks, extending the life of existing field instrumentation.

Redundancy Options: Pair with 900C73R redundant I/O scanner modules for automatic failover in critical applications, achieving 99.99% availability through dual-channel architecture.

Custom Linearization: Software-configurable lookup tables support non-linear sensors (square root extraction for flow, custom curves for level), eliminating external signal conditioners.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units shipped from our regional distribution centers. Expedited same-day shipping available for emergency replacements (additional fees apply).

Custom Configuration: Factory-programmed modules with pre-loaded channel settings ship within 7-10 business days, reducing commissioning time by 40%.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship, with advance replacement service for minimal downtime.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations via phone, email, or remote desktop sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample ladder logic for common applications.

Frequently Asked Questions

How do I wire 4-20mA transmitters to the 900A16-0103 module?
Connect the positive transmitter output to the channel's + terminal and negative to the - terminal. The module provides internal 250-ohm termination resistors—no external components required. For 2-wire transmitters, supply 24V DC loop power through the transmitter's power terminals.

What's the maximum cable length between sensors and the analog input module?
Current loop inputs (4-20mA) support up to 1,500 meters using 18 AWG shielded twisted pair cable. Voltage inputs should be limited to 150 meters to maintain signal integrity—use 4-20mA transmitters for longer distances.

Can this module handle thermocouple or RTD inputs directly?
No, the 900A16-0103 accepts only high-level voltage and current signals. For direct thermocouple/RTD connection, use the 900A16-0101 low-level analog input module or install field-mounted transmitters to convert sensor signals to 4-20mA.

Does the module require calibration after installation?
Factory calibration is valid for 3 years under normal operating conditions. Field calibration is not required unless accuracy verification fails during annual maintenance checks. Calibration procedures are documented in the service manual.

Is the 900A16-0103 compatible with third-party HC900 controllers?
This module is designed exclusively for Honeywell ControlEdge HC900 systems and requires HC900 firmware version 4.0 or later. It will not function with other manufacturers' control platforms.

What happens if I exceed the input voltage or current ratings?
Each channel includes overvoltage protection up to 30V DC and overcurrent limiting to 30mA. Exceeding these limits may trigger channel fault indicators but will not damage the module—normal operation resumes when the fault condition clears.

Take the Next Step

Ready to upgrade your process monitoring capabilities? Contact our automation specialists for application-specific recommendations, system architecture reviews, and volume pricing. We'll help you design a solution that meets your performance requirements while optimizing total cost of ownership.
