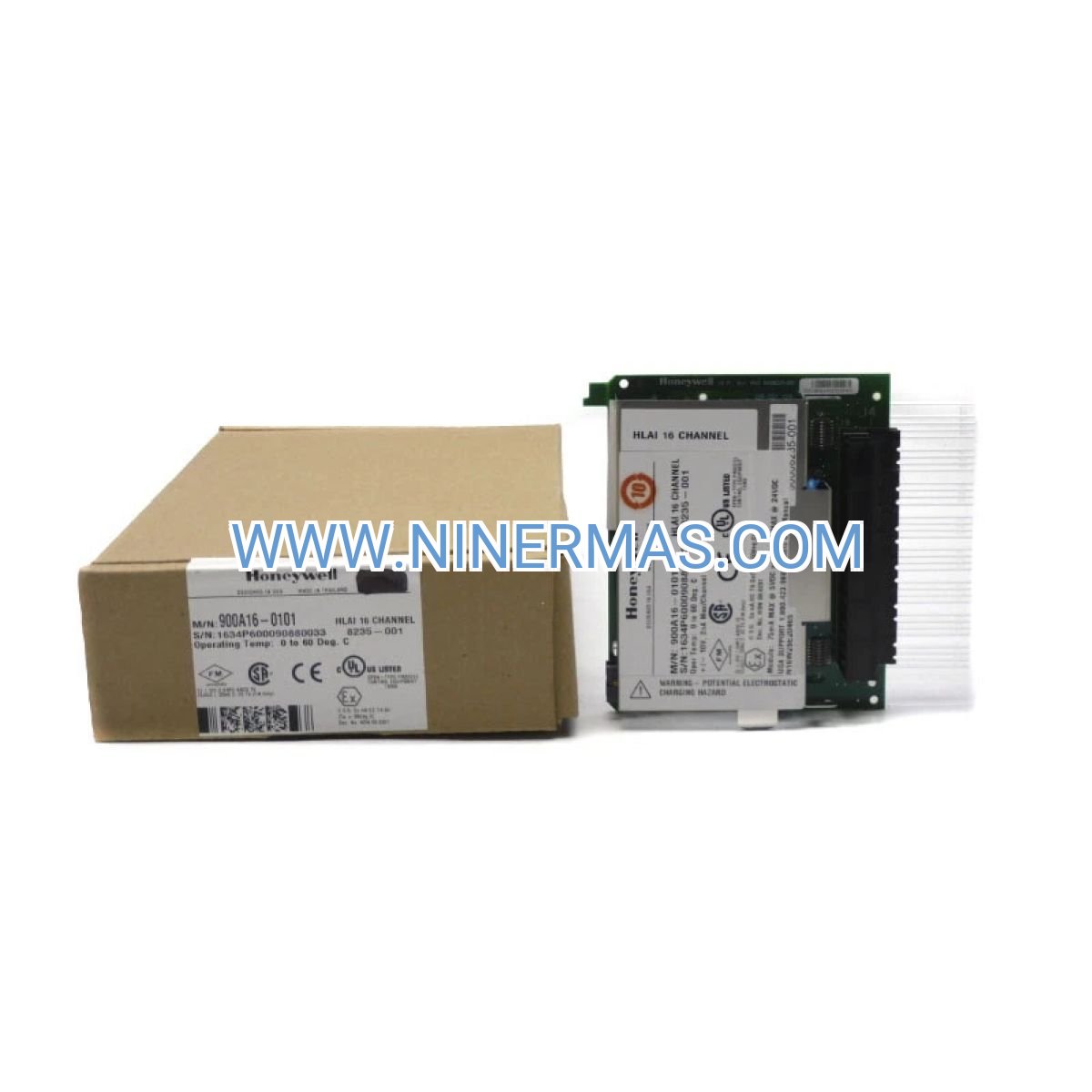

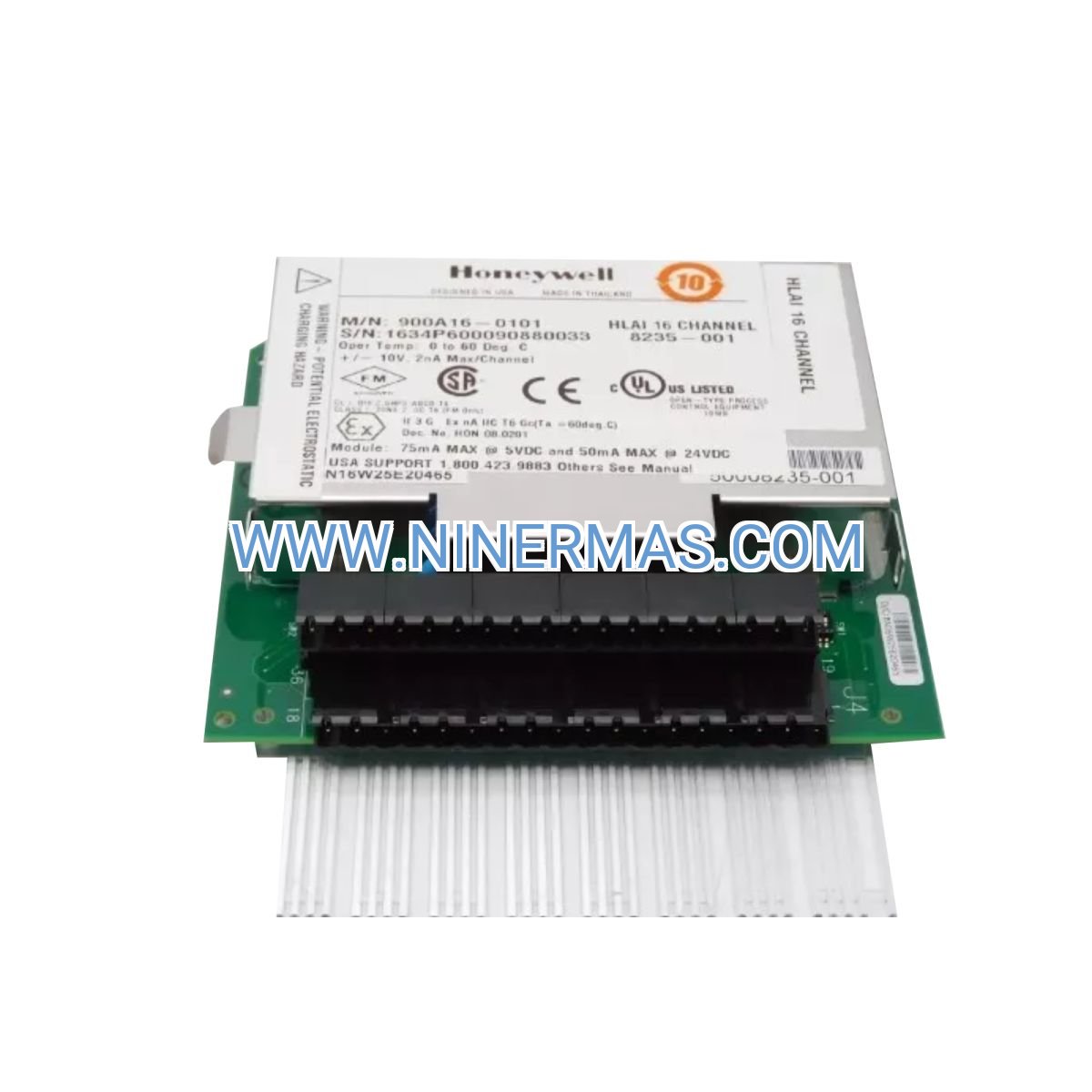

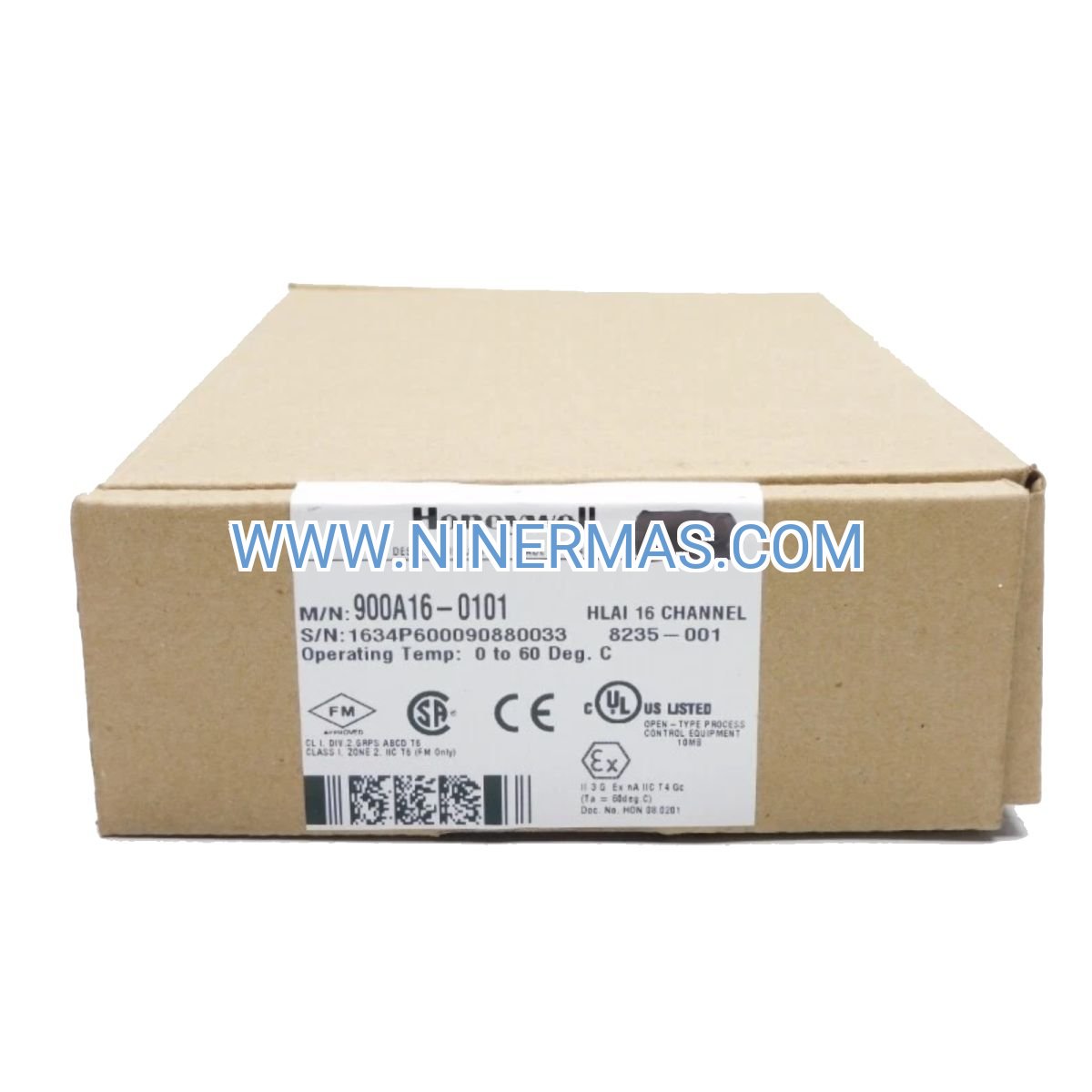

900A16-0101 Industrial HART Analog Output Module (16-Channel Constant Current)

The 900A16-0101 represents a professional-grade solution for precise analog control in mission-critical industrial environments. Engineered specifically for Honeywell Experion PKS Series 8 C300 controller platforms, this 16-channel analog output module delivers constant current signals with HART protocol overlay, enabling simultaneous process control and intelligent device communication. Designed for engineers and system integrators who demand reliability in oil & gas, chemical processing, power generation, and water treatment facilities, the module combines high channel density with galvanic isolation to minimize installation footprint while maximizing signal integrity. With hot-swappable architecture and comprehensive diagnostic capabilities, the 900A16-0101 ensures continuous operation in the most demanding industrial applications.

Core Capabilities & Technical Advantages

→ Dual-Protocol Operation: Simultaneous 4-20mA analog control and HART digital communication on each channel enables real-time process control while accessing advanced device diagnostics, calibration data, and configuration parameters without interrupting operations.

→ Superior Signal Integrity: 16-bit resolution (0.0015% of span) with channel-to-channel and channel-to-system galvanic isolation eliminates ground loops and electromagnetic interference, ensuring precise control even in electrically noisy industrial environments.

→ Maximized System Uptime: Hot-swappable design allows module replacement during live operation without process shutdown, while built-in self-diagnostics with LED status indicators enable rapid fault identification and resolution.

✓ Space-Efficient Architecture: 16 independent outputs in compact DIN-rail or panel-mount form factor reduce cabinet space requirements by up to 40% compared to traditional 8-channel modules, lowering installation and wiring costs.

✓ Redundancy-Ready Design: Native support for redundant C300 controller configurations provides automatic failover protection for critical control loops in safety-instrumented systems and high-availability applications.

✓ Extended Environmental Range: -40°C to +70°C operating temperature with 5-95% humidity tolerance ensures reliable performance in harsh industrial conditions including outdoor installations and extreme climate zones.

Industry-Specific Application Solutions

Refinery & Petrochemical Operations: In crude distillation units and catalytic cracking processes, the 900A16-0101 controls valve positioners and variable frequency drives with millisecond-level precision. The HART overlay enables predictive maintenance by monitoring valve travel times and actuator health, reducing unplanned shutdowns. Engineers typically deploy this module alongside pressure transmitters and flow meters to create closed-loop control systems that optimize yield while maintaining safety margins.

Pharmaceutical Manufacturing: Batch reactor temperature control and sterile filling line automation demand the module's precise 4-20mA output accuracy. The galvanic isolation prevents cross-contamination between control zones, while HART communication provides FDA 21 CFR Part 11 compliant audit trails. Integration with clean-in-place (CIP) systems ensures validated processes meet GMP requirements.

Power Plant Automation: Boiler feedwater pump control, turbine governor systems, and flue gas desulfurization require the module's 100ms update rate for stable regulation. The extended temperature range supports installation in non-climate-controlled equipment rooms, while redundancy support ensures continuous operation during controller maintenance windows.

Municipal Water Treatment: Chemical dosing pump control for coagulation, pH adjustment, and disinfection processes benefit from the module's long-term stability and diagnostic capabilities. HART communication enables remote calibration verification, reducing site visits by 60% while maintaining regulatory compliance for drinking water quality standards.

Mining & Metals Processing: Conveyor speed control, ore crusher regulation, and flotation cell level management utilize the module's robust construction and wide operating temperature range. The hot-swappable design minimizes production losses during maintenance, critical in continuous processing operations where downtime costs exceed $50,000 per hour.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 900A16-0101 when your application requires more than 8 analog outputs per controller slot, HART device integration for asset management, or when cabinet space is limited. For applications requiring intrinsic safety barriers, verify compatibility with MTL or Pepperl+Fuchs HART-compatible isolators. Systems with legacy TDC 3000 integration should consider CC-TAOX51 modules for backward compatibility.

Advanced Integration & IoT Connectivity

The 900A16-0101 seamlessly integrates with modern Industrial IoT architectures through Honeywell's Experion PKS platform. HART-IP gateways enable cloud connectivity for remote monitoring and predictive analytics, while OPC UA servers provide standardized data access for third-party SCADA systems and historian databases. The module supports FDT/DTM device integration, allowing configuration through universal HART communicators or Experion Station software.

For edge computing applications, the module's diagnostic data streams to Honeywell Forge asset performance management platforms, enabling machine learning algorithms to predict valve failures 30-45 days before occurrence. Integration with Honeywell Safety Manager provides SIL-rated control loop monitoring for safety instrumented systems.

Customization Options: Factory-configured channel grouping for specific applications, pre-commissioned HART device databases, and custom firmware for specialized control algorithms are available through Honeywell's engineering services. Conformal coating options provide enhanced protection for offshore platforms and corrosive chemical environments.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Bulk orders (10+ modules) ship within 7-10 business days.

Custom Configuration: Factory-programmed modules with pre-loaded HART device descriptors ship within 15-20 business days, including full factory acceptance testing documentation.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited phone and email support from certified Honeywell engineers, including installation guidance, configuration assistance, and troubleshooting. Remote diagnostic services available for complex integration challenges.

Documentation Package: Each module includes installation manual, wiring diagrams, HART device descriptor files, configuration templates, and compliance certificates (CE, UL, ATEX). CAD drawings and 3D STEP files available for panel design integration.

Common Implementation Questions

Can the 900A16-0101 interface with non-Honeywell HART devices from Rosemount, Endress+Hauser, or Siemens?
Absolutely. The module complies with HART 7 specifications and supports universal HART commands, ensuring compatibility with any HART-registered device. Device descriptor files (DD files) for 5,000+ instruments are pre-loaded in Experion Station software.

What is the maximum cable distance between the module and field devices?
With standard 18 AWG shielded twisted-pair cable, distances up to 1,500 meters (4,920 feet) are achievable while maintaining signal integrity. For longer runs, consider HART repeaters or 4-20mA signal boosters to compensate for voltage drop.

Does the module support simultaneous HART communication on all 16 channels?
Yes, each channel operates independently with dedicated HART modems, allowing concurrent communication with all connected devices. The C300 controller manages HART polling schedules to optimize network bandwidth.

How does the module perform in SIL-rated safety applications?
When configured in redundant pairs with SIL-certified C300 controllers, the system achieves SIL 2 certification per IEC 61508. For SIL 3 applications, triple modular redundancy (TMR) configurations are supported with appropriate voting logic.

What diagnostic information is accessible through HART communication?
Comprehensive diagnostics include output current verification (±0.1% accuracy), module temperature, power supply voltage, channel fault status, HART device health indicators, loop resistance measurements, and communication error counters. Data is accessible via Experion Station or third-party HART configurators.

Is the module compatible with wireless HART adapters for retrofit applications?
Yes, wireless HART adapters from Emerson, Honeywell, or Phoenix Contact can be connected to individual channels, enabling wireless sensor integration without additional wiring infrastructure. This is particularly valuable for rotating equipment monitoring and temporary measurement points.

Start Your Integration Today

Ready to enhance your process control system with proven HART analog output technology? Our application engineers are available to discuss your specific requirements, recommend optimal configurations, and provide detailed integration support. Contact us for technical specifications, compatibility verification, or to request a formal quotation for your project.

For immediate assistance, reach our technical team at sale@ninermas.com or call +0086 187 5021 5667 to speak with a control systems specialist.
