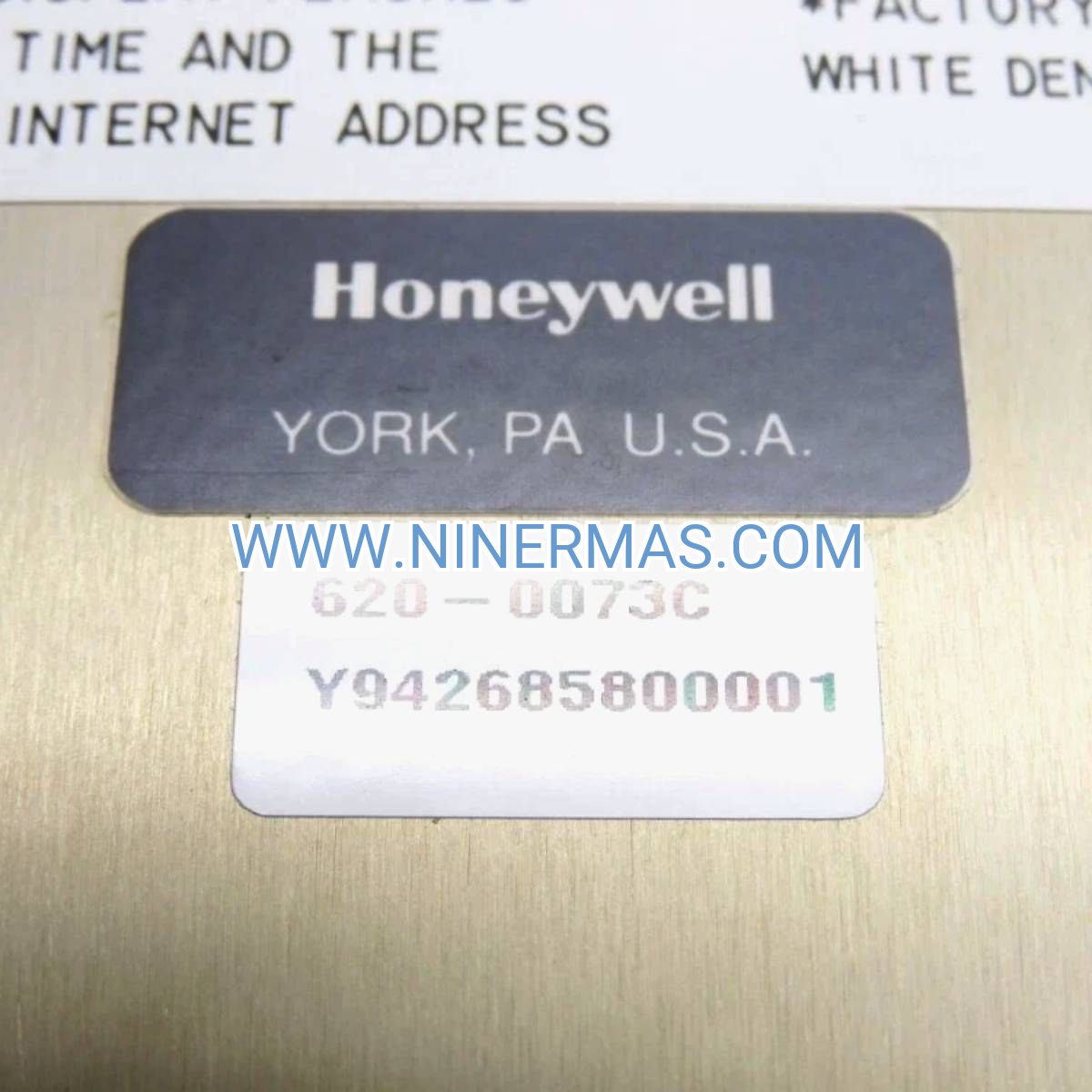

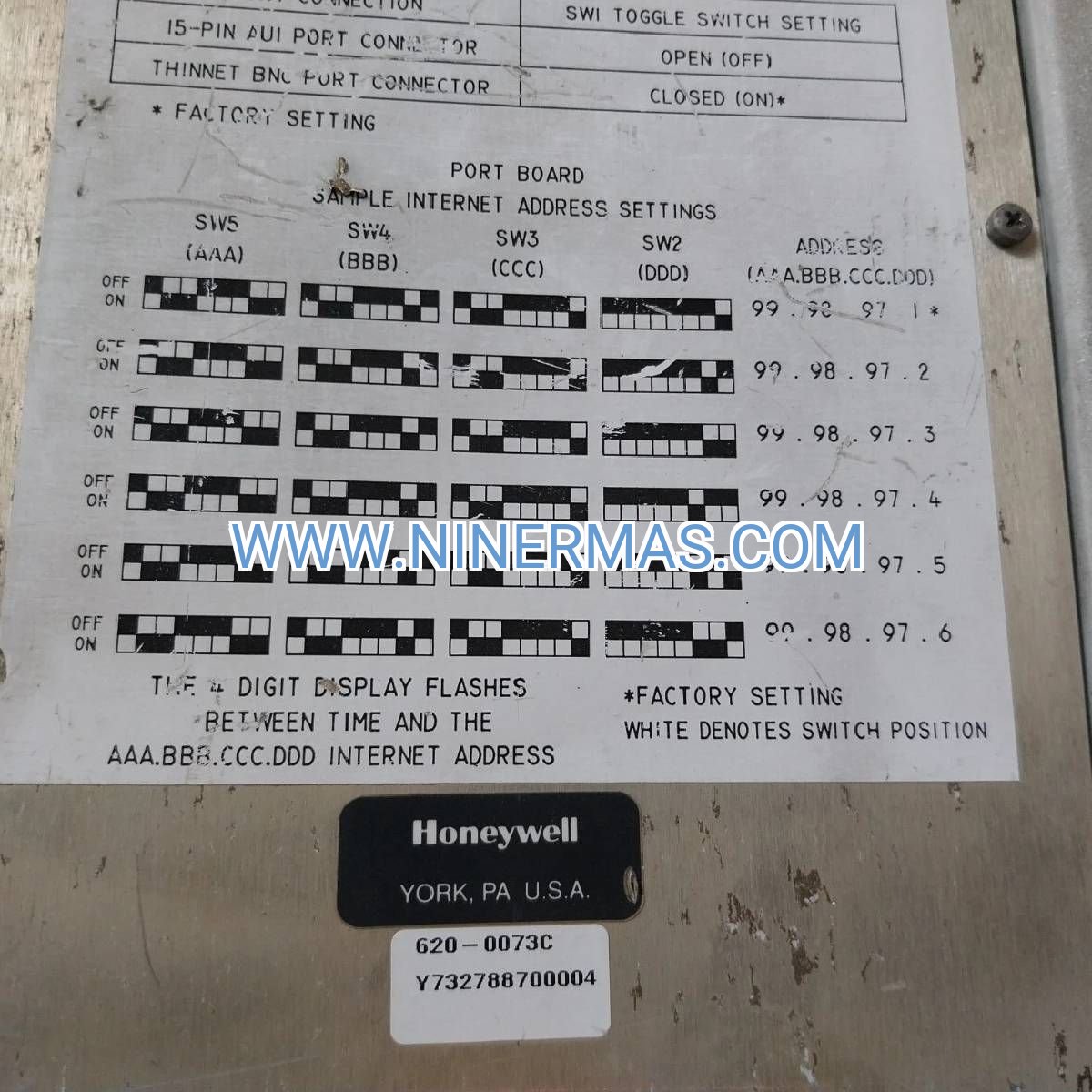

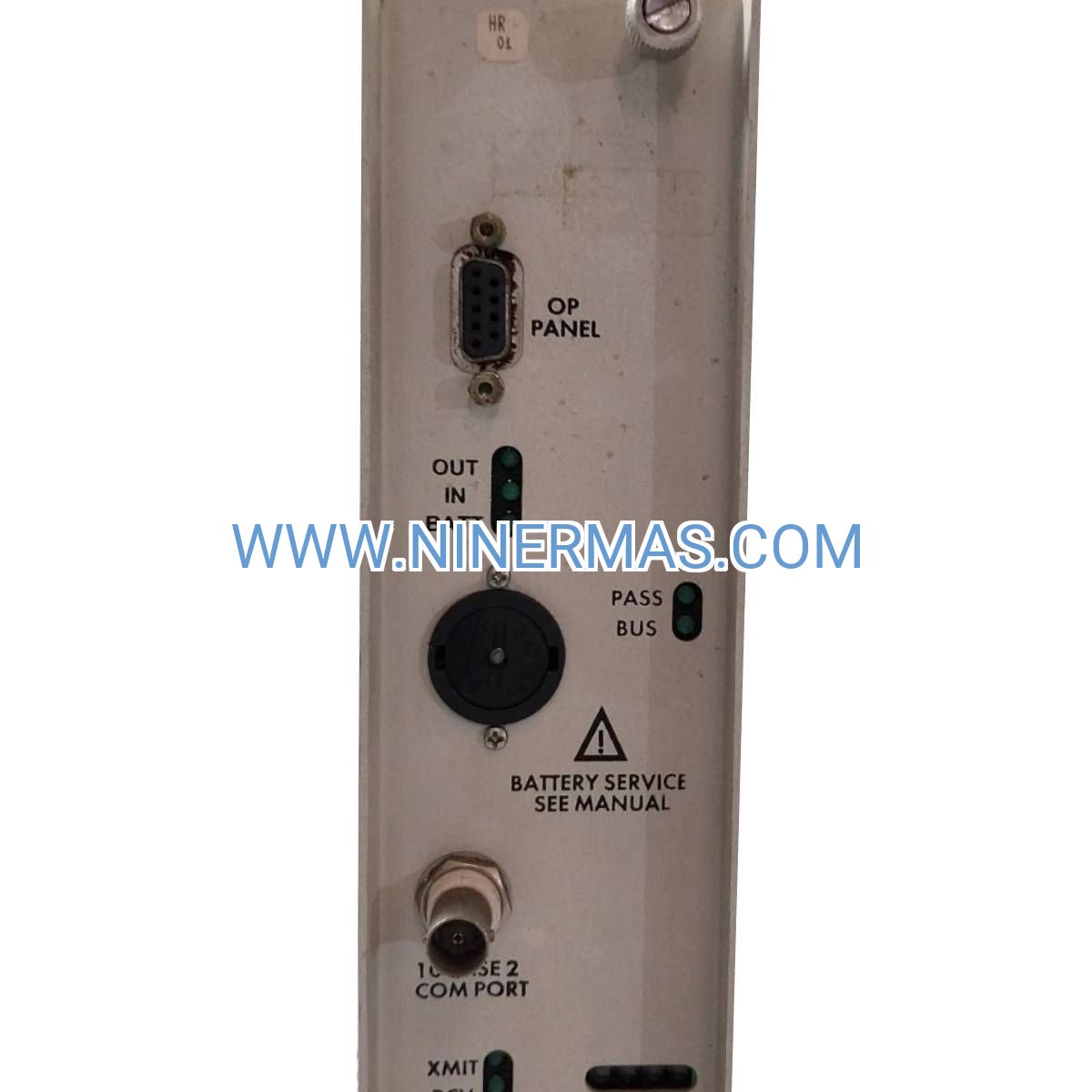

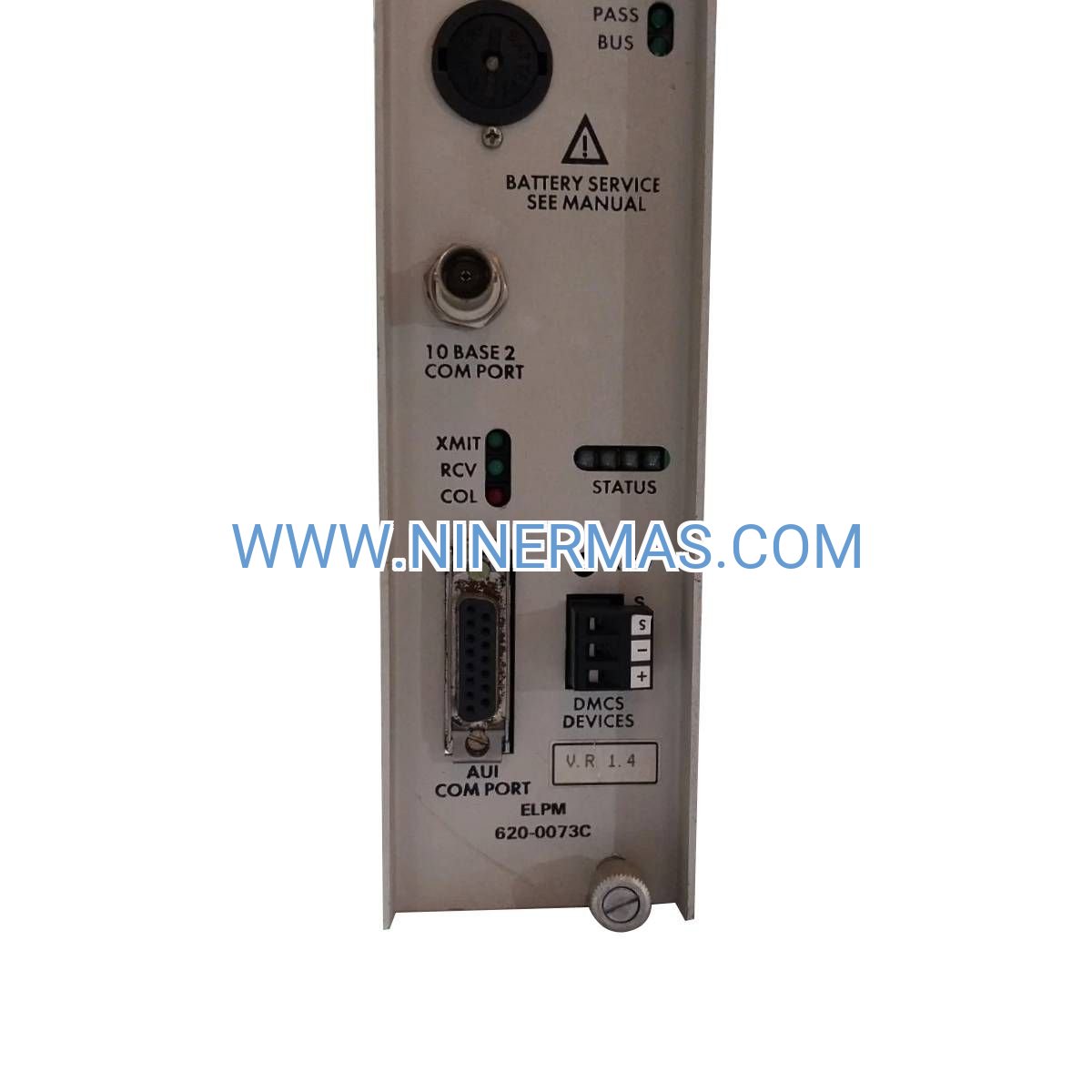

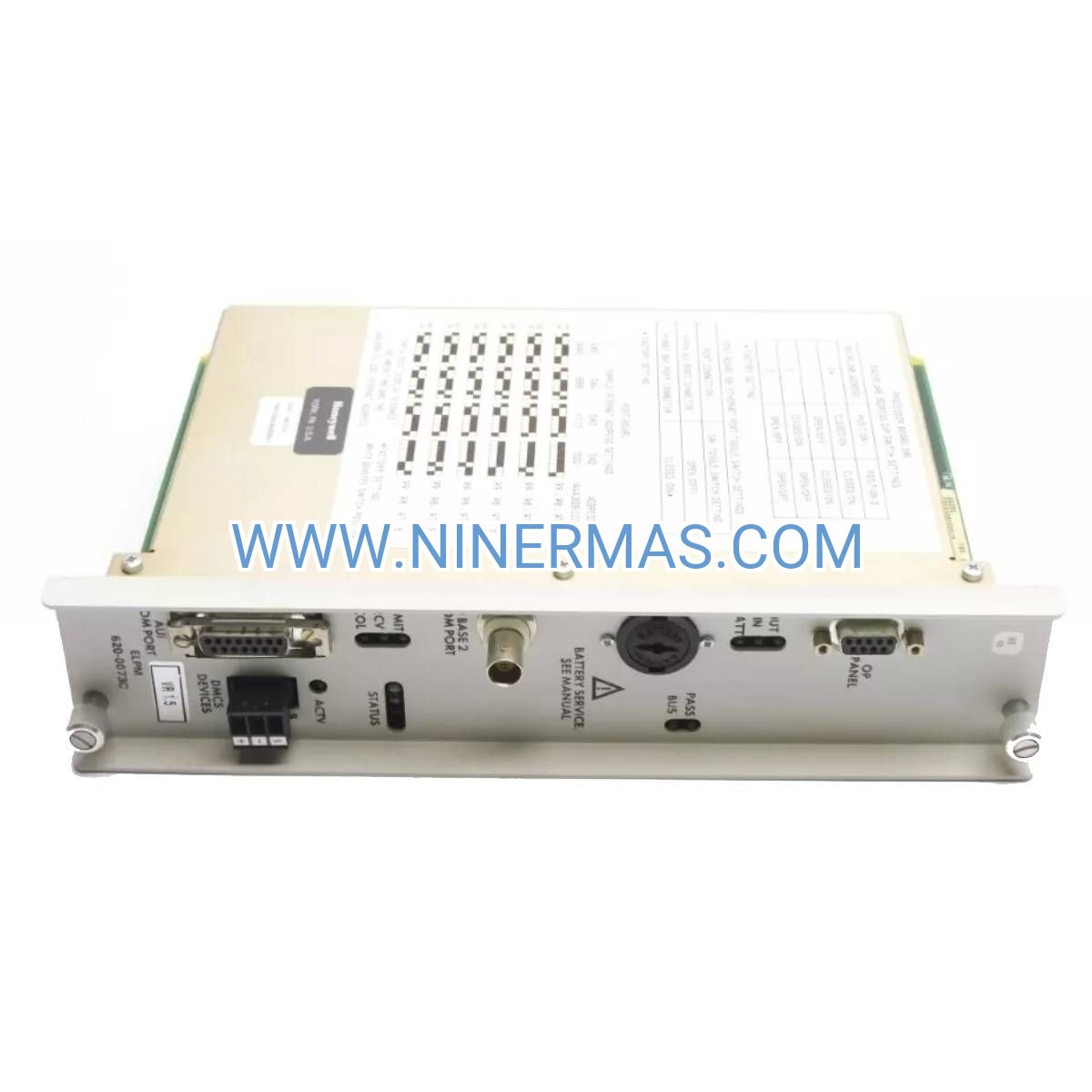

620-0073C Ethernet Loop Processor (Industrial-Grade Process Control)

The 620-0073C represents a critical advancement in distributed process control technology, engineered specifically for Honeywell IPC 620 programmable logic controller environments. This Ethernet-enabled loop processor delivers deterministic control performance across complex industrial operations, combining high-speed data processing with enterprise-level network integration capabilities.

Manufacturing facilities requiring precise regulatory control, rapid fault response, and seamless SCADA integration rely on this processor module to maintain production continuity. From continuous chemical processes to batch pharmaceutical manufacturing, the 620-0073C ensures microsecond-level loop execution while supporting modern Industrial Internet of Things (IIoT) architectures.

Built to withstand extreme industrial conditions—temperature fluctuations, electrical noise, and vibration—this module provides the reliability foundation for mission-critical automation systems where downtime translates directly to revenue loss and safety risks.

Application Scenarios

Refinery Distillation Control
In crude oil refineries, the 620-0073C manages multi-stage distillation column operations, maintaining precise temperature cascades across 15-30 control loops simultaneously. Operators achieve ±0.5°C setpoint accuracy, reducing off-spec product by 18-22% compared to legacy controllers.

Pharmaceutical Clean Room Environmental Management
GMP-compliant facilities deploy this processor for differential pressure control, HVAC sequencing, and particulate monitoring across classified zones. The module's deterministic scan time ensures FDA 21 CFR Part 11 audit trail integrity while managing 40+ environmental parameters.

Water Treatment Chemical Dosing Systems
Municipal water plants utilize the 620-0073C for real-time pH neutralization, chlorine residual control, and coagulant feed optimization. Ethernet connectivity enables remote monitoring across distributed pump stations, reducing chemical consumption by 12-15% through advanced feedforward algorithms.

Power Plant Boiler Combustion Optimization
Utility-scale boilers leverage this processor for air-fuel ratio trimming, steam temperature control, and emissions compliance. Integration with distributed control systems (DCS) allows operators to maximize thermal efficiency while maintaining NOx/SOx within regulatory limits.

Food Processing Pasteurization Lines
Dairy and beverage manufacturers depend on the 620-0073C for HTST (High Temperature Short Time) pasteurization control, ensuring pathogen elimination while preserving product quality. The module's fast I/O response prevents temperature excursions that would require batch disposal.

Core Features & Benefits

→ Deterministic Loop Execution: 10-millisecond scan cycles guarantee consistent control performance regardless of network traffic, eliminating process variability caused by communication delays
→ Dual Ethernet Ports: Redundant network interfaces support ring topologies and seamless failover, maintaining control integrity during switch failures or cable damage
→ Hot-Swap Architecture: Field-replaceable design allows module exchange during operation without halting production—critical for 24/7 continuous processes
→ Embedded Diagnostics: Real-time health monitoring with predictive maintenance alerts reduces unplanned downtime by 30-40% through early fault detection
→ Multi-Protocol Support: Native Modbus TCP, OPC UA, and proprietary Honeywell protocols enable integration with heterogeneous automation ecosystems
→ Extended Temperature Rating: -20°C to +70°C operational range supports installations in non-climate-controlled environments like outdoor enclosures and tropical facilities

Technical Parameters & Selection Guide

Selection Criteria: Choose the 620-0073C when your application requires Ethernet-based process control with more than 32 loops, integration with modern SCADA platforms, or replacement of aging TDC 2000/3000 hardware. For smaller systems (≤16 loops), consider the 620-0047 processor. Applications demanding SIL 3 safety integrity should specify redundant processor pairs with voting logic.

Extended Functions

Advanced Control Algorithms: Beyond standard PID, the module supports cascade control, ratio control, feedforward compensation, and split-range output strategies—eliminating the need for external function blocks in 80% of process applications.

Cybersecurity Features: Integrated firewall, MAC address filtering, and encrypted configuration uploads protect against unauthorized access. Complies with IEC 62443 industrial cybersecurity standards for secure remote access and patch management.

Cloud Connectivity Options: Optional gateway modules enable secure data streaming to AWS IoT, Azure Industrial IoT, or private historians for predictive analytics and machine learning model training without compromising real-time control performance.

Custom Firmware Profiles: Factory-configurable boot images allow pre-loading of customer-specific control strategies, reducing commissioning time by 40-60% for multi-site deployments with standardized processes.

Delivery & Service Assurance

Lead Times:
✓ Stock units: 1-3 business days (standard configuration)
✓ Custom configurations: 7-10 business days (conformal coating, extended temp testing)
✓ Expedited service: Next-day air available for critical outages

Warranty Coverage:
12-month comprehensive warranty covering component failures, firmware defects, and workmanship issues. Extended 36-month coverage available for preventive maintenance contracts.

Technical Support:
Direct access to Honeywell-certified automation engineers for configuration assistance, troubleshooting, and system optimization. Remote diagnostic services available 24/7 for emergency support.

Documentation Package:
Each module ships with installation manual, wiring diagrams, configuration software (CD/download), sample ladder logic, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

Can the 620-0073C processor integrate with legacy TDC 3000 systems?
Yes, through the UCN (Universal Control Network) gateway module. The processor communicates via Ethernet to a UCN bridge, allowing coexistence with existing TDC infrastructure during phased migration projects. Consult application note AN-620-TDC3K for detailed integration procedures.

What is the maximum cable distance for Ethernet connections?
Standard Cat5e/Cat6 copper: 100 meters per IEEE 802.3 specification. For longer distances, use fiber optic media converters (up to 2km multimode, 40km single-mode). Industrial-grade shielded cable recommended in high-EMI environments.

Does this module support redundant processor configurations?
Yes, when paired with a second 620-0073C and redundancy management software. The system provides bumpless transfer with <50ms switchover time. Requires dual power supplies and redundant network infrastructure for full fault tolerance.

How does energy efficiency compare to older processor models?
The 620-0073C consumes 35% less power than equivalent 620-0047 predecessors while delivering 2.5x processing throughput. In large installations (50+ modules), this translates to 8-12 kW annual energy savings and reduced cooling requirements.

What programming software is required for configuration?
Honeywell Control Builder (version 9.5 or later) for IPC 620 systems. Software licenses sold separately. Free 30-day trial available for evaluation. Our team provides configuration templates for common process applications to accelerate deployment.

Are replacement parts available for field repair?
The 620-0073C uses modular construction with field-replaceable Ethernet daughter cards and backup battery assemblies. Spare parts kits available with 2-year shelf life. Depot repair service offered with 5-day turnaround for out-of-warranty units.

Get Started Today

Upgrade your process control infrastructure with proven Ethernet loop processor technology. Our automation specialists will assess your application requirements, recommend optimal configurations, and provide turnkey integration support.

Request a technical consultation: sales@indctrlhub.com | +0086 187 5021 5667
Volume pricing available for multi-unit projects and system integrators.
