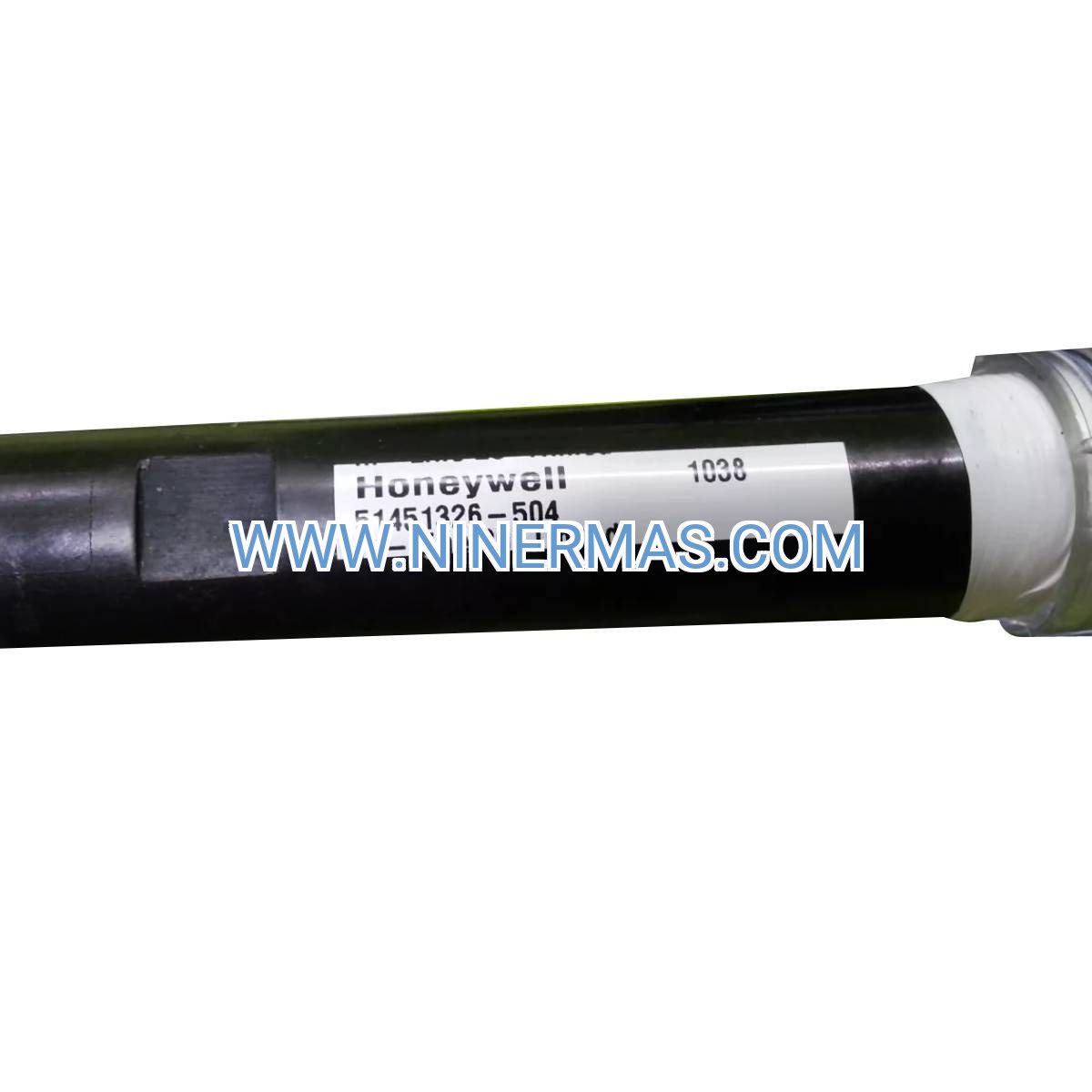

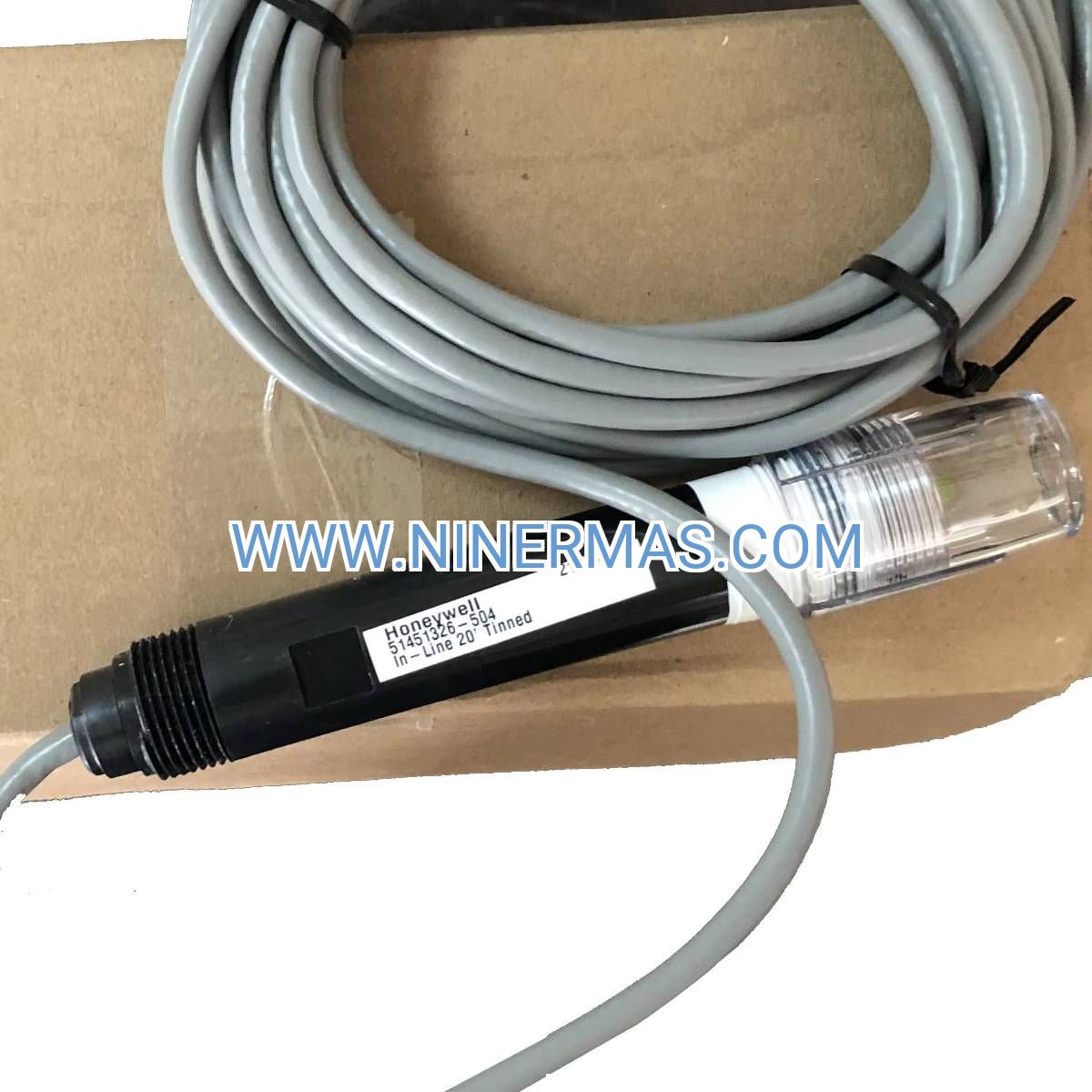

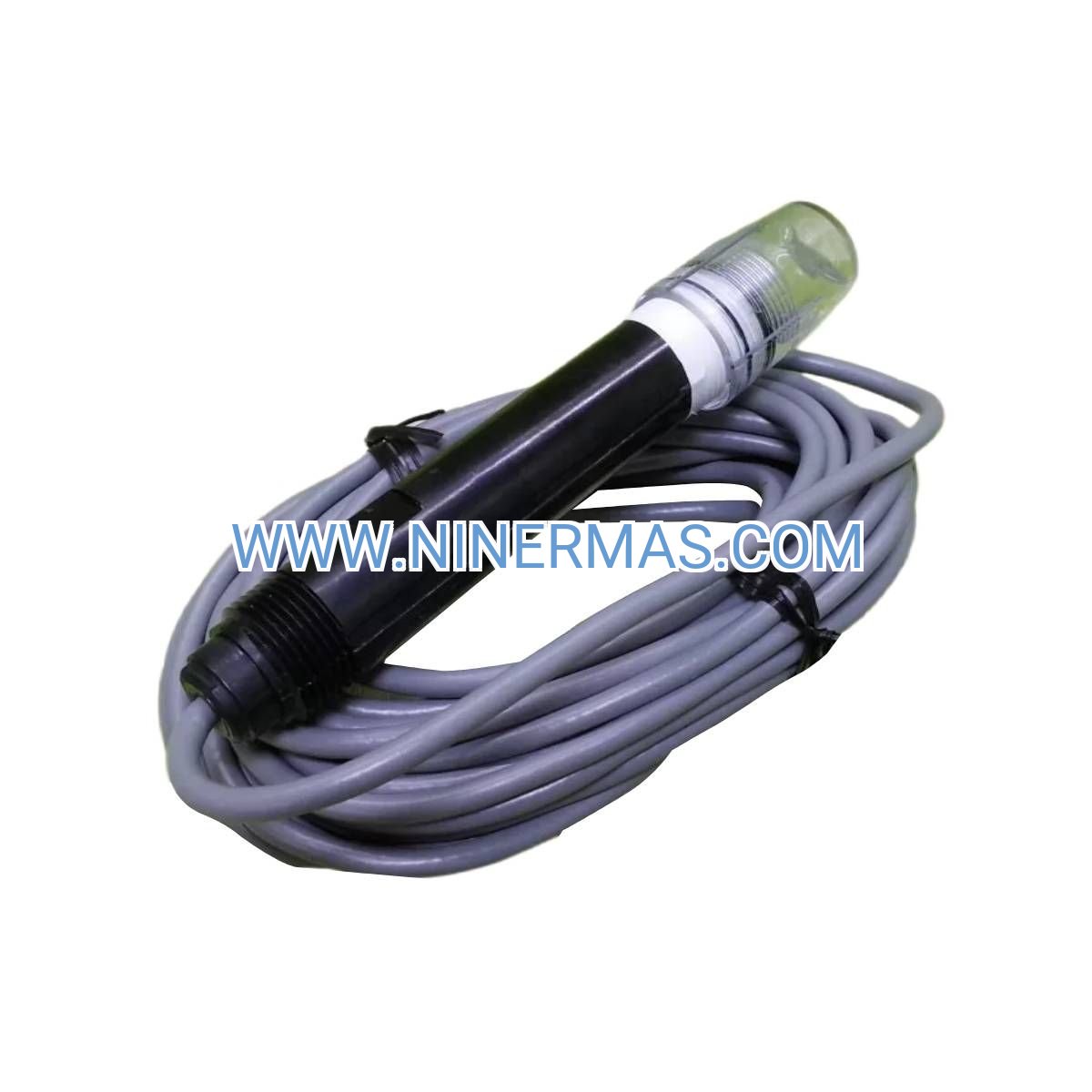

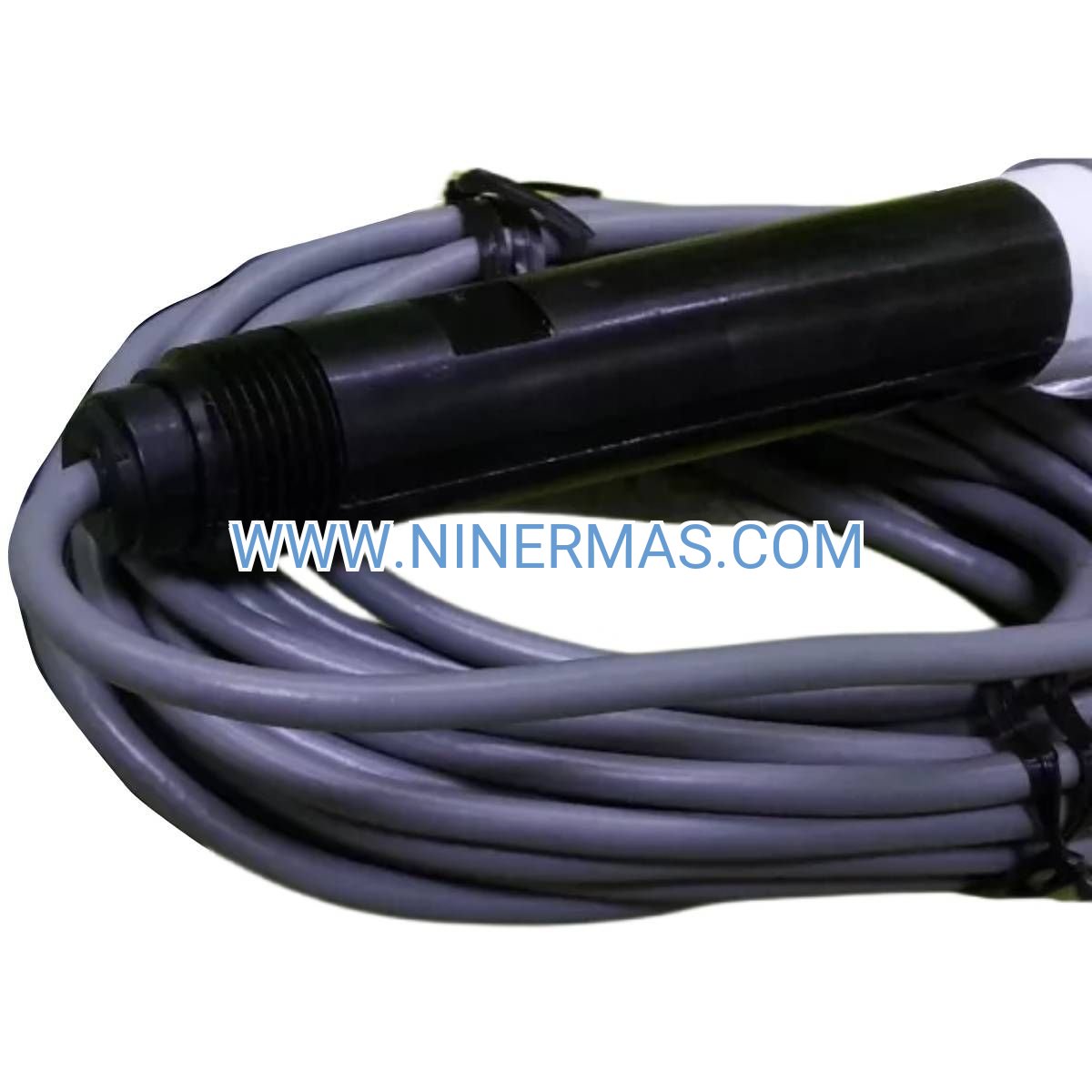

51451326-504 Meredian II pH Sensor (Industrial-Grade Measurement Solution)

The Honeywell 51451326-504 represents a breakthrough in industrial pH sensing technology, combining robust Ryton polymer construction with precision electrode engineering. This combination pH sensor addresses critical measurement challenges in water treatment facilities, chemical manufacturing plants, pharmaceutical production lines, and research laboratories where accuracy, durability, and long-term stability are non-negotiable requirements.

Designed for professionals who demand reliable analytical data in harsh process environments, this Meredian II series probe eliminates common failure modes associated with traditional glass-body sensors. Whether you're managing municipal wastewater pH control, optimizing chemical reactor conditions, or ensuring pharmaceutical batch compliance, the 51451326-504 delivers consistent performance that reduces maintenance costs while improving process outcomes.

With its ceramic junction technology and temperature-compensated design, this sensor provides the measurement confidence needed for automated control systems, regulatory compliance documentation, and quality assurance protocols across diverse industrial sectors.

Performance Advantages & Technical Capabilities

→ Chemical-Resistant Ryton Body Engineering
Polyphenylene sulfide construction withstands aggressive acids, caustics, and solvents that destroy conventional glass probes, extending operational life by 40-60% in corrosive environments while maintaining measurement integrity.

→ Rapid Equilibration Response
Achieves stable readings in under 30 seconds, enabling real-time process adjustments and reducing batch cycle times in time-sensitive manufacturing operations where pH control directly impacts product quality and yield.

→ Full-Spectrum pH Measurement Range
Covers the complete 0-14 pH scale with ±0.02 pH accuracy, supporting applications from strong acid pickling baths to alkaline cleaning solutions without requiring multiple specialized sensors.

✓ Integrated Temperature Compensation
Built-in temperature sensing corrects pH readings across 0-80°C operating range, eliminating manual compensation calculations and ensuring accuracy in thermally dynamic processes.

✓ Low-Maintenance Ceramic Junction
Porous ceramic reference junction resists clogging from suspended solids and coating, reducing cleaning frequency by 50% compared to sleeve-type junctions in challenging sample matrices.

✓ Universal Transmitter Compatibility
Standard BNC connector interfaces seamlessly with Honeywell analyzers, third-party pH controllers, and SCADA systems, simplifying integration into existing measurement infrastructure without proprietary adapters.

Industry-Specific Application Solutions

Municipal Water & Wastewater Management
Deploy in clarifier effluent monitoring, chlorination pH optimization, and discharge compliance verification. The probe's pressure rating supports submersible installations in wet wells and flow-through cells. Typical installations achieve 6-12 month calibration intervals in potable water applications, reducing operator workload while maintaining regulatory compliance for EPA discharge permits.

Chemical Manufacturing & Processing
Control neutralization reactions, monitor polymerization pH, and verify cleaning solution effectiveness in batch and continuous processes. The Ryton body resists attack from organic solvents, concentrated acids, and oxidizing agents that rapidly degrade glass electrodes, protecting your measurement investment in aggressive chemical environments.

Pharmaceutical & Biotechnology Production
Ensure GMP compliance in API synthesis, fermentation monitoring, and CIP validation. The probe's fast response supports critical process parameter tracking required for FDA batch records, while the cleanable design meets pharmaceutical industry sanitation standards for product-contact instrumentation.

Food & Beverage Quality Control
Maintain optimal pH in brewing mash conversion, dairy pasteurization, and beverage carbonation processes. The sensor's food-grade materials and rapid equilibration support inline quality checks that prevent batch rejections due to pH specification failures.

Laboratory & Research Applications
Provide reliable reference measurements for method development, sample analysis, and quality control testing. The probe's stability and reproducibility support analytical protocols requiring documented measurement uncertainty and traceability to NIST standards.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 51451326-504 when your application involves chemical exposure that damages glass probes, requires pressure ratings above atmospheric, or demands extended service life in continuous monitoring installations. For high-purity water applications with minimal chemical exposure, consider glass-body alternatives. For temperatures exceeding 80°C, consult factory for high-temperature probe options.

Advanced Integration & System Expansion

The 51451326-504 pH sensor serves as a foundational element in comprehensive process analytical systems. Pair with Honeywell pH/ORP transmitters featuring 4-20mA output for integration with distributed control systems, or connect to local controllers for standalone pH regulation loops.

For multi-parameter water quality monitoring, combine pH measurement with conductivity, dissolved oxygen, and turbidity sensors to create complete analytical stations. The probe's standard mounting threads accommodate installation in flow cells, immersion assemblies, and retractable probe holders for maintenance-friendly configurations.

In automated process control applications, the sensor's fast response enables tight pH control bands (±0.1 pH) when paired with proportional-integral-derivative (PID) controllers and chemical dosing pumps, optimizing reagent consumption while maintaining process specifications.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via express courier with tracking
Custom Configurations: 2-3 weeks for special cable lengths or mounting adaptations
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Application engineering assistance for sensor selection, installation guidance, and troubleshooting
Documentation Package: Calibration certificate, installation manual, maintenance procedures, and material compatibility charts

Frequently Asked Questions

What calibration solutions are required for the 51451326-504 pH probe?
Use NIST-traceable pH buffer solutions at pH 4.01, 7.00, and 10.01 for three-point calibration. Two-point calibration (pH 4 and 7, or pH 7 and 10) is acceptable for applications with limited pH ranges. Always use fresh buffers and perform calibration at process temperature when possible for maximum accuracy.

How does the Ryton body compare to glass for chemical resistance?
Ryton (polyphenylene sulfide) offers superior resistance to strong acids, bases, and organic solvents compared to borosilicate glass. It withstands impact and thermal shock better than glass, making it ideal for industrial environments. However, glass provides slightly better electrical insulation for ultra-pure water applications below 1 µS/cm conductivity.

Can this probe measure pH in high-solids slurries or viscous liquids?
Yes, the ceramic junction design handles suspended solids up to 5% concentration and viscosities to 500 cP. For higher solids content, implement periodic probe cleaning or use a flow-through cell with sample filtration. In very viscous media, allow extended equilibration time (60-90 seconds) for stable readings.

What is the typical replacement interval for industrial applications?
Expect 12-18 months service life in clean water applications, 6-12 months in chemical processing, and 3-6 months in harsh environments with extreme pH, high temperatures, or abrasive solids. Monitor calibration drift as the primary replacement indicator—when calibration shifts exceed ±0.2 pH between weekly checks, plan for probe replacement.

Does the sensor support continuous online monitoring or only grab sampling?
The 51451326-504 is designed for continuous online installation in process streams, tanks, and pipelines. The pressure rating and durable construction enable 24/7 operation in automated systems. For grab sampling applications, use a laboratory probe holder and ensure proper storage in pH 4 buffer solution between measurements.

How do I prevent reference junction clogging in dirty process streams?
Install the probe in a flow-through cell with 0.3-0.5 m/s sample velocity to prevent solids accumulation. Implement automatic cleaning cycles using compressed air or water jets every 4-8 hours in high-fouling applications. For extreme conditions, consider a retractable probe assembly that allows periodic removal for manual cleaning without process shutdown.

Order Your Industrial pH Measurement Solution

Upgrade your process analytical capability with the Honeywell 51451326-504 Meredian II pH probe. Our technical team provides pre-sale application consultation to ensure optimal sensor selection for your specific measurement requirements. Contact us today for volume pricing, custom cable configurations, or integration support for your water quality or process control project.
