51451326-503 Meredian II pH Electrode Assembly (Industrial-Grade Water Analysis)

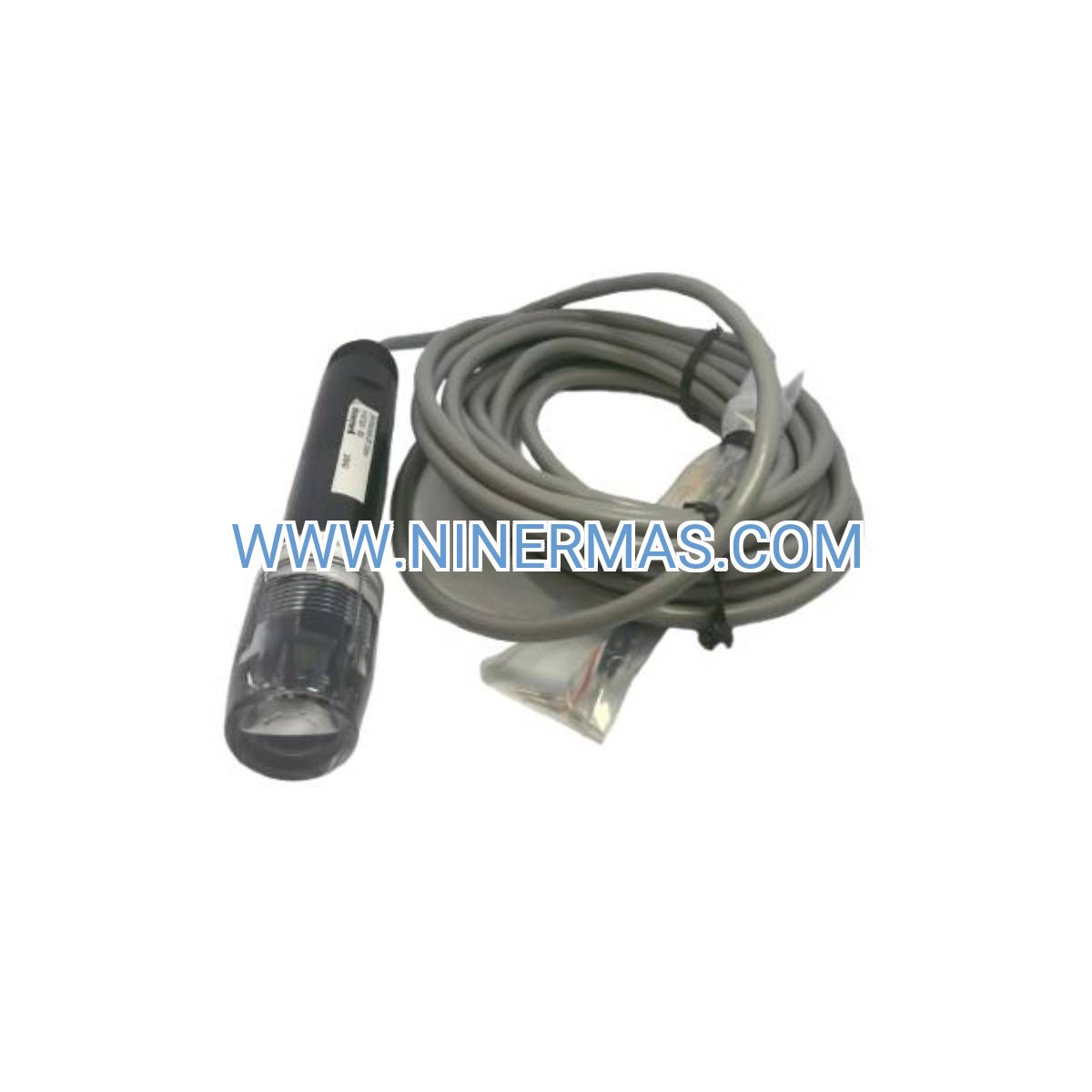

The 51451326-503 pH electrode assembly represents Honeywell's advanced solution for continuous water quality monitoring in industrial environments. This precision instrument combines glass sensor technology with automatic temperature compensation (ATC) to deliver reliable pH measurements across 0-14 pH range, serving water treatment facilities, chemical plants, and pharmaceutical manufacturing operations where accuracy is non-negotiable.

Built for harsh process conditions, this electrode features CPVC construction that withstands corrosive chemicals while maintaining measurement integrity. The 20-foot tinned copper cable provides flexible installation options without signal degradation, making it ideal for remote mounting configurations in complex process systems.

Whether you're managing municipal water treatment compliance, controlling chemical batch processes, or validating pharmaceutical production parameters, the 51451326-503 delivers the accuracy and durability your critical applications demand.

Core Features & Technical Advantages

✓ Double Junction Reference Design
Extends electrode lifespan by minimizing sample contamination and reference poisoning in challenging process streams. This advanced junction configuration maintains stable readings even in high-chloride or sulfide-containing solutions.

✓ Integrated Automatic Temperature Compensation
Eliminates manual calibration adjustments across 0-80°C operating range. The built-in ATC sensor ensures accurate pH readings regardless of process temperature fluctuations, reducing operator intervention and improving data reliability.

✓ CPVC Mounting Assembly
Chlorinated polyvinyl chloride construction provides superior chemical resistance compared to standard PVC. Rated for continuous operation up to 100 PSI, this robust housing protects the glass sensor in high-pressure applications.

✓ Extended 20-Foot Cable with Tinned Leads
Factory-terminated tinned copper conductors resist corrosion and ensure long-term connection reliability. The generous cable length accommodates transmitter placement away from harsh process environments while maintaining signal quality.

✓ Rapid Response Time (<30 Seconds)
Fast equilibration enables real-time process control and immediate detection of pH excursions. Critical for automated dosing systems and alarm management in dynamic process conditions.

✓ Wide pH Measurement Range (0-14 pH)
Handles extreme acidic and alkaline conditions without sensor damage. Suitable for diverse applications from acid neutralization to caustic cleaning verification.

Application Scenarios & Industry Solutions

→ Municipal Water Treatment Plants
Meet regulatory compliance requirements for drinking water pH monitoring. The 51451326-503 provides continuous measurement for coagulation optimization, corrosion control, and disinfection effectiveness. Deploy in clarifier effluent, filter outlets, and distribution system monitoring points.

→ Chemical Manufacturing & Processing
Maintain precise pH control in reactor vessels, neutralization tanks, and product formulation systems. The double junction design resists contamination from process chemicals, ensuring stable measurements in aggressive environments. Ideal for batch consistency and quality assurance.

→ Pharmaceutical Production
Validate critical process parameters for USP water systems, fermentation monitoring, and API synthesis. The electrode's rapid response supports real-time process adjustments, while its robust construction ensures reliable performance during CIP (clean-in-place) cycles.

→ Wastewater Treatment & Effluent Monitoring
Optimize biological treatment processes through continuous pH monitoring in aeration basins and secondary clarifiers. Track effluent quality for discharge permit compliance and automated chemical dosing control.

→ Food & Beverage Quality Control
Monitor pH in brewing, dairy processing, and beverage production where product safety and consistency are paramount. The CPVC construction meets food-grade material requirements for direct process contact applications.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 51451326-503 when your application requires chemical-resistant construction, extended cable length for remote mounting, and automatic temperature compensation. For high-purity water applications (resistivity >1 MΩ·cm), consider specialized low-conductivity electrodes. In extreme temperature environments (>80°C), evaluate high-temperature electrode options with ceramic junctions.

System Integration & Compatibility

The 51451326-503 electrode integrates seamlessly with Honeywell process analyzers and third-party pH transmitters featuring standard BNC input connections. The tinned copper lead termination accommodates direct wiring to analyzer terminals or junction boxes in distributed control system architectures.

For comprehensive water quality monitoring, combine this pH electrode with conductivity sensors, dissolved oxygen probes, and turbidity meters in multi-parameter analyzer configurations. The electrode's rapid response time supports integration with automated chemical dosing systems for real-time process optimization.

Network-enabled installations benefit from pairing with smart transmitters that provide digital communication via HART, Modbus, or Profibus protocols. This enables remote diagnostics, predictive maintenance alerts, and centralized data logging for regulatory compliance documentation.

Installation Best Practices & Maintenance

Installation Guidelines:

Mount the electrode in representative process flow with sufficient turbulence (minimum 0.3 m/s velocity) to ensure rapid sample exchange at the sensor surface. Avoid installation in dead zones, sediment accumulation areas, or locations with air entrainment. Position the electrode at a 45-degree downward angle to prevent bubble entrapment on the glass bulb.

The 20-foot cable length accommodates transmitter mounting in accessible locations away from harsh process conditions. Route cables through conduit to protect against mechanical damage and electromagnetic interference. Maintain minimum 12-inch separation from high-voltage power cables.

Calibration & Maintenance Schedule:

Perform two-point calibration using pH 4.0 and 7.0 buffer solutions weekly for critical applications, monthly for general monitoring. Three-point calibration (pH 4.0, 7.0, 10.0) is recommended for wide-range measurements. Document calibration results to track electrode performance degradation over time.

Cleaning frequency depends on process conditions—weekly for clean water, daily for high-fouling applications. Use appropriate cleaning solutions: dilute HCl for mineral deposits, pepsin solution for protein fouling, or manufacturer-recommended cleaners for specific contaminants. Store spare electrodes in pH 4.0 buffer solution to maintain junction hydration.

Expected Service Life: 12-18 months under normal conditions with proper maintenance. High-temperature applications or aggressive chemical environments may reduce lifespan to 6-12 months. Monitor calibration slope and offset trends to identify electrode degradation before measurement accuracy is compromised.

Delivery, Warranty & Technical Support

Standard Delivery: 3-5 business days for in-stock items via expedited shipping. Custom cable lengths or special configurations may require 2-3 weeks lead time. All electrodes ship factory-sealed with protective caps and storage solution.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty covers electrode replacement for premature glass breakage, junction failure, or cable defects under normal operating conditions. Excludes damage from improper installation, chemical attack beyond specifications, or physical abuse.

Technical Support: Application engineering assistance available for electrode selection, installation guidance, and troubleshooting. Comprehensive documentation includes installation manuals, calibration procedures, and maintenance best practices. On-site commissioning support available for large-scale installations.

Included Accessories: Protective storage cap, pH 4.0 storage solution (50ml), installation hardware, and technical documentation. Calibration buffer solutions and cleaning supplies available separately.

Frequently Asked Questions

Q: How do I verify the 51451326-503 electrode is functioning correctly?
A: Perform a slope check during calibration—healthy electrodes exhibit 90-105% slope (54-59 mV/pH at 25°C). Offset should be within ±30 mV when measured in pH 7.0 buffer. Declining slope below 85% or offset drift beyond ±50 mV indicates electrode replacement is needed. Response time testing in sequential buffer solutions confirms sensor vitality.

Q: Can this pH electrode measure in high-purity or deionized water?
A: The double junction design improves performance in low-conductivity samples compared to single-junction electrodes, but measurement stability may be compromised in ultrapure water (resistivity >10 MΩ·cm). For high-purity applications, consider specialized low-conductivity electrodes with flowing reference junctions or pair with conductivity compensation.

Q: What causes rapid electrode failure in my application?
A: Common failure modes include: (1) Glass membrane poisoning from sulfide or heavy metals—use protective pre-filters or increase cleaning frequency; (2) Reference junction clogging from suspended solids—install upstream filtration or use flowing junction electrodes; (3) Temperature shock from rapid thermal cycling—implement gradual temperature transitions; (4) Chemical attack on CPVC housing—verify chemical compatibility or upgrade to PEEK/titanium housings.

Q: Is the electrode compatible with non-Honeywell analyzers and transmitters?
A: Yes, the standard BNC connector and tinned lead termination ensure compatibility with most pH analyzers from manufacturers including Yokogawa, Foxboro, Endress+Hauser, and Emerson. Verify electrical specifications match your analyzer's input requirements (typical: high-impedance input >10^12 Ω). Some legacy systems may require signal conditioning modules.

Q: How should I store replacement electrodes before installation?
A: Store electrodes in original packaging at room temperature (15-25°C) away from direct sunlight. Keep the protective cap filled with pH 4.0 storage solution or 3M KCl solution to maintain junction hydration. Never store in deionized water, which causes reference electrolyte depletion. Properly stored electrodes maintain performance for 12-24 months before installation.

Q: Can the cable be shortened or extended for my specific installation?
A: The cable can be shortened by cutting and re-terminating at the analyzer end—ensure proper shielding and strain relief. Extension beyond 20 feet is not recommended due to signal degradation and noise susceptibility. For remote installations, use a loop-powered pH transmitter near the electrode with 4-20mA signal transmission to the control system, eliminating high-impedance signal transmission issues.

Ready to Optimize Your Water Quality Monitoring?

The 51451326-503 Meredian II pH Electrode Assembly delivers the precision, durability, and reliability your critical process applications demand. Whether you're upgrading aging instrumentation or designing new monitoring systems, this industrial-grade sensor provides the foundation for accurate pH measurement and effective process control.

Contact our technical team today to discuss your specific application requirements, receive installation guidance, or request a detailed quotation. We provide comprehensive support from product selection through commissioning to ensure successful project execution.
