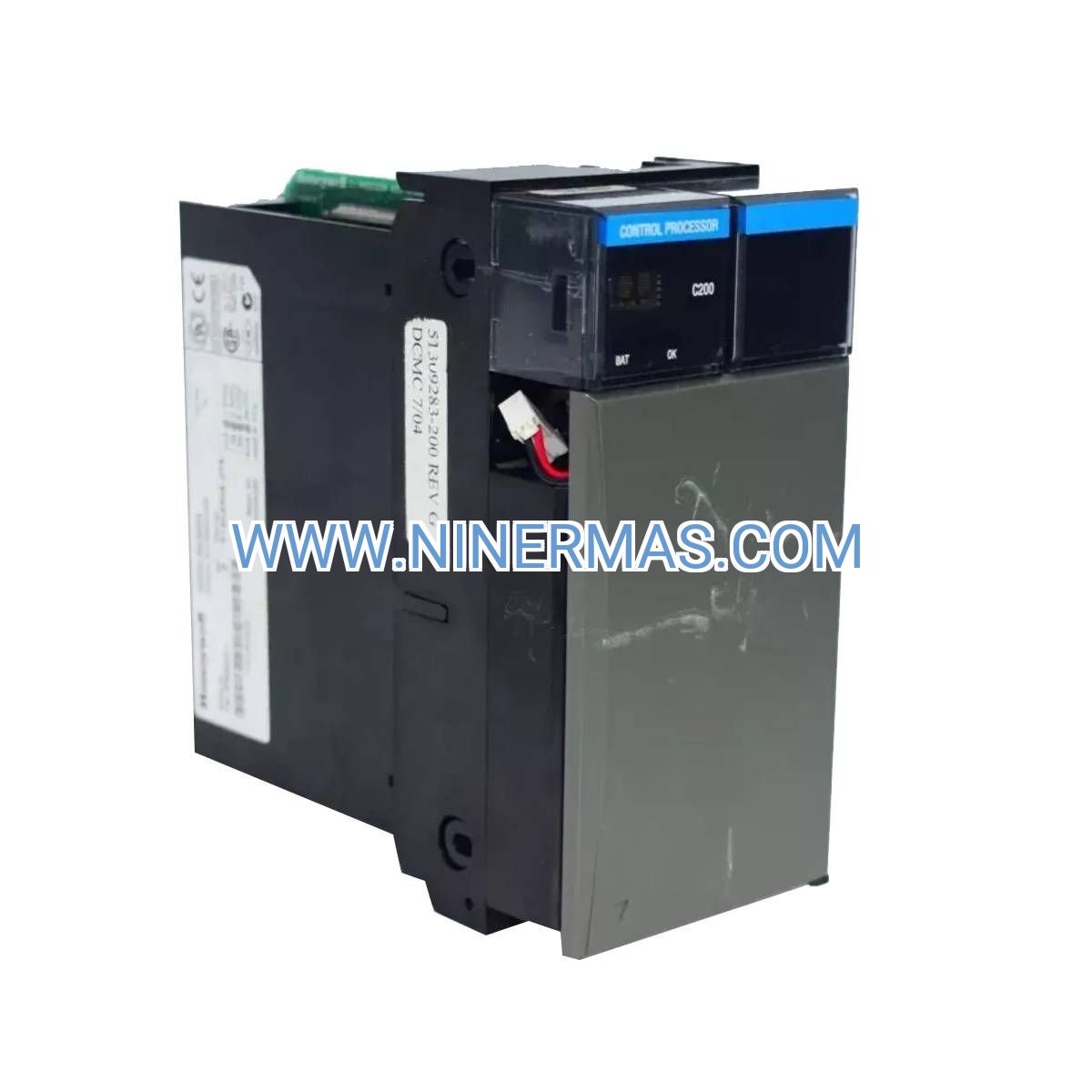

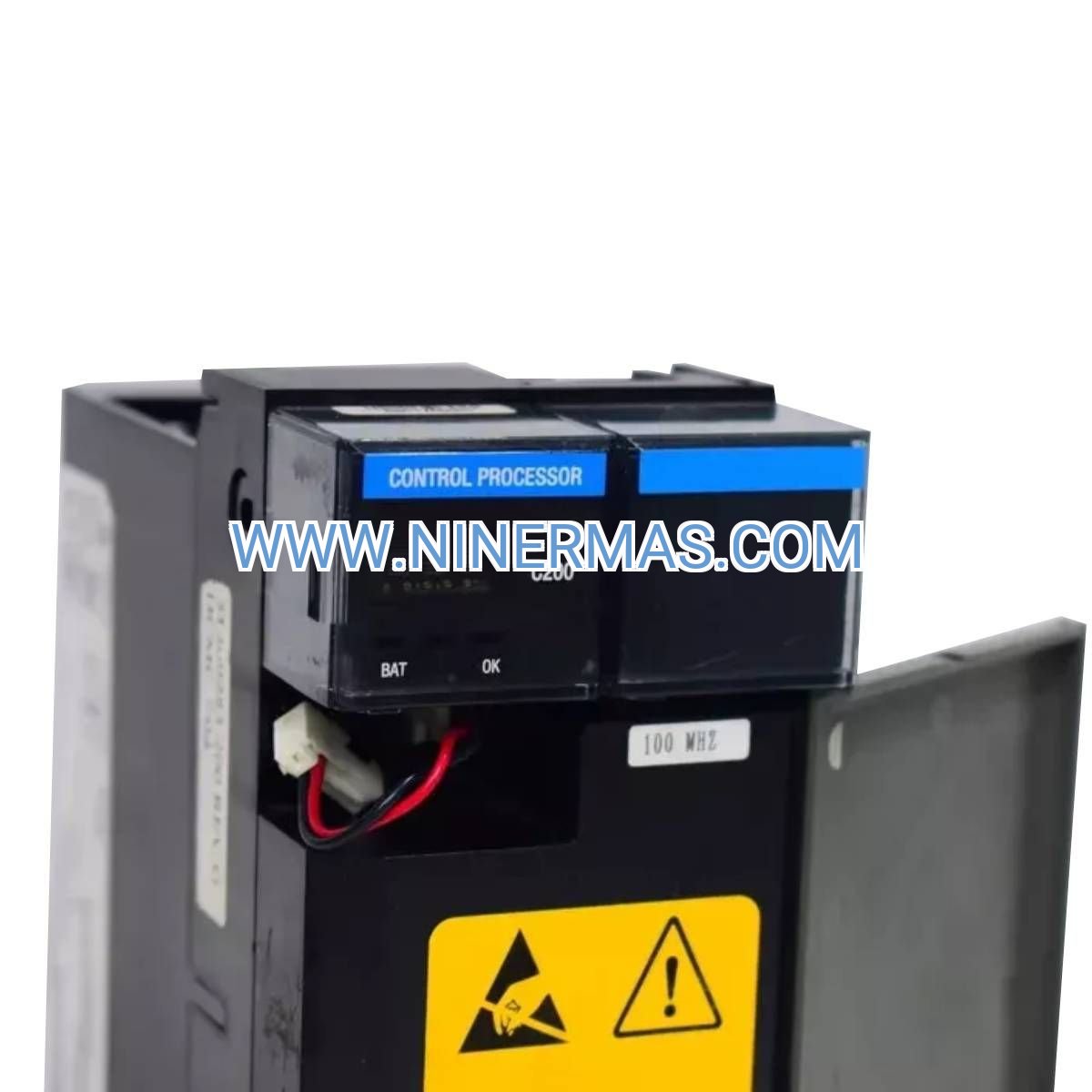

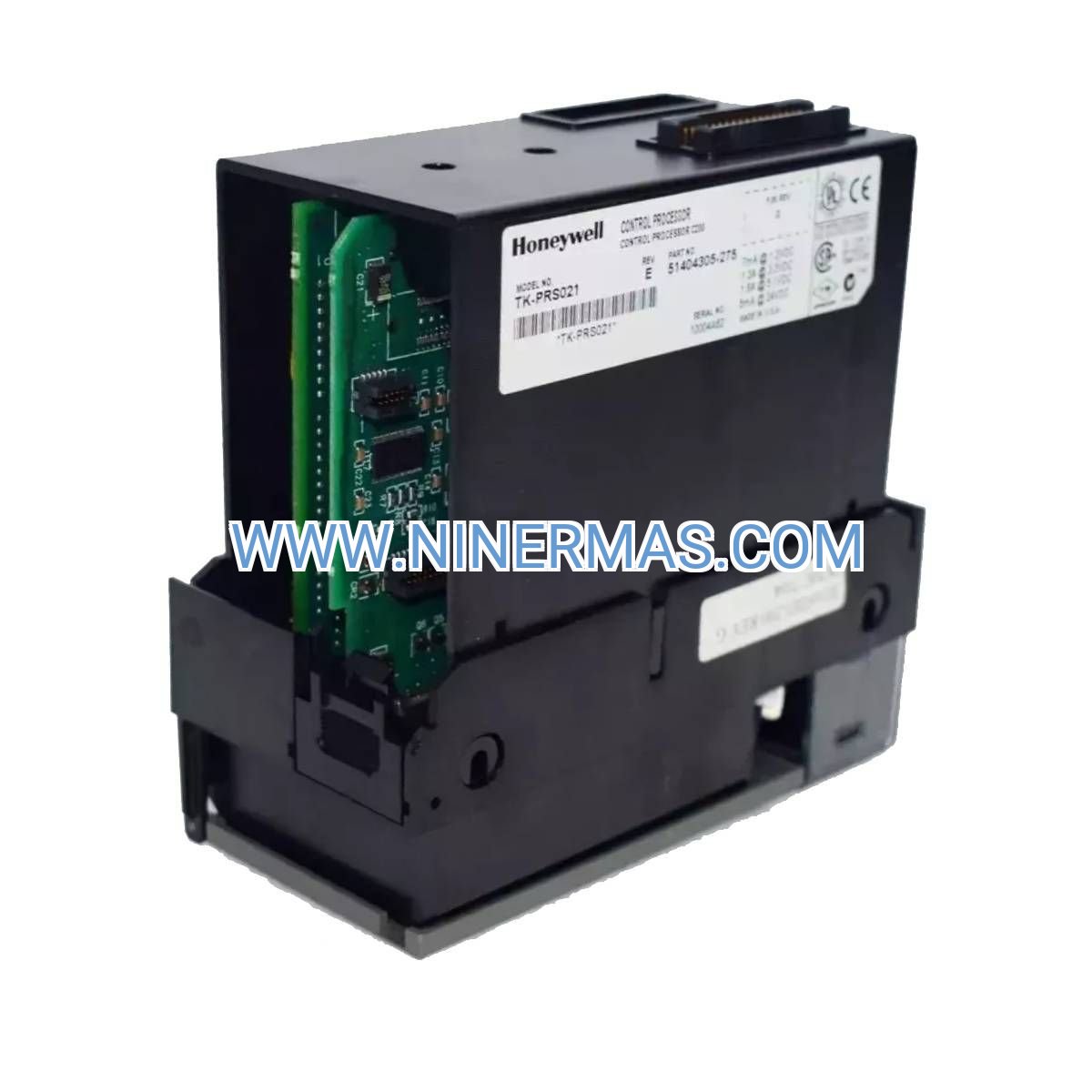

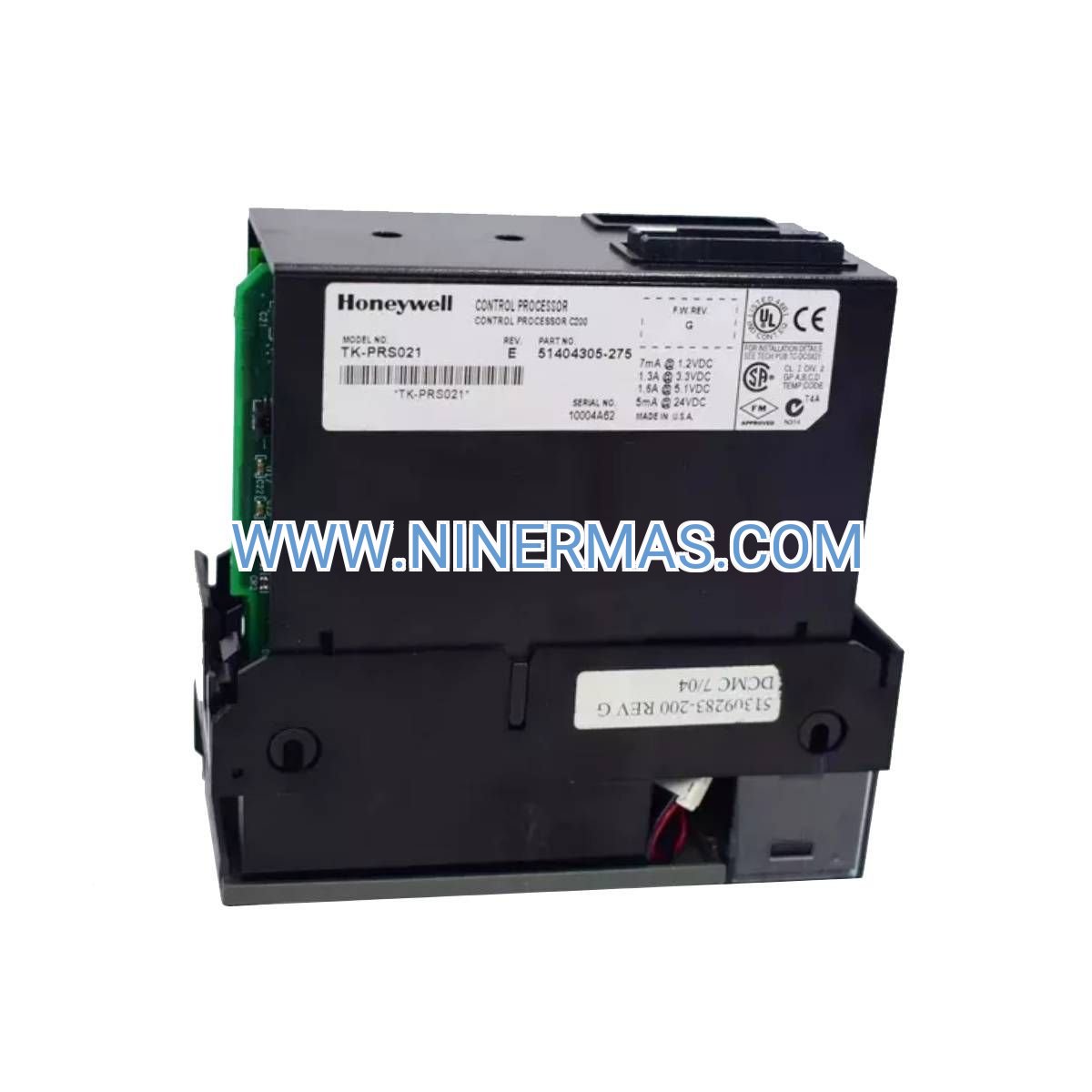

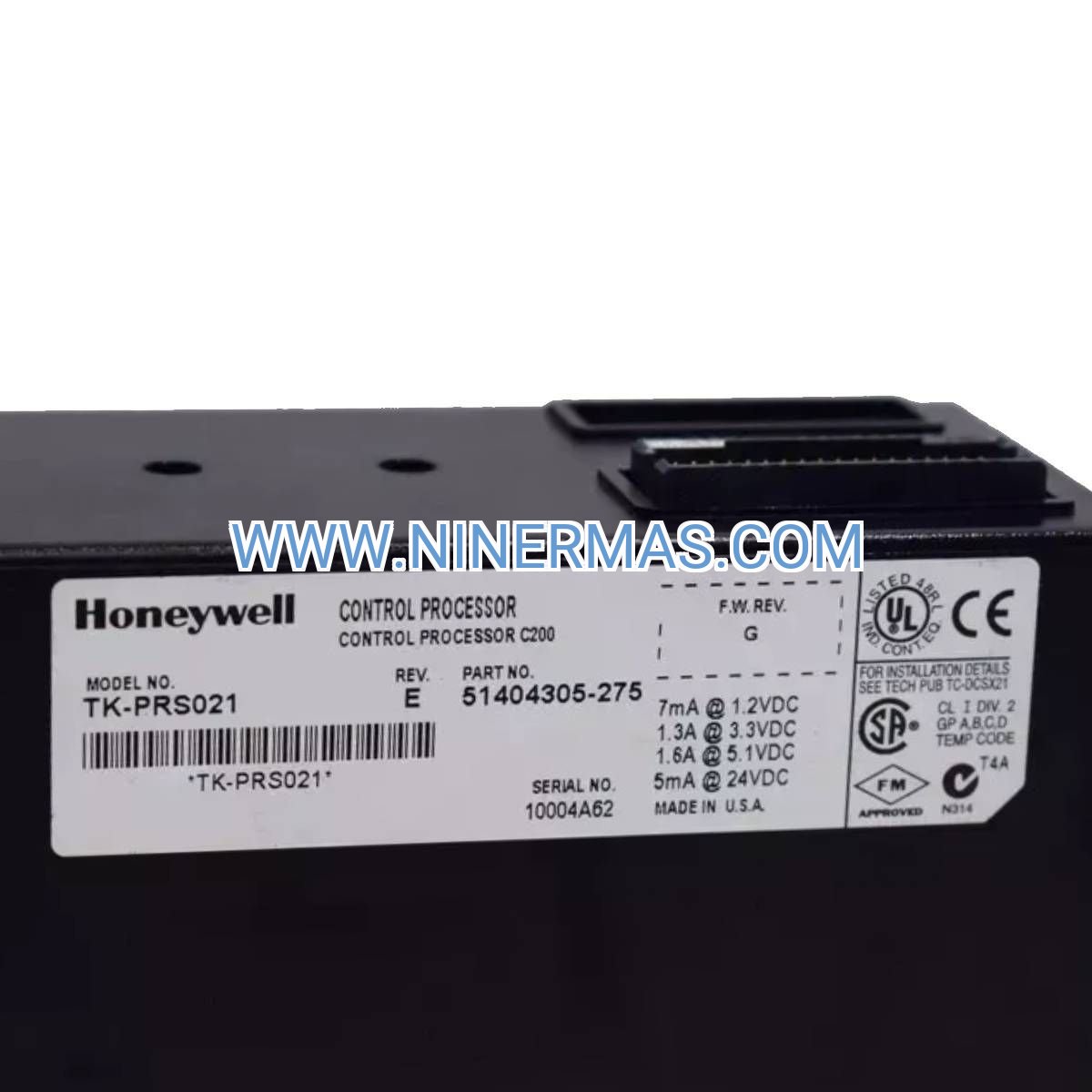

51404305-275 Control Processor (Industrial-Grade DCS Solution)

The 51404305-275 represents Honeywell's flagship control processor engineered for Experion PKS C200 and C300 distributed control architectures. Designed to deliver deterministic execution in mission-critical environments, this processor combines high-speed processing, fault-tolerant redundancy, and extensive I/O scalability to power complex automation workflows across oil & gas, chemical, pharmaceutical, and power generation sectors.

Built for environments where downtime translates to significant operational losses, the 51404305-275 ensures continuous process control through hot-standby redundancy and bumpless transfer capabilities. Whether managing refinery distillation columns, chemical reactor sequences, or utility boiler controls, this processor provides the reliability and performance industrial operations demand.

With support for up to 2304 I/O points and configurable scan cycles as fast as 10ms, the 51404305-275 handles everything from simple regulatory loops to advanced multivariable control strategies, making it the cornerstone of modern DCS implementations.

Key Capabilities & Technical Advantages

→ Deterministic Real-Time Performance
32-bit RISC architecture delivers consistent 10-100ms scan cycles with microsecond-level timing precision, ensuring predictable control response for time-sensitive processes. Eliminates control jitter that can compromise product quality in batch operations.

→ Hot-Standby Redundancy Architecture
Seamless failover between primary and backup processors occurs in under 50ms without process interruption. Automatic synchronization maintains identical states across redundant pairs, protecting against single-point failures in critical applications.

✓ Massive I/O Scalability
Supports up to 2304 distributed I/O points across digital, analog, and specialty modules. Modular expansion accommodates growing automation requirements without processor replacement, reducing total cost of ownership over 15-20 year lifecycles.

✓ Multi-Protocol Communication
Native Ethernet, Modbus TCP/IP, and OPC connectivity enables integration with SCADA systems, historians, and third-party devices. Reduces engineering time for heterogeneous system architectures common in brownfield modernization projects.

✓ IEC 61131-3 Programming Flexibility
Control Builder software supports Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC) languages. Allows engineers to select optimal programming methods for regulatory control, batch sequencing, or discrete logic applications.

✓ Industrial-Hardened Design
0°C to 60°C operating range with conformal coating protects against temperature extremes, humidity, and corrosive atmospheres. UL, CE, ATEX, and IECEx certifications validate suitability for hazardous area installations.

Industry Applications & Use Cases

Oil & Gas Refining
Controls crude distillation units, catalytic crackers, and hydroprocessing systems where precise temperature, pressure, and flow regulation directly impacts yield optimization. Redundancy prevents unplanned shutdowns that cost $500K-$2M per day in lost production.

Chemical Manufacturing
Manages batch reactors, continuous polymerization lines, and specialty chemical synthesis requiring tight recipe control. Advanced control algorithms maintain product specifications within ±0.5% tolerances demanded by pharmaceutical-grade intermediates.

Power Generation
Orchestrates boiler-turbine-generator coordination in combined-cycle plants and cogeneration facilities. Handles load-following operations and emissions compliance monitoring for NOx, SOx, and particulate control systems.

Pharmaceutical Production
Executes validated batch sequences for API synthesis and formulation processes requiring 21 CFR Part 11 electronic records compliance. Audit trail capabilities and deterministic execution support regulatory validation requirements.

Water & Wastewater Treatment
Automated control of clarification, filtration, disinfection, and sludge processing stages. Optimizes chemical dosing and aeration to reduce operating costs while maintaining discharge permit compliance.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 51404305-275 when your application requires more than 1000 I/O points, redundancy for critical processes, or advanced control algorithms beyond basic PID. For smaller systems (<500 I/O), consider C200 entry-level controllers. For safety-instrumented systems (SIS), pair with certified safety controllers meeting IEC 61511 requirements.

Advanced Integration & Expansion Options

IoT & Cloud Connectivity
Integrate with Honeywell Forge industrial analytics platform via OPC UA for predictive maintenance, energy optimization, and remote monitoring. Secure VPN tunneling enables global visibility without compromising cybersecurity posture.

Cybersecurity Hardening
Supports role-based access control (RBAC), encrypted communications, and security event logging aligned with IEC 62443 industrial cybersecurity standards. Firmware signing prevents unauthorized code execution.

Custom Configuration Services
Factory pre-configuration available for turnkey installations. Includes I/O mapping, control strategy loading, and redundancy testing to reduce on-site commissioning time by 40-60%.

Delivery, Warranty & Technical Support

Lead Times:
• Standard Configuration: 3-5 business days
• Custom Pre-Configured: 10-15 business days
• Express Shipping: Available for critical outages

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty options available for up to 36 months.

Technical Support:
Direct access to Honeywell-certified engineers for installation guidance, configuration troubleshooting, and performance optimization. Phone, email, and remote desktop support included during business hours (8AM-6PM CST, Monday-Friday).

Documentation Package:
Each unit ships with installation manual, configuration guide, I/O wiring diagrams, and Control Builder software compatibility matrix. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

Can the 51404305-275 replace older TDC 3000 processors during system upgrades?
Yes, migration tools within Control Builder facilitate conversion of TDC 3000 control strategies to Experion PKS format. I/O modules may require replacement depending on vintage, but control logic can be preserved with 80-90% reusability.

What network bandwidth is required for redundant processor communication?
100Mbps Ethernet minimum recommended for redundancy synchronization. Gigabit Ethernet preferred for systems exceeding 1500 I/O points or utilizing high-speed data logging to historians.

Does this processor support third-party I/O modules via open protocols?
Modbus TCP and OPC connectivity allows integration of non-Honeywell I/O, but native Experion I/O modules provide tighter integration and faster scan performance. Hybrid architectures common in retrofit projects.

How does scan cycle time affect control loop performance?
Faster scan cycles (10-20ms) benefit high-speed processes like motor control and flow regulation. Slower cycles (50-100ms) sufficient for temperature and level loops with large time constants. Configurable per control module.

What cybersecurity measures protect against industrial malware?
Whitelisting prevents unauthorized application execution, encrypted Ethernet blocks man-in-the-middle attacks, and audit logging tracks configuration changes. Regular firmware updates address emerging vulnerabilities.

Can I monitor processor health and diagnostics remotely?
Yes, built-in diagnostics expose CPU load, memory utilization, I/O health, and communication status via OPC tags. Integration with SCADA or Honeywell Forge enables predictive maintenance alerts before failures occur.

Ready to Upgrade Your DCS Infrastructure?

The 51404305-275 Control Processor delivers the reliability, performance, and scalability modern industrial operations demand. Whether replacing aging legacy systems or expanding existing Experion PKS installations, this processor provides a future-proof foundation for process automation.

Contact our industrial automation specialists today to discuss your specific application requirements, receive detailed technical specifications, or request a customized quotation. Our team provides expert guidance on system architecture, redundancy design, and integration with existing infrastructure.
