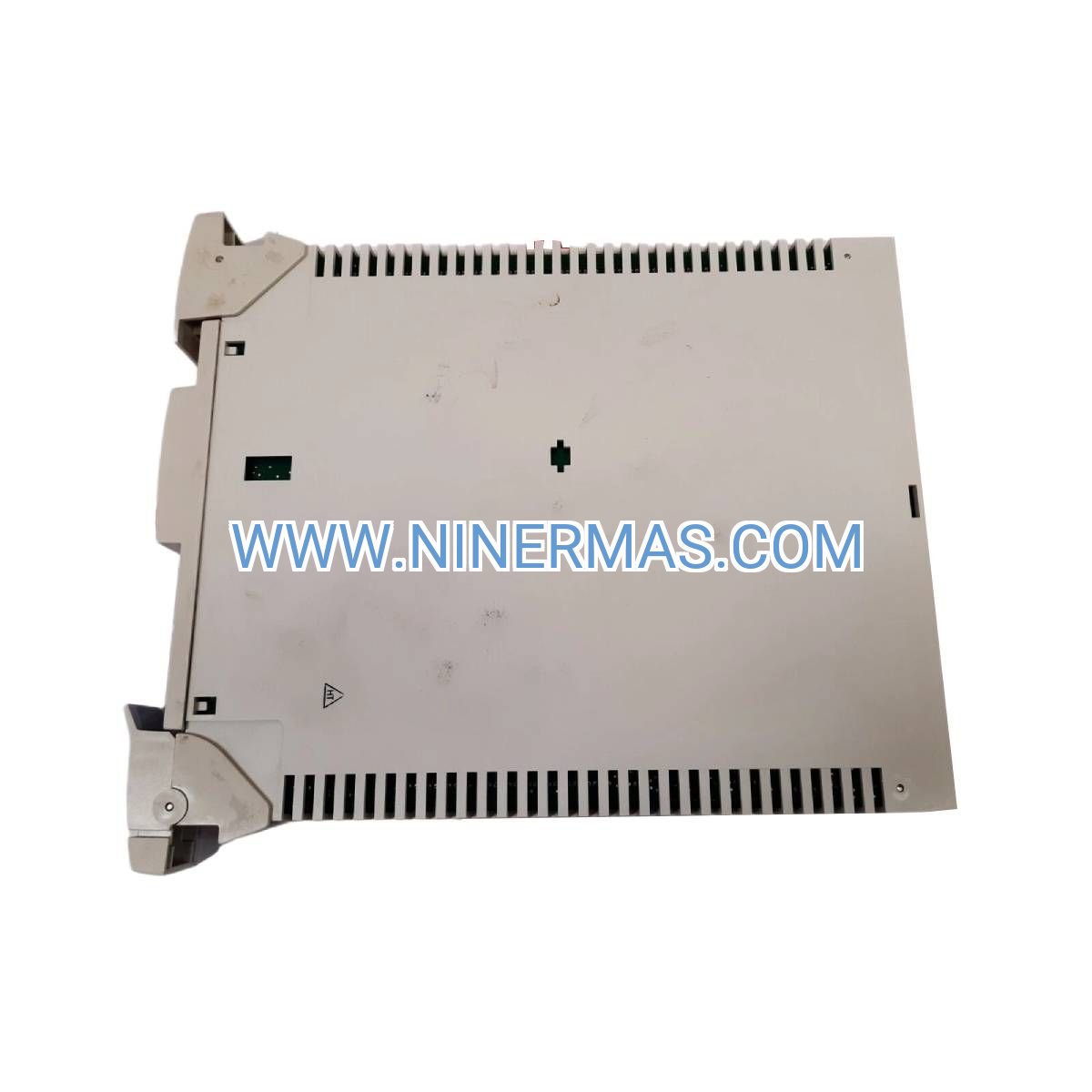

51401594-200 ELCN Bridge Module (Industrial-Grade Network Interface for TDC 3000)

The Honeywell 51401594-200 represents a mission-critical networking solution engineered for Enhanced Local Control Network (ELCN) integration within TDC 3000 Distributed Control Systems. Designed to bridge communication gaps between ELCN segments and Universal Station architectures, this module delivers deterministic data exchange with sub-millisecond latency, ensuring uninterrupted process visibility across multi-tier automation environments.

Built for industries where downtime translates to six-figure losses—refineries, chemical plants, power stations—the 51401594-200 addresses the core challenge of legacy system modernization: maintaining operational continuity while upgrading network infrastructure. Plant engineers rely on this bridge module to extend the lifespan of proven TDC 3000 installations without sacrificing real-time control performance or introducing compatibility risks.

Whether you're scaling a distributed control architecture across multiple process units or integrating new I/O subsystems with existing ELCN backbones, the 51401594-200 provides the transparent connectivity layer that keeps critical processes running. Hot-swappable design minimizes maintenance windows, while diagnostic LED arrays accelerate troubleshooting—reducing mean time to repair (MTTR) by up to 40% compared to legacy bridge solutions.

Core Capabilities & Business Value

→ Transparent Protocol Conversion
Automatically translates ELCN messaging formats to Universal Station protocols without data loss or timing jitter. Eliminates the need for custom gateway programming, reducing commissioning time by 60%.

✓ Zero-Downtime Serviceability
Hot-swap capability allows module replacement during live operation. Maintenance teams can address hardware issues without initiating plant-wide shutdowns—saving $50K-$200K per avoided outage in typical refinery applications.

✓ Multi-Path Redundancy Support
Integrates with redundant ELCN topologies to provide failover protection. Automatic switchover occurs within 100ms of primary path failure, maintaining process control integrity during network disturbances.

✓ Environmental Hardening
Operates reliably in -40°C to +70°C ambient conditions with 95% humidity tolerance. Conformal coating protects circuitry from corrosive atmospheres common in chemical processing and offshore platforms.

✓ Diagnostic Intelligence

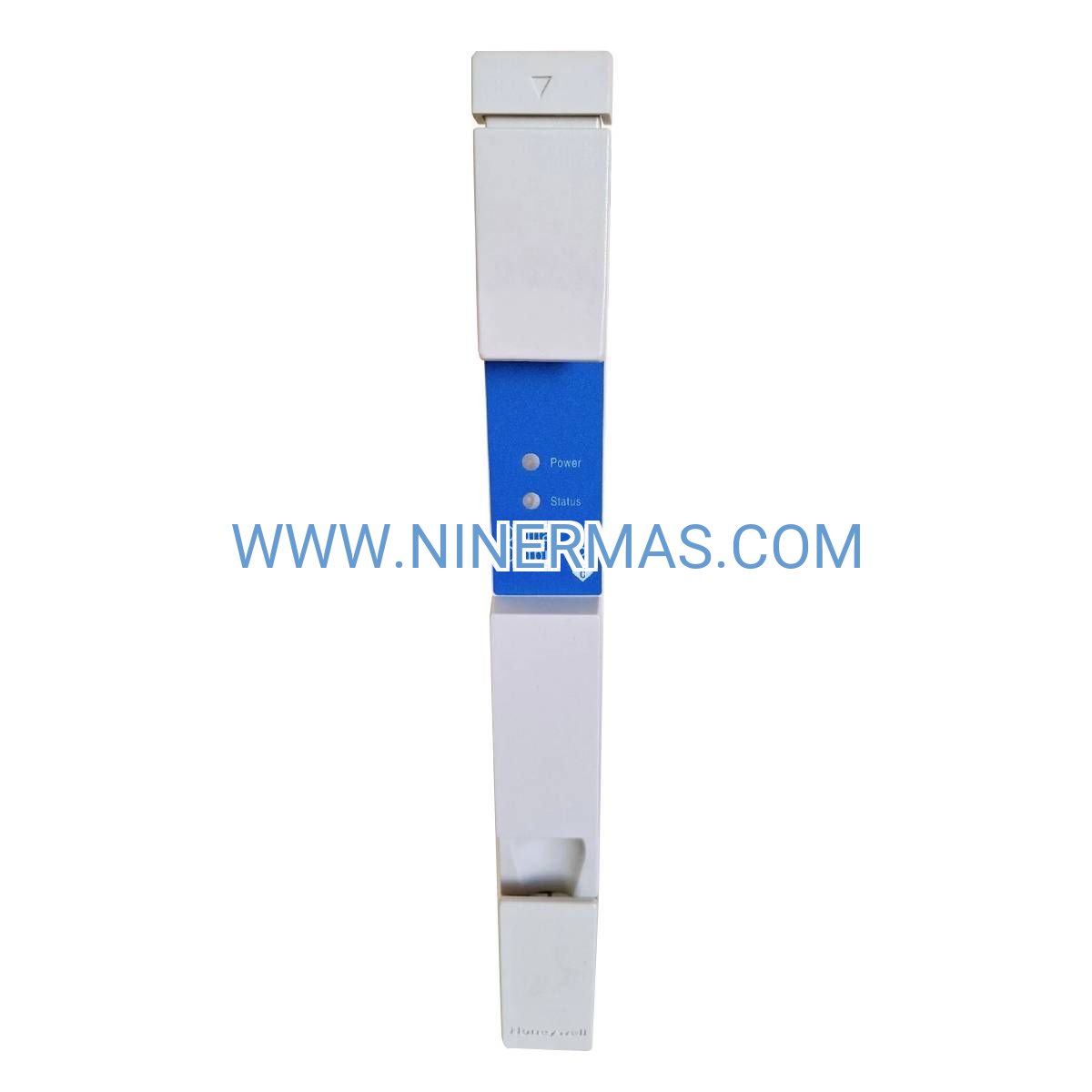

Front-panel LEDs provide instant visibility into communication health, power status, and fault conditions. Integrates with TDC 3000 Station Manager for centralized alarm management and historical trend analysis.

✓ Backward Compatibility Assurance
Fully compatible with TDC 3000 R300 through R500 releases. Protects capital investments in existing control infrastructure while enabling phased migration to Experion PKS platforms.

Industry Applications & Problem Resolution

Petrochemical Refining
Challenge: Coordinating crude distillation units, catalytic crackers, and alkylation processes across 2km+ plant footprints.
Solution: The 51401594-200 extends ELCN reach between process areas, enabling centralized operator interfaces while maintaining distributed control execution. Reduces operator workload by consolidating 12+ local HMI stations into 3 central control rooms.

Power Generation (Combined Cycle)
Challenge: Synchronizing gas turbine controls, heat recovery steam generators, and steam turbine systems with <50ms response requirements.
Solution: Provides deterministic communication between combustion control subsystems and plant-wide DCS. Supports real-time load-following operations critical for grid stability and ancillary service revenue.

Specialty Chemical Batch Processing
Challenge: Integrating recipe-driven batch controllers with continuous process monitoring for FDA 21 CFR Part 11 compliance.
Solution: Bridges batch execution systems to enterprise historians without introducing audit trail gaps. Maintains electronic signature integrity across network boundaries—essential for pharmaceutical and food-grade production.

Pulp & Paper Manufacturing
Challenge: Coordinating digester controls, bleaching sequences, and paper machine drives across multi-stage production lines.
Solution: Enables cross-area interlocking and cascade control strategies. Improves sheet quality consistency by reducing communication-induced control loop delays from 500ms to <100ms.

Offshore Oil & Gas Platforms
Challenge: Maintaining control system reliability in salt-fog environments with limited maintenance access.
Solution: Conformal-coated electronics withstand harsh marine conditions. Hot-swap capability allows repairs during brief weather windows without production shutdowns—critical when helicopter access costs $15K+ per trip.

Technical Specifications & Selection Criteria

Selection Guidelines:
Choose the 51401594-200 when your application requires ELCN network extension beyond single-cabinet installations or when integrating new I/O subsystems with existing TDC 3000 infrastructure. For UCN-to-LCN bridging, consider the complementary 51404125-200 module. Verify power budget availability (12W per module) and ensure DIN rail space allocation in target cabinets.

Advanced Integration Features

IoT & Enterprise Connectivity
When paired with Honeywell's Experion PKS Server or third-party OPC UA gateways, the 51401594-200 enables secure data flow from legacy ELCN networks to cloud-based analytics platforms. This architecture supports predictive maintenance initiatives, energy optimization algorithms, and remote expert diagnostics without compromising real-time control performance.

Cybersecurity Hardening
The module supports network segmentation strategies compliant with IEC 62443 industrial cybersecurity standards. Deploy in conjunction with managed Ethernet switches to create isolated control zones, preventing lateral movement of threats while maintaining necessary data exchange with Level 3 MES/ERP systems.

Custom Configuration Services
Our engineering team provides pre-commissioning configuration services including network address assignment, redundancy pairing, and diagnostic threshold tuning. Factory acceptance testing (FAT) documentation available upon request for projects requiring formal validation protocols.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (Asia-Pacific region), 7-10 business days for international shipments. Expedited 48-hour delivery available for critical outage scenarios—contact our emergency support line.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for multi-year capital projects.

Technical Support: Lifetime access to our DCS specialists for installation guidance, configuration troubleshooting, and system optimization recommendations. Remote diagnostic support via secure VPN connections for complex integration challenges.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration worksheets, and compliance certificates. CAD drawings and 3D STEP models available for mechanical design integration.

Frequently Asked Questions

Can the 51401594-200 bridge multiple ELCN segments simultaneously?
The module supports one ELCN segment per unit. For multi-segment architectures, deploy multiple bridge modules in parallel configurations. Our system architects can design redundant topologies for high-availability requirements.

What firmware version ships with current production units?
All modules ship with firmware revision 3.2 or later, compatible with TDC 3000 R400/R500 systems. Firmware updates available via Honeywell's Experion Support Portal for registered users.

How does this module compare to Ethernet-based alternatives?
While modern Ethernet solutions offer higher bandwidth, the 51401594-200 provides deterministic timing essential for closed-loop control applications. ELCN's token-passing architecture guarantees message delivery within predictable timeframes—critical for safety instrumented systems (SIS) integration.

Is the module suitable for hazardous area installations?
The 51401594-200 carries ATEX Zone 2 certification for installation in non-hazardous control rooms. For Zone 1/Division 1 field mounting, specify intrinsically safe barriers or deploy within certified purged enclosures.

What diagnostic data can be accessed remotely?
Through TDC 3000 Station Manager, you can monitor communication error rates, buffer utilization, message throughput, and power supply voltage. SNMP traps available for integration with enterprise network management systems.

Do you provide on-site commissioning assistance?
Yes. Our field service engineers offer on-site startup support, loop checkout, and operator training. Services available globally with regional pricing—contact sale@ninermas.com for project-specific quotations.
