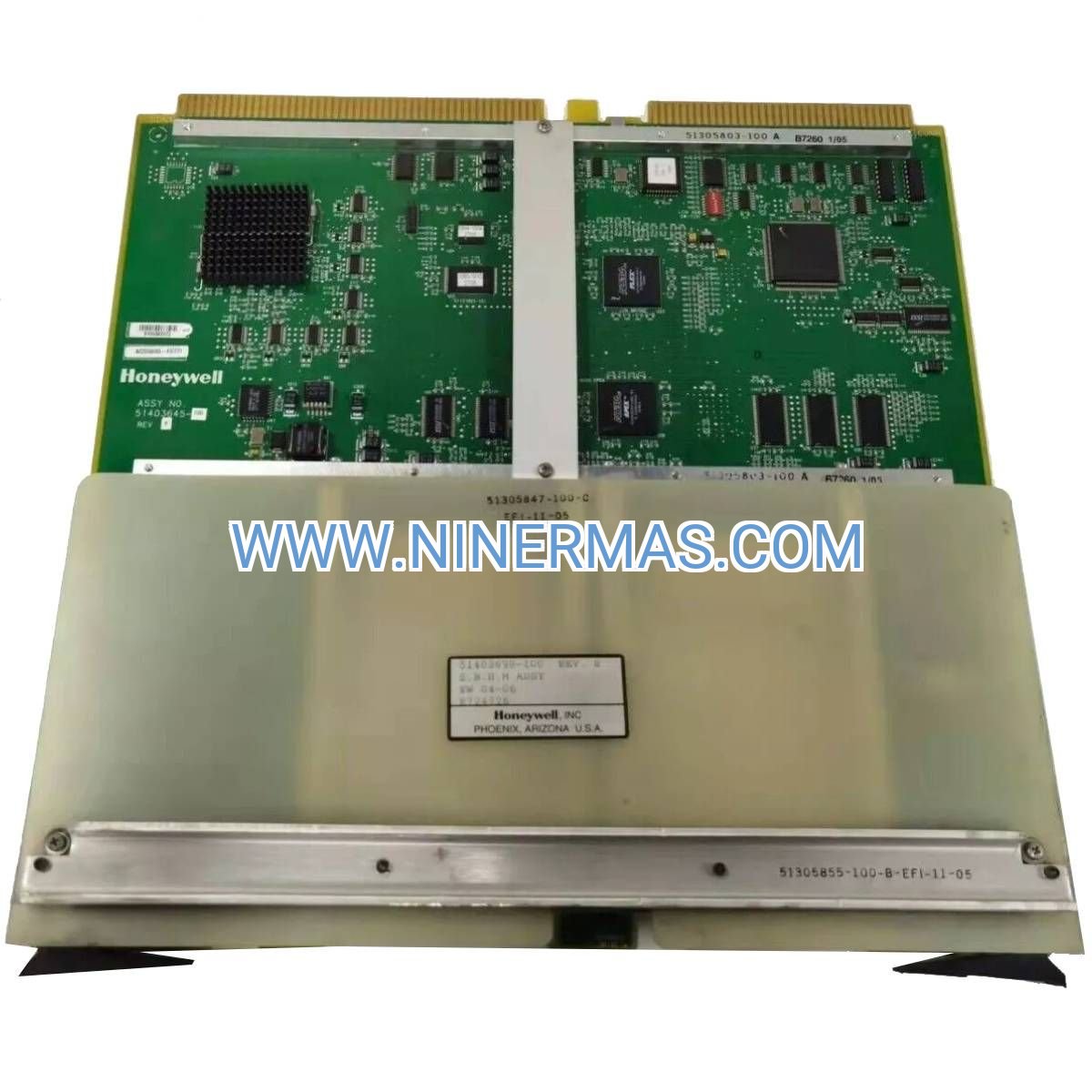

51403698-100 SBHM Motherboard Assembly (Industrial-Grade DCS Processor)

The 51403698-100 represents a mission-critical processing platform engineered for Honeywell TDC 3000 distributed control architectures. This SBHM (Single Board Host Module) motherboard integrates embedded CPU logic, SCSI-based storage interface, and network communication subsystems into a unified assembly designed for continuous industrial operation in process automation environments.

Deployed across refineries, chemical plants, and power generation facilities worldwide, this motherboard serves as the computational backbone for real-time process control, historical data acquisition, and supervisory coordination. Its ruggedized design addresses the demanding reliability requirements of 24/7 industrial operations where system downtime directly impacts production throughput and safety compliance.

Key differentiators include proven compatibility with legacy TDC 3000 infrastructure, integrated SCSI controller for high-speed data logging, and field-tested thermal management for extended operational lifespan in harsh industrial environments. Ideal for plant engineers managing aging DCS installations requiring OEM-equivalent replacement components with documented traceability.

Core Features & Business Value

✓ Embedded CPU Architecture
Integrated processor module eliminates external computing dependencies, reducing system complexity and potential failure points while delivering deterministic response times critical for closed-loop process control applications.

✓ SCSI Storage Interface
High-bandwidth SCSI controller enables rapid historical data logging and trending analysis, supporting regulatory compliance requirements for batch record documentation and process deviation investigation in FDA-regulated industries.

✓ UCN/LCN Network Integration
Native Universal Control Network and Local Control Network compatibility ensures seamless communication with distributed I/O subsystems, operator stations, and engineering workstations across multi-node TDC 3000 installations.

✓ Industrial Temperature Range
Qualified for 0°C to 60°C ambient operation without forced cooling, this assembly maintains processing integrity in control room environments subject to HVAC fluctuations or equipment heat loads.

✓ Standard Rack Mounting
Drop-in replacement design fits existing TDC 3000 chassis infrastructure, minimizing installation labor and eliminating costly cabinet modifications during upgrade or failure recovery scenarios.

✓ 24V DC Power Compatibility
Regulated low-voltage DC input aligns with standard industrial power distribution practices, simplifying integration with UPS-backed power systems for uninterrupted operation during utility disturbances.

Typical Application Scenarios

→ Petroleum Refining Process Control
In crude distillation units and catalytic cracking operations, the 51403698-100 executes advanced regulatory control algorithms managing temperature cascades, pressure compensation, and flow ratio strategies. Eliminates process upsets caused by controller failures, preventing off-spec product generation and flaring events that impact environmental compliance and profit margins.

→ Chemical Batch Manufacturing
Pharmaceutical and specialty chemical producers leverage this motherboard for recipe-driven batch sequencing, ensuring precise ingredient addition timing and reaction parameter control. Integrated data logging satisfies 21 CFR Part 11 electronic record requirements, reducing audit preparation time and regulatory risk exposure.

→ Power Generation Unit Coordination
Combined-cycle and cogeneration facilities deploy this assembly for boiler-turbine-generator coordination, managing startup sequences, load following, and emergency shutdown logic. Prevents equipment damage from control system failures that could result in multi-million dollar turbine repairs and extended outage durations.

→ Water Treatment SCADA Systems
Municipal water utilities utilize TDC 3000 platforms with this motherboard for multi-stage filtration control, chemical dosing optimization, and distribution network pressure management. Ensures drinking water quality compliance while minimizing chemical consumption and energy costs through advanced control strategies.

→ Pulp & Paper Production Lines
Integrated pulp mills employ this processor for digester control, bleaching sequence management, and paper machine coordination. Maintains product quality consistency while optimizing fiber yield and reducing chemical usage through precise process variable regulation.

Technical Parameters & Selection Guide

Selection Criteria: Verify existing TDC 3000 system revision level and network architecture before procurement. This motherboard requires compatible power supply modules (such as 51199948-100) and network interface cards for complete system integration. Consult system documentation to confirm SCSI hard drive capacity requirements based on historical data retention policies and regulatory mandates. For redundant controller configurations, order matched pairs to ensure firmware revision consistency.

Extended Functions

Advanced Diagnostic Capabilities: Built-in self-test routines execute during system initialization, validating processor integrity, memory subsystems, and communication interfaces. Diagnostic results accessible via operator station interfaces enable predictive maintenance strategies and reduce mean time to repair during troubleshooting scenarios.

Firmware Upgrade Path: Field-upgradeable firmware architecture supports performance enhancements and security patches without hardware replacement, extending asset lifecycle and protecting capital investment in installed DCS infrastructure.

Customization Options: While this assembly ships in standard configuration, Honeywell-certified system integrators can implement custom control strategies, specialized communication protocols, and application-specific data structures to address unique process requirements not accommodated by standard TDC 3000 software libraries.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days via expedited carrier services. Custom-configured assemblies or large-quantity orders may require 2-4 weeks for factory preparation and quality verification testing.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects and component failures under normal operating conditions. Warranty includes replacement parts and technical support for installation troubleshooting.

Technical Support: Our application engineers provide pre-sale consultation for system compatibility verification, installation guidance for rack integration and network configuration, and post-installation troubleshooting assistance. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each shipment includes installation instructions, dimensional drawings for rack planning, network configuration guidelines, and firmware revision notes. Complete technical manuals and spare parts catalogs available upon request for maintenance planning purposes.

Frequently Asked Questions

Q: Can the 51403698-100 motherboard integrate with modern Ethernet-based control networks?
A: While this assembly natively supports UCN/LCN protocols, Ethernet connectivity requires additional interface modules such as the 51402614-100 Ethernet board. This enables data exchange with plant-wide information systems and remote monitoring platforms while maintaining real-time control on legacy networks.

Q: What SCSI hard drive capacities are compatible with this motherboard assembly?
A: The integrated SCSI controller accommodates standard parallel SCSI drives ranging from 2GB to 18GB capacity, depending on TDC 3000 operating system version. Drive selection should align with historical data retention requirements—typical process industries specify 30-90 day trending storage for regulatory compliance.

Q: Is hot-swapping supported for this motherboard during live system operation?
A: No, the SBHM motherboard requires controlled system shutdown before removal or installation. For applications demanding continuous availability, implement redundant controller architectures using paired motherboards with automatic failover logic to eliminate process interruptions during maintenance activities.

Q: How does this assembly compare to newer Experion PKS platform components?
A: The 51403698-100 serves TDC 3000 legacy installations where migration to Experion PKS is not economically justified or operationally feasible. For greenfield projects or major system overhauls, Experion PKS offers enhanced cybersecurity, advanced analytics, and modern HMI capabilities—consult our team for migration path assessment.

Q: What preventive maintenance procedures extend motherboard operational lifespan?
A: Maintain control room ambient temperature within specified range, ensure adequate rack ventilation to prevent thermal stress, inspect connector integrity annually for corrosion or mechanical damage, and implement UPS systems to protect against power quality disturbances. Firmware updates should be applied per Honeywell security bulletins.

Q: Are refurbished or surplus units available at reduced pricing?
A: We stock factory-certified refurbished assemblies that undergo comprehensive testing and carry the same 12-month warranty as new units. Surplus inventory availability varies—contact our sales team for current stock status and volume pricing for multi-unit orders or planned maintenance stockpiling.

Get Expert Assistance Today

Our industrial automation specialists are ready to verify compatibility with your existing TDC 3000 infrastructure, provide technical specifications for procurement approval, and coordinate expedited delivery for emergency replacement scenarios. Contact us for system integration consultation, spare parts planning, or migration strategy development.

Request a quote now or speak with our technical team to discuss your specific application requirements and ensure optimal configuration for your process control environment.
