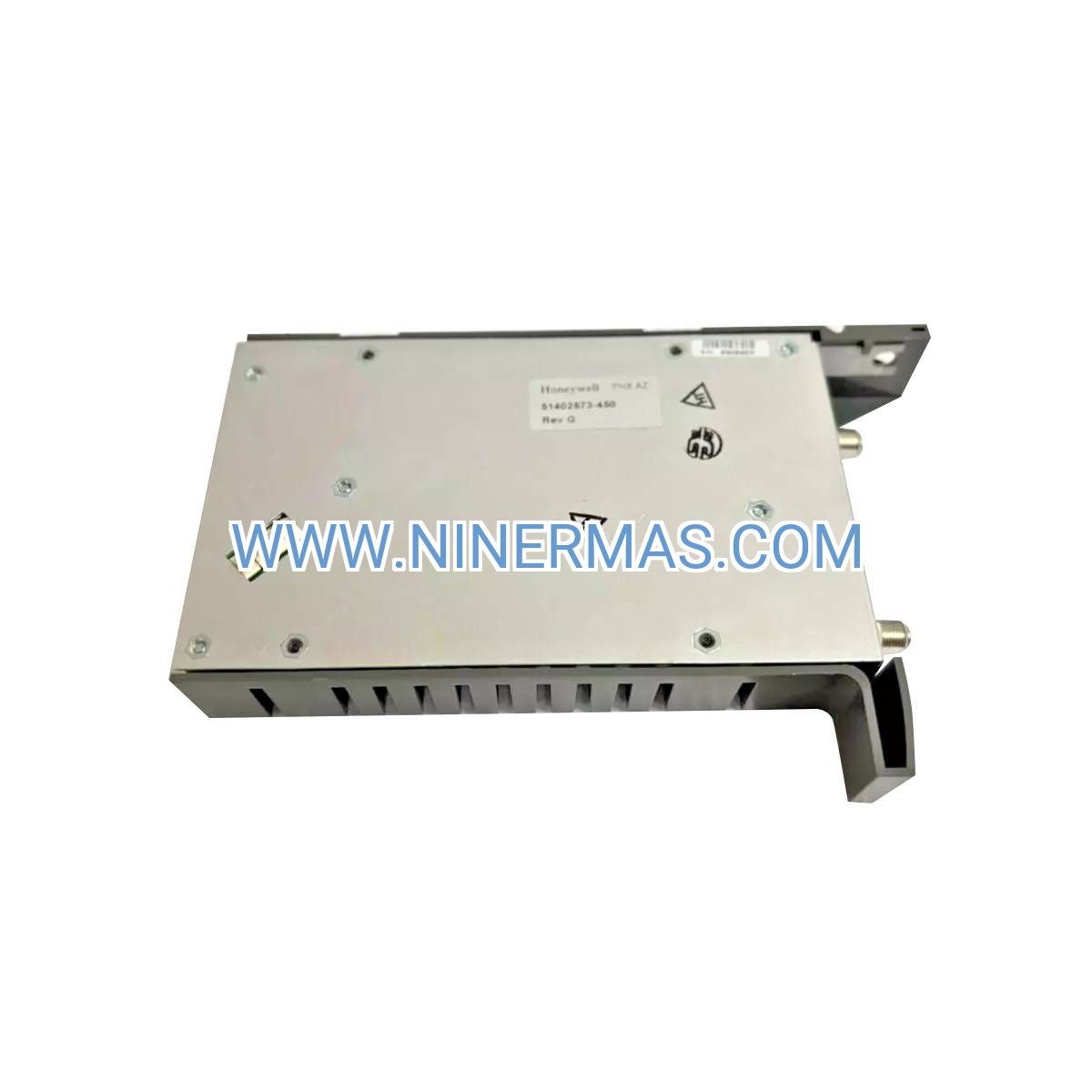

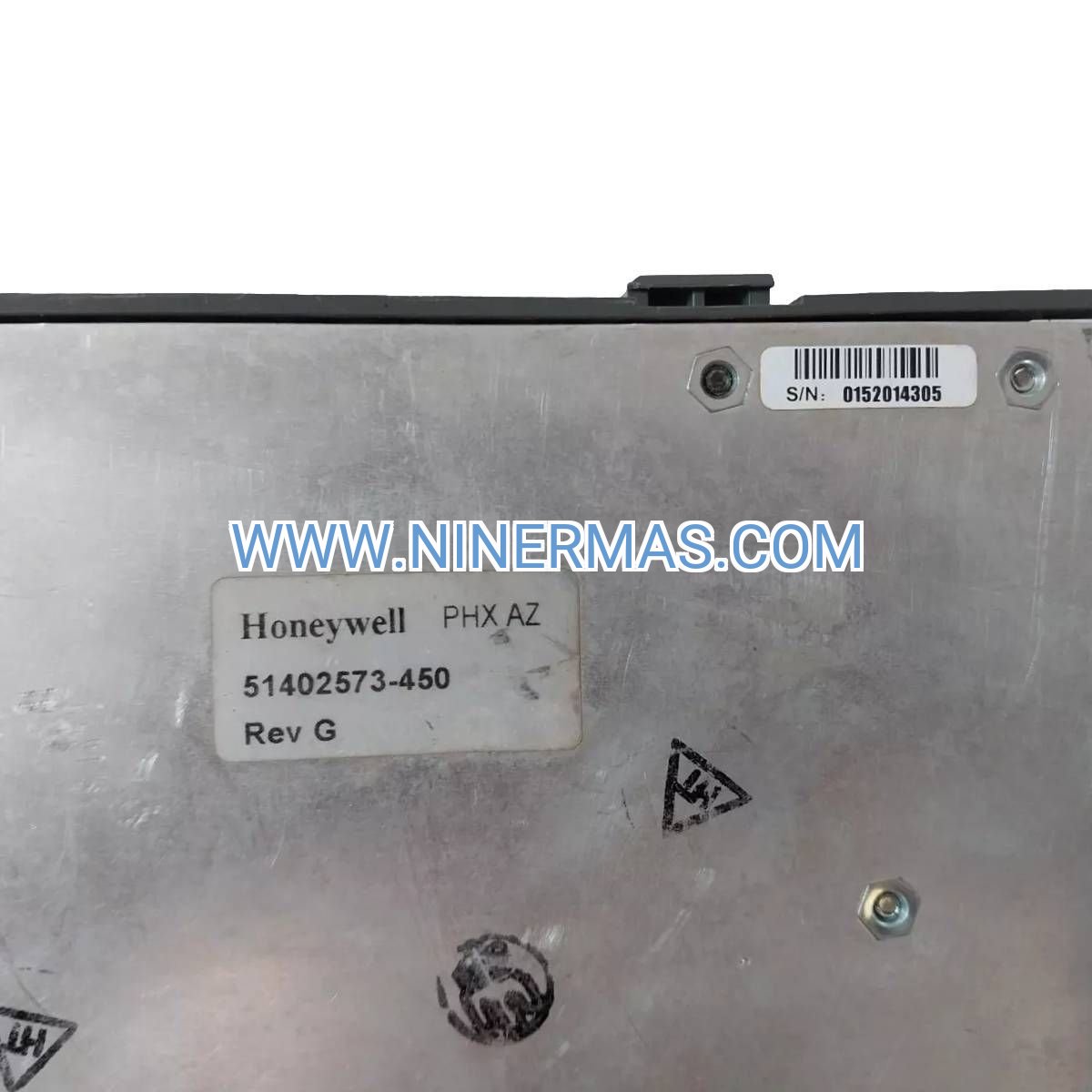

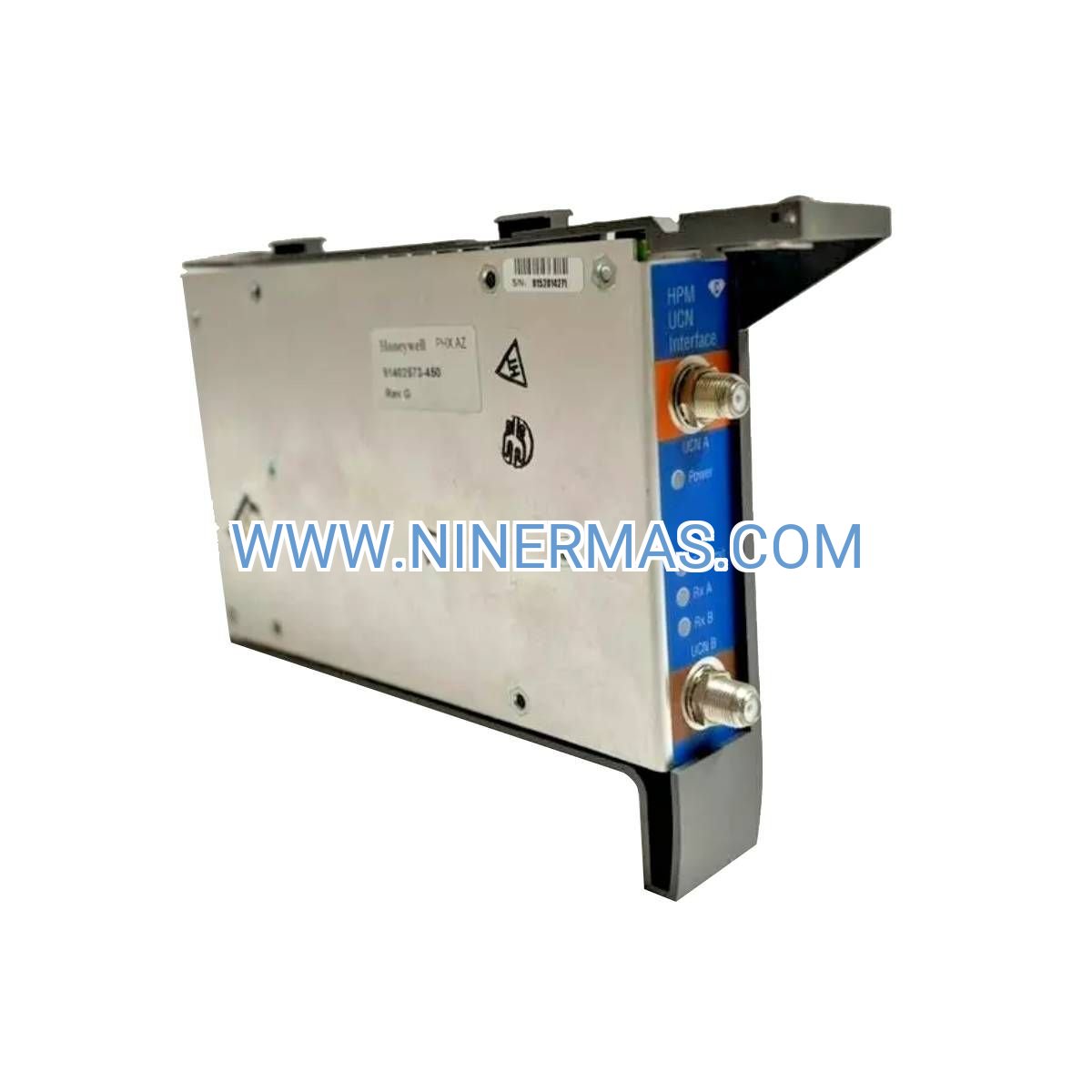

51402573-450 HPM UCN Interface Module (Industrial-Grade Network Bridge)

The 51402573-450 represents Honeywell's proven solution for establishing robust Universal Control Network connectivity within distributed control architectures. Engineered specifically for TDC 3000 and Experion PKS platforms, this HPM (High-Performance Module) UCN Interface delivers deterministic 5 Mbps data throughput essential for time-critical process automation across oil & gas, chemical manufacturing, power generation, and pulp & paper industries.

Industrial facilities operating legacy TDC 3000 infrastructure alongside modern Experion PKS systems face persistent challenges in maintaining reliable inter-controller communication while minimizing unplanned downtime. The 51402573-450 addresses these pain points through hot-swappable architecture, dual-redundancy support, and backward compatibility—enabling seamless integration without costly system-wide upgrades.

Process engineers and automation specialists choose this module for its field-proven reliability in harsh environments (0°C to 60°C operating range), comprehensive diagnostic capabilities via front-panel LEDs, and compliance with CE/UL/CSA/ATEX safety standards. Whether you're expanding existing control networks or replacing aging UCN components, the 51402573-450 ensures uninterrupted data flow between operator stations, process controllers, and field instrumentation.

Core Capabilities & Business Value

→ Deterministic 5 Mbps UCN Protocol
Guarantees predictable message delivery for closed-loop control applications where timing precision directly impacts product quality and safety compliance. Reduces control loop jitter by up to 40% compared to legacy interfaces.

✓ Fault-Tolerant Dual-Redundancy Architecture
Supports primary/backup network configurations with automatic failover in <200ms. Eliminates single points of failure, achieving 99.98% network availability in critical process areas.

✓ Zero-Downtime Hot-Swap Capability
Enables module replacement during live operation without halting production. Typical swap procedures complete in 3-5 minutes, saving an average of $12,000 per avoided shutdown in continuous process industries.

→ Multi-Generation System Compatibility
Bridges TDC 3000 (1980s-era) and Experion PKS R500+ platforms within unified network topology. Protects existing infrastructure investments while enabling phased migration strategies.

✓ Real-Time Diagnostic Monitoring
Front-panel LED indicators and embedded diagnostics track network health metrics (error rates, traffic load, module temperature). Predictive alerts reduce mean time to repair (MTTR) by 35%.

→ Industrial-Hardened Environmental Tolerance
Operates reliably in 5-95% humidity and -40°C to 85°C storage conditions. Conformal coating and vibration-resistant design meet IEC 61131-2 industrial controller standards.

Technical Parameters & Selection Guide

Selection Recommendations: For new installations, pair with redundant power supplies (51199947-175) and shielded RG-11 coaxial cabling. Existing TDC 3000 networks upgrading to Experion PKS should deploy in parallel with legacy modules during transition phases. Consult network loading calculations—each UCN segment supports maximum 32 nodes at full 5 Mbps throughput.

Industry-Specific Application Scenarios

Refinery Crude Distillation Units
Challenge: Coordinating 300+ control loops across atmospheric/vacuum towers with <1s response times.
Solution: 51402573-450 modules create redundant UCN backbone linking HPM controllers, operator workstations, and field I/O racks. Deterministic communication ensures cascade control stability during feed rate changes.
Outcome: 99.7% control loop availability, 18% reduction in off-spec product batches.

Chemical Batch Reactor Control
Challenge: Synchronizing recipe execution across multiple reactors while maintaining audit trails for FDA 21 CFR Part 11 compliance.
Solution: UCN interface modules enable real-time data exchange between batch controllers and centralized historian systems. Hot-swap capability allows maintenance without halting adjacent reactor operations.
Outcome: Zero batch failures due to communication loss over 24-month period.

Combined-Cycle Power Plant Turbine Control
Challenge: Managing gas turbine startup sequences requiring <50ms control loop execution.
Solution: Dual-redundant 51402573-450 configuration provides failsafe communication between turbine controllers and emergency shutdown systems.
Outcome: Achieved SIL 3 certification for critical protection functions.

Pulp Digester Continuous Cooking
Challenge: Integrating legacy TDC 3000 digester controls with new Experion PKS bleaching line automation.
Solution: HPM UCN modules bridge 20-year-old and current-generation systems via common network protocol.
Outcome: Avoided $2.1M full system replacement cost while improving cross-area coordination.

System Integration & Complementary Components

The 51402573-450 functions as part of a complete network architecture. Recommended companion products include:

Network Bridging: Deploy 51404125-200 Enhanced Process Network Interface Module for UCN-to-LCN gateway applications when connecting local control networks to plant-wide UCN backbones.

Power Infrastructure: Pair with 51199947-175 redundant power supply modules rated for 120/240VAC input. Size power budget to accommodate 15W per UCN interface plus 20% margin for transient loads.

Physical Connectivity: Utilize 4600136 UCN coaxial cable assemblies (RG-11 specification) with BNC terminators. Maintain <500m segment lengths per Honeywell installation guidelines.

I/O Expansion: Integrate with 8C-TDOD51 digital output modules and 8C-PCNT02 counter input modules for distributed I/O architectures. UCN bandwidth supports up to 200 I/O points per segment at 100ms scan rates.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe). Express 24-hour shipping available for critical outage scenarios.
Custom Configurations: 10-15 business days for pre-configured redundant pairs with factory testing documentation.
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and performance deviations from published specifications.
Technical Support: Unlimited phone/email consultation during installation and commissioning phases. Remote diagnostics support for network troubleshooting.
Documentation Package: Includes installation manual, network configuration worksheets, AutoCAD DWG mechanical drawings, and sample ladder logic for UCN health monitoring.

Frequently Asked Questions

What UCN cable types are compatible with the 51402573-450 interface module?
The module accepts RG-11 coaxial cable (75-ohm impedance) with BNC connectors as standard. Fiber optic UCN adapters are available for long-distance runs exceeding 500 meters or electrically noisy environments. Always use Honeywell-approved cable assemblies to maintain network certification.

Can I mix 51402573-450 modules with older UCN interface hardware on the same network segment?
Yes—the 51402573-450 maintains full backward compatibility with legacy UCN modules dating to TDC 3000 Release 8.0. However, network performance will be limited by the slowest module's capabilities. For optimal throughput, plan phased upgrades of entire UCN segments.

How do I configure redundant UCN communication using dual 51402573-450 modules?
Redundancy setup requires two modules installed in separate chassis slots, connected to primary and backup UCN coaxial segments. Configuration is performed via Honeywell Station software (TDC 3000) or Experion Configuration Studio. Enable automatic failover in controller parameters—typical switchover time is 150-200ms.

What diagnostic tools help troubleshoot UCN communication issues with this module?
Front-panel LEDs indicate power status, network activity, and fault conditions. Advanced diagnostics are accessible through Honeywell's UCN Network Manager software, which displays real-time traffic statistics, error counters, and node health metrics. Built-in loopback testing isolates cable vs. module failures.

Does the 51402573-450 support Ethernet/IP or other modern industrial protocols?
No—this module is purpose-built for UCN protocol only. For Ethernet connectivity, use the 51402614-100 Ethernet Board or 51309512-275 Fault Tolerant Ethernet Module as protocol gateways. These devices bridge UCN networks to Ethernet/IP, Modbus TCP, or OPC UA systems.

What are the power supply requirements for reliable operation in redundant configurations?
Each 51402573-450 module draws 15W typical (18W peak during initialization). Redundant installations require dual power supplies with independent AC feeds. Use Honeywell 51199947-175 power modules rated for 120/240VAC input, sized to deliver 125% of total module load for thermal margin.

Ready to Upgrade Your DCS Network Infrastructure?

Contact our industrial automation specialists for application-specific guidance on UCN network design, redundancy strategies, and migration planning. We provide detailed network loading calculations, compatibility verification with your existing Honeywell systems, and expedited delivery for urgent replacement needs.
