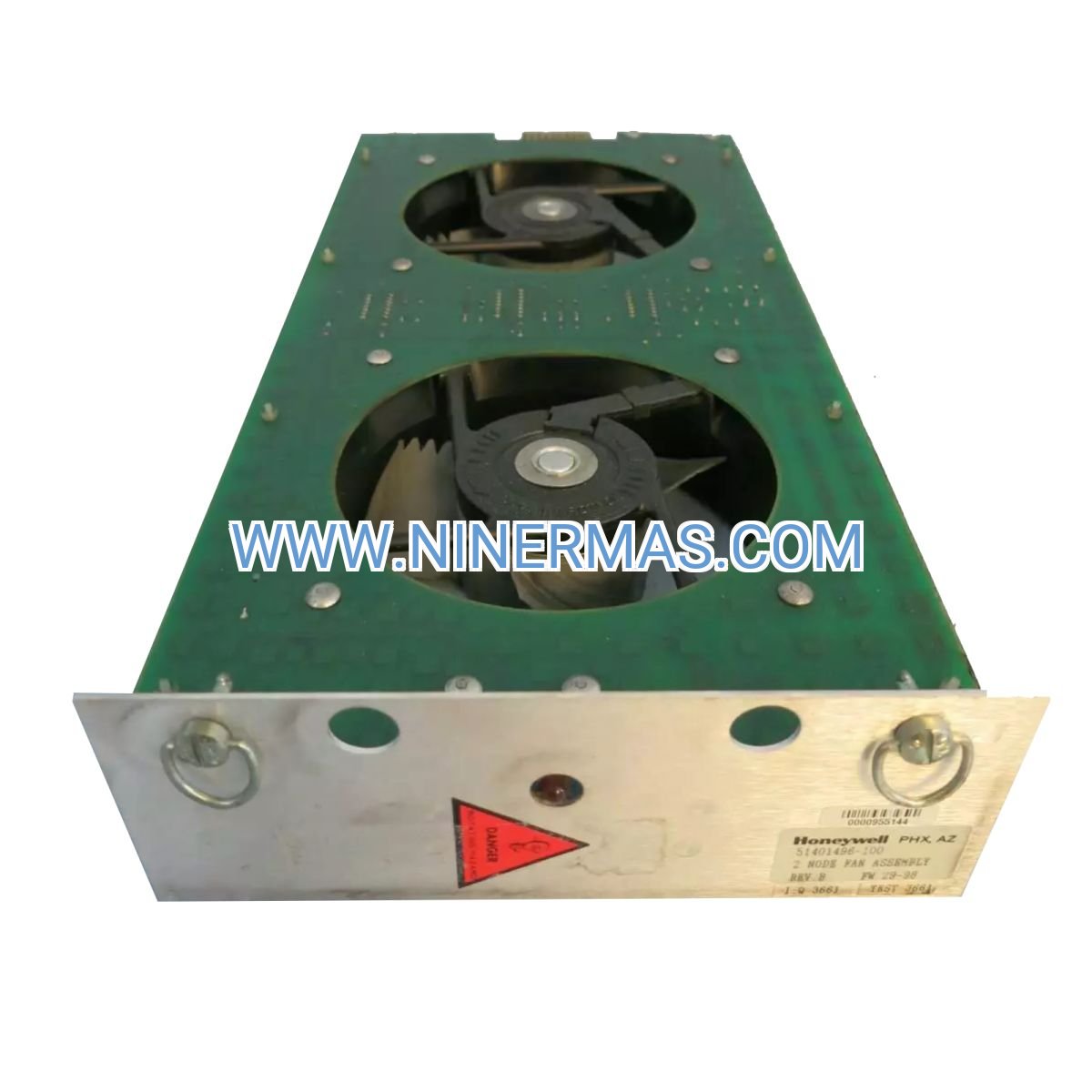

Industrial-Grade Dual Node Fan Assembly (51401496-100)

The 51401496-100 represents a mission-critical thermal management solution for Honeywell TDC 3000 distributed control systems. Designed for continuous operation in demanding industrial environments, this dual node fan assembly delivers redundant cooling protection that safeguards sensitive control electronics from heat-induced failures. Process engineers and maintenance teams rely on this OEM component to maintain system uptime in refineries, chemical plants, and power generation facilities where unplanned downtime carries significant operational and financial consequences.

Built to Honeywell's exacting specifications, the assembly integrates seamlessly into TDC 3000 cabinet architectures, providing the precise airflow characteristics required for optimal processor and I/O module performance. The dual node configuration ensures failover capability—when one fan experiences degradation, the secondary unit automatically compensates, allowing scheduled maintenance rather than emergency shutdowns.

Whether you're executing a preventive maintenance program, responding to cooling system alerts, or upgrading legacy installations, the 51401496-100 delivers factory-certified reliability with straightforward installation procedures. Contact our technical team for application-specific guidance and volume pricing for multi-site deployments.

Core Features & Technical Advantages

✓ Redundant Dual Node Architecture
Two independent fan units operate in parallel, providing automatic failover protection. If primary fan performance degrades, secondary unit maintains adequate airflow until scheduled replacement—eliminating emergency service calls and unplanned system interruptions.

✓ OEM-Certified Compatibility
Engineered specifically for TDC 3000 cabinet dimensions and electrical specifications. Guaranteed fit eliminates installation delays and ensures compliance with Honeywell system warranties, unlike generic aftermarket alternatives that may void coverage.

✓ High-Efficiency Axial Flow Design
Optimized blade geometry and motor characteristics deliver maximum CFM output while minimizing power consumption. Factory-balanced bearings reduce vibration transmission to sensitive electronics and lower acoustic emissions in control room environments.

✓ Extended Operating Temperature Range
Rated for 0°C to 60°C ambient conditions, accommodating installations in climate-controlled facilities and semi-outdoor enclosures. Thermal protection circuits prevent motor damage during abnormal temperature excursions.

✓ Hot-Swap Capability (Configuration Dependent)
Modular mounting design enables replacement without full system shutdown in properly configured redundant cabinets. Reduces maintenance windows and supports continuous process operation during service activities.

→ 24VDC Standard Power Supply
Integrates directly with TDC 3000 cabinet power distribution systems. No external adapters or voltage conversion required, simplifying installation and reducing potential failure points.

Application Scenarios & Industry Solutions

Refinery & Petrochemical Process Control
TDC 3000 systems managing distillation columns, reactor temperature control, and pipeline monitoring require uninterrupted operation. The 51401496-100 prevents thermal-induced controller failures that could trigger process upsets, safety system activations, or production losses measured in thousands of dollars per hour.

Power Generation Facilities
Boiler control systems, turbine monitoring, and emissions management applications depend on stable electronics temperatures. Dual node cooling ensures continuous operation during peak demand periods when grid reliability is critical and maintenance access may be restricted.

Chemical Manufacturing Plants
Batch process control and continuous reactor management systems cannot tolerate unexpected shutdowns. Redundant fan architecture provides the reliability required for 24/7 operations while supporting predictive maintenance programs that schedule replacements during planned turnarounds.

Legacy System Modernization Programs
Facilities extending TDC 3000 service life through strategic component replacement benefit from OEM parts availability. The 51401496-100 supports multi-year asset management strategies that defer costly DCS migration projects while maintaining operational reliability.

Critical Infrastructure & Utilities
Water treatment plants, natural gas compression stations, and municipal utility systems require maximum uptime. Dual fan redundancy aligns with infrastructure resilience requirements and supports compliance with operational availability mandates.

Technical Parameters & Selection Guide

Selection Criteria:

Verify your TDC 3000 cabinet model and configuration before ordering. The 51401496-100 is designed for standard processor and I/O cabinets; specialized configurations (high-density modules, extended temperature enclosures) may require alternative part numbers. Consult your system documentation or contact our engineering team with cabinet serial numbers for confirmation.

For facilities managing multiple TDC 3000 installations, consider establishing a strategic spare parts inventory. Typical stocking levels include one spare per 3-5 active cabinets, adjusted based on environmental conditions and historical failure rates. Volume pricing available for multi-unit purchases.

Extended Capabilities & Integration Options

Predictive Maintenance Integration: When connected to cabinet monitoring systems, fan performance data (RPM, current draw, vibration signatures) can feed into predictive maintenance algorithms. Early detection of bearing wear or motor degradation enables proactive replacement scheduling, preventing unexpected failures.

Environmental Monitoring Compatibility: Pair with cabinet temperature sensors and alarm systems to create comprehensive thermal management solutions. Automated alerts notify maintenance teams when ambient temperatures exceed design thresholds or when fan performance degrades below acceptable levels.

Retrofit & Upgrade Pathways: The 51401496-100 supports phased modernization strategies. Facilities can upgrade cooling systems independently of controller hardware, extending cabinet service life while maintaining thermal protection for aging electronics.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 1-2 business days via express courier services. Typical transit times: 3-5 days domestic, 5-7 days international (customs clearance dependent).

Expedited Options: Same-day shipping available for orders placed before 2:00 PM CST. Overnight and 2-day delivery services offered for emergency replacement scenarios.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and performance issues under normal operating conditions. Warranty includes replacement unit shipping at no additional cost.

Technical Support: Our applications engineering team provides installation guidance, troubleshooting assistance, and compatibility verification throughout the product lifecycle. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each unit includes installation instructions, dimensional drawings, electrical specifications, and recommended maintenance procedures. Digital documentation library accessible 24/7 through customer portal.

Frequently Asked Questions

How do I verify compatibility with my specific TDC 3000 cabinet configuration?
Check your cabinet nameplate for model number and serial number. The 51401496-100 fits standard TDC 3000 processor and I/O cabinets manufactured from 1995 onward. For custom or modified cabinets, provide serial numbers to our technical team for verification. We'll confirm fitment within 24 hours and recommend alternatives if needed.

What is the expected operational lifespan under continuous industrial use?
Under typical conditions (clean environment, stable 24VDC power, ambient temperatures 15-35°C), expect 40,000-50,000 hours of continuous operation (approximately 4.5-5.7 years). Harsh environments with temperature extremes, dust contamination, or voltage fluctuations may reduce service life to 25,000-35,000 hours. Implement 6-month inspection intervals to monitor performance trends.

Can this assembly be installed without shutting down the entire control system?
In cabinets configured with redundant cooling and proper thermal margins, hot-swap replacement is possible. However, this requires verification of your specific cabinet design and current thermal load. We recommend coordinating with your DCS support team to assess hot-swap feasibility. For critical systems, schedule replacement during planned maintenance windows to eliminate risk.

Does the unit include all necessary mounting hardware and electrical connectors?
Yes, standard mounting brackets and electrical connectors are included. Verify that your cabinet has the appropriate mating connectors (standard on factory TDC 3000 cabinets). Replacement of damaged cabinet-side connectors requires separate parts ordering.

What performance monitoring capabilities are available for predictive maintenance programs?
The fan assembly operates on 24VDC power, allowing current monitoring through cabinet power distribution systems. Abnormal current draw indicates motor degradation or bearing wear. For advanced monitoring, integrate with cabinet temperature sensors to correlate cooling performance with thermal trends. Our technical team can provide monitoring integration guidance for specific CMMS platforms.

Are refurbished or exchange units available at reduced pricing?
We stock factory-new OEM units only to ensure maximum reliability and full warranty coverage. Refurbished units may be available through third-party suppliers, but we cannot verify their quality, remaining service life, or compatibility. For budget-conscious projects, inquire about volume discounts on new units or consult our team about alternative part numbers with similar functionality.

Take the Next Step

Protect your TDC 3000 investment with OEM-certified thermal management. Contact our industrial automation specialists today for technical consultation, volume pricing, or expedited delivery options. Our team is ready to support your maintenance programs with expert guidance and rapid fulfillment.

Request a Quote: Email sale@ninermas.com with your cabinet serial numbers and quantity requirements
Technical Questions: Call +0086 187 5021 5667 for immediate engineering support
Emergency Orders: Same-day shipping available for critical replacements
