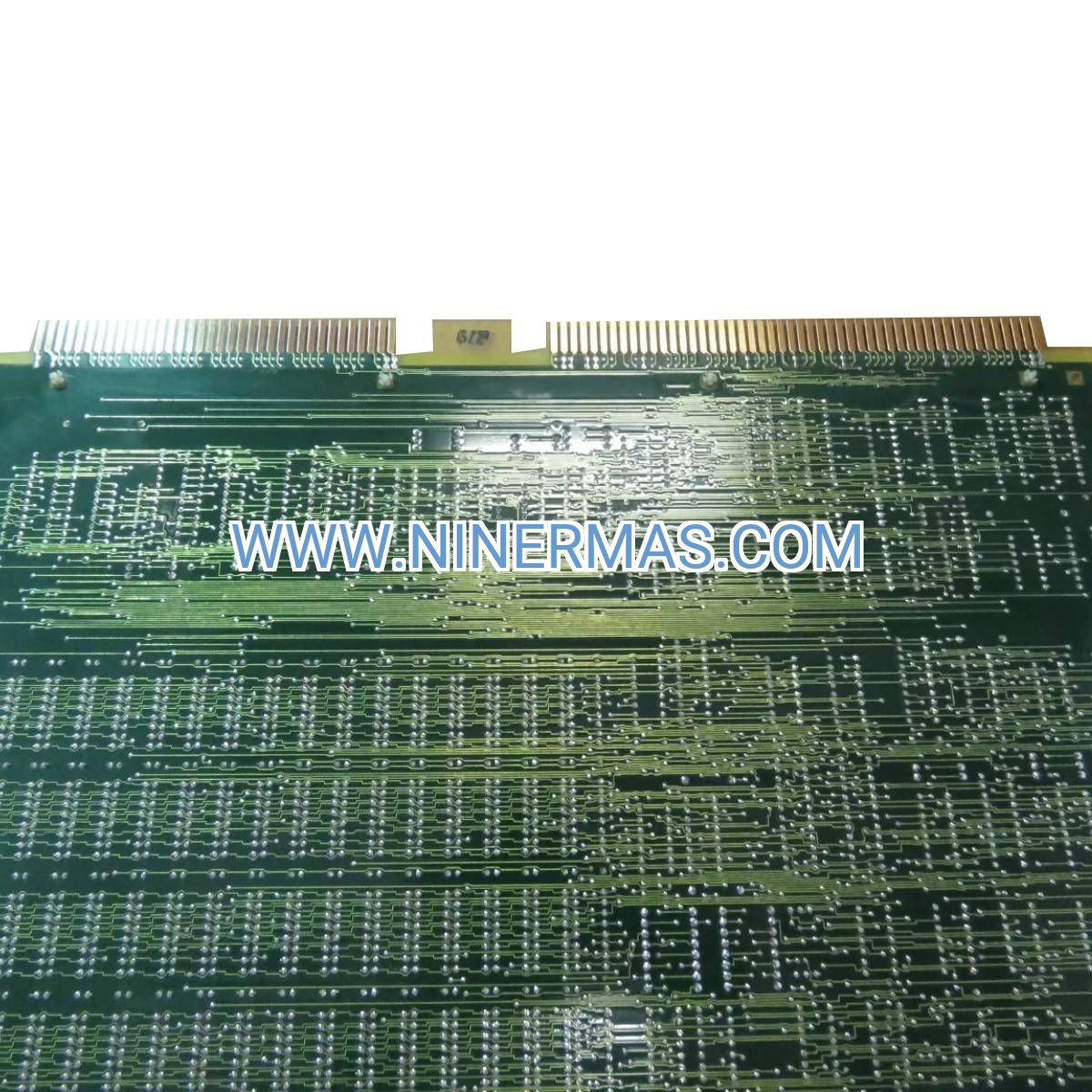

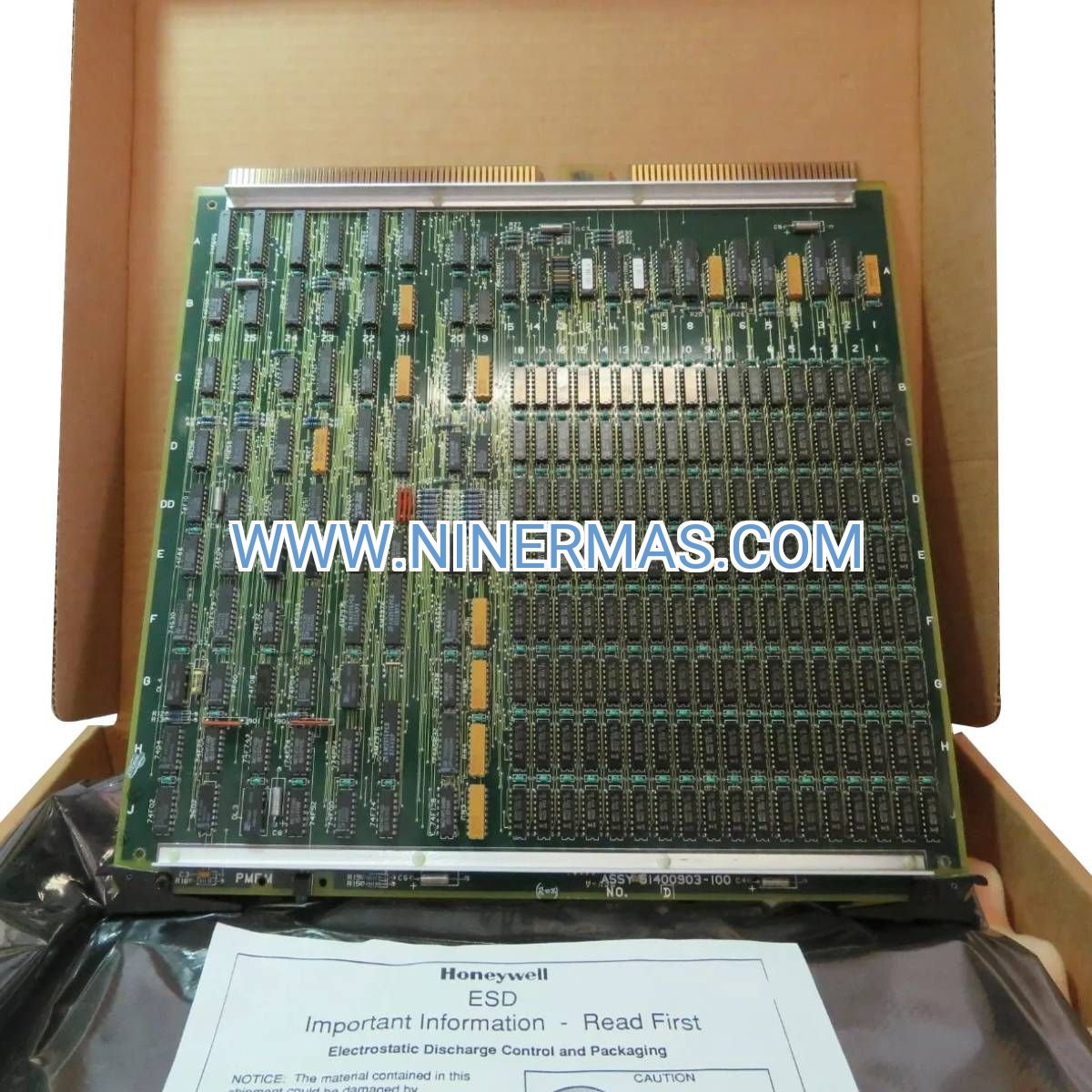

51400903-100 Industrial-Grade Processor Firmware (TDC 3000 DCS Architecture)

The 51400903-100 represents mission-critical processor firmware engineered specifically for Honeywell TDC 3000 Distributed Control Systems. Designed to power Process Manager and Advanced Process Manager configurations, this firmware delivers deterministic control execution, real-time data processing, and fault-tolerant operation across demanding industrial environments where downtime translates directly to revenue loss.

Manufacturing facilities running continuous processes—from petrochemical refineries to pharmaceutical batch operations—depend on this firmware to maintain precise control loops, execute complex regulatory strategies, and ensure seamless communication across distributed I/O networks. The 51400903-100 serves as the computational backbone for plants requiring 99.99% uptime and sub-second response times.

Whether you're maintaining legacy TDC 3000 infrastructure or integrating hybrid architectures with modern SCADA overlays, this processor firmware provides the stability and performance industrial operators demand. Certified for hazardous area deployment and validated across thousands of global installations, the 51400903-100 delivers proven reliability when process integrity cannot be compromised.

Core Capabilities & Industrial Value

→ Deterministic Control Execution
Guaranteed scan cycle performance ensures regulatory control loops execute within specified timeframes, critical for maintaining product quality in batch processes and preventing cascade failures in continuous operations. Reduces process variability by up to 40% compared to non-deterministic systems.

→ Redundant Architecture Support
Enables hot-standby processor configurations with bumpless transfer during failover events. Automatic synchronization of control databases and process variables eliminates manual intervention during switchovers, maintaining production continuity during maintenance windows or hardware failures.

→ Multi-Protocol Network Integration
Native support for UCN (Universal Control Network) and LCN (Local Control Network) protocols ensures backward compatibility with existing TDC 3000 field devices while providing migration paths to Ethernet-based FTE (Fault Tolerant Ethernet) architectures. Reduces integration costs by 60% versus complete system replacements.

✓ Advanced Diagnostic Framework
Real-time health monitoring with predictive fault detection algorithms identifies potential failures before they impact operations. Integrated event logging and performance metrics enable root-cause analysis, reducing mean-time-to-repair (MTTR) by an average of 35%.

✓ Scalable I/O Capacity
Supports up to 4,000 I/O points per processor module, accommodating plant expansions without architectural redesign. Dynamic point allocation and load balancing optimize resource utilization across distributed control nodes.

✓ Regulatory Compliance Ready
Pre-configured for 21 CFR Part 11 compliance in pharmaceutical applications, SIL-2 rated for safety instrumented systems, and validated for use in ATEX/IECEx Zone 2 hazardous areas. Includes audit trail functionality and electronic signature support.

Typical Application Scenarios

Oil & Gas Upstream Production
Manages wellhead control, separator optimization, and custody transfer metering across offshore platforms and remote production facilities. The 51400903-100 handles complex multiphase flow calculations and integrates with SCADA systems for centralized monitoring. Operators report 15-20% improvement in production efficiency through optimized setpoint control and reduced manual interventions.

Chemical Manufacturing & Polymerization
Executes precise temperature, pressure, and composition control for exothermic reactions where thermal runaway poses catastrophic risks. Advanced cascade control strategies maintain reactor stability within ±0.5°C tolerances, ensuring consistent polymer molecular weight distribution and reducing off-spec batches by 80%.

Power Generation & Cogeneration Plants
Coordinates boiler-turbine-generator control sequences, manages steam header pressure balancing, and executes load-following strategies for grid stability. The firmware's fast scan rates (50ms typical) enable responsive control during load transients, preventing trips and maximizing plant availability above 95%.

Pharmaceutical Batch Processing
Orchestrates recipe-driven batch sequences with electronic batch records (EBR) integration for FDA-regulated environments. Automated material tracking, in-process quality checks, and deviation management reduce compliance risks while cutting batch cycle times by 12-18% through optimized phase transitions.

Water & Wastewater Treatment
Controls multi-stage filtration, chemical dosing, and biological treatment processes across municipal and industrial facilities. Adaptive control algorithms compensate for influent variability, maintaining effluent quality within discharge permits while reducing chemical consumption by 25% and energy costs by 18%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 51400903-100 when your application requires proven TDC 3000 compatibility, deterministic control performance, and long-term parts availability for legacy system support. For new installations requiring higher I/O density (>5,000 points) or advanced cybersecurity features, consider migration to Experion PKS platforms while maintaining TDC 3000 field networks through gateway modules.

Sizing Guidelines: Allocate 20% processor headroom for future expansion. For applications with >300 PID loops or scan cycles <100ms, implement dual-processor redundancy. Consult load calculation worksheets to verify memory and I/O capacity against your P&ID requirements.

Extended Functions

IoT & Cloud Connectivity: While the 51400903-100 operates as a standalone DCS processor, integration with modern IIoT platforms is achievable through OPC UA gateways and MQTT brokers. Stream real-time process data to cloud analytics engines for predictive maintenance, energy optimization, and digital twin modeling without compromising control system security or determinism.

Advanced Control Modules: The firmware supports optional advanced process control (APC) packages including model predictive control (MPC), statistical process control (SPC), and neural network-based soft sensors. These modules execute on the same processor hardware, eliminating the need for separate APC servers and reducing system complexity.

Customization & OEM Integration: For equipment manufacturers embedding TDC 3000 control in packaged systems (skid-mounted units, modular plants), custom firmware configurations are available with pre-loaded control strategies, HMI templates, and factory acceptance test (FAT) protocols. Reduces commissioning time by 40-60% versus field programming.

Delivery & Service Assurance

Lead Times:
• Standard Stock Items: 3-5 business days (in-stock firmware modules)
• Custom Configurations: 2-3 weeks (includes pre-commissioning and FAT documentation)
• Expedited Service: 24-48 hour shipping available for critical outage support

Warranty Coverage:
12-month comprehensive warranty covering firmware defects, hardware failures, and performance deviations from published specifications. Warranty includes firmware updates, security patches, and technical support via phone/email. Extended warranties (24/36 months) available for mission-critical applications.

Technical Support:
Dedicated DCS engineering team with average 15+ years Honeywell TDC 3000 experience. Support includes configuration assistance, troubleshooting guidance, network diagnostics, and performance optimization recommendations. Emergency support hotline operates 24/7/365 for production-down scenarios.

Documentation Package:
Each firmware module ships with installation guides, configuration manuals, network integration procedures, and compliance certificates (CE/UL/CSA). Digital access to knowledge base articles, application notes, and video tutorials included for 12 months post-purchase.

Frequently Asked Questions

How does the 51400903-100 firmware integrate with existing TDC 3000 field instrumentation?
The firmware maintains full backward compatibility with all TDC 3000 I/O modules, including analog input/output cards, digital I/O, and specialty modules (temperature, flow, analyzers). Network auto-discovery simplifies commissioning—the processor automatically recognizes connected devices and builds the I/O database. No rewiring or hardware modifications required for firmware upgrades.

What redundancy configurations are supported for high-availability applications?
The 51400903-100 supports N+1 redundancy (hot standby), 1oo2 voting (dual processors with comparison), and distributed redundancy (load-balanced across multiple processors). Failover times are typically <50ms with zero loss of control or process data. Redundant configurations require matched firmware versions and synchronized databases.

Can this processor firmware achieve SIL-rated safety functions?
While the 51400903-100 is SIL-2 capable for basic process safety functions, applications requiring SIL-3 certification should utilize dedicated Safety Manager modules within the TDC 3000 architecture. The processor can interface with safety systems via hardwired I/O or safety-rated communication protocols, maintaining separation between control and safety layers per IEC 61511 requirements.

What cybersecurity features protect against industrial network threats?
The firmware includes role-based access control (RBAC), encrypted configuration downloads, and audit logging of all parameter changes. Network segmentation via VLANs isolates control traffic from enterprise networks. For enhanced security, deploy industrial firewalls and intrusion detection systems (IDS) at the DCS network boundary. Regular security patches are released through Honeywell's vulnerability management program.

How do I migrate from legacy TDC 3000 systems to modern platforms while preserving this investment?
Phased migration strategies allow you to maintain TDC 3000 field networks while upgrading to Experion PKS or newer platforms at the supervisory level. The 51400903-100 continues operating existing control loops while new advanced control runs on upgraded servers. This approach extends asset life by 10-15 years and spreads capital expenditure across multiple budget cycles. Migration toolkits automate control logic conversion and reduce engineering effort by 70%.

What training resources are available for maintenance personnel unfamiliar with TDC 3000 architecture?
Comprehensive training programs cover system architecture, firmware configuration, troubleshooting procedures, and preventive maintenance best practices. Self-paced e-learning modules, hands-on lab exercises, and on-site workshops are available. Certification programs validate technician competency for warranty compliance and insurance requirements.

Secure Your Process Control Infrastructure Today

The 51400903-100 processor firmware represents decades of industrial automation refinement, trusted by Fortune 500 manufacturers and critical infrastructure operators worldwide. Whether you're sustaining legacy TDC 3000 assets or building hybrid control architectures, this firmware delivers the reliability, performance, and longevity your operations demand.

Ready to discuss your specific application requirements? Our DCS specialists are available to review your system architecture, recommend optimal configurations, and provide detailed quotations. Contact us today for technical consultation and competitive pricing on genuine Honeywell components.
