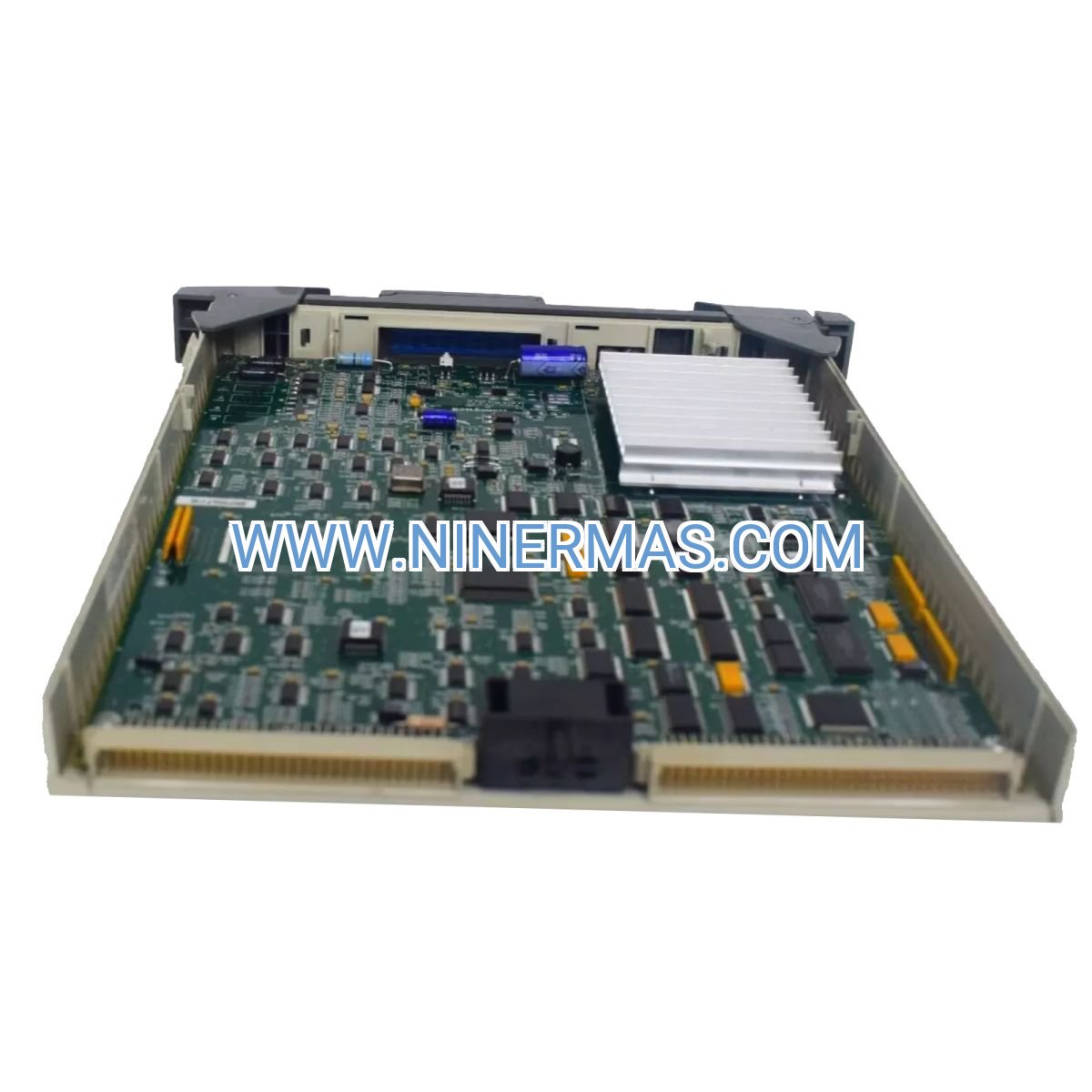

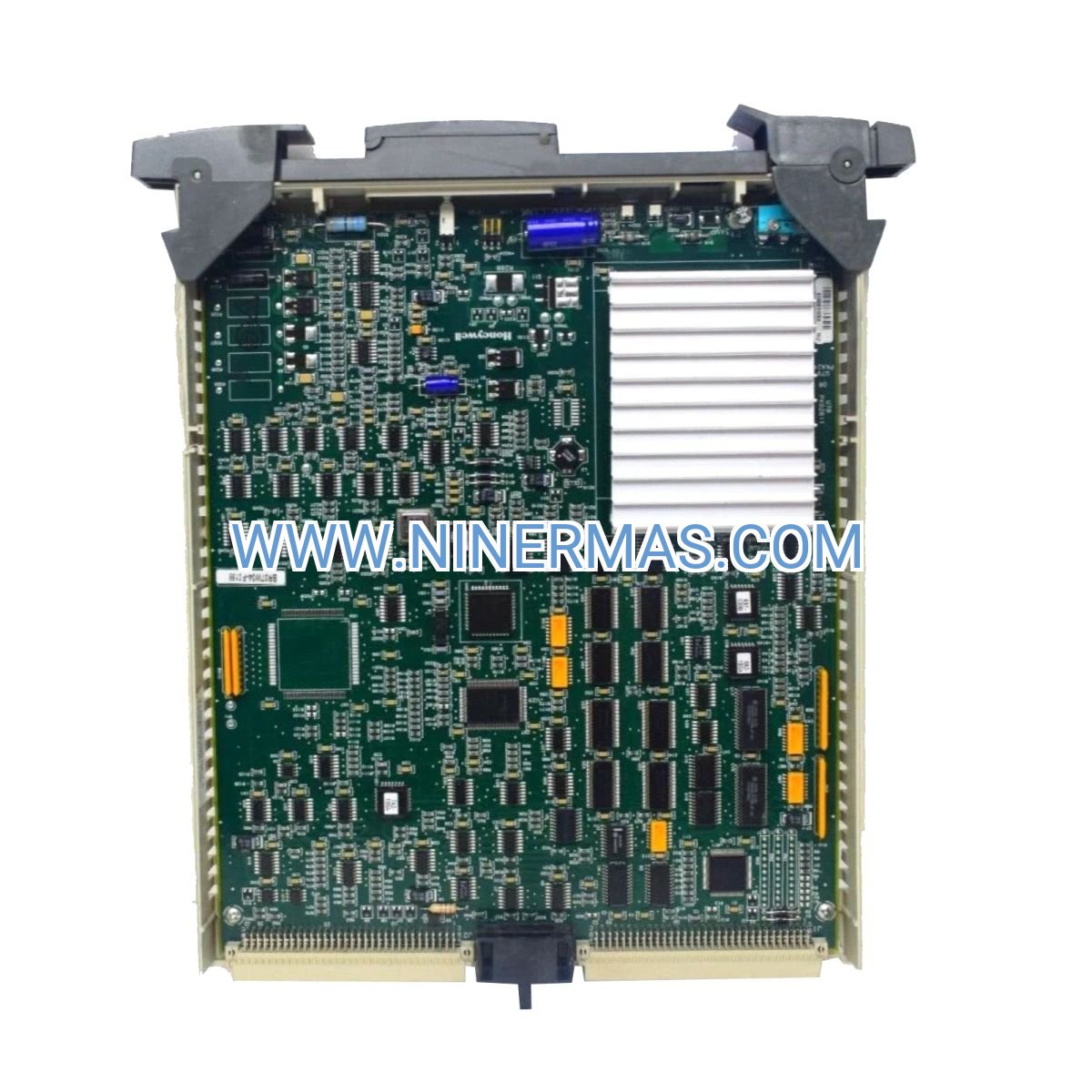

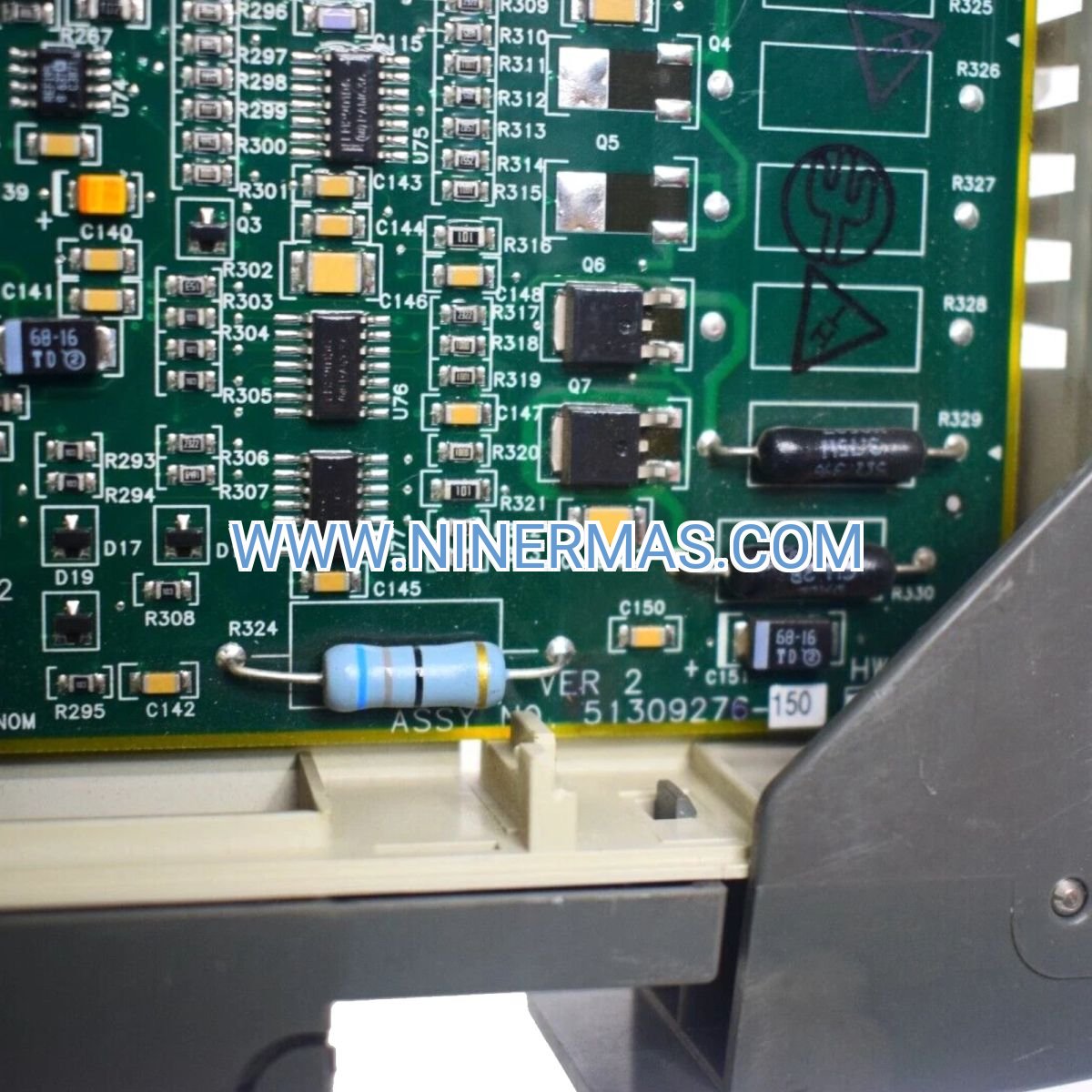

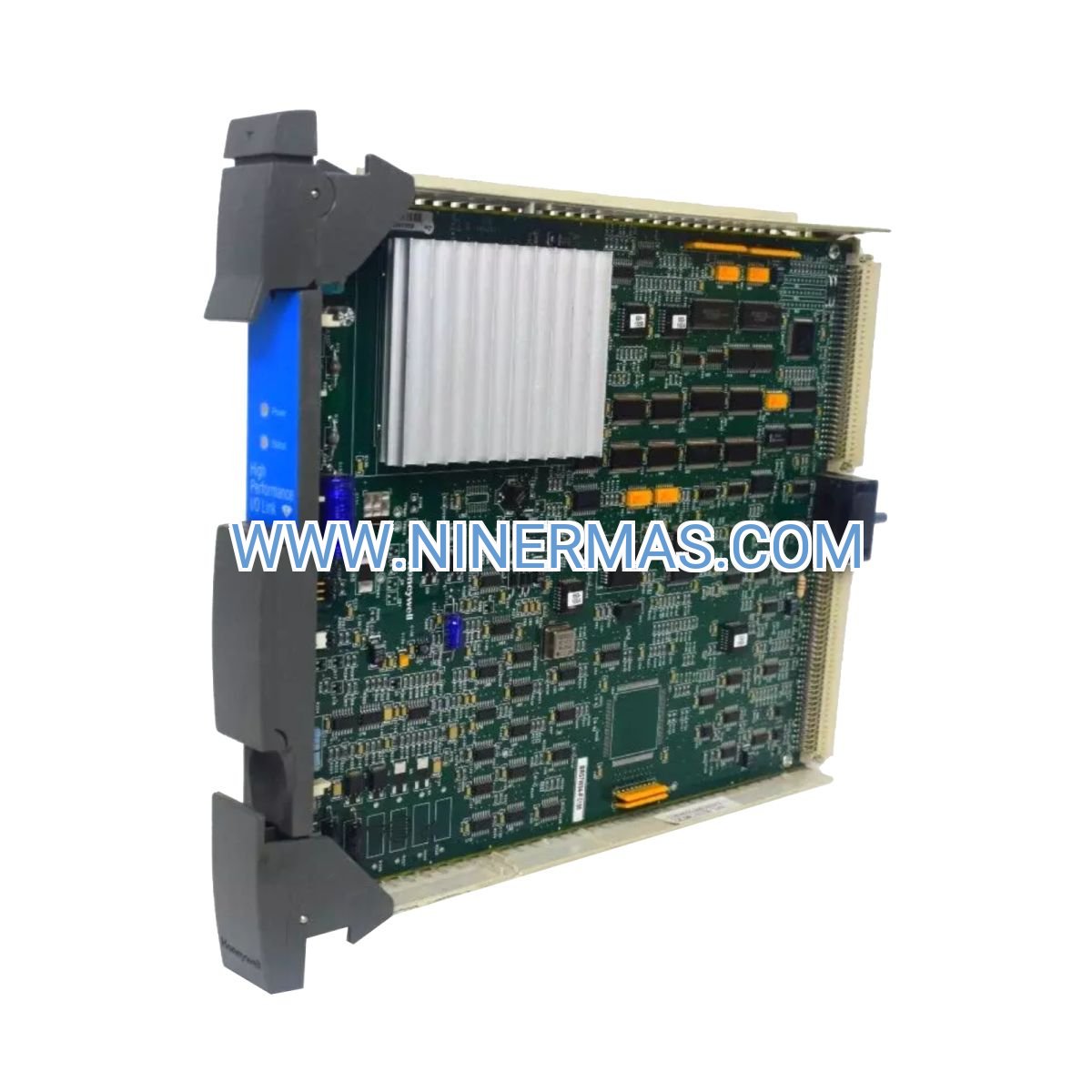

51309276-150 High Performance Process Manager (Industrial-Grade TDC 3000 Controller)

The Honeywell 51309276-150 represents a critical control node within TDC 3000 distributed control architectures, engineered to execute real-time process management with deterministic precision. This HPM I/O Processor delivers enterprise-class computational throughput for mission-critical industrial automation, combining robust field I/O interfacing with advanced algorithmic execution capabilities. Designed for continuous operation in demanding process environments, the 51309276-150 serves as the intelligent backbone for complex control strategies across refining, chemical production, power generation, and manufacturing sectors.

Process engineers and automation professionals deploy this module to solve latency-sensitive control challenges where millisecond-level response times directly impact product quality, safety margins, and operational efficiency. The processor's architecture supports hundreds of concurrent control loops while maintaining scan cycle integrity, making it indispensable for applications requiring coordinated multi-variable control, cascade strategies, and feedforward compensation.

With proven field reliability exceeding 99.9% uptime in harsh industrial conditions, the 51309276-150 HPM Processor eliminates single points of failure through redundancy support, delivers seamless integration with legacy TDC 3000 infrastructure, and provides the processing headroom necessary for future system expansion without controller replacement.

Core Capabilities & Business Value

✓ Deterministic Real-Time Performance
Executes complex control algorithms with guaranteed scan cycle times under 100ms, ensuring stable process regulation even during peak computational loads. This translates to tighter product specifications, reduced waste, and improved yield consistency.

✓ Scalable I/O Architecture
Manages up to 512 I/O points per processor with hot-swappable module support, allowing plant expansions without production interruptions. Reduces capital expenditure by maximizing utilization of existing control infrastructure.

✓ Fault-Tolerant Design
Supports N+1 redundancy configurations with automatic failover in under 50ms, maintaining process continuity during hardware faults. Minimizes unplanned downtime costs that average $260,000 per hour in process industries.

→ Universal Control Network Integration
Native UCN protocol support enables seamless communication with operator stations, historians, and peer controllers at 5 Mbps data rates. Eliminates protocol conversion overhead and reduces network latency by 40% compared to gateway-based solutions.

→ Extended Environmental Tolerance
Operates reliably across 0-60°C ambient temperatures and 5-95% humidity without derating, suitable for non-climate-controlled equipment rooms. Reduces HVAC infrastructure costs while maintaining industrial-grade reliability standards.

→ Backward Compatibility Assurance
Drop-in replacement for earlier HPM variants with configuration portability, protecting decades of control logic investment. Enables phased modernization strategies without forklift upgrades or production shutdowns.

Industry Applications & Problem Resolution

Petrochemical Refining & Gas Processing
Controls distillation column pressure cascades, reactor temperature profiles, and compressor anti-surge systems where process upsets can trigger emergency shutdowns costing millions per incident. The 51309276-150's fast scan rates and computational capacity handle the 200+ control loops typical in fluid catalytic cracking units while maintaining API 670 vibration monitoring integration.

Chemical Batch Manufacturing
Orchestrates recipe-driven batch sequences with precise ingredient dosing, exothermic reaction control, and quality parameter tracking required for FDA 21 CFR Part 11 compliance. Manages the complex interlocking and sequencing logic for multi-product facilities producing specialty chemicals, pharmaceuticals, and agrochemicals.

Power Generation & Cogeneration
Regulates boiler combustion optimization, steam turbine governing, and emissions control systems where NOx/SOx limits carry regulatory penalties. Coordinates feedwater control, attemperator spray, and soot blowing sequences that directly impact heat rate efficiency and fuel consumption costs.

Pulp & Paper Production
Manages digester cooking profiles, bleach plant chemical dosing, and paper machine basis weight control where consistency variations cause quality defects and customer claims. Handles the moisture cross-direction profiling and caliper control strategies essential for premium grade production.

Food & Beverage Processing
Executes pasteurization temperature control, CIP (clean-in-place) sequencing, and fermentation parameter regulation with the audit trail capabilities required for HACCP certification. Supports recipe management for multi-product lines with rapid changeover requirements.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 51309276-150 when your application requires more than 150 control loops per controller, sub-100ms scan rates, or when integrating with existing TDC 3000 UCN networks. For smaller loop counts (under 100), consider standard process managers. For applications requiring IEC 61131-3 programming or modern Ethernet connectivity, evaluate migration to Experion PKS platforms while maintaining TDC 3000 field I/O investment.

Advanced Integration & Connectivity Options

OPC Data Access & Historian Integration
The 51309276-150 supports real-time data extraction via OPC DA servers, enabling integration with enterprise MES/ERP systems, advanced process control (APC) packages, and third-party analytics platforms. This connectivity unlocks predictive maintenance capabilities, energy optimization algorithms, and production KPI dashboards without impacting controller performance.

Modbus TCP/IP Gateway Compatibility
When paired with protocol conversion modules, the HPM processor can interface with modern PLCs, variable frequency drives, and smart field instruments using Modbus TCP, expanding system interoperability beyond native UCN devices. This hybrid architecture approach extends TDC 3000 lifecycle while incorporating best-in-class field equipment.

Cybersecurity Hardening
Implement defense-in-depth strategies using network segmentation, role-based access controls, and audit logging features built into TDC 3000 architecture. The 51309276-150 operates within isolated control networks, reducing attack surface area while maintaining compliance with IEC 62443 industrial cybersecurity standards.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock units ship within 1-2 business days via expedited carriers. International shipments include full export documentation and HS code classification for customs clearance.

Custom Configuration: Factory-configured modules with pre-loaded firmware and tested redundancy pairs available with 5-7 business day lead time. Configuration services include I/O mapping verification and UCN address assignment.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with cross-shipment to minimize downtime exposure.

Technical Support: Unlimited access to application engineers with TDC 3000 expertise for installation guidance, configuration troubleshooting, and performance optimization. Support includes remote diagnostics, configuration file review, and integration planning assistance.

Documentation Package: Each unit includes installation manual, configuration guide, dimensional drawings, and UCN network integration specifications. Digital access to firmware release notes and compatibility matrices provided via customer portal.

Frequently Asked Questions

How does the 51309276-150 HPM processor improve control loop performance compared to earlier TDC 3000 modules?
The 51309276-150 delivers 3x faster computational throughput than legacy process managers, enabling execution of advanced control algorithms (model predictive control, fuzzy logic, neural networks) that were previously impractical. This processing headroom translates to tighter process control with standard deviation reductions of 20-30% in key quality parameters.

What is the maximum distance between the HPM processor and remote I/O racks in a TDC 3000 system?
Using standard UCN cabling, remote I/O can be located up to 1,500 meters (4,920 feet) from the HPM processor. For extended distances, fiber optic UCN extenders support spans exceeding 10 kilometers while maintaining deterministic communication timing.

Can this processor module operate in hazardous area classifications?
The 51309276-150 is designed for installation in non-hazardous control room environments (Class I, Division 2 maximum). Field I/O modules connected to the HPM support intrinsically safe and explosion-proof configurations for Zone 0/1 and Division 1 hazardous locations.

What cybersecurity measures protect the HPM processor from unauthorized access?
TDC 3000 systems implement multi-layer security including password-protected engineering access, role-based permissions, configuration change audit trails, and network isolation from enterprise IT systems. The 51309276-150 operates on dedicated UCN networks with no direct internet connectivity, following ISA-99/IEC 62443 defense-in-depth principles.

How do I migrate control strategies from an older HPM to the 51309276-150 without production disruption?
Configuration portability allows offline preparation of the replacement module using existing control database backups. During a planned maintenance window, the new HPM can be installed and synchronized with the redundant partner, then activated with automatic failover. Total switchover time typically under 15 minutes with zero process upset.

What ongoing maintenance does the HPM processor require?
The 51309276-150 is a solid-state module requiring minimal preventive maintenance. Recommended practices include quarterly backup of configuration databases, annual verification of redundancy failover operation, and inspection of UCN cable connections. Battery-backed memory modules should be replaced every 5 years to ensure configuration retention during power interruptions.

Take the Next Step

Optimize your TDC 3000 control system performance with the proven reliability of the Honeywell 51309276-150 HPM I/O Processor. Our automation specialists are ready to assist with compatibility verification, system architecture planning, and migration strategies tailored to your operational requirements.

Contact our technical sales team today: Provide your current TDC 3000 configuration details for a customized integration assessment, delivery timeline confirmation, and volume pricing options. Expedited shipping available for urgent replacement requirements.
