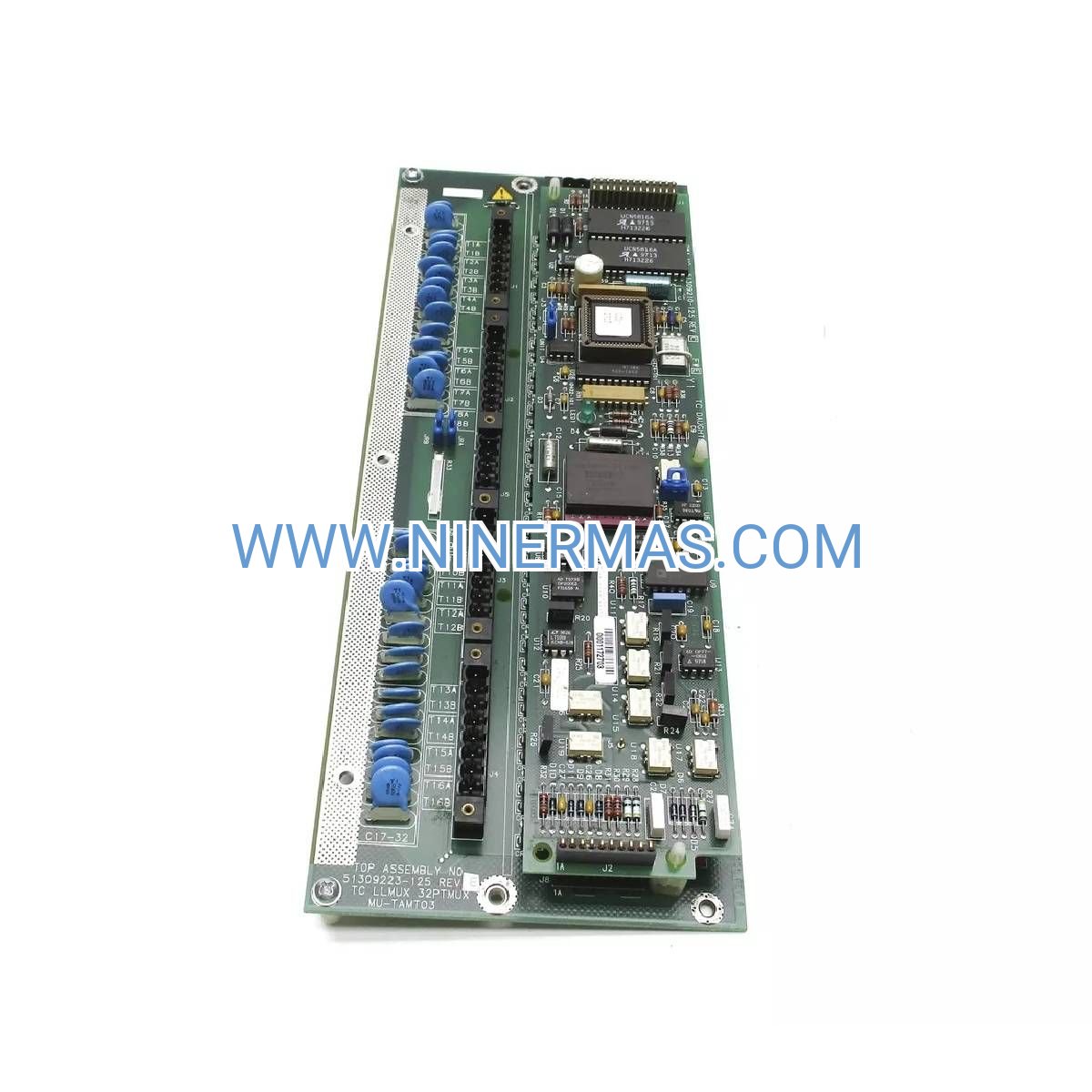

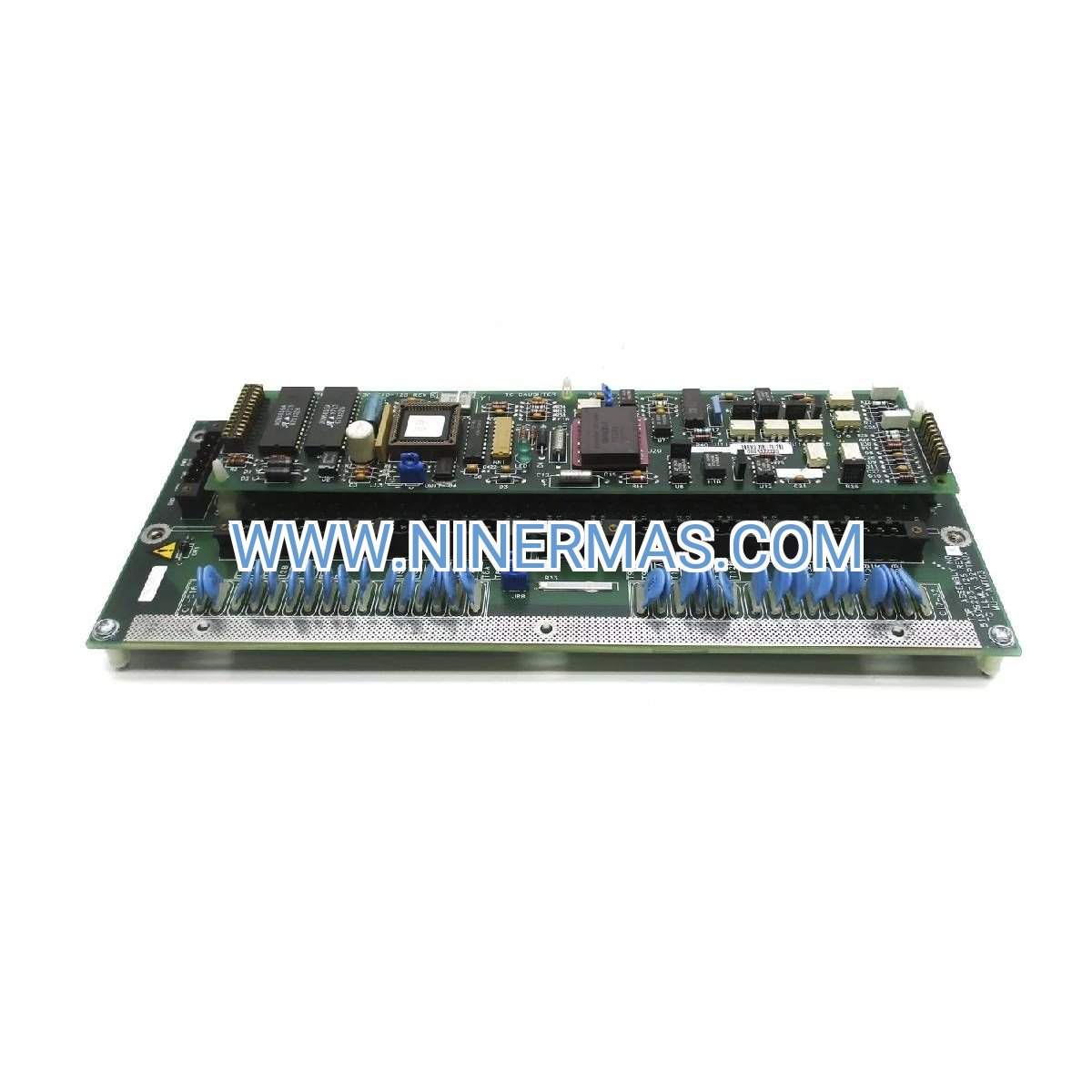

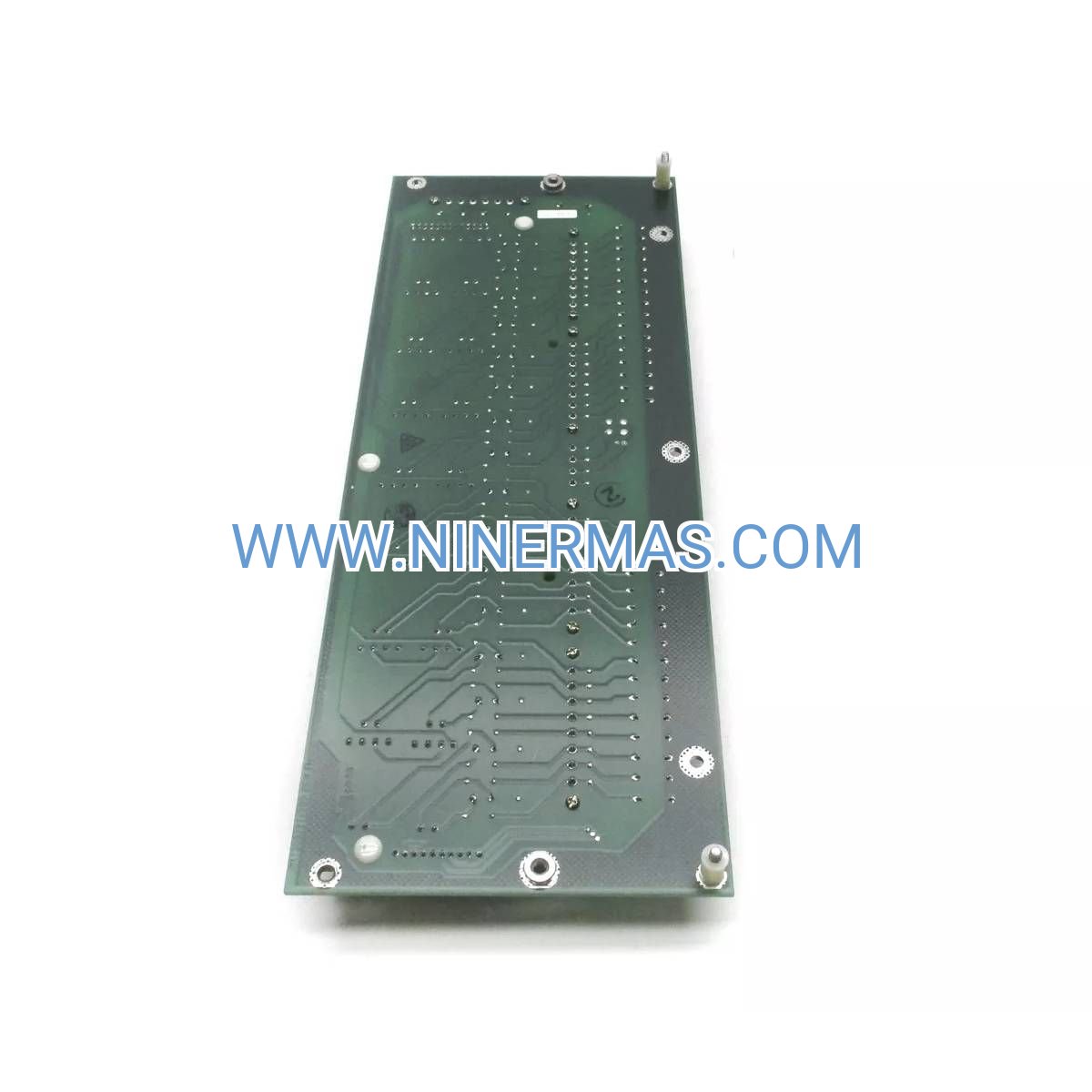

51309223-125 Field Termination Assembly (Industrial-Grade Thermocouple Interface)

The 51309223-125 represents a field-proven solution for acquiring low-level millivolt and thermocouple signals within Honeywell's TDC 3000 distributed control architecture. This 16-channel differential input assembly transforms raw sensor data into actionable process intelligence, enabling operators to maintain tight control over temperature-critical operations across refining, chemical processing, and power generation facilities.

Designed for environments where measurement precision directly impacts product quality and operational safety, this FTA module addresses common challenges including electrical noise interference, sensor drift, and multi-point temperature profiling requirements. Process engineers and instrumentation specialists rely on its robust signal conditioning to ensure regulatory compliance and optimize thermal efficiency.

With factory calibration, plug-and-play integration, and comprehensive diagnostic capabilities, the 51309223-125 reduces commissioning time while delivering the measurement integrity demanded by critical control loops. Whether retrofitting legacy systems or expanding existing TDC 3000 installations, this module provides a cost-effective pathway to enhanced process visibility.

Core Capabilities & Technical Advantages

→ Universal Thermocouple Compatibility
Accepts all standard thermocouple types (J, K, T, E, R, S, B) plus low-level millivolt signals on a single platform. Independent channel configuration eliminates the need for multiple module types, simplifying spare parts inventory and reducing cabinet footprint.

→ Precision Signal Conditioning
16-bit analog-to-digital conversion delivers ±0.1% of span accuracy across the full measurement range. Integrated cold junction compensation automatically corrects for ambient temperature variations, ensuring consistent readings without external reference junctions.

→ Industrial-Grade Noise Rejection
Channel-to-channel and channel-to-system galvanic isolation protects against ground loops and electromagnetic interference. Advanced filtering algorithms maintain signal integrity in electrically noisy environments while preserving fast response times for dynamic processes.

✓ Seamless TDC 3000 Integration
Auto-configuration recognition streamlines installation—the system automatically identifies module type and channel assignments upon power-up. Pre-wired field termination blocks accelerate commissioning and reduce wiring errors.

✓ Proactive Diagnostics
Built-in health monitoring detects open circuits, out-of-range conditions, and module faults before they impact process control. Diagnostic data integrates with TDC 3000 alarm management for centralized maintenance visibility.

✓ Extended Operating Range
Qualified for 0°C to 60°C ambient operation with low power consumption that minimizes cabinet cooling requirements. Ruggedized construction withstands vibration, humidity, and temperature cycling typical of industrial installations.

Industry Applications & Use Cases

Petrochemical Refining
Multi-zone temperature monitoring in distillation columns, crackers, and reformers where precise thermal profiles optimize yield and prevent equipment damage. The module's high channel density supports complex temperature cascades with minimal cabinet space.

Power Generation
Boiler tube temperature monitoring, turbine bearing surveillance, and emissions control system measurement. Reliable data acquisition supports both operational efficiency and environmental compliance reporting requirements.

Pharmaceutical Manufacturing
Validation-ready temperature measurement for reactors, sterilizers, and lyophilizers in GMP-regulated environments. Factory calibration certificates and traceable accuracy support 21 CFR Part 11 compliance documentation.

Metals & Materials Processing
Furnace profiling, heat treatment monitoring, and annealing process control where material properties depend on precise thermal cycles. Fast scan rates capture transient temperature events during batch operations.

Food & Beverage Production
Pasteurization, cooking, and drying process measurement with the accuracy needed for HACCP compliance and consistent product quality. Hygienic installation practices supported by standard industrial wiring methods.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 51309223-125 when your application requires thermocouple or low-level millivolt measurement with high accuracy and noise immunity. For higher-level 4-20 mA or 0-10 VDC signals, consider complementary high-level analog input modules. Verify that your TDC 3000 cabinet has available I/O slots and adequate power budget for additional modules.

Advanced Features & Integration Options

Flexible Configuration Management
Channel parameters including sensor type, engineering units, and alarm limits are configured through TDC 3000 engineering tools. Configuration databases can be archived and replicated across multiple modules for standardized installations.

Redundancy Support
Compatible with TDC 3000 redundant I/O architectures for high-availability applications. Automatic failover ensures continuous measurement during module replacement or maintenance activities.

Historical Data Integration
Measurement data seamlessly integrates with Honeywell's Uniformance PHD or third-party historians for trend analysis, process optimization, and regulatory reporting. Standard OPC connectivity enables integration with MES and ERP systems.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via expedited shipping
Custom Configuration: 7-10 business days for pre-configured modules with specific channel assignments
Warranty Coverage: 12-month comprehensive warranty against manufacturing defects
Technical Support: Application engineering assistance, configuration guidance, and troubleshooting support included
Documentation Package: Installation manual, calibration certificates, wiring diagrams, and configuration templates provided

Frequently Asked Questions

What thermocouple wire specifications are recommended for optimal accuracy?
Use thermocouple extension wire that matches your sensor type (e.g., Type K extension wire for Type K thermocouples). Shielded cable construction is recommended for runs exceeding 10 meters or in electrically noisy environments. Maintain proper polarity and avoid mixing extension wire types.

Can this module interface with third-party temperature transmitters?
Yes, when transmitters output low-level millivolt signals. However, for 4-20 mA transmitter outputs, a high-level analog input module is more appropriate. Consult the transmitter specifications to verify output signal compatibility.

How does the module handle sensor failures or open circuits?
The module continuously monitors each input channel for open circuit conditions. When detected, the system generates a diagnostic alarm and can be configured to drive the process variable to a safe state (upscale, downscale, or last good value) based on your control strategy.

Is periodic recalibration required for this module?
Factory calibration is stable over the module's operational life. However, many regulated industries require periodic verification per internal quality procedures or regulatory requirements. Verification can be performed using precision millivolt sources without removing the module from service.

What is the maximum cable length between sensors and the FTA module?
Typical installations support up to 100 meters (330 feet) using properly shielded thermocouple extension wire. Longer runs may require signal conditioning or transmitter-based solutions. Cable routing should avoid proximity to high-voltage power cables and variable frequency drives.

Does the module support HART communication or smart sensor protocols?
No, the 51309223-125 is designed for direct thermocouple and millivolt signal acquisition. For smart sensor integration, consider modules with HART or FOUNDATION Fieldbus capabilities within the TDC 3000 product family.

Get Expert Assistance Today

Our application engineers are ready to help you specify the right configuration for your TDC 3000 system. Whether you're planning a new installation, expanding existing capacity, or replacing aging hardware, we provide the technical expertise and genuine Honeywell components you need for reliable process control.

Contact us now for: Technical specifications review, compatibility verification, volume pricing, expedited delivery options, and application-specific configuration guidance.
