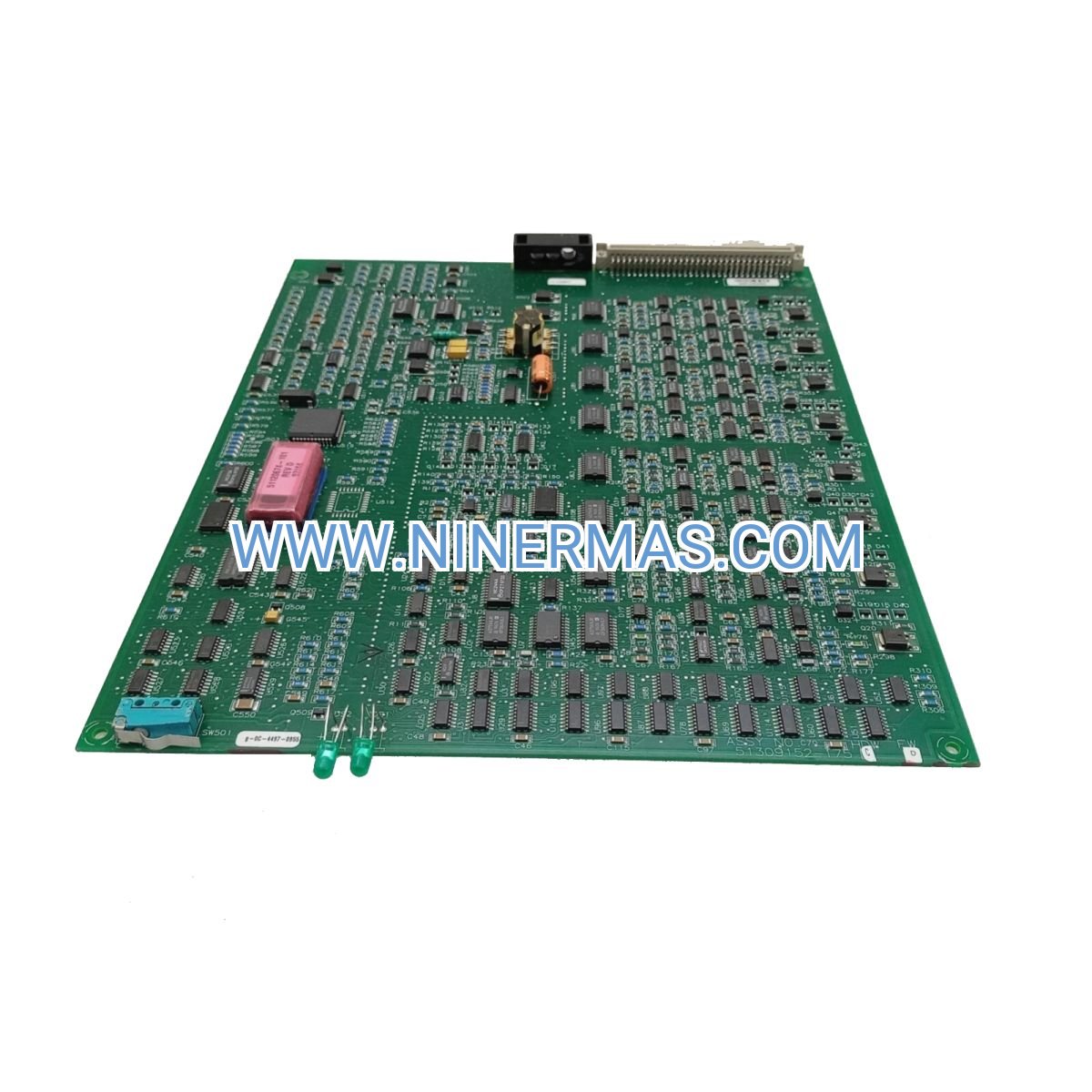

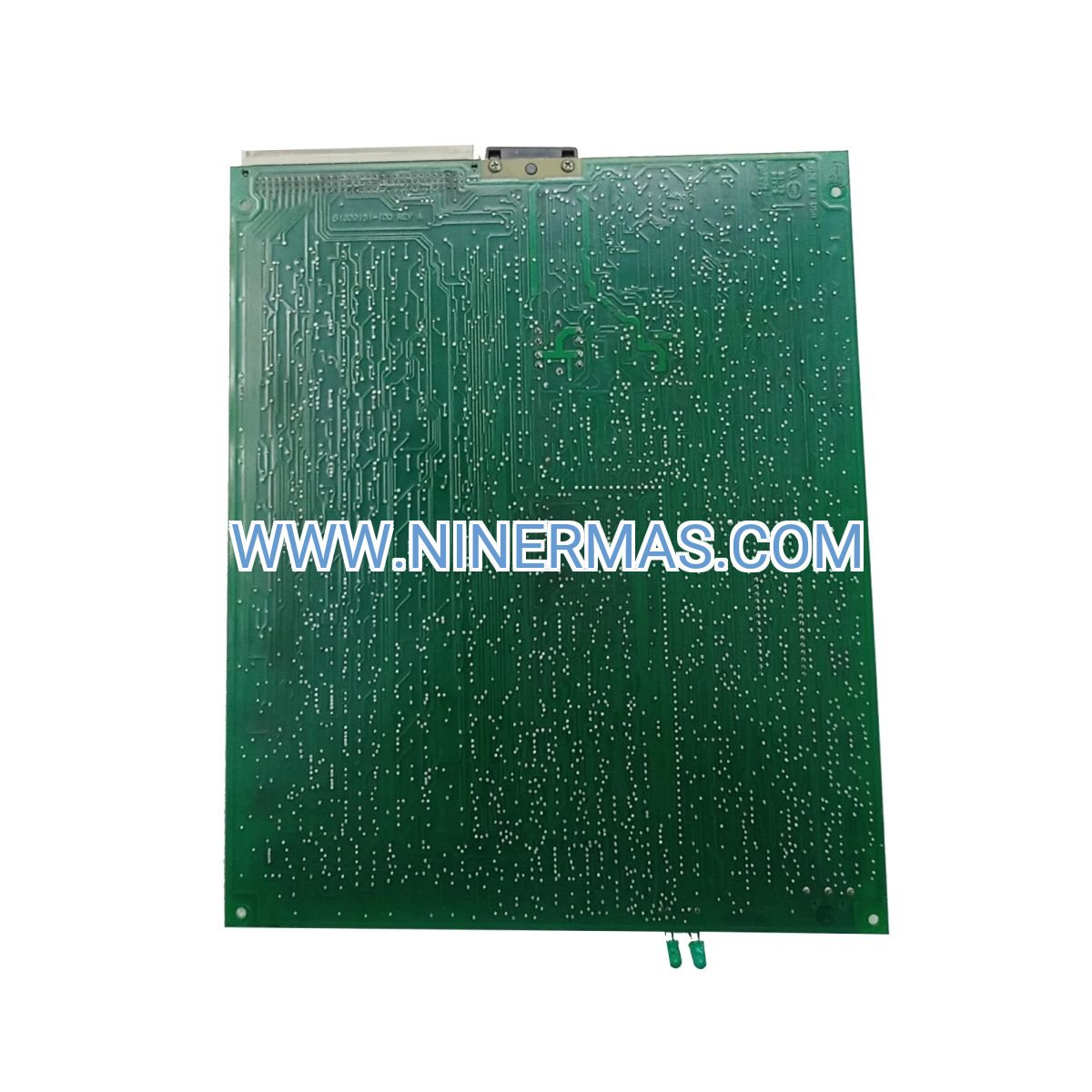

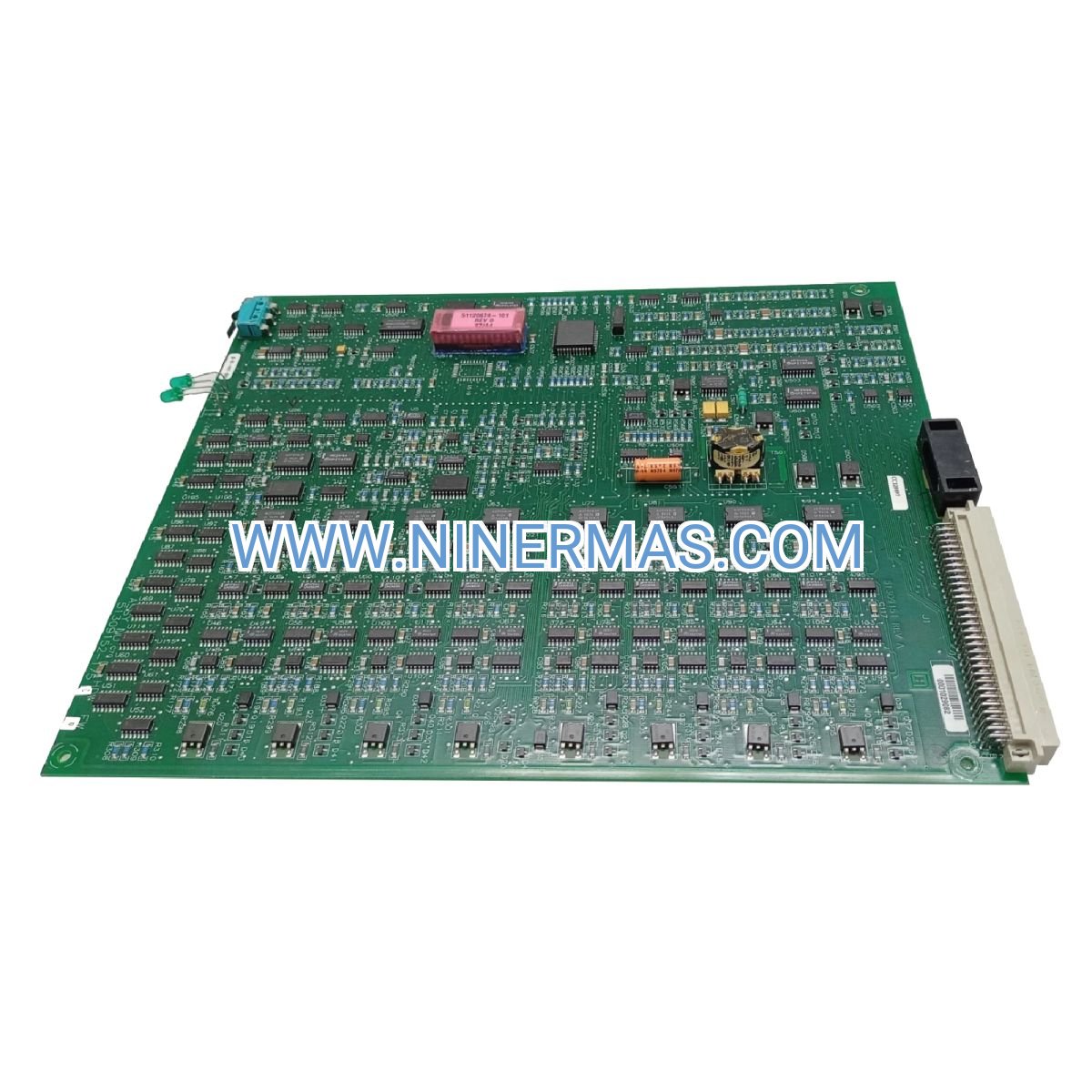

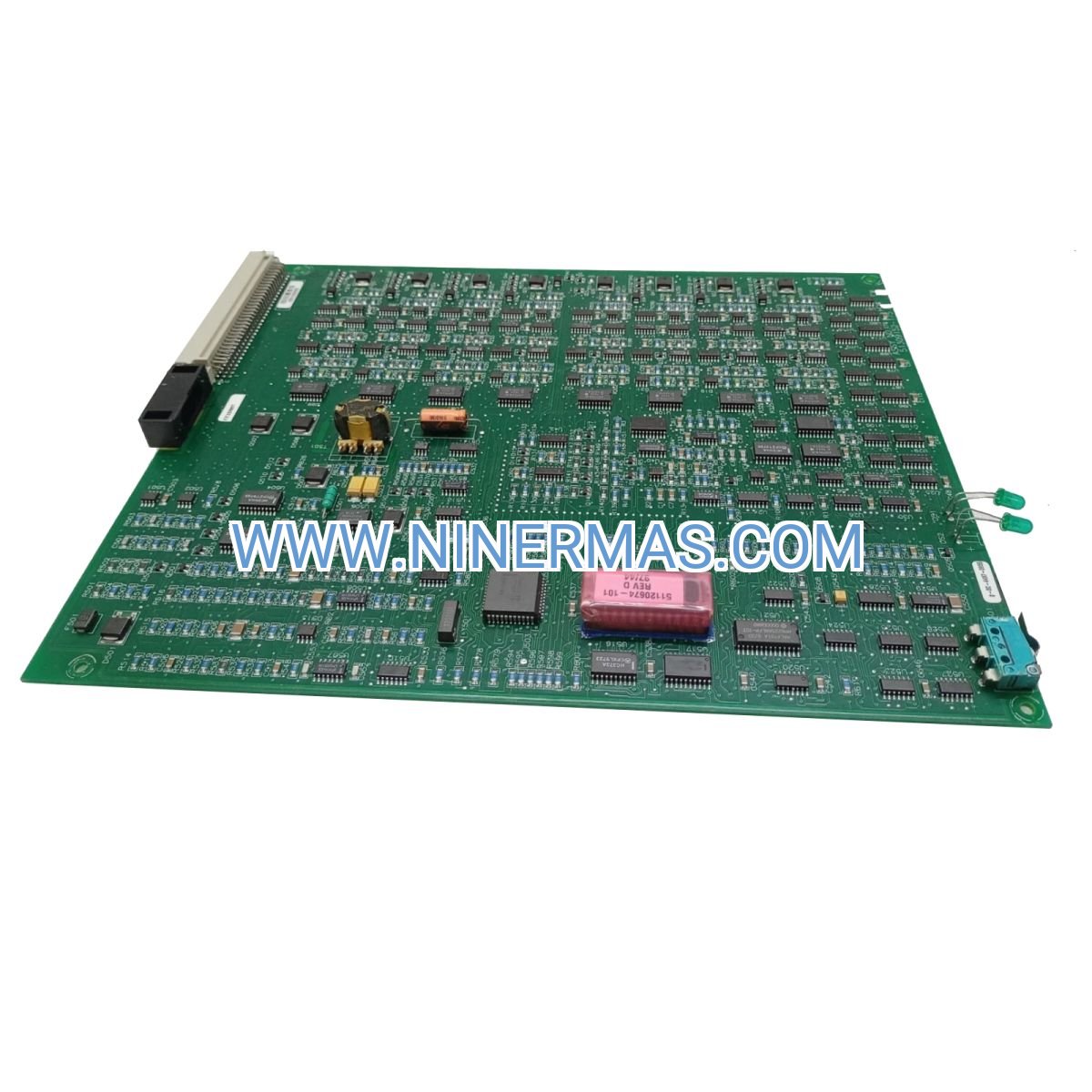

MC-PAOX03 Analog Output Module (Industrial-Grade 4-20mA Controller)

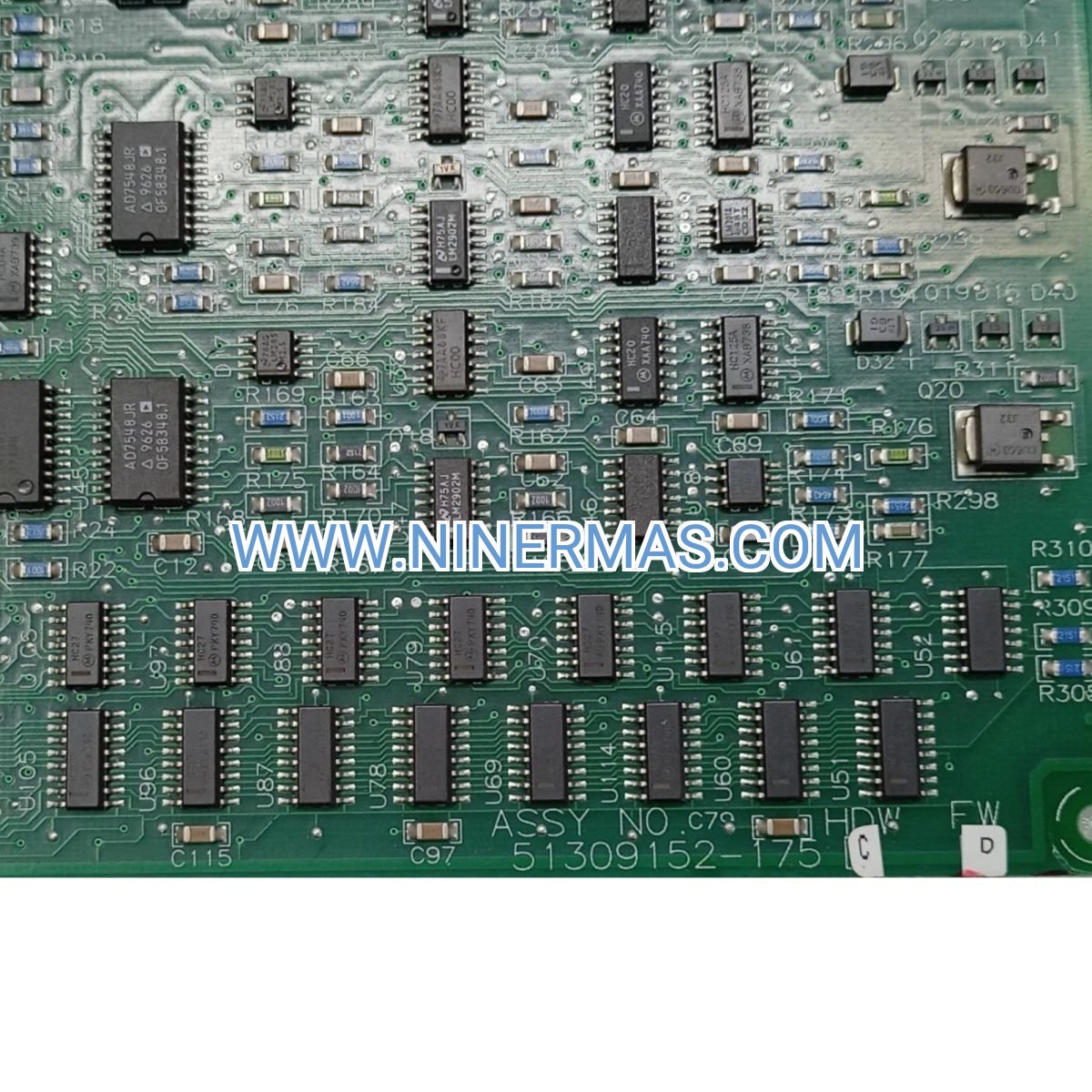

The Honeywell MC-PAOX03 (Part No. 51309152-175) represents a critical control interface for modern distributed control systems, converting digital process values into industry-standard 4-20mA analog signals with exceptional precision. Designed for Experion Process Knowledge System (PKS) and Process Manager platforms, this eight-channel module combines HART digital communication overlay with robust electrical isolation, delivering the reliability demanded by continuous process industries.

Process engineers and automation specialists face constant pressure to maintain tight control loops while minimizing downtime and calibration drift. The MC-PAOX03 addresses these challenges through 16-bit resolution signal conversion, achieving ±0.1% accuracy across the full span—critical for applications where product quality, safety margins, and regulatory compliance depend on precise actuator positioning. Whether regulating flow through control valves, modulating VFD speed references, or positioning pneumatic dampers, this module ensures your process variables remain within specification.

Built for mission-critical installations across oil refineries, chemical plants, pharmaceutical facilities, and power generation stations, the MC-PAOX03 integrates seamlessly into redundant architectures while supporting hot-swap maintenance procedures. With comprehensive diagnostics, channel-level fault isolation, and HART device management capabilities, this module reduces troubleshooting time and extends mean time between failures—delivering measurable improvements in overall equipment effectiveness.

Core Capabilities & Technical Advantages

✓ Eight Independent 4-20mA Output Channels
Drive multiple field devices simultaneously with individually isolated current loops, each capable of sourcing precise analog signals to control valves, positioners, and variable speed drives without cross-channel interference.

✓ HART Protocol Integration on All Channels
Access advanced device diagnostics, remote configuration, and real-time status information without interrupting the primary 4-20mA control signal—enabling predictive maintenance strategies and reducing unplanned shutdowns by up to 35%.

✓ Superior Signal Accuracy (±0.1% of Span)
Maintain tight process control with 16-bit digital-to-analog conversion that minimizes output error, reducing product variability and improving yield consistency in batch and continuous processes.

→ Comprehensive Electrical Isolation
Channel-to-channel and channel-to-backplane isolation protects against ground loops, electrical noise, and fault propagation—critical for installations in electrically harsh environments with multiple grounding points.

→ Hot-Swap Capability in Redundant Systems
Replace failed modules during operation without process interruption when deployed in fault-tolerant configurations, supporting 24/7 production schedules and eliminating costly planned outages.

→ Extended Operating Temperature Range (0-60°C)
Reliable performance in non-climate-controlled equipment rooms and field-mounted enclosures, with thermal management designed for continuous operation at maximum ambient conditions.

Industry Applications & Use Cases

Petrochemical Refining & Gas Processing
Control critical separation processes, reactor temperature cascades, and compressor anti-surge systems where signal integrity directly impacts safety instrumented functions and process optimization. The MC-PAOX03's isolation and accuracy prevent the signal degradation that can lead to flaring events or emergency shutdowns.

Pharmaceutical Manufacturing (cGMP Environments)
Maintain validated control loops for bioreactor pH regulation, sterile filtration pressure control, and clean-in-place (CIP) chemical dosing systems. HART diagnostics provide the audit trail documentation required for FDA 21 CFR Part 11 compliance and batch record integrity.

Power Generation & Cogeneration Facilities
Modulate boiler feedwater flow, turbine governor signals, and emissions control systems with the precision needed to optimize thermal efficiency while meeting NOx and SOx regulatory limits. Redundant module configurations ensure grid stability during maintenance activities.

Water & Wastewater Treatment Plants
Regulate chemical feed pumps, aeration blower speeds, and clarifier rake drives in municipal and industrial treatment facilities. The module's robust design withstands the corrosive atmospheres and temperature fluctuations typical of outdoor installations.

Food & Beverage Processing
Control pasteurization temperatures, ingredient metering pumps, and packaging line pneumatics where recipe accuracy and repeatability determine product consistency. Hot-swap capability minimizes production line stoppages during preventive maintenance windows.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the MC-PAOX03 when your application requires simultaneous HART communication and analog control, particularly in systems where device diagnostics and predictive maintenance justify the investment over basic analog-only modules. For installations requiring intrinsic safety certification for hazardous area field devices, pair with appropriate IS barriers. Maximum recommended loop resistance is 600Ω at 24V DC supply voltage; verify field device impedance and cable resistance during system design.

Advanced Integration & System Expansion

The MC-PAOX03 operates within the Experion PKS Series C I/O subsystem, mounting in standard 19-inch equipment racks alongside complementary input/output modules. For complete process control architectures, combine with digital input modules for discrete device monitoring, analog input modules for sensor signal acquisition, and communication interfaces for third-party device integration.

When designing redundant control systems, deploy dual MC-PAOX03 modules in fault-tolerant configurations using Honeywell's redundancy management protocols—ensuring bumpless transfer during module failures or maintenance activities. The module's hot-swap capability allows technicians to replace units without de-energizing the I/O rack or interrupting adjacent channels.

For legacy system migrations, the MC-PAOX03 maintains backward compatibility with TDC 3000 control strategies when used with appropriate gateway modules and firmware revisions. This migration path protects existing control logic investments while enabling phased upgrades to modern Experion platforms.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via express courier services. Custom-configured modules with factory programming or special certifications require 4-6 weeks from order confirmation.

Warranty Coverage: All MC-PAOX03 modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares inventory.

Technical Support Services: Our automation specialists provide pre-sales application engineering, installation guidance, configuration assistance, and post-commissioning troubleshooting support. Access to detailed technical manuals, wiring diagrams, and configuration software included with purchase.

Documentation Package: Each module ships with installation quick-start guide, safety certifications, calibration certificates, and links to downloadable user manuals, HART device description files (DDFs), and CAD drawings for panel layout planning.

Frequently Asked Questions

What is the maximum cable distance for 4-20mA output signals from the MC-PAOX03?
Typical installations support up to 300 meters (1000 feet) using 18 AWG shielded twisted-pair cable with proper grounding. Actual distance depends on loop resistance—calculate total impedance including field device input resistance, cable resistance (approximately 20Ω per 1000 feet for 18 AWG), and barrier resistance if used. Maximum loop resistance should not exceed 600Ω at 24V DC supply.

Can I configure HART devices through the MC-PAOX03 module without a separate handheld communicator?
Yes, the Experion PKS system provides integrated HART device management through the operator interface and engineering workstation. You can read device parameters, modify configurations, and access diagnostic data directly from the control system HMI—eliminating the need for field-mounted handheld tools in most applications.

Does the module support simultaneous HART communication on all eight channels?
Absolutely. Each of the eight output channels includes independent HART multiplexing circuitry, allowing concurrent digital communication with all connected field devices while maintaining uninterrupted 4-20mA analog control signals. This enables real-time diagnostics across your entire valve and actuator population.

How does the MC-PAOX03 handle open circuit or short circuit fault conditions?
The module incorporates comprehensive diagnostics that detect and report open circuits, short circuits, and out-of-range conditions on a per-channel basis. Fault status appears in the control system's diagnostic displays, and you can configure alarm notifications to alert operators immediately. Individual channel faults do not affect adjacent channels due to electrical isolation.

Is special training required for installation and commissioning of this analog output module?
Basic installation follows standard DIN rail or rack-mounting procedures familiar to instrumentation technicians. However, we recommend Honeywell Experion PKS training for configuration, HART device integration, and advanced diagnostics. Our technical support team can provide remote commissioning assistance and on-site startup services for complex installations.

What energy efficiency improvements does the MC-PAOX03 offer compared to older analog output technologies?
At 5W typical power consumption, the MC-PAOX03 reduces energy usage by approximately 40% compared to legacy analog output cards while delivering superior accuracy and diagnostics. In large distributed control systems with hundreds of I/O points, this efficiency translates to measurable reductions in cooling requirements and UPS battery capacity.

Request Technical Consultation

Our application engineers are ready to assist with system design, module selection, and integration planning for your specific process control requirements. Contact us for detailed technical specifications, compatibility verification, or custom configuration options tailored to your automation architecture.
