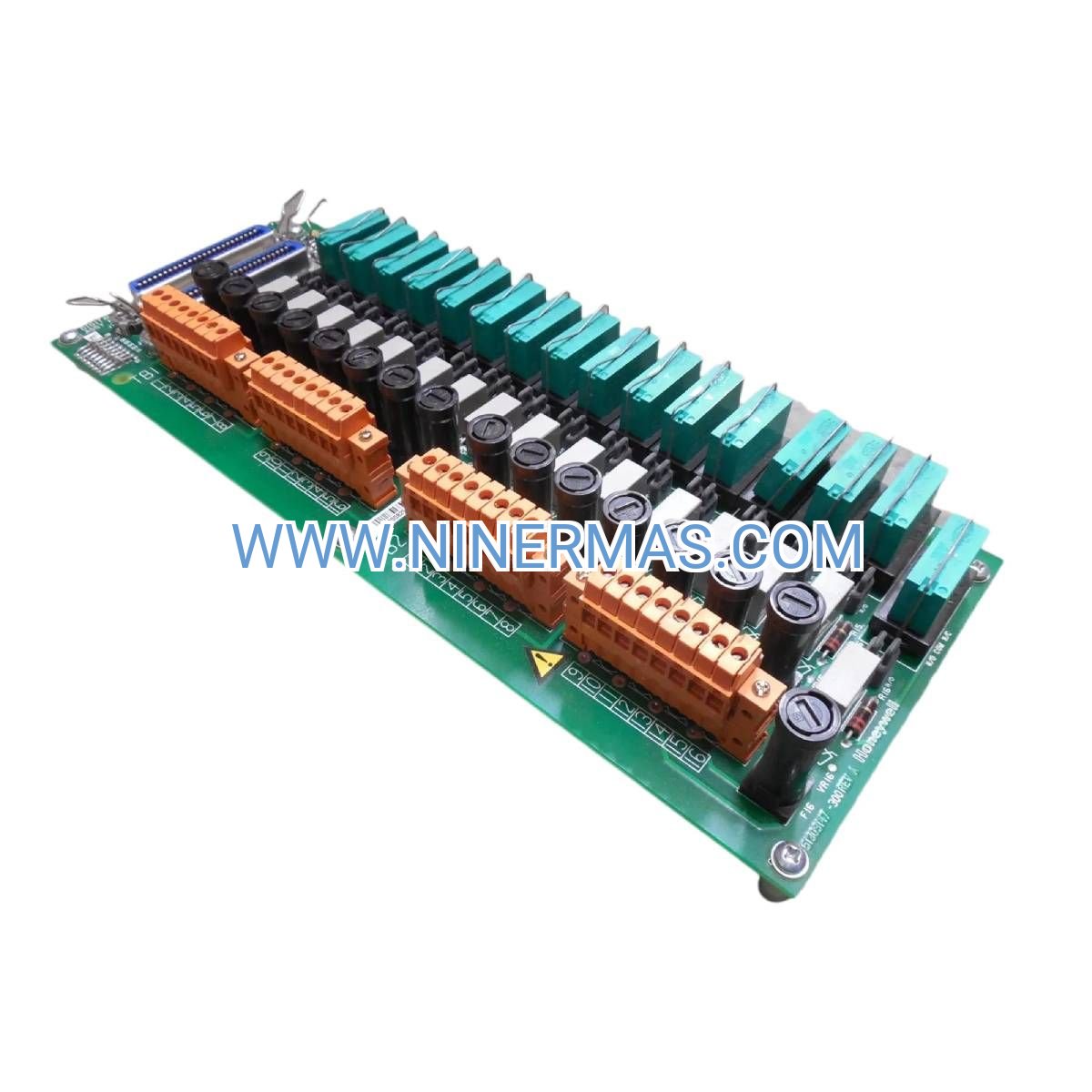

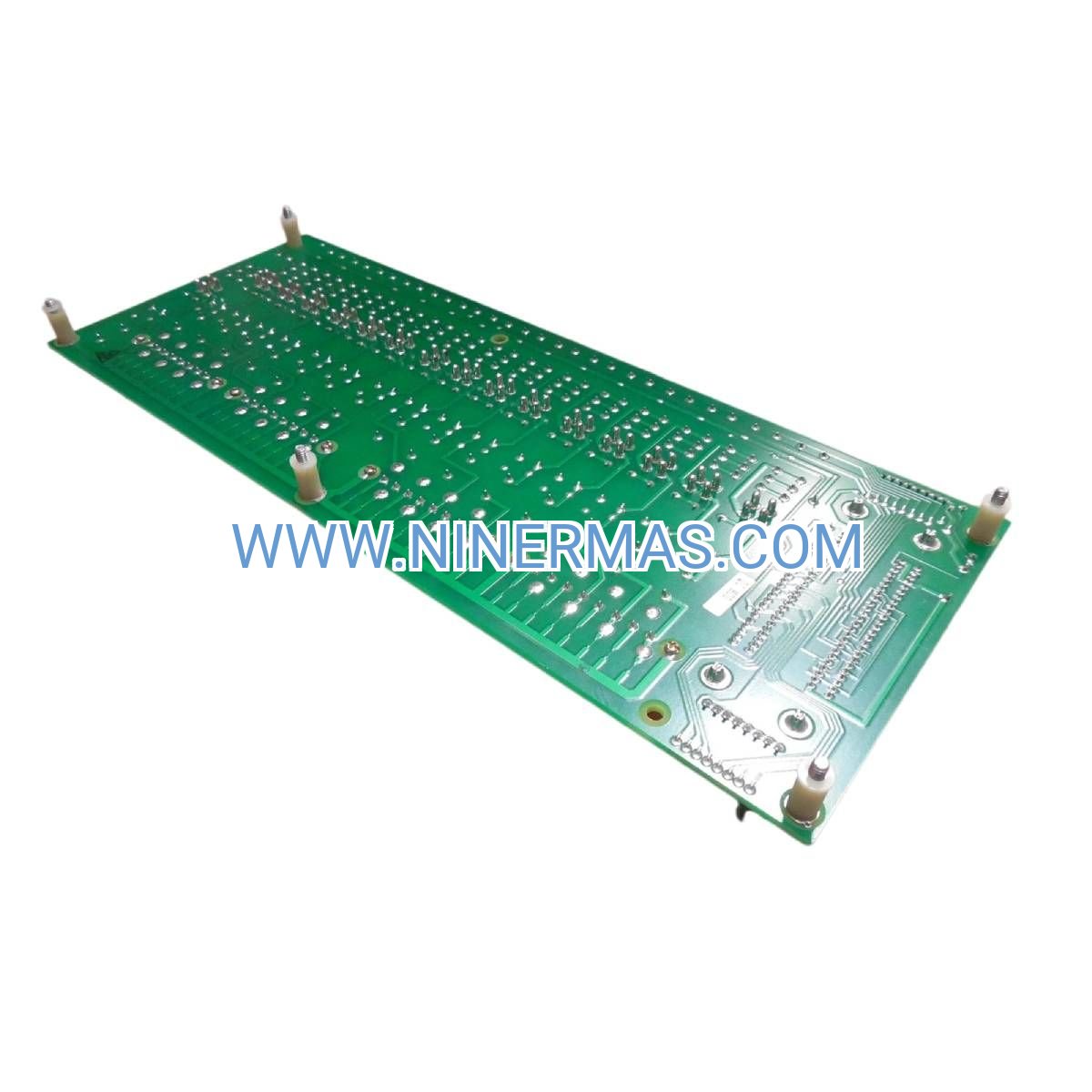

51304718-150 MU-GAIH14 High-Level Analog Input Module (Industrial-Grade Galvanic Isolation & Intrinsic Safety)

The Honeywell 51304718-150 represents a field-proven solution for acquiring high-fidelity analog signals in hazardous industrial environments. This 14-channel Field Termination Assembly (FTA) module combines galvanic isolation technology with intrinsic safety certification, delivering reliable performance across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing sectors. Designed for seamless integration with TDC 3000 and Experion PKS platforms, it addresses critical challenges in signal integrity, electrical noise immunity, and hazardous area compliance.

Process engineers and automation specialists rely on the MU-GAIH14 architecture to eliminate ground loops, protect sensitive instrumentation, and maintain regulatory compliance in Class I Division 1 locations. With 16-bit resolution and ±0.1% accuracy, this module transforms raw field signals into actionable process data while withstanding extreme temperatures from -40°C to +70°C.

Whether you're upgrading legacy systems or designing new installations, the 51304718-150 delivers the performance density and safety credentials demanded by modern industrial control applications. Hot-swappable design minimizes downtime, while comprehensive diagnostics accelerate commissioning and troubleshooting workflows.

Core Capabilities & Business Value

✓ Multi-Layer Isolation Architecture
Channel-to-channel and channel-to-system galvanic isolation eliminates cross-talk and ground loop interference, reducing measurement errors by up to 85% compared to non-isolated designs. This translates to tighter process control, reduced product variability, and lower scrap rates in precision manufacturing.

✓ Certified Intrinsic Safety Protection
FM, CSA, and ATEX approvals for Class I Division 1 hazardous locations eliminate the need for external barriers or purge systems. Simplifies installation in refineries, chemical plants, and offshore platforms while reducing capital costs by 30-40% versus traditional zener barrier approaches.

✓ High-Density I/O Configuration
14 analog input channels per FTA slot maximize cabinet utilization and reduce footprint requirements. A typical 100-point system requires 40% less panel space compared to 8-channel alternatives, lowering enclosure costs and simplifying cable management.

✓ Universal Signal Compatibility
Software-configurable inputs accept 0-10V DC, 0-20mA, and 4-20mA signals without hardware modifications. Field technicians can adapt to changing instrumentation requirements in minutes rather than hours, reducing commissioning time and engineering change order costs.

✓ Hot-Swap Serviceability
Replace failed modules during operation without process shutdown or controller reboot. Pharmaceutical batch processes and continuous chemical reactors maintain production continuity, avoiding costly batch losses that can exceed $50,000 per incident.

✓ Integrated Diagnostic Intelligence
Real-time LED indicators and software-accessible fault registers pinpoint wiring errors, sensor failures, and out-of-range conditions within seconds. Maintenance teams reduce mean-time-to-repair by 60% through rapid fault isolation.

Industry Applications & Problem Resolution

→ Upstream Oil & Gas Production
Offshore platforms and wellhead facilities face extreme vibration, temperature swings, and explosive atmospheres. The 51304718-150 acquires pressure, temperature, and flow measurements from subsea sensors and topside separators while meeting stringent safety standards. Galvanic isolation prevents stray currents that could trigger false shutdowns, maintaining production uptime above 98.5%.

→ Petrochemical Refining Operations
Distillation columns, crackers, and alkylation units demand precise temperature cascade control and composition monitoring. This module interfaces with chromatographs, pH analyzers, and RTD transmitters in Zone 1 classified areas, enabling advanced control strategies that improve yield by 2-3% and reduce energy consumption by 8-12%.

→ Power Plant Turbine Monitoring
Combined-cycle and coal-fired facilities require millisecond-level response for vibration analysis, bearing temperature surveillance, and emissions compliance. The 16-bit A/D conversion captures subtle signal variations that predict bearing failures 72 hours in advance, preventing catastrophic turbine damage and $2M+ repair costs.

→ Pharmaceutical Batch Processing
FDA 21 CFR Part 11 validation demands traceable, tamper-proof measurement systems for reactor temperature, pressure, and pH control. The module's deterministic scan rates and built-in calibration records support regulatory audits while maintaining ±0.1% accuracy across 18-month calibration intervals.

→ Chemical Specialty Manufacturing
Polymer reactors and specialty chemical synthesis require tight ratio control and exothermic reaction monitoring. The MU-GAIH14 handles corrosive atmospheres and wide ambient temperature ranges, enabling unmanned overnight operations that increase asset utilization by 35%.

Technical Parameters & Selection Criteria

Selection Considerations: Choose the 51304718-150 when your application requires intrinsic safety certification AND galvanic isolation. For non-hazardous locations, the 51304718-175 (non-IS version) offers identical performance at 15% lower cost. If you need only 8 channels, consider the MU-GAIH08 variant to optimize cabinet space. Verify compatibility with your existing FTA rack generation—Gen 3 racks require adapter kits for legacy modules.

Advanced Integration Features

Redundant Architecture Support: Deploy dual modules in 1:1 redundancy configurations with automatic failover. The Universal Control Network (UCN) or Process Manager detects module faults within 100ms and seamlessly transfers control to the backup module without process disruption. Ideal for SIL 2 safety instrumented systems and critical control loops.

Predictive Maintenance Enablement: Built-in diagnostics monitor signal quality, detect open circuits, and identify sensor drift patterns. Export diagnostic data to Honeywell Asset Performance Management (APM) software for machine learning-based failure prediction. Customers report 45% reduction in unplanned maintenance events.

Cybersecurity Hardening: Firmware-level access controls and encrypted configuration files prevent unauthorized parameter changes. Complies with IEC 62443 industrial cybersecurity standards, supporting defense-in-depth strategies for critical infrastructure protection.

Third-Party Device Integration: Modbus RTU and HART protocol support (via companion modules) enables connection to smart transmitters, analyzers, and variable frequency drives. Leverage existing instrumentation investments while migrating to modern DCS platforms.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock modules. Expedited 24-hour shipping available for critical outages at no additional charge for orders above $5,000.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month warranties available for preventive maintenance contracts.

Technical Support: Unlimited phone and email support for configuration assistance, troubleshooting guidance, and integration planning. Average response time under 2 hours during business hours, 4 hours for after-hours emergencies.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificates, and software configuration templates. Digital copies available for download within 1 hour of order confirmation.

Frequently Asked Questions

Q: How does the 51304718-150 differ from the 51304718-100 model?
A: The -150 suffix indicates 14 input channels versus 13 channels in the -100 version, plus enhanced diagnostic capabilities and extended temperature range (-40°C vs. -20°C lower limit). Both share identical isolation and safety certifications.

Q: Can I retrofit this module into a TDC 2000 system?
A: Yes, with appropriate UCN interface cards and firmware updates. The module is backward-compatible with TDC 2000 Logic Managers running software version 5.3 or later. Consult factory application engineers for migration planning.

Q: What cable specifications are recommended for field wiring?
A: Use 18 AWG shielded twisted-pair cable with 100% foil shield and drain wire. Maximum cable length: 300 meters for 4-20mA current loops, 100 meters for voltage inputs. Belden 9501 or equivalent meets all requirements.

Q: Does the intrinsic safety rating eliminate the need for barriers?
A: Correct—the IS certification is integral to the module design, eliminating external zener barriers. However, proper installation per NEC Article 504 and entity parameters verification remain mandatory for code compliance.

Q: How do I configure input ranges without hardware jumpers?
A: All input ranges are software-selectable through Station configuration software or Universal Station operator keyboards. Changes take effect immediately without module restart, enabling rapid commissioning and field modifications.

Q: What is the recommended calibration interval?
A: Factory calibration remains valid for 18 months under normal operating conditions. High-vibration or extreme temperature environments may require 12-month intervals. Built-in self-test functions verify accuracy without removing the module.
